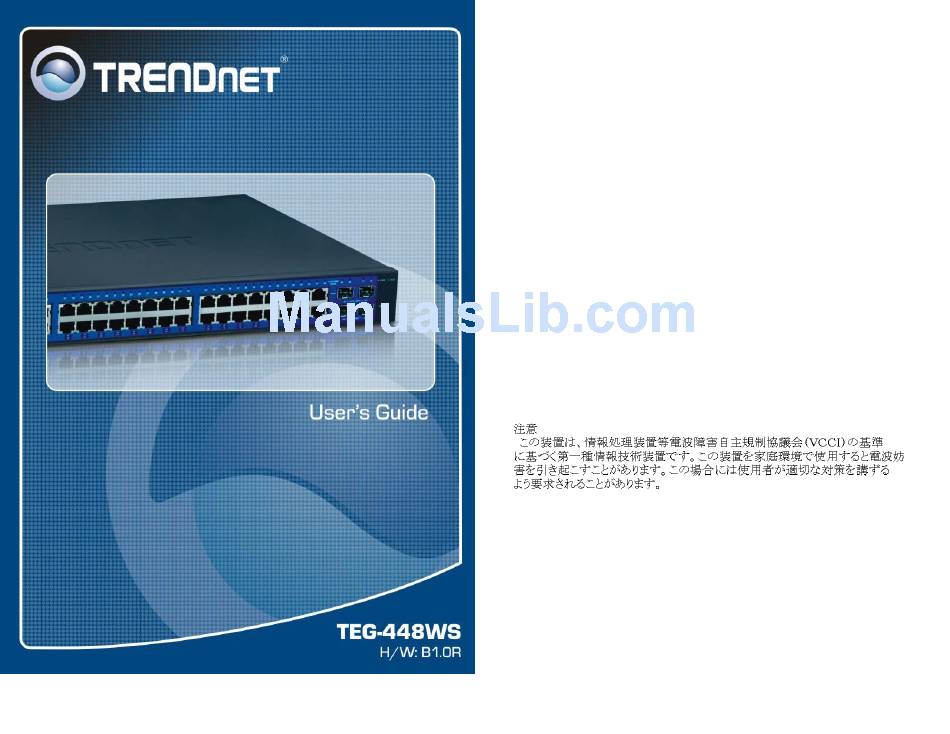

TRENDnet TEG-448WS User Manual

48-port gigabit ethernet web smart switch
Hide thumbs Also See for TEG-448WS:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Enlarged version

FCC Warning

This equipment has been tested and found to comply with the
regulations for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses and radiates
radio frequency energy. If not installed and used in accordance with
the instructions, it may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product
may cause radio interference, in which case the user may be required
to take adequate measures.

VCCI Warning

This is a product of VCCI Class A Compliance.

Advertisement

Table of Contents
loading

Related Manuals for TRENDnet TEG-448WS

Summary of Contents for TRENDnet TEG-448WS

  • Page 1: Fcc Warning

    FCC Warning This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 2 UL Warning a) Elevated Operating Ambient Temperature- If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer's maximum rated ambient temperature (Tmra).

  • Page 3: Table Of Contents

      Installing the Web Management Utility ......... 14 TABLE OF CONTENT   Discovery List ................15   About This Guide ................. 1   Monitor List ................... 16   Purpose .................... 1   Device Setting ................18   Terms/Usage ..................1  ...
  • Page 4   Factory Reset ................51   Backup Setting ................51   Firmware Upload ............... 52   System Reboot ................52   Logout .................... 53   Technical Specifications ..............54...

  • Page 5: About This Guide

    Purpose Gigabit Ethernet Technology This guide describes how to install your TEG-448WS 48-Port Gigabit Gigabit Ethernet is an extension of IEEE 802.3 Ethernet utilizing the Ethernet Web Smart Switch. same packet structure, format, and support for CSMA/CD protocol,...

  • Page 6: Fast Ethernet Technology

    In addition, the phenomenal bandwidth delivered by Gigabit Ethernet Switching Technology is the most cost-effective method to take advantage of today and tomorrow’s rapidly improving switching and routing internetworking Another approach to pushing beyond the limits of Ethernet technology technologies. And with expected advances in the coming years in is the development of switching technology.

  • Page 7: Vlan (Virtual Local Area Network)

    Supports IEEE 802.3x flow control for full-duplex mode ports VLAN (Virtual Local Area Network) Supports IEEE 802.1Q VLAN A VLAN is a group of end-stations that are not constrained by their Supports IEEE 802.1p Priority Queues physical location and can communicate as if a common broadcast Supports IGMP Snooping domain, a LAN.

  • Page 8: Package Contents And Installation

    Open the box of the Switch and carefully unpacks its contents. The packaging should contain the following items: TEG-448WS 48-Port Gigabit Web-Based Smart Switch Quick Installation Guide CD-ROM (Utility & User’s Guide) Power Cord Figure 1.

  • Page 9: Connecting Network Cable

    IDENTIFYING EXTERNAL COMPONENTS Then, use screws provided with the equipment rack to mount each switch in the rack. This chapter describes the front panel, rear panel, and LED indicators of the Switch. Front Panel The figure below shows the front panel of the Switch. Figure 4.

  • Page 10: Rear Panel

    UNDERSTANDING LED INDICATORS The Reset button reset settings back to factory default. Note: Please make sure you copy down or save settings before The front panel LEDs provides instant status feedback for easy pressing “Reset” button. monitoring and troubleshooting. Rear Panel The rear panel of the Switch consists of an AC power connector.

  • Page 11: Ports 1~48 Status Leds

    CONFIGURATION Ports 1~48 Status LEDs You can configure the Switch settings such as VLAN, Trunking, Link/ACT: Link/Activity( left side of each RJ-45 port) QoS… etc using the Web Browser. Amber: When the Link/ACT LED lights green, the respective port is The Web Management Utility allows the user to easily discover the successfully connected to a 10 Mbps Ethernet or 100Mbps Fast Ethernet network.

  • Page 12: Discovery List

    Upon completion, go to Program Files -> Web Management Utility and open the Web Management utility. (Figure 7.) System word definitions in the Discovery List: MAC Address: Shows the MAC Address of the Switch. IP Address: Shows the current IP address of the Switch. Protocol version: Shows the version of the Utility protocol.

  • Page 13: Device Setting

    Trap IP: Shows the IP where the Trap is to be sent. Add Item: To add a device to the Monitor List manually, enter the IP Address of the device that you want to monitor. Subnet Mask: Shows the Subnet Mask. Delete Item: To delete the device in the Monitor List.

  • Page 14: Toolbar

    Firmware Upgrade: Use this option to upgrade the firmware on the In the “View TAB”, there are view log and clear log function, this Switch. function will help you to show trap setting. View Log: To show the event of the Web Management Utility and the device.

  • Page 15: Configuration Menu

    Enter IP address http://192.168.0.1 (the factory-default IP address setting) into the address bar. Figure 13. You can also access the browser configuration through the Web Management Utility. Select the desired Switch in the Monitor and click “Access Web”. When the following dialog page appears, enter the default password "admin"...

  • Page 16: Configuring Setup Settings

    The Link Status in the screen will show the connection speed and duplex mode. If there is no connection to the port, down will be displayed. Configuration menu Configuring Setup Settings Figure 16. Port Setting There are seven options; Port Settings, IEEE 802.1Q VLAN Setting, Trunk Setting, Mirror Setting, IEEE 802.1p Default Priority, Note 1: Be sure to click refresh after switching between media type (Fiber to Copper Broadcast Storm Control Setting and Jumbo Frame Setting...

  • Page 17: Vlan Settings (Ieee 802.1Q Vlan)

    Flow Control: VLAN Settings (IEEE 802.1Q VLAN) This setting determines whether or not the Switch will be handling A VLAN is a group of ports that can be anywhere in the network, but flow control. Set Flow Control to Enable to avoid data transfer communicate as though they were in the same area.
  • Page 18 Untag Asymmetric VLAN Setting: VLAN Settings The IEEE 802.1Q VLAN Configuration page provides powerful VID VID: A unique VLAN ID. management functions. The original default VLAN setting has the VLAN Name: A VLAN name can be setting as user wish. VID as 01, named “default”, and contains all ports as “Untagged”.
  • Page 19 To change exist VLAN setting, press the VID to modify it. PVID settings: While receiving an untagged frame from the port, the switch will assign a tag to the frame, using the PVID of the port as its VID. PVID settings Modify VID Example 1: Here is an example of two VLAN groups with several ports in each...
  • Page 20 Step1: Set VID 01 port 1~24 to “Untag” ports and 25~48 to “Not Member” ports then Example 2: apply settings. 802.1Q Asymmetric VLAN example: Port 1~48 in VLAN1, port1~5 in VLAN2, port1,6~9 in VLAN3. All VLAN1~3 have access to Internet via port 1. Note: The multi-need server must be support IEEE 802.1Q VLAN Asymmetric VLAN setting example Step 2: Create VID 02 and set port 1~24 to “Not Member”...
  • Page 21 Step 3: Create VID 02 and set port 1~5 to “Untag” and port 6~48 to “Not Step 4: Click on PVID settings, change port 1~5 to PVID 2 and port 6~9 to PVID 3 Member” then apply settings. (as shown below) Step 4: Create VID 03 and set port 1~ port 6~9 to “Untag”...
  • Page 22 Step 1: Set VLAN1 port 1 to “Tag” port, port 2~8 to “Untag” ports, and port 9~48 to Tag VLAN Setting “Not Member” ports then apply settings. The IEEE802.1Q protocol defines a new format of the frame; it adds a tag header in the original Ethernet frame, as follows: IEEE802.1Q Tag VLAN is divided by VLAN ID (VID).

  • Page 23: Trunk Setting

    Example 4: Trunk Setting Setting Tag VLAN on two switches. Switch 1’s VLAN 1 (2 ~ 3 ports) The Trunk function enables the user to cascade two or more devices t0 have access to the Switch 2’s VLAN 1 (2 ~ 3 ports). increase bandwidth.

  • Page 24: Ieee 802.1P Default Priority

    IEEE 802.1p Default Priority This feature displays the status Quality of Service priority levels of each port, and for packets that are untagged, the switch will assign the priority in the tag depending on your configuration. The following options are available: TX (transmit) mode: this mode will duplicate the data transmit from the source port and forward to the sniffer port.

  • Page 25: Broadcast Storm Control Setting

    Broadcast Storm Control Setting Advanced Setting The Broadcast Storm Control feature provides the ability to control Find that there are two items, including IGMP Global Setting and the receive rate of broadcasted packets. If Enabled (default is IGMP VLAN Setting in Advanced menu. Disabled), threshold settings of 8,000 ~ 4,096,000 bytes per second IGMP Global Setting can be assigned.

  • Page 26: Igmp Vlan Setting

    IGMP Snooping: Enable or Disable the IGMP Snooping function on restarted whenever a report message from host is received over that the Web Smart Switch. port. If no report messages are received for 'HostPortPurgeInterval' time, the learnt host entry will be purged from the multicast group. Querier State: Enable or Disable the Querier State of IGMP Default is 260 seconds.

  • Page 27: System Settings

    System Settings Find that there are nine items, including System Information, System Setting, Trap Setting, Password Setting, Statistics, Factory Reset, Backup Setting, Firmware Upload and System Reboot in System menu. System Information Press on the “System Information” to present the system information status on this screen, it will show the Product Name, Firmware Version, Protocol Version, MAC Address, System Name, Location Name, IP Address, Subnet Mask, Default Gateway, Trap IP, Login...

  • Page 28: Trap Setting

    mask, and default gateway before using the default or previously entered settings. By default the IP setting is static mode. By entering a System Name and System Location, the device can more easily be recognized through the Web Management Utility and in other Web-Smart devices on the LAN.

  • Page 29: Password Setting

    Refresh: To renew the details collected and displayed. Password Setting Clear Counter: To reset the details displayed. Password is an invaluable tool for the manager to secure access to the To view the statistics of individual ports, click one of the Port ID as Web Management Switch.
  • Page 30 Factory Reset Firmware Upload The Firmware Upload helps you to backup or upload firmware The Factory Reset helps you to reset the device back to the default from/to the Switch. Once you need to backup the current firmware of setting from the factory. All of the configuration will be reset, the IP the Switch, press the “Backup”...
  • Page 31 TECHNICAL SPECIFICATIONS Logout General When you click on Logout, the web configuration will return to the Login screen. Standards IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3x Full Duplex Flow Control IEEE 802.3z 1000BASE-SX/LX Gigabit Ethernet Protocol CSMA/CD Data Transfer Rate...

  • Page 32: Limited Warranty

    1024KBytes per device If a product does not operate as warranted above during the applicable warranty period, TRENDnet shall, at its option and expense, repair the defective product or deliver to customer an equivalent product to replace the defective item. All products that are replaced will become the property of TRENDnet.
  • Page 33 Products SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF returned to TRENDnet must be pre-authorized by TRENDnet with RMA REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION...
