Options
9.2

Options which can be integrated into the electronics box

Local bus adapter (LBA) for fitting optional supplementary boards
The LBA option is a precondition for fitting optional supplementary boards. If there is no LBA in the unit yet, it
must be built into the electronics box before an option board can be slotted in.

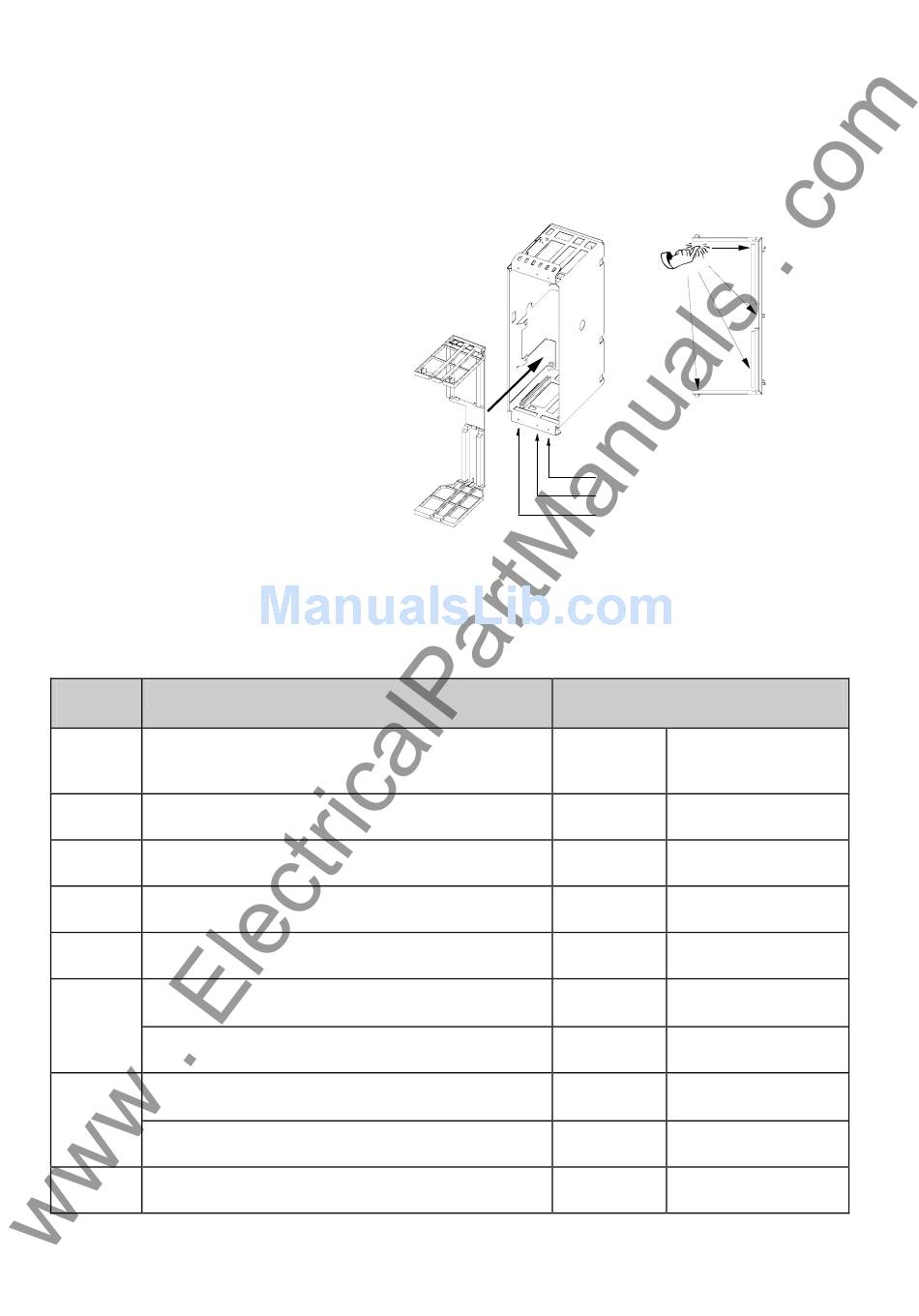

Mounting the local bus adapter LBA in the electronics box
♦ Use the handles to pull out the PSR board
after undoing the two fixing screws.
♦ Push the LBA into the electronics box (for
position, see illustration on the right) until it
clicks in.
♦ Re-insert the PSR board into the left-hand slot
and tighten the fixing screws in the handles.
In order to use the CBC and CBP boards, an ADB (adapter board) is needed in addition to the LBA. Due to their
smaller mechanical dimensions, these boards must be plugged onto an ADB so that they can be slotted into the
electronics box.
The options are supplied with the option description.
Desig- Description
nation
LBA Local bus adapter for the electronics box. This is
required for installing T300, CB1, TSY, SCB1 and
SCB2
ADB Adapter board for small boards. Precondition for fitting
CBC and CBP
T100 Technology board
T300 Technology board for controlling technological
processes
SCB1 Serial communications board with fiber-optic cable for
serial I/O system and peer-to-peer connection
SCB2 Serial communications board for peer-to-peer
connection and USS protocol via RS485
Use of the serial interface with USS protocol
CB1 Communications board with interface for SINEC- L2-
DP, (Profibus)
Use of the PROFIBUS DP interface
CB2 Communications board with interface for CAN protocol
9-2
ENGLISH
Slot 2 (options)
Slot 3 (options)
Slot 1 (PSR)
Order No.
Board 6SE7090-0XX84-4HA0
description 6SE7080-0CX84-4HA0
Board
Board 6SE7090-0XX87-0BB0
description 6SE7080-0CX87-0BB0
Board 6SE7090-0XX84-0AH0
description 6SE7080-0CX84-0AH0
Board 6SE7090-0XX84-0BC0
description 6SE7080-0CX84-0BC0
Board 6SE7090-0XX84-0BD0
description 6SE7080-0CX84-0BD0
Application 6SE7087-6CX87-4KB0
description
Board 6SE7090-0XX84-0AK0
description 6SE7087-0CX84-0AK0
Application 6SE7087-6CX87-0AK0
description
Board 6SE7090-0XX84-0AE0
Description 6SE7087-6CX84-0AK0
Siemens AG 6SE7087-6AC85-0AA0
Common Rectifier Operating instructions
11.98
