B. General Operating Parts

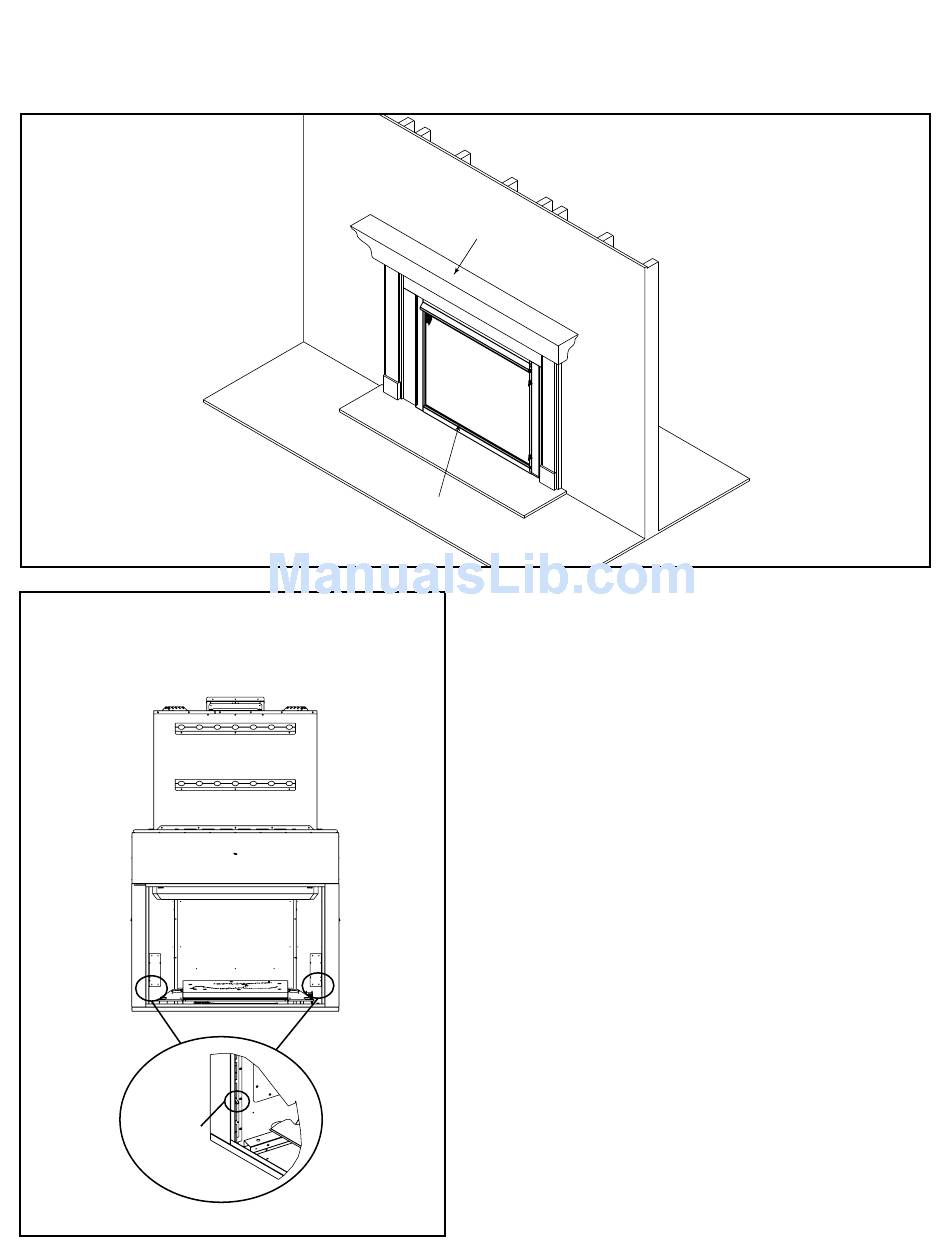

Figure 3.2 references the general operating parts of the
appliance and the section of this manual in which they are
discussed.
Figure 3.2 General Operating Parts
Note: This appliance is equipped with an outside air
handle on both the right and left side of the appliance
opening. Optional AK22 Air Kits must be installed in
order for outside air to function properly.
Outside Air
Handle up-open
Handle down-
closed
Figure 3.3 Outside Air Operation
8
DECORATIVE DOORS
(NOT SHOWN)
SECTION 4.B.
CLEAR SPACE
SECTION 3.A.
CONTROL CAVITY
SECTION 3.I
Heatilator • Legacy42-IFT Owner's Manual • 4095-900 Rev. A • 9/17
MANTEL
HEARTH
(not required)
C. Fuel Specifications
WARNING! Risk of Fire or Explosion! Appliance must
be set up for compatible gas type!
• This appliance is designed to operate on either natural
gas or propane. Make sure the appliance is compatible
with gas type selected for installation site.
• Conversions must be made by a qualified service
technician using Hearth & Home Technologies specified
and approved parts.
