| Connect to the Control Head

Use the following instructions to connect the Sensor cable to the control head.
1. Insert the Sensor NMEA-COM connector into the control head COM port.
The connectors are keyed to prevent reversed installation, so be careful not
to force the connector into the port. See your control head installation guide
for details.

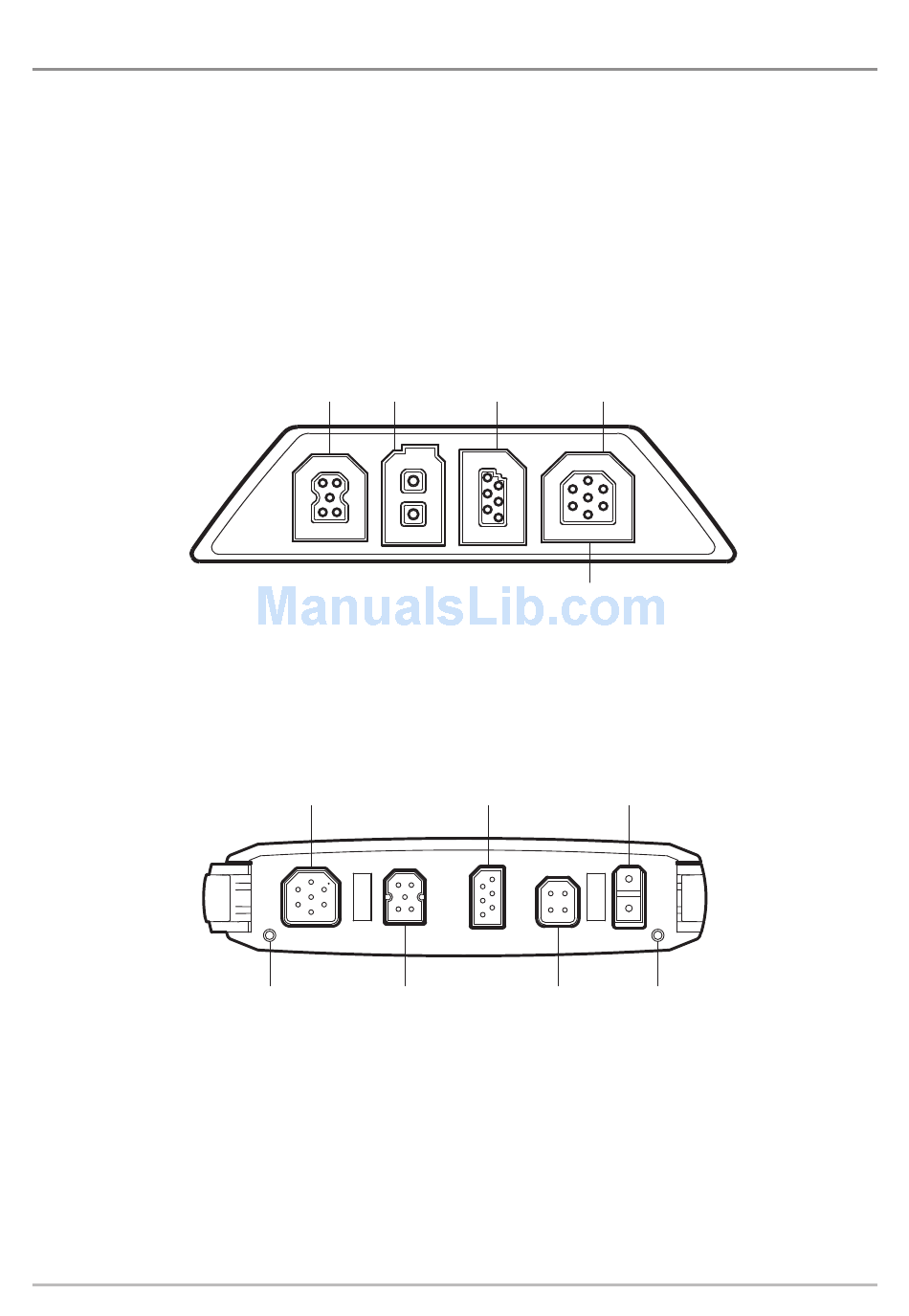

HELIX 7 Control Head Ports
Ethernet power
HELIX 9, 10, 12 Cable Tray
transducer
pin Ethernet
COM
(communications)
transducer
Optional: Use a Y-Cable to connect
Transducer and Speed Sensor Accessory
COM
(communications)
temp/speed
11
power
pin
GPS/Heading Sensor
