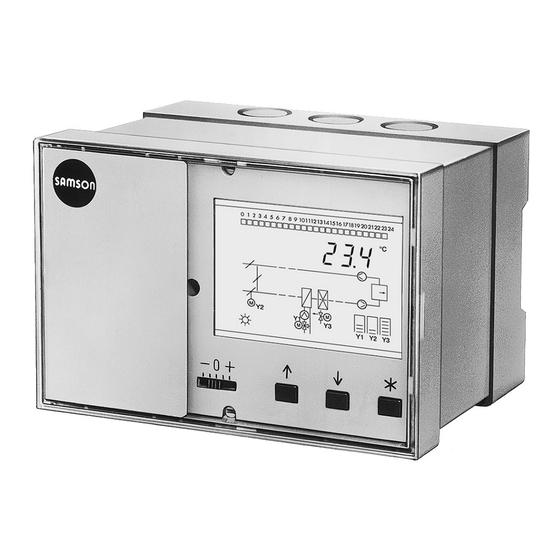

Automation System TROVIS 5400
Ventilation Controller
TROVIS 5477
®
Electronics from SAMSON
Mounting and
Operating Instructions
EB 5477 EN
Firmware version 2.0x
Edition April 2004

Advertisement

Table of Contents
loading

Related Manuals for Samson TROVIS 5400

Summary of Contents for Samson TROVIS 5400

  • Page 1 Automation System TROVIS 5400 Ventilation Controller TROVIS 5477 Mounting and Operating Instructions EB 5477 EN Firmware version 2.0x ® Edition April 2004 Electronics from SAMSON...
  • Page 2 We do not assume any liability for the accuracy or completeness of these mounting and op- erating instructions. SAMSON rejects liability for claims by the buyer, especially claims for compensation including lost profits or any other financial loss, except the damage was caused intentionally or by gross negligence.

  • Page 3: Table Of Contents

    Contents Table of contents Operation ....... 6 Operating controls ......6 1.1.1 Operating keys .
  • Page 4 Contents 5.4.4 Cooling coil ......49 Humidifier ......50 Fans with variable speed .
  • Page 5 Contents External setting of the outdoor air rate ....70 External correction of the humidity set point ....70 External setting of the air volume .

  • Page 6: Operation

    Operation Operation Operating controls The TROVIS 5477 Ventilation Controller can be operated using the operating controls on the front panel. The controller is ready for operation using its default temperature and time schedule settings. On start-up, after switching on the power supply, the correct time and date must be set in the controller (–>...

  • Page 7: Mode Switches

    Operation 1.1.2 Mode switches Operating mode switch Automatic operation with switchover between rated and re- duced operation Rated operation Reduced operation Manual operation Selection switch for manual operation The function of the selection switch depends on the position of the operating mode switch (see above).

  • Page 8: Operating Modes

    Operation Set point correction switch Changes remain effective until the switch position is changed again –: Set point reduction in 1 °C increments per notch 0: No change in set point +: Set point increase in 1 °C increments per notch Operating modes Day mode (rated operation) ( The set points set for rated operation are constantly used by the controller irrelevant of the...

  • Page 9: Display

    Operation Display During operation, the display indicates the current time as well as information about the op- eration of the controller. The times-of-use are represented by black squares below the row of numbers at the top of the display. Symbols indicate the operating status of the controller. 32˚C Y1 Y2 Y3 1 Time schedule...

  • Page 10: Data Retrieval

    Operation Data retrieval You can view information in the operating level concerning various temperatures, control signals, times-of-use, public holidays, states of the binary inputs as well as the baud rate (–> Fig. 30). Which temperatures are shown depends on the system code number and the configuration.
  • Page 11 Operation Press the enter key. symbol and PA blink quickly. Use the arrow key to set the correct time. Y1 Y2 Y3 Press the enter key to acknowledge the time. A date appears on the display Use the arrow key to set the correct date. Y1 Y2 Y3 Press the enter key to acknowledge the date.

  • Page 12: Programming The Time Schedule

    Operation Programming the time schedule You can enter two time periods for every day of the week. If you need just one continuous time-of-use period, set the same time for the start of the sec- ond time period and the end of the first time period. You can set separate times-of-use for the system and, if required, for the fan speed 2.
  • Page 13 Operation Press the enter key to enter the parameter level. The time appears on the display. blinks slowly. Y1 Y2 Y3 Press the arrow key until the same display as shown appears for changing the system times-of-use. START STOP ( START, STOP and the symbol start to blink, additionally blinks with fan speed 2).

  • Page 14: Entering Public Holidays

    Operation Select End . Exit the parameter level. Return to the operating level. Note! The controller automatically returns to the operating level when keys are left unpressed for longer than two minutes. Note! Use just the menu for the individual days to check the programmed time schedules. When time blocks are selected, the times-of-use for the days selected are reset to default settings! 1.6.1 Entering public holidays The controller uses the times-of-use programmed for Sundays on public holidays.

  • Page 15: Entering Vacations

    Operation Select End . Exit the parameter level. Return to the operating level. Note! Public holidays that are not assigned to a specific date should be deleted by the end of the year so that they are not carried on into the following year. Deleting a public holiday: Use the arrow key to select the public holiday you want to delete.
  • Page 16 Operation Press the enter key. symbol blinks quickly. Set when the vacation period should start. Press the enter key to confirm the start of the vacation period. STOP appears on the display. Set when the vacation period should end. Press the enter key to confirm the end of the vacation period. To enter other vacations, press the arrow key until –...

  • Page 17: Start-Up

    Start-up Start-up Setting the system code number and control method This ventilation controller allows ten different systems to be controlled. Each system is as- signed a system code number. You can find a list of the different systems in section 4. In ad- dition, the control method can be determined.
  • Page 18 Start-up Select the required system code number. Confirm the system you have selected. Anl starts to blink slowly on the display. Press upward arrow key. The components of the system and the arrows indicating the control method start to blink on the display. Press the enter key.

  • Page 19: Activating And Deactivating Functions

    Start-up Activating and deactivating functions The controller is configured by setting the function blocks (Fb). You can activate or deactivate function blocks in the configuration level CO . On opening the configuration level, a black square located to the right of a function block number at the top of the display indicates whether function block is activated.

  • Page 20: Changing Parameters

    Start-up Changing parameters Depending on the system code number set and the active functions, not all the parameters are accessible which are listed in the parameter lists in the appendix (−> section 12.2). How to proceed: Change to the configuration and parameter level. PA appears on the display.

  • Page 21: Calibrating Sensors

    Start-up Calibrating sensors The sensor calibration is performed in the configuration level. Fb17 = ON: Pt 100 and Pt 1000 sensors Fb17 = OFF: Pt 100 and PTC sensors The values measured by all the connected sensors can be changed or reset. To proceed, set the sensor value displayed to the temperature measured directly at the measuring point (ref- erence temperature).

  • Page 22: Entering The Key Number

    Start-up Confirm the new temperature. End sensor calibration. Other sensors can be calibrated in the same manner. Press both arrow keys simultaneously to exit parameter level. Return to the operating level. Entering the key number Several functions are protected against unintentional and unauthorized access. These func- tions can only be altered when the code number is known.

  • Page 23: Manual Operation

    Manual operation Manual operation In manual operation mode, all outputs are set, see wiring plan (-> section 11 ). How to proceed: 1. Set the operating mode switch to 2. Slide the selector switch to the output you want to change: Y1 to 3: control signal output 1 to 3 pump(s) output fan(s) output...

  • Page 24: Systems

    Systems Systems The ventilation controller can be used to control ten different types of systems which are as- signed system code numbers in the controller. System code System type System description number Heating coil Ventilation Heating coil Ventilation Cooling coil* Heating coil Ventilation Mixed air chamber...
  • Page 25 Systems System code number 0 Ext. ON Ext. speed 2 Set point (BE7) Speed 1 Speed 2 (AE2) (AE1) (AE3) (AE3) (AA) Fig. 2 · Anl 0 (system code no. 0) (ventilation) Control of the heating coil Outdoor temperature-compensated supply air control (–> section 6.10.1) Fan operation, 2-speed or 0 to 10 V (–>...
  • Page 26 Systems System code number 1 Ext. ON Ext. speed 2 Set point (BE7) (BA4) On/off Speed 1 Speed 2 (AE2) (AE1) (AE3) (AE3) (AA) Specifications in parentheses can be selected as an alternative Fig. 3 · Anl 1 (system code no. 1) (ventilation) Control of the heating and cooling coils Summer compensation (–>...
  • Page 27 Systems System code number 2 (F7) Ext. ON Ext. speed 2 Outdoor Set point air rate (BE7) Speed 1 Speed 2 (F7) (AE2) (AE1) (AE3) (AE3) Specifications in parentheses (AA) can be selected as an alternative Fig. 4 · Anl 2 (system code no. 2) (ventilation) Control of mixed air chamber and heating coil Summer time operation (–>...
  • Page 28 Systems System code number 3 Antifreeze required in Ext. ON Ext. speed 2 HRU. Set point (BE7) BA5 BA1 Speed 1 Speed 2 (AE2) (AE1) (AE3) (AE3) Specifications in parentheses can be selected as an alternative Fig. 5 · Anl 3 (system code no. 3) (ventilation) Control of heat recovery unit (HRU) and heating coil Frost protection for HRU (–>...
  • Page 29 Systems Ext. ON Ext. speed 2 Set point (BE7) Speed 1 Speed 2 (AE2) (AE1) (AE3) (AE3) Specifications in parentheses can be selected as an alternative Fig. 6 · Anl 3 (system code no. 3) with cross-flow heat exchanger (ventilation) Control of heat recovery unit (HRU) and heating coil Heat recovery unit designed as a cross-flow heat exchanger Frost protection for HRU (–>...
  • Page 30 Systems System code number 4 (F7) Ext. ON Ext. speed 2 Set point T Set point rH (BE7) (BA4) On/off Speed 1 Speed 2 (AE2) (AE1) (AE3) (AE3) Specifications in parentheses (AA) can be selected as an alternative Fig. 7 · Anl 4 (system code no. 4) (ventilation) Control of mixed air chamber, heating and cooling coils Summer compensation (–>...
  • Page 31 Systems System code number 5 Ext. ON Ext. speed 2 Set point (BE7) BA5 BA1 On/off Speed 1 Speed 2 (AE2) (AE1) (AE3) (AE3) Fig. 8 · Anl 5 (system code no. 5) (ventilation) Control of heat recovery unit (HRU) as well as heating and cooling coils Summer compensation (–>...
  • Page 32 Systems System code number 6 Ext. ON Ext. speed 2 Set point T Set point rH (BE7) (BA4) On/off Speed 1 Speed 2 (F7) (AE2) (AE1) (AE2) (AE3) (AE4) (AE3) Specifications in parentheses (AA) can be selected as an alternative Fig.
  • Page 33 Systems Antifreeze required heat exchanger. Ext. ON Ext. speed 2 Set point T Set point rH Set point T Set point rH (BE7) Speed 1 Speed 2 (F7) (AE2) (AE1) (AE2) (AE3) (AE4) (AE3) Note: The position of the cooling coil is not shown on the display of the controller as here.
  • Page 34 Systems System code number 7 Ext. ON Ext. speed 2 Set point (BE7) (BA4) On/off Speed 1 Speed 2 (AE2) (AE1) (AE3) (AE3) Specifications in parentheses can be selected as an alternative (AA) Fig. 11 · Anl 7 (system code no. 7) (ventilation) Cooling coil control Summer compensation (–>...
  • Page 35 Systems System code number 8 Ext. ON Ext. speed 2 Set point T Set point rH (BE7) (BA4) Speed 1Speed 2 (F7) (AE2) (AE1) (AE2) (AE3) (AE4) (AE3) Specifications in parentheses can be selected as an alternative Fig. 12 · Anl 8 (system code no. 8) (air-conditioning, only humidification) Control of mixed air chamber, heating coil, cooling coil and humidification Two control loops: Temperature and humidity control Humidification or humidifying and dehumidifying operation configurable (–>...

  • Page 36: System Code Number 9

    Systems System code number 9 Antifreeze required Ext. ON Ext. speed 2 heat exchanger. Set point T Set point rH (BE7) BA5 BA1 (BA4) On/off Speed 1 Speed 2 (F7) (AE2) (AE1) (AE2) (AE3) (AE4) (AE3) Specifications in parentheses can be selected as an alternative Fig.

  • Page 37: Control Methods And System Components

    Control methods and system components Control methods and system components Ventilation and temperature control in air-conditioning systems In temperature control, various control methods are differentiated between: Supply air tem- perature control, exhaust air temperature control, exhaust air cascade control, room and room cascade control.

  • Page 38: Exhaust Air Temperature Cascade Control

    Control methods and system components Functions such as return air temperature limit, summer compensation, manual set point cor- rection or condensation detection can shift the set point. Configuration Functions Control method Exhaust air control (–> page 17) Sensor F2, exhaust air temperature or Fb2 = ON or assignment of inputs AE1 to AE4 Fb18 = ON, option: AE3F2...

  • Page 39: Room Temperature Control

    Control methods and system components Shifts in the set point which are caused by manual set point correction, return air tempera- ture limit, summer compensation or by condensation detection, have unrestricted effects on the exhaust air temperature set point. Configuration Functions Control method Exhaust air cascade control (–>...

  • Page 40: Room Temperature Cascade Control

    Control methods and system components Range of values Parameters Room temperature set point 22 °C 0 to 40 °C 0.1 to 99.9 60 sec 1 to 999 sec – – – – – – to 999 sec 5.1.5 Room temperature cascade control The sensor input F5 is the control variable input for the room temperature and the sensor input F1 is the control variable input for the supply air temperature by default.

  • Page 41: Humidity Control In Air-Conditioning Systems (Anl 6, 8 And 9)

    Control methods and system components Range of values Parameters Room temperature set point 22 °C 0 to 40 °C Temperature set point of the slave loop 22 °C 0 to 50 °C Temperature master loop 0.1 to 99.9 Supply air temperature minimum limit 18 °C 0 °C up to supply air temp.

  • Page 42: Exhaust Air/Room Humidity Control

    Control methods and system components Range of values Parameters Supply air humidity set point 50 %rH 0 to 100 %rH 0.1 to 99.9 60 sec 1 to 999 sec – – – – – – to 999 sec 5.2.2 Exhaust air/room humidity control The sensor input F7 is the control variable input by default.
  • Page 43 Control methods and system components The master loop has a P control response with adjustable Exhaust air humidity set point or Room humidity set point and Kp Humidity master loop . The supply air control is implemented by a PID control algorithm with adjustable Humidity set point of the slave loop . The humidity control loop can be used either just for humidifying or for humidifying and dehumidifying by involving the cooling coil in sequence to the humidifier.

  • Page 44: Inputs

    Control methods and system components Inputs The assignment of the inputs depends on the system code number and the control method (–> section 4). Sensors that are required for the selected control methods are always acti- vated. You must determined separately all the other sensors as well as the functions of the bi- nary inputs by configuring them (–>section 2).

  • Page 45: Mixed Air Chamber

    Control methods and system components Configuration Functions Operating action Y1 Fb21 Range of values Parameters Heating coil 0.1 to 99.9 Heating coil 60 sec 1 to 999 sec Heating coil – – – – – – to 999 sec 5.4.2 Mixed air chamber Mixed air chamber in sequential operation The mixed air chamber is controlled from the Y2 output which can be adapted to the dynam- ics of the mixed air chamber by means of the parameters K...
  • Page 46 Control methods and system components Without outdoor air and exhaust air/ Control extract air temperature feedforwarding signal – System deviation + Control variable With outdoor air and exhaust air/extract Control Control With outdoor temperature air temperature feedforwarding signal signal feedforwarding <...
  • Page 47 Control methods and system components Without outdoor and exhaust air temperature feedforwarding Control signal – System deviation Control variable With outdoor and exhaust air temperature feedforwarding With outdoor temperature feedforwarding Control signal > t < t – System + Control variable Outdoor temperature Outdoor temperature –...

  • Page 48: Heat Recovery Unit (Hru)

    Control methods and system components Outdoor temperature-controlled mixed air chamber For the outdoor temperature-controlled mixed air chamber, two outdoor temperature basic values are determined with the parameters Minimum outdoor air rate when the outdoor tem- perature is smaller and 100 % outdoor when the outdoor temperature is greater which result in a characteristic curve for controlling the mixed air chamber.

  • Page 49: Cooling Coil

    Control methods and system components Control signal Control variable Fig. 18 · Output signals, e.g. in system code number 6 (humidifier only) The operating action of the control output Y2 can be reversed. The default setting is a heat recovery capacity of 0 to 100 % which corresponds to a control signal from 0 to 10 V.

  • Page 50: Humidifier

    Control methods and system components Control signal Heating Cooling Dehumidifying Humidifying Control variable – System deviation + - System deviation + Fig. 19 · Output signals, e.g. in system code number 6 (humidifying and dehumidifying) Cooling can also be controlled using an on/off signal which is issued at the binary output BA4 (–>...

  • Page 51: Fans With Variable Speed

    Control methods and system components Range of values Parameters Humidifier 0.1 to 99.9 Humidifier 60 sec 1 to 999 sec Humidifier – – – – – – to 999 sec Control signal Controlled variable Fig. 20 · Output signals, e.g. in system code number 6 (humidifier only) Fans with variable speed The analog output AA can be used to control the speed of the fans and the air volume based on the air quality.
  • Page 52 Control methods and system components The system runs at an air volume of 75 % to reduce the excess temperature more quickly. The air quality control is implemented by a PI control algorithm with the parameters K quality control and T Air quality control.

  • Page 53: Control Functions

    Control functions Control functions Supply air temperature limit The intention of the supply air temperature limit is to reduce the draft when supply air that is fairly cold is blown in. The temperature range within which the supply air temperature may vary is determined by the parameters Supply air temperature minimum limit and Supply air temperature maximum limit .

  • Page 54: Return Air Temperature Limit

    Control functions Return air temperature limit The temperature range within which the return air temperature may vary is determined by the parameters Return air temperature minimum limit and Return air temperature maximum limit . If the return air temperature moves towards these limits, the set point is corrected (for the cascade control, the set point of the exhaust air or room temperature).

  • Page 55: Sustained Room Temperature

    Control functions If the Return air temperature maximum limit is exceeded by the amount x, the set point (for cascade control, the set point of the exhaust air or room temperature) is reduced by the amount x multiplied with the Return air temperature limit factor. x = Actual return air temperature –...

  • Page 56: Night Purge

    Control functions Set point °C Outdoor temperature °C Fig. 21 · Summer compensation Night purge During the times-of-non-use, the night air can be used to cool the rooms under certain condi- tions: the fan operation (speed 1) is enabled and, if necessary, the mixed air chamber is re- versed to 100 % outdoor air rate.

  • Page 57: Summer Compensation

    Control functions Summer compensation The function is basically available for all systems with a cooling coil (Anl 1, Anl 4 to Anl 9): This summer compensation function lets the temperature set points for supply air, exhaust air and room be shifted in a linear manner by means of two coordinates. For this purpose, the following parameters must be defined: Summer compensation when the outdoor temperature is greater : from this outdoor tem- perature onwards, the temperature set point is raised...

  • Page 58: Air Quality Control Via The Mixed Air Chamber

    Control functions Variable air volume control over AA Fb39 = ON (for variable air volume control) 25 % MIN AA (minimum air volume) / 0 to 100 % (Factor of change) / 0.0 to 10.0* Fan operation dependent on room Fb42 = ON temperature or room humidity MIN: Reaction when limit is not reached...

  • Page 59: Outdoor Temperature-Compensated Control

    Control functions 6.10 Outdoor temperature-compensated control 6.10.1 Outdoor temperature-compensated supply air control The function is basically available in systems with cooling coil and, additionally, in system Anl 0. The function of summer compensation (–> section 6.7) can also be used for an out- door temperature-compensated supply air control.

  • Page 60: Summer Deactivation

    Control functions 6.10.2 Summer deactivation In summer, the heating coil is switched off when the daily mean outdoor temperature (mea- sured every hour between 6:00 and 22:00 hrs) is above the Outdoor mean temperature within a defined time period. If the summer deactivation is active, the heating coil is switched off at 22:00 hrs for the next 24 hours, i.e.

  • Page 61: Control Functions

    Control functions 6.11 Control functions 6.11.1 System start-up Usually, all ventilation systems go over to standard operation first after a start-up phase when a request for operation exists from deactivated state or from manual operation. The duration of the start-up is determined by the parameter Pump advance running time for start-up .

  • Page 62: Circulating Air Mode After System Start-Up

    Control functions Note: An active system start-up is indicated in the operating level by the blinking symbol. Dur- ing this operating phase, you cannot view the master or slave loop set points: in the operat- ing level – – – – appears on the display at the corresponding places! Parameters Range of values Pump advance running time for start-up 300 sec 0 to 900 sec...

  • Page 63: Enabling Fan Speed 2

    Control functions 6.11.4 Enabling fan speed 2 The fan speed 2 is controlled via the binary output BA3. It is enabled either: by Times-of-use for fan speed 2 , by an external demand for fan speed 2, dependent on the air quality, for room temperature control or room temperature cascade control dependent on the room temperature and/or when Fb7 is activated dependent on the room humidity.

  • Page 64: Fan Operation Feedback

    Control functions Configuration Functions Assignment of inputs AE1 to AE4 Fb18 = ON, option: AE4L Range of values Parameters Air quality set point 0 to 100 Differential gap of speed 2 -> 1 5 to 30 6.11.5 Fan operation feedback The operation feedback of the fans can be evaluated with the binary input BE2.

  • Page 65: Controlling The Direct Expansion Evaporator

    Control functions 6.11.7 Controlling the direct expansion evaporator In all systems with cooling coil, the binary output BA4 can be activated dependent on the control signal Y3. The control signal Y3 is available parallely with this function. Function Configuration BA4 dependent on Y3 Fb12 = ON, option: SEQ 30 % START (activating value) / STOP up to 100 %...

  • Page 66: Condensation Detection

    Control functions 6.11.9 Condensation detection In all systems with cooling coil with a dehumidifying function, a condensation monitor can be activated for chilled ceilings. As soon as condensation is detected in standard operation, the set point of the control is raised by 3 °C. If the condensation monitor indicates normal state again, the set point correction is reset.

  • Page 67: Circulation Pump Control For The Hru

    Control functions 6.11.11 Circulation pump control for the HRU In systems with connected heat recovery unit (Anl 3, Anl 5 and Anl 9) the binary output BA5 controls the HRU pump. This pump is only activated when the control signal is Y2 > 0 %. If Y2 is 0 % for longer than three minutes when the system is in operation, the circulation pump is deactivated.

  • Page 68: System-Wide Functions

    System-wide functions System-wide functions Switchover between summer time and winter time The controller switches automatically between summer time and winter time. The summer time is set to begin on the last Sunday in March at 2:00 a.m. and winter time to begin on the last Sunday in October at 3:00 a.m.

  • Page 69: Stand-By Monitoring

    System-wide functions Configuration Function Sensor F6, return flow temperature HRU Fb6 = ON Range of values Parameter Heat recovery minimum temperature 3 °C 1 to 10 °C 7.2.3 Stand-by monitoring The outdoor temperature (F3/AE2) is required for this function. The circulation pump of the heating coil is activated outside of the times-of-use whenever the outdoor temperature falls below the value Pump ON when the outdoor temperature is smaller.

  • Page 70: External Correction Of The Temperature Set Point

    System-wide functions External correction of the temperature set point The set point can be changed at the set point correction switch or by a potentiometer con- nected to input F8. The potentiometer F8 and the set point correction switch both have an ef- fect on the temperature set points.

  • Page 71: External Setting Of The Air Volume

    System-wide functions External setting of the air volume If the function blocks Fb39 and Fb13 are activated, i.e. variable air volume control and ex- ternal demand for operation are configured, a potentiometer at input F12 can be used to trigger an external demand for operation and the air volume can be set. The air volume can be predetermined between the value Minimum air volume (MIN AA) and 100 % .

  • Page 72: External Demand For Fan Speed 2

    System-wide functions External demand for fan speed 2 The fan speed 2 can be demanded via the binary inputs BE4 or BE7. The following applies: Fan speed 2 can only be switched on if the system is already in operation BE4/BE7 = ON starts the system operation with fan speed 2 Configuration...

  • Page 73: External Selection Of The Operating Mode

    System-wide functions 7.10 External selection of the operating mode 7.10.1 External selection of the operating mode using the four-staged switch The operating mode of the ventilation can be determined by an external switch (–> Fig. 24) with four switch positions (OFF, Automatic operation, Fan speed 1 = ON, Fan speed 2 = ON).
  • Page 74 System-wide functions TROVIS 5477 Type 5257-6 Room Panel Type 5257-6 Room Panel (dimensions in mm) Fig. 24 · Connecting the Type 5257-6 Room Panel It is possible to use the room panel to correct a temperature set point or to select an operat- ing mode when it is wired as shown above.

  • Page 75: Request For Externally Required Signal

    System-wide functions 7.11 Request for externally required signal In complex systems, the controller can request the flow temperature required from a primary controller. The required flow temperature is requested at the analog output AA by using a 0 to 10 V signal. 0 to 10 V correspond to 0 to 120 °C. If the heating coil control signal exceeds the limit value Change when Y1 MAX , the request for the externally required signal is increased gradually until the value Flow requirement MAX is reached.

  • Page 76: Outdoor Temperature Output

    System-wide functions 7.12 Outdoor temperature output If the analog output AA is not required for air volume control or the request for the externally required signal and Anl 8 or Anl 9 is not selected, the outdoor temperature is issued as a 0 to 10 V signal at the analog output AA.

  • Page 77: Malfunctions

    Malfunctions Malfunctions Interruptions or short circuits in the sensor wiring along with other malfunctions are indicated on the display with the blinking symbol . Additionally, they are indicated over the fault in- dication output BA6. In the operating level, – – – – appears on the display instead of a measured value when a sensor has failed.
  • Page 78 Malfunctions Note: When Fb14 = ON (Fan operation feedback to BE2) and Fb26 = ON (BE in FSR), should a fault occur, then “Fan malfunction” is registered in the FSR and not just the switching state of BE2. You can read the status register by keeping the enter key pressed down in the operating level when the baud rate appears in the display.

  • Page 79: Communication

    The controller and modem can also be connected using a modem connecting cable (1400-7139). Operation with a four-wire bus to the system bus interface RS-485 The signal level must be converted by a converter (SAMSON TROVIS 5484) for the connec- tion between PC and bus line. Fig. 26 · Network structure The TROVIS 5477 Ventilation Controller is equipped with either a RS-232-C or a RS-485 in- terface depending on the order.

  • Page 80: Rs-232-C Serial Interface

    Communication GNDTD DTR DCD RD RTS RS 232 RS 485 Fig. 27 · Pin assignment RS-232-C and RS-485 RS-232-C serial interface The system bus connection is located on the back of the controller casing (RJ12 jack). A controller can either be directly connected to a serial PC interface (point-to-point connec- tion) or to dial-up modem.

  • Page 81: Interface

    Communication Configuration Functions Fault dialing Fb45 Alternative phone number Fb46 = ON Number of dial attempts GLT An */ 0 to 99 – Alternative phone number* Blocking modem dialing Fb47 Range of values Parameters* Station address 0 to 247 (8 bit), 0 to 999 (16 bit) Baud rate BAUD 9600 150, 300, …, 4800, 9600...

  • Page 82: Description Of The Communication Parameters To Be Set

    Communication Description of the communication parameters to be set Station number The stations number is the controller’s address. It can only be allocated once in a system (net- work). Baud rate ( BAUD ) Transmission rate. Within a bus system, the transmission rate is the same as the transfer rate between the con- trol station and the controller.

  • Page 83: Memory Module

    Communication Memory module The use of a memory module (order no. 1400-7142) is particularly useful for transferring all the configuration data from one TROVIS 5477 Controller to other controllers. The memory module has a sub-D 25-pin female connector on the front panel. After inserting the RJ12 jack of the memory module into the controller, 77 SP appears on the display.

  • Page 84: Installation

    Installation Installation The controller consists of the controller housing with the electronics and the rear panel of the controller with the terminals. It is suitable for panel, wall and top hat rail mounting (Fig. 29). Panel mounting 1. Remove both screws (1). 2.
  • Page 85 Installation Panel mounting Rear panel Controller casing Wall mounting Dimensions in mm: Top-hat rail mounting W x H x D: 144 x 96 x 102 Fig. 28 · Mounting the controller EB 5477 EN...

  • Page 86: Electrical Connection

    Electrical connection Electrical connection Caution! For the wiring and connection of the controller, you are required to observe the regulations of the Association of German Electrical Engineers (VDE) and your local power supplier. For this reason, this type of work must be carried out by a specialist. Caution! The controller inputs are not DC-isolated from the control outputs.
  • Page 87 Electrical connection Connecting the controller Connect the controller as shown in Fig. 30. Note! It is important to observe the system code number and the configuration. 1. Open the casing. 2. Make holes to feed through cables at the marked locations on the top, bottom or back of the rear casing.
  • Page 88 Electrical connection BE10 BE11 BE12 0...10V 0...10V 0...10V 0...10V 0...10V 0...10V 0...10V 0...10V Y , AA GND BA6, BA7 COM AA Analog output AE Analog input BA Binary output BE Binary input F Sensor or potentiometer input GND Ground Y Control output Fig.

  • Page 89: Appendix

    Appendix Appendix 12.1 Function block list CO Fb Function Comment Function block parameter/Range of values (default) Sensor F1, 0 to 9 Fb1 = ON: Sensor active; always active with supply Supply air temperature air/exhaust air cascade control and room cascade control;...
  • Page 90 Appendix Fb Function Comment Function block parameter/Range of values (default) Sensor F7, 0 to 9 Fb7 = ON: Sensor active; always active with exhaust air or room exhaust air, exhaust air cascade, room or room humidity cascade control Fb7 = OFF: Sensor inactive; always inactive if Fb18 = ON with AE4F7 F8, Potentiometer OFF 0 to 9 Fb8 = ON: Set point adjustable by ±5 °C...
  • Page 91 Appendix Fb Function Comment Function block parameter/Range of values (default) 12 BA4 dependent on Y3 or Fb12 = ON: controlling the chiller Select: SEQ (operation in sequence) / 4 to 9 PAr (operation in parallel) Function block parameters with SEQ: for 7 START (Activation value)/ STOP up to 100 % (30 %) only...
  • Page 92 Appendix Fb Function Comment Function block parameter/Range of values (default) 18 Assigning the inputs AE1 to OFF 0 to 9 Fb18 = ON:Determine measured variable and AE4; 0 to 10 V measuring range for AE1 to AE4 ; Select measured variable: –...
  • Page 93 Appendix Fb Function Comment Function block parameter/Range of values (default) 24 Operating action of L OFF 0 to 9 Fb24 = ON: 0 to 100 L = 10 to 0 V Fb24 = OFF: 0 to 100 L = 0 to 10 V 25 BE01 in FSR OFF 0 to 9 Fb25 = ON: Select: StEIG (entry in FSR for rising signal edge;...
  • Page 94 Appendix Fb Function Comment Function block parameter/Range of values (default) 40 Condensation detection 1, 4, Fb40 = ON: Select: BE4, BE7 5, 6*, StEIG (entry in FSR for rising signal edge; make 7, 8*, contact) FALL (entry in FSR for negative signal edge; break contact) Note: Can only be changed with code number.
  • Page 95 Appendix Fb Function Comment Function block parameter/Range of values (default) 46 Alternative recipient OFF 0 to 9 Fb46 = ON: Alternative number; Function block parameters: An (Number of dialing attempts to control station)/ 0 to 99 ( 5) Alternative recipient’s telephone number/0 to 9, P = Pause, - = End;...

  • Page 96: List Of Parameters

    Appendix 12.2 List of parameters Parameters in PA level The parameters displayed below are just examples. The system shown does not appear in the controller. Symbol Parameter description / Range of values (default setting) 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Time Y1 Y2 Y3 Supply air temperature set point...
  • Page 97 Appendix Symbol Parameter description / Range of values (default setting) 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Supply air temperature minimum limit (0 °C to [Supply air temperature maximum limit];...
  • Page 98 Appendix Symbol Parameter description / Range of values (default setting) Temperature master loop (0.1 to 99.9; WE = 1.0) Return air temperature minimum limit (0 °C to [Return air temperature maximum limit]; WE = 20 °C) Return air temperature maximum limit (coordinate 1, 2 re- cognizable from the square located to the right of 1, 2) ([Return air temperature minimum limit] to 100 °C;...
  • Page 99 Appendix Symbol Parameter description / Range of values (default setting) 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Return air temperature limit factor (0 to 10;...
  • Page 100 Appendix Symbol Parameter description / Range of values (default setting) 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Pump ON when the outdoor temperature is smaller START (–50 to 10 °C;...
  • Page 101 Appendix Symbol Parameter description / Range of values (default setting) Date when summer deactivation is enabled 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 START (freely configurable;...
  • Page 102 Appendix Symbol Parameter description / Range of values (default setting) 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Air quality control (0.1 to 99.9; WE = 0.5) Air quality control (1 to 999 sec;...
  • Page 103 Appendix Symbol Parameter description / Range of values (default setting) 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Minimum outdoor air rate (0 to 100 %; WE = 20 %) Y1 Y2 Y3 Minimum outdoor air rate when the outdoor temperature is 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24...
  • Page 104 Appendix Symbol Parameter description / Range of values (default setting) Cooling coil (0.1 to 99.9; WE = 0.5) 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Cooling coil (1 to 999 sec;...
  • Page 105 Appendix Symbol Parameter description / Range of values (default setting) 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Supply air humidity maximum limit % rF ([Supply air humidity minimum limit] to 100 % rH;...
  • Page 106 Appendix Symbol Parameter description / Range of values (default setting) 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Times-of-use for fan speed 2 START STOP (freely configurable;...

  • Page 107: Display

    Appendix 12.3 Display The data points listed below are typical displays that appear in conjunction with system code 1. Symbol Designation of the data point Time Y1 Y2 Y3 Outdoor temperature ° Press enter key: Summer deactivation active (1)/not active (0). Daily mean temperature Number of measured outdoor temperatures.
  • Page 108 Appendix Symbol Designation of the data point Times-of-use (Monday in this example) START STOP Press arrow key: The times-of-use for other week days are displayed. Y1 Y2 Y3 Public holidays (01.01 in this example) Press arrow key: All the other public holidays that have been entered appear on the display.

  • Page 109: Technical Data

    Appendix 12.4 Technical data 10 configurable inputs for Pt100 and PTC sensors, Pt100 and Inputs Pt1000 sensors or binary messages including inputs for humidity measuring F6 and F7: 100 to 138.5 Ω, linear = 0 to 100 %rH or 1000 to 2000 Ω, linear = 0 to 100 %rH 2 inputs F8 and F9 only for potentiometer 1000 to 2000 Ω...

  • Page 110: Resistance Values

    Appendix 12.5 Resistance values Resistance values with PTC measuring element Sensor for outdoor, supply air, exhaust air and mixed air temperature: Type 5215 (duct sen- sor) Sensor for outdoor temperature: Type 5227-2 (wall sensor), for heating coil return air tem- perature and HR circuit temperature: Type 5227-2 (immersion sensor) and Type 5267 (sur- face sensor) Sensors for room temperature Type 5257-1, 5257-6 (room panel)

  • Page 111: Customer Data

    Appendix 12.6 Customer data Station Operator Responsible Samson office System code number Function block settings ON/ OFF Options selected, function block parameters Mixed air temperature control Operation in sequence with extract air temperature; Operation in sequence with exhaust air temperature Outdoor temperature-compensated mixed air chamber operation Enable night purge (START): [24] °C...
  • Page 112 Appendix ON/ OFF Options selected, function block parameters Delay time (START): [180] sec Assignment AE AE1__ AE2__ AE3__ AE4__ Lower measuring range value MIN [−40] °C Upper measuring range value MAX [+50] °C Lower measuring range value MIN [−40] °C Upper measuring range value MAX [+50] °C Lower measuring range value MIN [−40] °C Upper measuring range value MAX [+50] °C...
  • Page 113 Appendix ON/ OFF Options selected, function block parameters StEIG/FALL StEIG/FALL StEIG/FALL StEIG/FALL StEIG/FALL StEIG/FALL StEIG/FALL Activation value (START): [30] %, Deactivation (STOP): [10] % Lag time of fans (STOP):[10) sec Minimum air volume (MIN AA): [25] %; Factor of change (K ): [0.0] (only for cascade control) BE4/BE7, StEIG/FALL...
  • Page 114 Appendix Parameter settings Parameters Range of values Supply air temperature set point 0 to 50 °C Exhaust air temperature set point 0 to 40 °C Room temperature set point 0 to 40 °C Supply air temperature minimum limit 0 to 50 °C Supply air temperature maximum limit 0 to 50 °C Heating coil...
  • Page 115 Appendix Parameters Range of values Date when summer deactivation is disabled 01.01 to 31.12 Outdoor mean temperature 0 to 30 °C Air quality set point 0 to 100 °C Differential gap of speed 2 ->1 5 to 30 Air quality control 0.1 to 99.9 Air quality control 1 to 999 sec...
  • Page 116 Appendix Parameters Range of values Times-of-use Blocks or indivi- Start 1 Stop 1 Start 2 Stop 2 dual days; two Monday times-of-use Tuesday 0:00 to 24:00 Wednesday Thursday Friday Saturday Sunday Times-of-use for fan speed 2 Blocks or indivi- Start 1 Stop 1 Start 2 Stop 2...
  • Page 117 Index Index Date, setting ..... 10 Dialing procedure ....82 Analog output .
  • Page 118 Index Resistance values for temperature sensors110 Return air flow temperature limitation . . . 54 Mixed air chamber Return air flow temperature sensor ..61 Automatic reversal of the operating Return air temperature sensor ..69 action .
  • Page 119 System- System time zeit Baud Baud °C °C bin-E bin-E Operating level System- System time zeit Parameter level . . . Parameter . . . Configuration level . . . Funktionsblöcke ..Function blocks . . . Fig.
  • Page 120 SAMSON AG · MESS- UND REGELTECHNIK Weismüllerstraße 3 · 60314 Frankfurt am Main · Germany Phone: +49 69 4009-0 · Fax: +49 69 4009-1507 EB 5477 EN Internet: http://www.samson.de...

This manual is also suitable for:

Trovis 5477

Table of Contents
