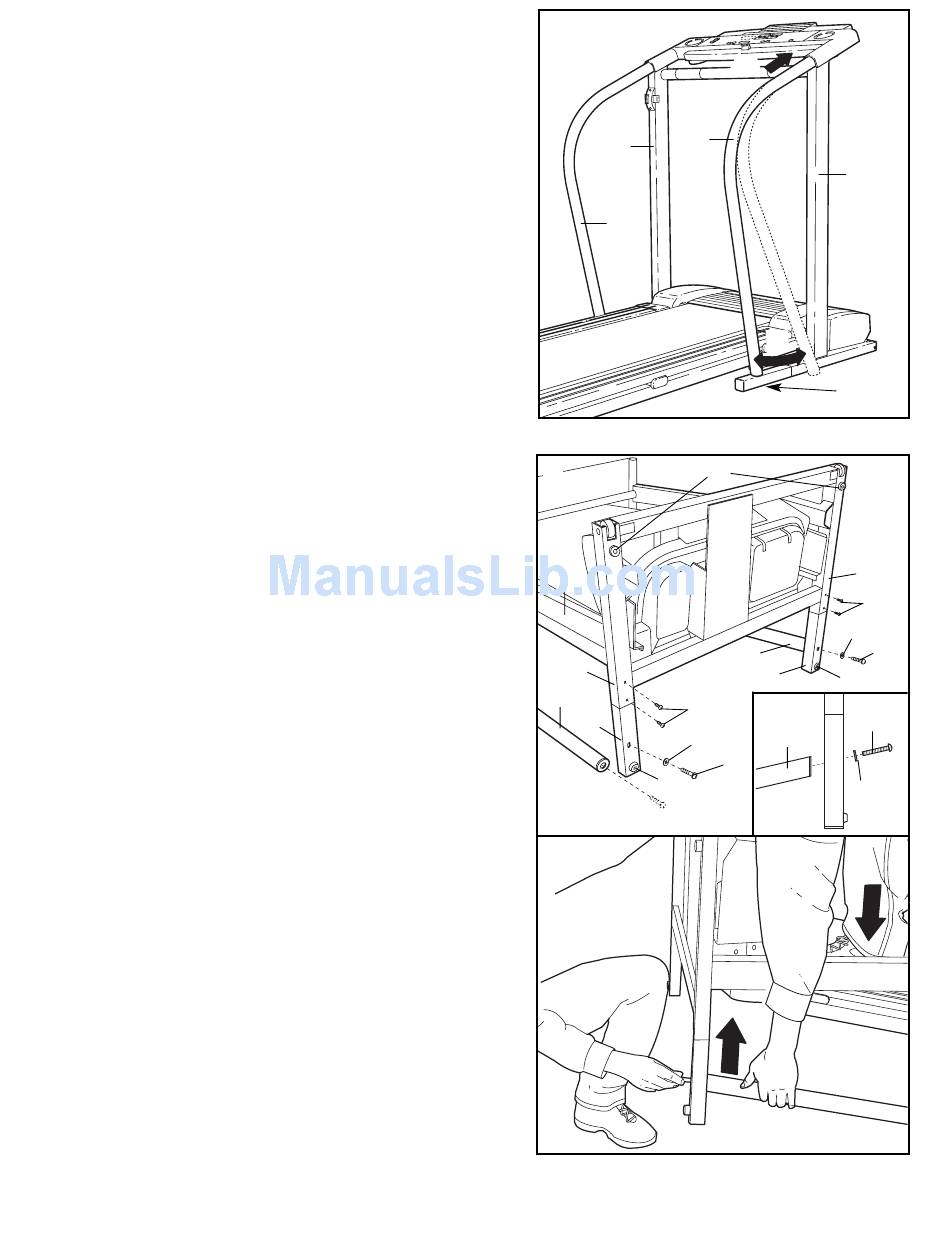

3. Slide the upper end of a Handrail (85) into the right
Upright (82) as shown. Note: It will be necessary to
pivot the Handrail to the side and back repeatedly
(see arrow A) while pushing on the Handrail (see
arrow B) to slide it fully into the Upright. Next, pivot
the lower end of the Handrail down, push it toward the
right Upright, and then align it with the indicated hole.
Slide the other Handrail (85) into the left Upright (82) as
described above.
4. With the help of a second person, carefully tip the
Uprights (82) down as shown. Make sure that the
Extension Legs (103) remain in the Uprights.
Tighten a Handrail Bolt (78) with a Handrail Washer (36)
into each Extension Leg (103) and Handrail (85) as
shown. It may be helpful to pull the Handrail (85) to the
side and hand tighten a Handrail Bolt (78) into the bot-
tom of the Handrail. Notice the angle of the Bolt. Attach
the Bolt and Washer at the observed angle. It should be
close to the same the angle of the Handrail (see inset
drawing).
Note: Refer to figure 4b. To align the hole in the
Handrail with the hole in the Extension Leg, it may be
necessary to move the Handrails up or down or have a
second person stand on the treadmill and lift the
Handrail.
Next, attach each Extension Leg (103) with two Short
Screws (101) as shown.
Note: One replacement Base Pad (97) may be included.
Use the extra Pad if one becomes worn or needs to be
replaced.
With the help of a second person, carefully tip the
Uprights (82) back to the upright position.
5. Make sure that all parts are tightened before you use the treadmill. Keep the included allen wrench in a
secure place. The allen wrench is used to adjust the walking belt (see page 20). To protect the floor or carpet
from damage, place a mat under the treadmill.
