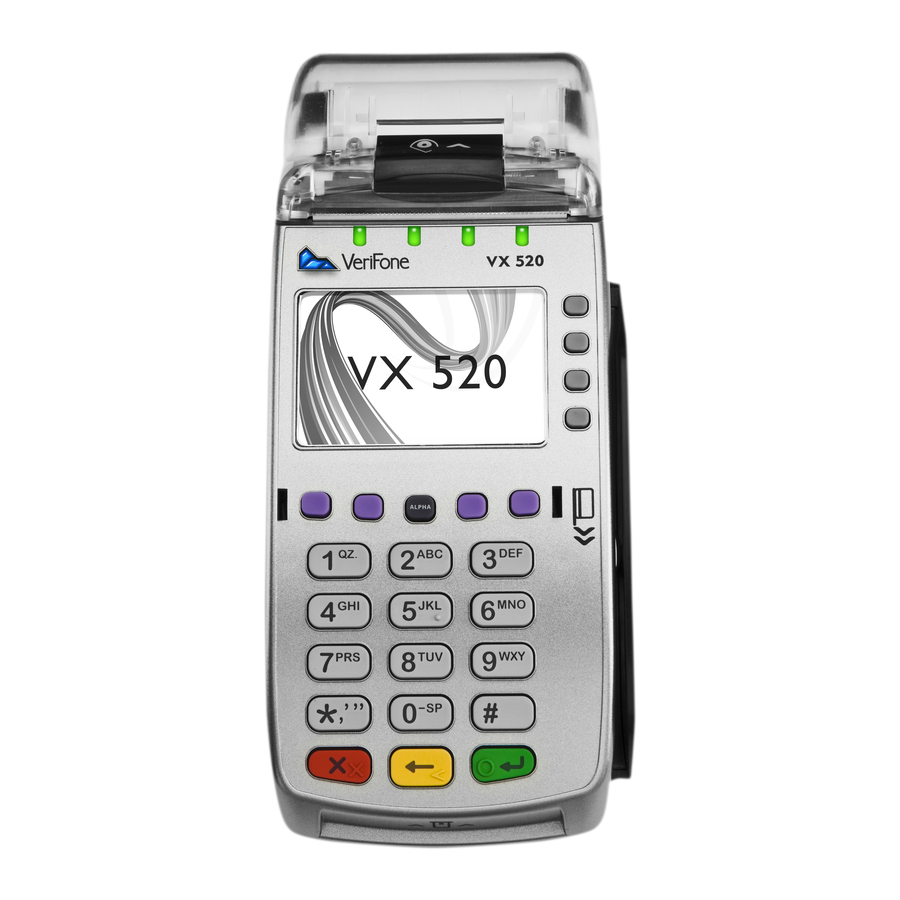

Operating Instructions of Verifone VX 520 Payment Terminal
Key Assignment
Replacement of the
paper roll (button for
opening the plastic cover
Sending report
Reversal transaction
PIN code entering
confirmation
Cancellation
Correction
PIN code correction
Enter button
Cancel the operation
Magnet card reader
Chip card reader
Advertisement
Related Manuals for VeriFone VX 520
Summary of Contents for VeriFone VX 520
- Page 1 Operating Instructions of Verifone VX 520 Payment Terminal Key Assignment Replacement of the paper roll (button for opening the plastic cover Sending report Reversal transaction PIN code entering confirmation Cancellation Correction PIN code correction Enter button Cancel the operation Magnet card reader...
- Page 2 Chip card payments Text on the Text on the Seller’s terminal Client’s terminal 10/06 Menüü 10/06 Menüü 11:22 11:22 Sisestage summa 0.00EUR Sisestage kaart Serv Enter the sum of the transaction as a final sum (for instance sum is 15€, you insert 1500). Then press a GREEN button (Enter).
- Page 3 Text on the Text on the Seller’s terminal Client’s terminal Printige koopia? Võtke kaart Jah F3 Ei F4 The first receipt is always for a seller, the second one is for a buyer. If customer couldn’t pay with a chip card and the message “Kasuta magnetkaarti” has appeared on the terminal screen, follow the section “Magnet card payment”...
- Page 4 Contactless card payment Contactless card allows you to make payments, wich sum is less than 25 eur. (including 25€), without PIN code entering. Text on the Text on the Seller’s terminal Client’s terminal 10/06 Menüü 10/06 Menüü 11:22 11:22 Sisestage summa Sisestage kaart 0.00EUR Serv...
- Page 5 Magnet card payments Text on the Text on the Seller’s terminal Client’s terminal 10/06 Menüü 10/06 Menüü 11:22 11:22 Sisestage summa 0.00EUR Serv Enter the sum of the transaction as a final sum (for instance sum is 15€, you insert 1500). Then press the green button (Enter).
- Page 6 The card owner must be identified in accordance with the bank card acceptance requirements. The receipt must contain customer’s signature (check the conformity with the signature on the card’s back side), The type of identification document (mark it manually), the document’s number.
- Page 7 Void transaction In order to reverse the transaction press the «REV» button. Text on the Text on the Seller’s terminal Client’s terminal 10/06 Menüü 10/06 Menüü 11:22 11:22 Sisestage summa 0.00EUR Serv Insert the receipt number, which you want to cancel and press GREEN button. NB! Terminal automatically inserts the last transaction receipt number.
- Page 8 Text on the Text on the Seller’s terminal Client’s terminal Printige koopia? Võtke kaart Jah F3 Ei F4 In a result of successful transaction cancelation, the first receipt is printed, tear it off. Terminal prints the second receipt if you press GREEN button. In order to decline printing of the second receipt, press F4 button.
- Page 9 A copy of a receipt In order to get the copy, press the button „COP“. Text on the Text on the Seller’s terminal Client’s terminal 10/06 Menüü 10/06 Menüü 11:22 11:22 Sisestage summa 0.00EUR Sisestage kaart Serv Text on the Seller’s terminal Kviitungi koopia Viimane koopia F2...
- Page 10 Finishing the day. Sending transactions. During the day terminal collects all the transactions into its memory and once a day (automatically or manually) sends them to the bank. Automatic sending works only, if the terminal is connected to the power socket. If automatic sending was : Try to send transactions manually or wait for the next automatic sessioon.
- Page 11 Paper roll replacing To replace the paper roll, push a black key so it’s shown on the picture. Remove the empty paper sleeve from the priner. Open the new paper roll and put it inside the way it’s shown on picture below. Paper must run from below.
