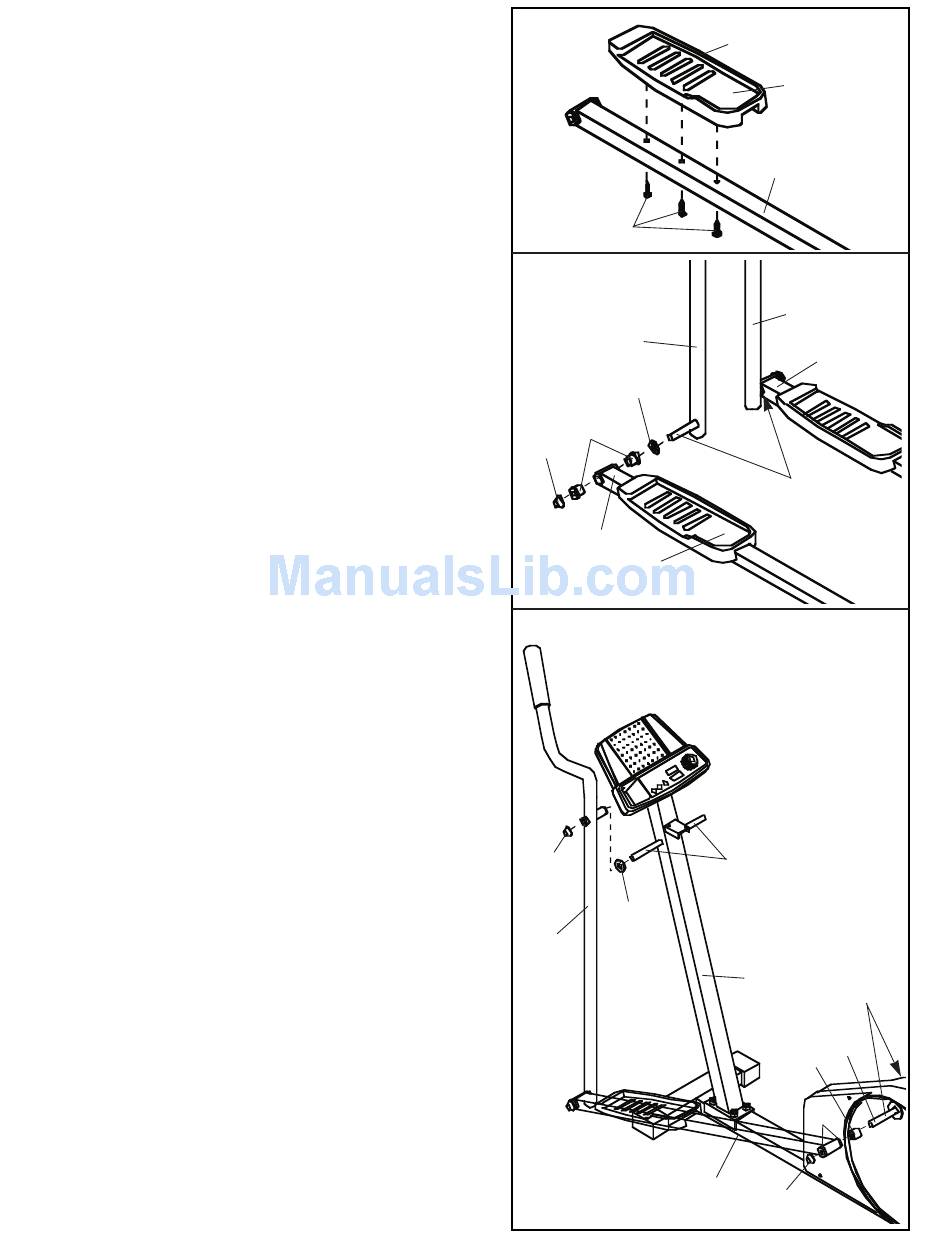

3. Find the Left Pedal (31), which has a ridge on the
right side. Attach the Left Pedal to one of the Pedal
Arms (12) with three M4 x 19mm Round Head
Screws (16) as shown.
Repeat this step to attach the Right Pedal to the other
Pedal Arm (not shown).
4. Locate the Left Handlebar (8) (there is an ÒLÓ sticker
on the Left Handlebar for identification). Apply a thin
film of the included grease to the axle at the lower
end of the Left Handlebar.
Slide a Handlebar Spacer (39) and the Pedal Arm
(12) with the Left Pedal (31) onto the Left Handlebar
(8) as shown. Make sure that there are two Pedal
Arm Bushings (42) in the Pedal Arm. (Note: These
parts fit tightly; it may be helpful to use the rubber
mallet). Next, refer to the PART IDENTIFICATION
CHART on page 5 and identify the 3/4Ó Axle Caps
(43). Tap a 3/4Ó Axle Cap onto the Left Handlebar.
Repeat this step to attach the other Pedal Arm (12) to
the Right Handlebar (62).
5. Slide a Weld Spacer (49) onto the left axle on the
Upright (3). Make sure that the open side of the Weld
Spacer is facing the Upright.
Apply a thin film of the included grease to the axles
and crank arms in the locations indicated.
Slide a Pedal Arm Spacer (41) onto the left Crank
Arm (59).
Make sure that there are two Rear Pedal Arm
Bushings (11) in the Pedal Arm (12) attached to the
Left Handlebar (8).
With the help of another person, slide the Left
Handlebar (8) onto the left axle on the Upright (3)
while sliding the left Pedal Arm (12) onto the left
Crank Arm (59). Note: These parts fit tightly; it may be
helpful to use the rubber mallet. In addition, it may be
helpful to rotate the left Crank Arm (59) to a different
position.
Tap a 5/8Ó Axle Cap (57) onto the left axle on the
Upright (3).
Tap a 3/4Ó Axle Cap (43) onto the left Crank Arm (59).
Repeat this step to attach the Right Handlebar and
the right Pedal Arm (not shown).
3
16
4
8
39
42
43
12
31
5
57
49
8
7
Ridge
31
12
62
12
Grease
Grease
3
Grease
59
41
11
12
43
