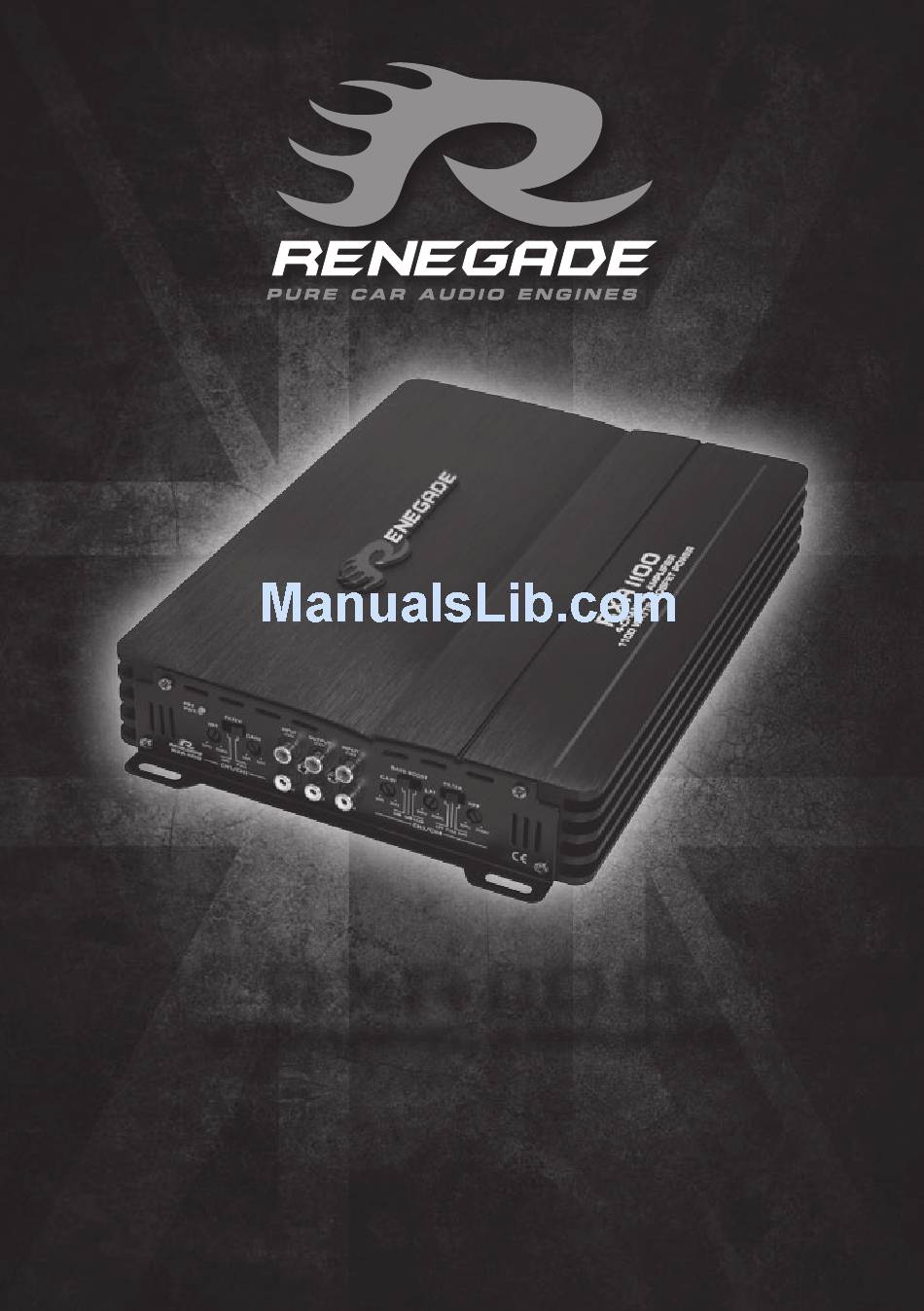

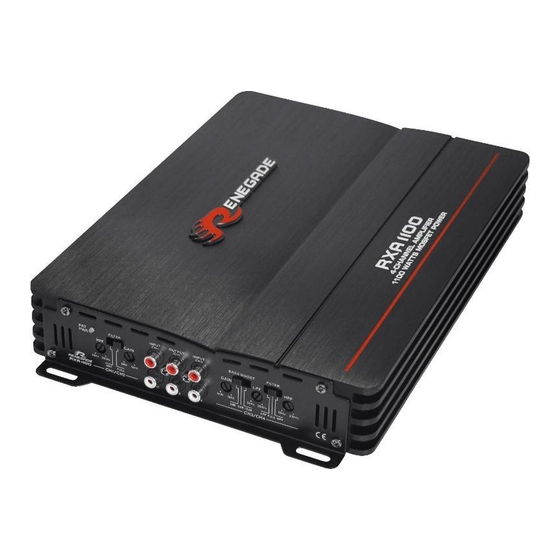

- Page 1 RXA 1100 4-CHANNEL AMPLIFIER USER’S MANUAL...
-
Page 2: Specifications
Please read the user‘s manual carefully before the installation and the first operation of the amplifier. SPECIFICATIONS RXA1100 Output Power RMS 4 x 75 W @ 4 Ohms 4 x 135 W @ 2 Ohms Output Power Max. 4 x 150 W @ 4 Ohms 4 x 275 W @ 2 Ohms Loudspeaker impedance (stereo) 2 –... - Page 3 IMPORTANT NOTES PRIOR TO INSTALLATION - This device is only suited for a 12 volt system with negative ground. - The radiated heat while operation req��������������������� ce of installation. It is ������������������� o not have contact with any metal part s or any surfaces which could impair air circulation.
-
Page 4: Protection Circuit
AUDIO SIGNAL CABLES When installing the audio cables between the RCA outputs of the headunit and the RCA inputs of the ���� , the audio and power supply cables should, if possible, not be routed along the same side of the vehicle. We recommend a separated installation, e.g. - Page 5 FIGURES (P. 28-30) CONNECTIONS AND CONTROLLERS (FIG. 1) Power-/Protection-LED High�������������� Selector FULL / HPF (Highpass) CH1/2 Gain level controller CH1/2 Audio signal inputs CH1/2 Audio signal outputs to run additi������� Audio signal inputs CH3/4 Gain level controller CH3/4 Bass Boost selector CH3/4 (10) ���������������...
-
Page 6: Troubleshooting
TROUBLESHOOTING If you are having problems after installation follow the Troubleshooting procedures below. Procedure 1: Check ���������������� Verify that PRT/PWR LED lits up green. If If this is the case, skip to Step 3, if not continue. 1. Check in-line fuse on battery positive cable. Replace if necessary. ��������������... - Page 7 –...
- Page 8 FULL FULL 2 - 8 Ω 2 - 8 Ω 2 - 8 Ω 2 - 8 Ω...
- Page 9 12dB FULL 4 - 8 Ω 2 - 8 Ω 2 - 8 Ω Learn more about car amplifiers on our website.
