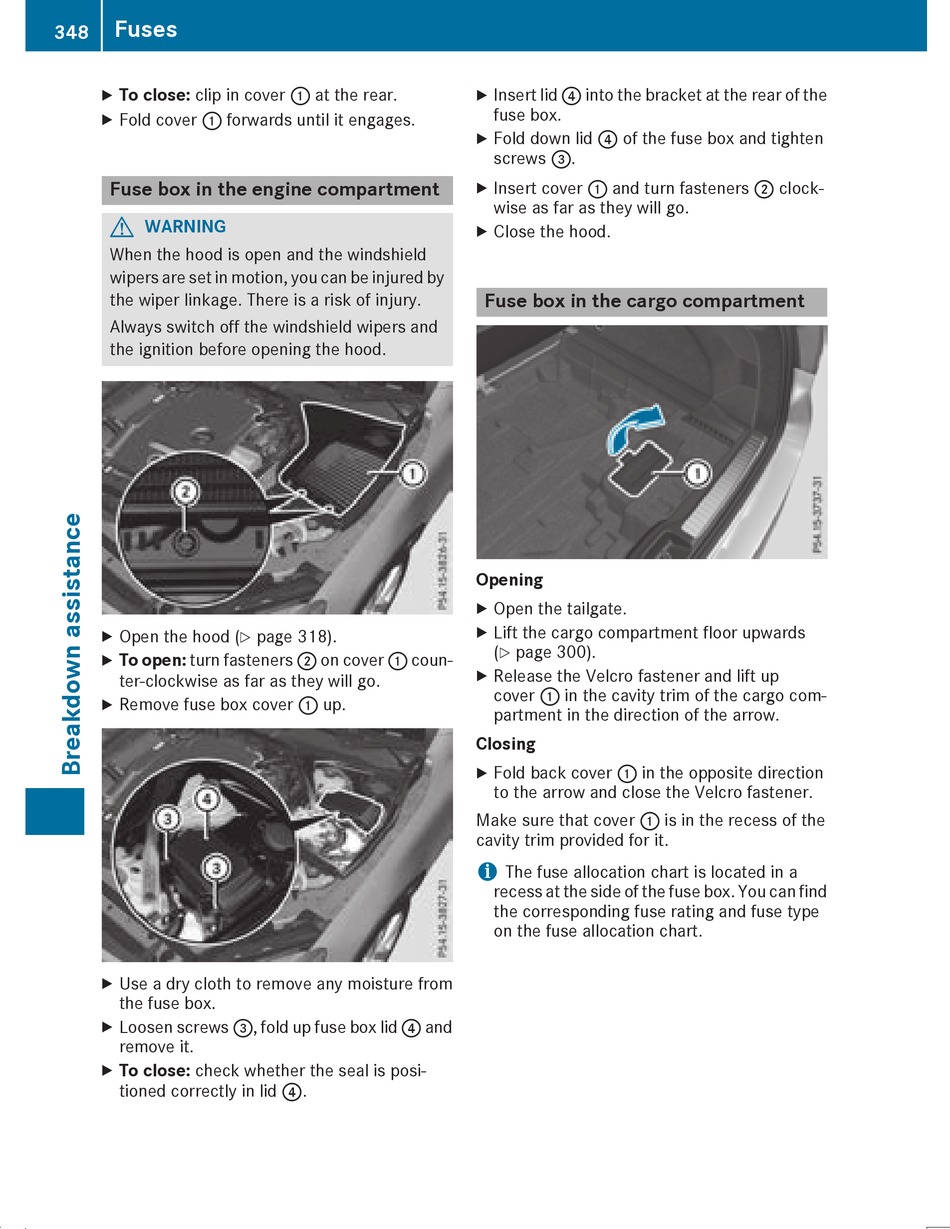

Fuses
348
To close: clip in cover : at the rear.
X
Fold cover : forwards until it engages.
X
Fuse box in the engine compartment
G
WARNING
When the hood is open and the windshield
wipers are set in motion, you can be injured by
the wiper linkage. There is a risk of injury.
Always switch off the windshield wipers and
the ignition before opening the hood.
Open the hood (
X
To open: turn fasteners ; on cover : coun-
X
ter-clockwise as far as they will go.
Remove fuse box cover : up.
X
Use a dry cloth to remove any moisture from
X
the fuse box.
Loosen screws =, fold up fuse box lid ? and
X
remove it.
To close: check whether the seal is posi-
X
tioned correctly in lid ?.
page 318).
Y
Insert lid ? into the bracket at the rear of the
X
fuse box.
Fold down lid ? of the fuse box and tighten
X
screws =.
Insert cover : and turn fasteners ; clock-
X
wise as far as they will go.
Close the hood.
X
Fuse box in the cargo compartment
Opening
Open the tailgate.
X
Lift the cargo compartment floor upwards
X
( page 300).
Y
Release the Velcro fastener and lift up
X
cover : in the cavity trim of the cargo com-
partment in the direction of the arrow.
Closing
Fold back cover : in the opposite direction
X
to the arrow and close the Velcro fastener.
Make sure that cover : is in the recess of the
cavity trim provided for it.
i
The fuse allocation chart is located in a
recess at the side of the fuse box. You can find
the corresponding fuse rating and fuse type
on the fuse allocation chart.
