set dst-subnet 172.16.2.0 255.255.255.0
end

Example multiple subnet IPsec VPN Phase 2 configuration

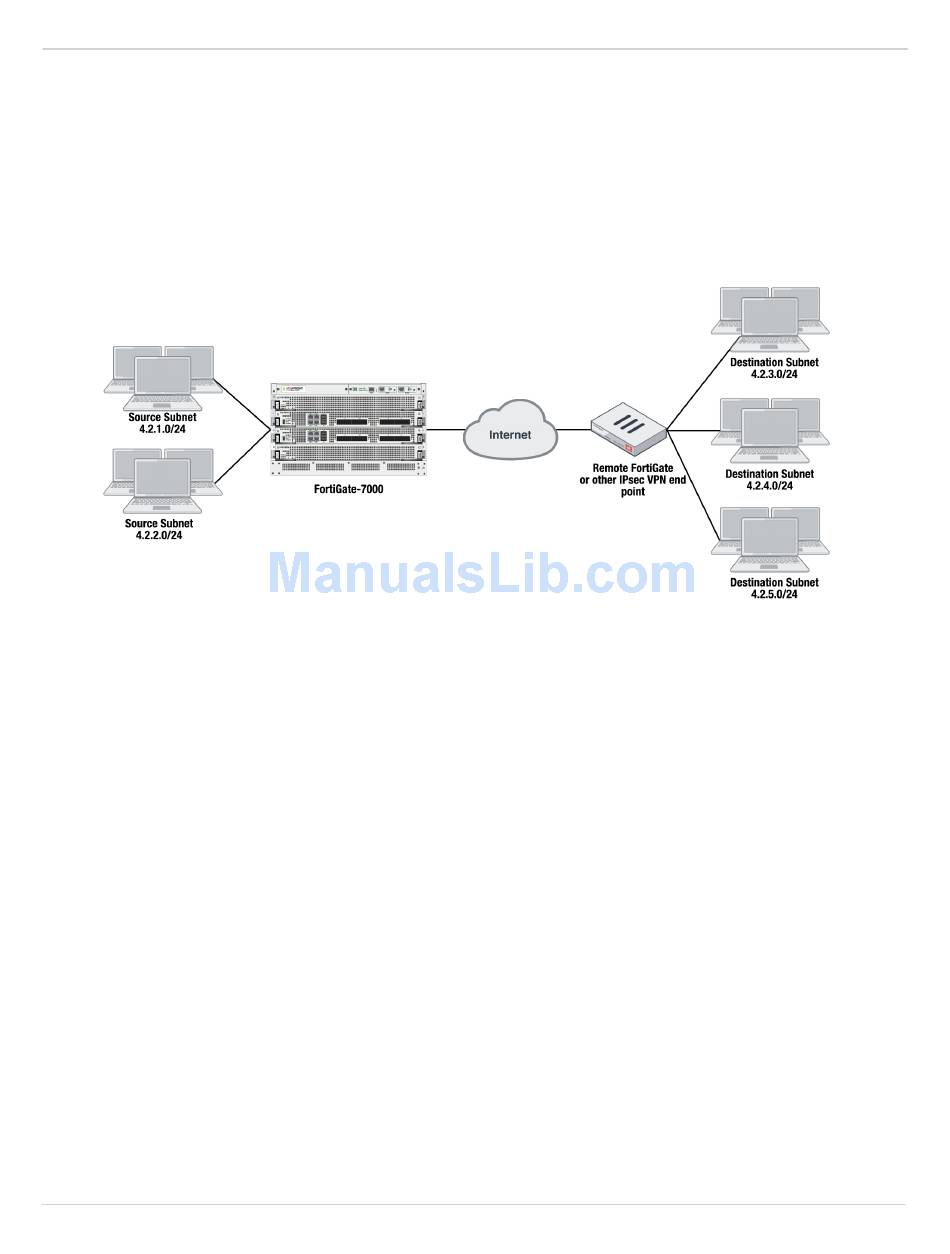

In a more complex configuration, such as the one below with a total of 5 subnets you still need to add all of the
subnets to the Phase 2 configuration. In this case you can create a firewall address for each subnet and the
addresses to address groups and add the address groups to the Phase 2 configuration.
Enter the following commands to create firewall addresses for each subnet.
config firewall address
edit "local_subnet_1"
set subnet 4.2.1.0 255.255.255.0
next
edit "local_subnet_2"
set subnet 4.2.2.0 255.255.255.0
next
edit "remote_subnet_3"
set subnet 4.2.3.0 255.255.255.0
next
edit "remote_subnet_4"
set subnet 4.2.4.0 255.255.255.0
next
edit "remote_subnet_5"
set subnet 4.2.5.0 255.255.255.0
end
And then put the five firewall addresses into two firewall address groups.
config firewall addrgrp
edit "local_group"
set member "local_subnet_1" "local_subnet_2"
next
edit "remote_group"
set member "remote_subnet_3" "remote_subnet_4" "remote_subnet_5"
end
Now, use the firewall address groups in the Phase 2 configuration:
