A.O. Smith HSE-SHS User Manual

Read Before Operation
On Receipt
It is our policy to promote safe delivery of all orders. This product shipment has
been thoroughly checked, packed and quality certified before leaving our
factory.
Visible Loss or Damage
If any of the goods called for on the bill of lading or express receipt are damaged
or the quantity is short, do not accept them until the freight or express delivery
agent makes an appropriate notation on your freight bill or receipt.
Concealed Loss or Damage
When a shipment has been delivered to you in apparent good condition, but
upon opening the packaging if any loss or damage has taken place while in
transit, inform the carrier's agent/A. O. Smith representative immediately.
About this user manual
This user manual is a guide to good practice for operating and periodic
maintenance of the A. O. Smith HSE-SHS Water Heater.
Do not operate the Water Heater before reading the user manual.
Please follow the instructions in this manual to ensure personal safety and
proper operation of this product. Always install, operate, inspect and maintain
this product in accordance with all applicable standards. Please store this user
manual carefully for any future reference.
1
Important
These instructions have been written as a guide for the proper installation
and operation of your Water Heater. A. O. Smith will not accept any liability
where these instructions have not been followed. However, for your safety
and to avoid damage caused by improper installation, it is recommended
that the Water Heater must be installed by an Authorised Service Technician.
Before proceeding with the installation instructions:
1. Inspect the Water Heater and its component parts for possible damage.
Do Not install or attempt to repair any damaged component parts. If
you detect any damage in the Water Heater, please contact the dealer
where the Water Heater was purchased or call A. O. Smith Customer
Care Centre.
2. Verify that the voltage being supplied corresponds to that which is
marked on the Water Heater manual.
Speci cations
Model HSE-SHS-015 HSE-SHS-025
Volume [L] 15 25
Power [W] 2000
Voltage/Frequency [V/Hz] 230~/50
Actual Stdg. Loss [kWh/24h/45°C diff.] 0.410 0.505
Reheating Time for 35°C rise [in min.] 14 25
Maximum Set Point Temperature [°C] 75*
N/cm 2 80
Rated water pressure
Water head (metres) 80
Inlet/Outlet connections [inch] ½ BSP
Net Weight (kgs) 10 13
*The maximum set point temperature may vary ± 5 °C.
3
General
Safety
Your safety and the safety of your loved ones is paramount. There are several
safety-related messages in this manual, which have been provided during
various steps such as the installation, operation and maintenance of your
HSE-SHS Water Heater. These messages point out the potential hazards and also
educate on how to reduce any potential risks. Please always read and follow all
safety messages as provided in this user manual.
This is the safety alert symbol. This symbol alerts you to the
potential hazards that can hurt you and others. All safety
messages will follow the safety alert symbol and either the
word "DANGER" or "WARNING".
Indicates an imminently hazardous situation which, if not
DANGER
avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not
WARNING
avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury or property
CAUTION
damage.
WARNING
DO NOT use this Water Heater if any part has been under water. Immediately
contact A. O. Smith Service personnel to inspect the Water Heater and
replace any part of the control system which has been under water. Failure to
follow this instruction can result in property damage, serious injury or death.
2
Dimensions
Figure 1
Model 15 Ltrs. 25 Ltrs.
A (mm) 376 442 B F F
B (mm) 383 446
E
C (mm) 100 100
D (mm) 112 140
A
E (mm) 112 120
F (mm) 349 391
C D
Figure 2
WARNING
Do not tamper or detach the Multi-function
Safety Valve from the Water Heater.
6 5
With Service Cover Without Service Cover
10
7
9 8
4
3
2
1
Part Description Part Description
1 Cold water inlet pipe with diffuser 6 Red Cap
2 Hot water outlet pipe 7 Heating Element and Anode
3 Multi-function Safety Valve* 8 Thermal Cut-out
4 Service Cover 9 Thermostat
5 Blue Cap 10 Wall Mount Slot
CAUTION
*Multi-function Safety Valve has been factory fit with the Water Heater and
set at 0.8 MPa (8 Bar) rated pressure.
4
OVER A CENTURY OF INNOVATION
A. O. Smith enjoys a rich history of achievements. A glimpse at our 143-years history
reveals numerous engineering and technical achievements.
EXPANDING THE WATER FOOTPRINT
In 2015, the company made its foray into the water purification industry with premium
residential water puri cation products.
In just over a year, A. O. Smith water puri ers have been successfully launched in
numerous cities all across India. Now adding to the range is the A. O. Smith Green Series
with "Highest Recovery 100% RO Water Puri er in India*"
*Under standard test condition. For details visit www.aosmithindia.com
Manufactured by A. O. Smith India Water Products Private Limited
(formerly known as A. O. Smith India Water Heating Private Limited)
Plot 300, Phase - II, KIADB Industrial Area, Harohalli, Kanakapura Taluk,
Ramanagara District, Karnataka – 562 112, India.
Customer Care No. 1800-103-2468/1860-500-2468 • Website: www.aosmithindia.com
CIN: U31909KA2006PTC040282
Actual product may differ from the image shown.
Part No.335271-009_R0 Date: 04-09-2017
Key Features
Blue Diamond® Glass Lining
Blue Diamond® technology increases the life of the inner tank.
The lining is stronger and twice corrosion resistant than any other
in the industry.
Long Lasting Glass Coated Heating Element
Scale and sediment build-up on the surface of the element can
lead to premature failure. A. O. Smith Glass Coating helps to
prevent scale formation and extends the life of the Heating
Element.
Long-lasting Anode Rod
A customised alloy that works in different Water Conditions,
protects the tank and heating element from corrosion, has twice
the lifespan compared to a regular magnesium anode.
Multi-function Safety Valve
The Multi-function Safety Valve is designed to automatically
relieve pressure and discharge water in case the pressure
overshoots the preset limits.
Hi-Tech Thermostat & Cut-out
This Water Heater comes with factory pre-set temperature. It has a
superior Thermostat. In case a fault occurs and the water
temperature exceeds the preset level, the thermal cut-out cuts off
the power supply to assure safety.
Energy-e cient PUF Injection Technology
The advanced PUF process ensures uniform foam distribution.
Zero gaps between tanks and outer cover to avoid heat loss.
Thereby hot water is available for longer duration.
Note: A. O. Smith reserves the right to amend or modify the speci cations and features at
any time, as and when required without any prior noti cation.
5

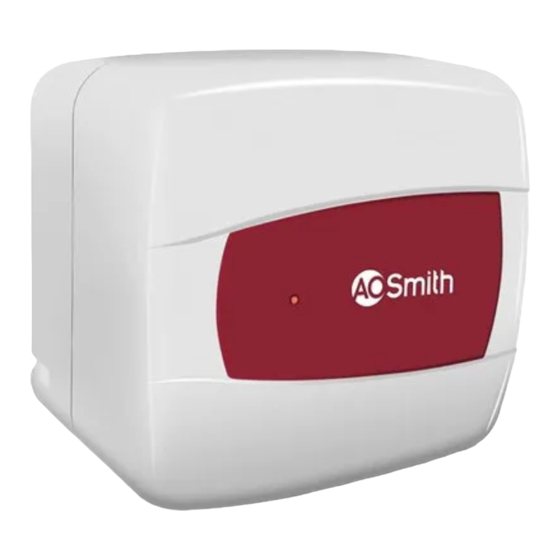

Water Heater
HSE-SHS 15 and 25 Litres
E X P E R T S E R V I C E
1800-103-2468/1860-500-2468
+91 99410 32468 (Send SMS) or
aosmithcs@aosmithindia.com
Monday to Friday: 9 a.m. to 8 p.m.
Saturday & Sunday: 9 a.m. to 6 p.m.
# For calls registered at A. O. Smith Call Centre before 4 p.m. only.
Available only in selected cities. For more details, please call our
1800-103-2468/1860-500-2468 or log on to www.aosmithindia.com
User Manual
Safety Precautions
During Installation
Do not install the Water Heater where Do not install the Water Heater where
there is direct sunlight or rain. It has water splashes on the Water Heater.
to be installed indoor only.
Figure 3 Figure 4
CAUTION
CAUTION
Installation
Before installing, ensure that the following tools are available:
Adjustable wrench Te on Tape Impact Drill Tool
Hammer Bubble Level Indicator Measuring Tape
Mounting the Water Heater
• It is recommended as per IS 302-1 Figure 5
to have 6 inches clearance from
the wall.
• Select a place to mount Water
Wall
6 inch Ceiling
Heater vertically with water
3 ft.
connection at the bottom.
6 inch
• Water Heater must be located
within 3 ft. (approx.) from a 230 V
electrical outlet with proper
grounding.
Water Heater
• Make sure that the wall can
withstand at least twice the
weight of the Water Heater when
completely lled with water.
Solid Solid
Concrete Concrete False False
Wall Wall Wall Wall
6
