User Guide
User Guide

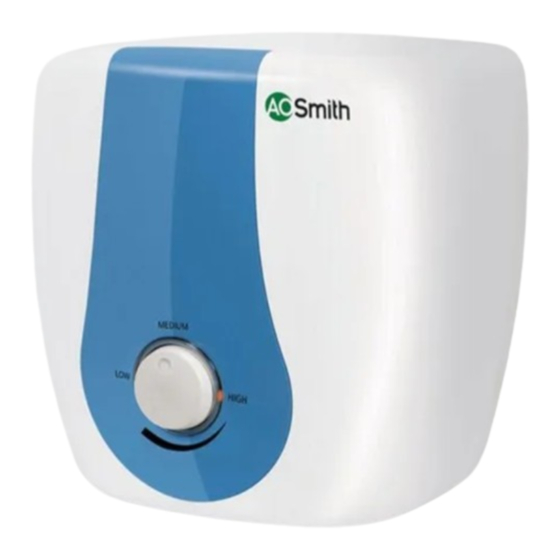

Water Heater
HSE-SDS 6, 15 and 25 Litres
Advertisement
Table of Contents
Related Manuals for A.O. Smith HSE-SDS 6
Summary of Contents for A.O. Smith HSE-SDS 6
-
Page 1: User Guide
Water Heater HSE-SDS 6, 15 and 25 Litres Higher energy rating. Longer warranties. EXPERT COMPANY SERVICE www.aosmithindia.com Toll Free No.: 1800-103-2468 or SMS us: +91 99410 32468 or HOUR RESPONSE HOUR RESPONSE POWER POWER E-mail us: aosmithcs@aosmithindia.com DAY RESOLUTION DAY RESOLUTION... - Page 2 Congratulations! And welcome to the A. O. Smith family. We would like to thank you for the trust you have shown in choosing an A. O. Smith water heater. You can be sure it will live up to your expectations. Thousands of delighted users all over the world trust A.
-
Page 3: Table Of Contents
What's in the box? Electric User Guide Wall Mounting Discharge Tube Water Heater Accessories Contents Read Before Operation............1 General .................. 2 Specifications ................ 3 Key Features ................5 Safety Precautions..............6 Installation ................6 Connecting to Water Supply..........8 Operation ................ -
Page 4: Read Before Operation
Read Before Operation On Receipt It is our policy to promote safe delivery of all orders. This product shipment has been thoroughly checked, packed and quality certified before leaving our factory. Visible Loss or Damage If any of the goods called for on the bill of lading or express receipt are damaged or the quantity is short, do not accept them until the freight or express delivery agent makes an appropriate notation on your freight bill or receipt. -
Page 5: General
General Safety Your safety and the safety of your loved ones is paramount. There are several safety related messages in this manual, which have been provided during various steps such as the installation, operation and maintenance of your HSE-SDS water heater. These messages point out potential hazards and also educate on how to reduce any potential risks. -
Page 6: Specifications
Specifications Model HSE-SDS HSE-SDS HSE-SDS -006 -015 -025 Volume [L] Power [W] 2000 Voltage/Frequency [V/Hz] 230~/50 Actual Stdg. Loss [kWh/24h/45°C diff.] 0.390 0.500 0.560 Reheating Time for 35°C rise [in min.] Temperature range [°C] 25-75 ±5 Rated water N/cm pressure Water head (metres) Inlet/Outlet connections [inch] ½... - Page 7 Figure 2 Part Description Cold water inlet pipe with diffuser Hot water outlet pipe Safety Valve* Temperature Control Knob Decorative Front Panel Blue Cap Red Cap Anode Heating Element Thermal Cut-out Thermostat Wall mount slot CAUTION *Safety valve has been factory fit with the water heater and set at 0.8 MPa (8 Bar) rated pressure. WARNING Do not tamper or detach the safety valve from the water heater.
-
Page 8: Key Features
Key Features Glass Coated Heating Element Scale and sediment build-up on the surface of the element can lead to premature failure. A. O. Smith Glass Coating helps to prevent scale formation and extends the life of the heating element. Blue Diamond Glass Lining ®... -
Page 9: Safety Precautions
Safety Precautions During Installation Do not install the water heater where there is Do not install the water heater where water direct sunlight or rain. It is has to be installed splashes on the water heater. indoor only. Figure 4 Figure 3 CAUTION CAUTION... -
Page 10: Mounting The Water Heater
Mounting the Water Heater Before locating the position for installation of the water heater, make sure 3-1/2 ft. (approx.) from a grounded that there is sufficient clearance between 230V electrical outlet. the ceiling and the side wall. Make sure that the wall can withstand at least twice the weight of the water vertically, with water connection at the heater when completely filled with... -
Page 11: Connecting To Water Supply
Figure 10 Screws using the Wall Mount Slots Wall Mount Slot (Fig. 10). Tug downwards on the water heater to ensure that the water heater is fixed steadily. Water Heater DANGER Hot Water is dangerous, especially for children, aged or the disabled. The Water Heater allows you to control the temperature of your hot water. - Page 12 CAUTION that the free end of the Discharge tube is placed over a suitable drain and away from the users. Safety Valve) in case excessive pressure is developed. The contents of the discharge from the Safety Valve may be hot and may cause burns to the users and damage nearby objects if not properly routed to a drain.
-
Page 13: Operation
Operation Filling the Tank 1. Open the hot water faucet to permit the air Figure 12 to escape. 2. Open the cold water inlet valve fully, filling the water heater and the piping. 3. Close the hot water faucet when water flows. -
Page 14: Connecting To Electrical Supply
Connecting to Electrical Supply The power cord and plug are connected with Figure 13 this water heater. Find a separate socket for power plug and make sure the socket is in firm contact with the plug. Ensure that reliable earthing has been done. CAUTION Connect the water heater using independent sockets, do not use any adapters. -
Page 15: Temperature Setting
Temperature Control Knob Switch on the water heater’s power supply. Figure 14 The Power indicator lamp glows. Temperature Setting Turn the Temperature control knob clockwise for the device to commence heating and change the set temperature. The Heating indicator lamp will glow. [The set temperature increases if the Temperature control knob is Power Heating... - Page 16 Draining the Tank Whenever the water heater is not used for an Figure 17 extended period, unplug the unit and drain. If it is below freezing temperature, you will Safety Valve Port need to unplug the unit and drain it. Discharge Lever Switch off the electric supply to the water heater.
-
Page 17: Changing The Decorative Front Panel
A. O. Smith Colour Match System ® Colours shown are only indicative and may vary from actual colours available. NOTICE The product of your choice comes with either white or ivory body colours, along with the same coloured front panels. The A. -
Page 18: Troubleshooting
Troubleshooting The water heater may not operate as desired if used incorrectly or there is a minor cause, even though the product has no fault. In these cases, check the following issues to solve simple problems without the help from the Customer care centre. If the problem does not solve after checking the following issues, call Customer care centre. -
Page 19: Warranty
Warranty Product Warranty Your A. O. Smith water heater is warranted against defects arising from faulty design, workmanship and materials for a period of 24 months from the date of the invoice, subject to the following conditions: 1. The customer will notify the Company promptly about Warranty defects noticed and give the Company or its Authorised on tank... -
Page 20: Jurisdiction
General Terms of Warranty 1. The “goods” shall mean the goods described in the purchase agreement. 2. “The customer” shall mean the original purchaser under the purchase agreement. 3. “The Company” shall mean A. O. Smith India Water Products Private Limited. 4. - Page 21 Warranty Card Customer Copy to be retained by the Customer Invoice Number: ___________________________ Dated: _________________________ Unit Serial Number: __________________________________ Model: _________________________ Capacity: ______________________ Customer's Name and Address: ______________________________________________ ___________________________________________________________________________ ___________________________________________________________________________ Ph: _______________ Mobile: _____________________ E-mail: ___________________ Dealer’s Stamp and Signature Warranty Card Company Copy to be sent back to the Company Invoice Number: ___________________________ Dated: _________________________...
-
Page 22: Service And Maintenance
Service and Maintenance For Service needs: Please contact our A. O. Smith Toll Free Number : 1800-103-2468 SMS us : +91 99410 32468 E-mail us : aosmithcs@aosmithindia.com Registered Office A. O. Smith India Water Products Private Limited (formerly known as A. O. Smith India Water Heating Private Limited) Plot 300, Phase - II, KIADB Industrial Area, Harohalli, Kanakapura Taluk, Ramanagara District, Karnataka –... - Page 24 Manufactured by A. O. Smith India Water Products Private Limited (formerly known as A. O. Smith India Water Heating Private Limited) Plot 300, Phase - II, KIADB Industrial Area, Harohalli, Kanakapura Taluk, Ramanagara District, Karnataka – 562 112, India. Toll Free: 1800-103-2468 n Website: www.aosmithindia.com CIN: U31909KA2006PTC040282...
