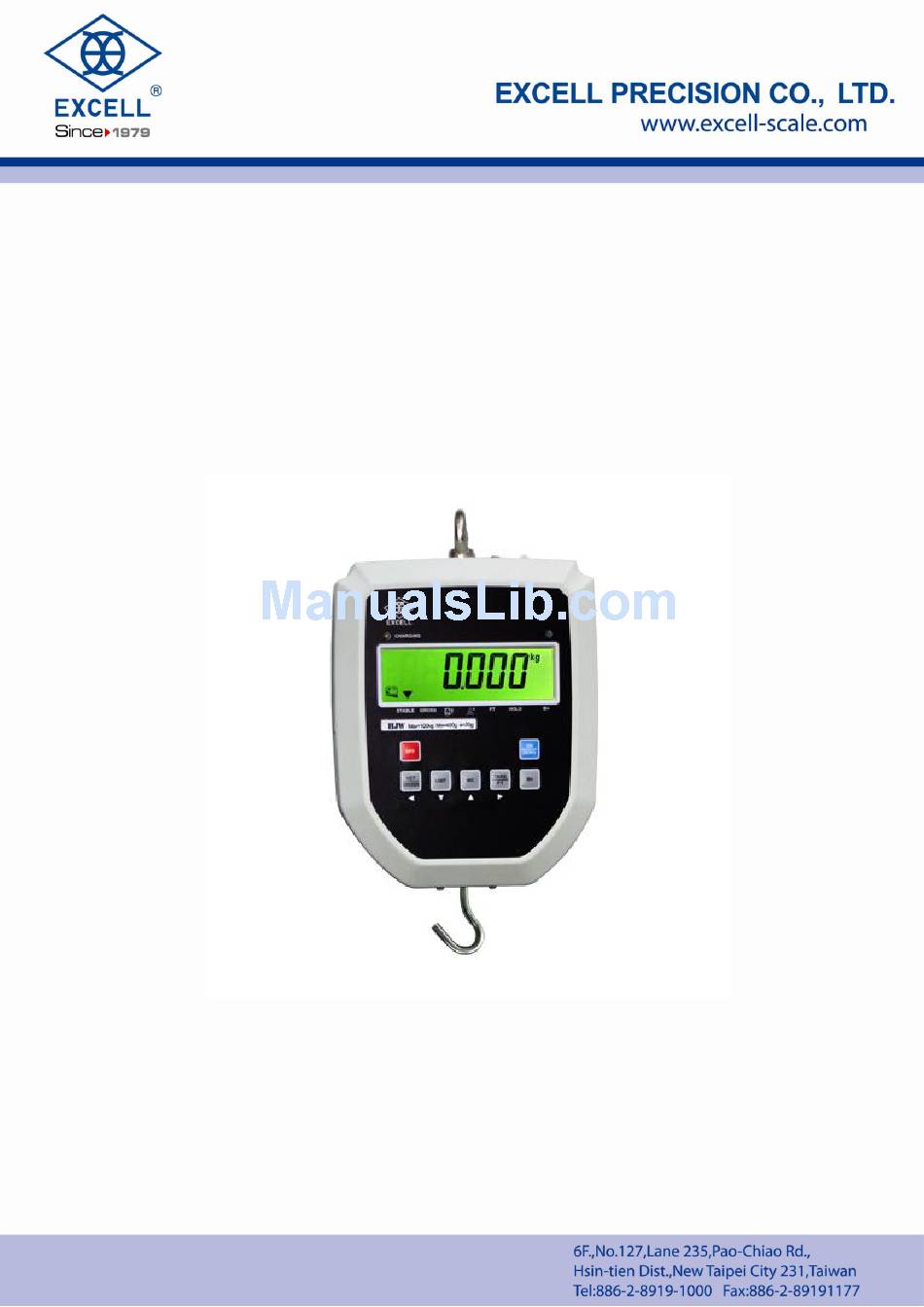

© Excell Precision Limited 2014. All rights reserved Worldwide.
The information contained herein is the property of Excell Precision Limited and is
supplied without liability for errors or omissions. No part may be reproduced or used
except as authorised by contract or other written permission. The copyright and the
foregoing restriction on reproduction and use extend to all media in which the
information may be embodied.
U
s
e
r
M
U
s
e
r
M
I
n
I
n
a
n
u
a
a
n
u
a
d
i
c
a
t
o
d
i
c
a
t
o
HJW
l
l
r
r
Advertisement
Table of Contents
Related Manuals for Excell HJW
Summary of Contents for Excell HJW
- Page 1 © Excell Precision Limited 2014. All rights reserved Worldwide. The information contained herein is the property of Excell Precision Limited and is supplied without liability for errors or omissions. No part may be reproduced or used except as authorised by contract or other written permission. The copyright and the foregoing restriction on reproduction and use extend to all media in which the information may be embodied.
-
Page 3: Table Of Contents
EXCELL PRECISION CO., LTD Table of Contents Before Using the Scale ..........................2 Instructions for Use .............................2 Preparing to Use the Scale........................2 Chapter 1 Introduction ..........................4 1-1 Features.............................4 1-2 Display Description ..........................4 1-3 Keypad Function..........................5 1-4 Power Supply ............................7 1-5 Error Messages ..........................8 1-6 Weight Units ............................8... -
Page 4: Before Using The Scale
EXCELL PRECISION CO., LTD Thank you for choosing EXCELL Weighing Hanging Scale. To guide you to use our product correctly, please read this User Manual carefully to extend the life of machine and to avoid maloperation. Before Using the Scale In order to use this scale correctly, we suggest you read this manual carefully. - Page 5 EXCELL PRECISION CO., LTD Due to the storage battery adopt the advanced free -maintaining technique, customers need not to replenish electrolyte. The scale should be recharged every 3 months to prevent failure of the internal rechargeable battery. 1. The battery should be charged for 8~10 hours.
-
Page 6: Chapter 1 Introduction
EXCELL PRECISION CO., LTD Chapter 1 Introduction 1-1 Features Up to 1/6,000 display resolution Hold function, Check weighing with LO / HI / OK Simple counting function Full range tare, Pre-tare, Auto zero tracking, Gross/Net Indication ... -
Page 7: Keypad Function
EXCELL PRECISION CO., LTD 1-3 Keypad Function ON/ZERO KEY When the power is off, press key to switch the indicator on. ON/ZERO When the power is on, press key to return to zero. ON/ZERO Zero Range for non-approval models is ±2% Full Scale. - Page 8 EXCELL PRECISION CO., LTD NET/GROSS KEY In the Tare mode, the screen displays the “TARE” icon; press the NET/GROSS key to switch between the “Net value” and the “Gross value”. When the ”GROSS” arrow shows up, the Gross Weight i n the screen = Tare weight + Net weight, meanwhile, only NET/GROSS key is available.
-
Page 9: Power Supply
EXCELL PRECISION CO., LTD 1-4 Power Supply Power Supply Selection 1. 6 V / 7 Ah Rechargeable battery 2. 110 / 220 V ±15 % AC Main power Power Consumption 40 mA (Indicator + Load Cell) About 180 hours 70 mA (Indicator + Load Cell + display backlight) -
Page 10: Error Messages
EXCELL PRECISION CO., LTD 1-5 Error Messages Zero is higher than the zero range when switching the scale on. Zero is lower than the zero range when switching the scale on. Internal value is unstable. Continuous unstable occurred over 10 sec when switching the scale on, or after pressing ON/ZERO or TARE/PT key. -
Page 11: Self-Test Mode
EXCELL PRECISION CO., LTD 1-7 Self-Test Mode When power is off, hold NET/GROSS and press ON/ZERO key, Wait till display shows to enter “Self-Test Mode” Press UNIT Press Press UNIT Press Press UNIT Press Press UNIT INTERNAL VALUE MODE (must hook up full-bridge Load Cell to test) ... -
Page 12: Chapter 2 Configurations
EXCELL PRECISION CO., LTD Chapter 2 Configurations Configuration Workflow In the weighing mode, press the keys at the same time to enter the NET/GROSS ZERO configuration mode. The LCD shows Press UNIT Press Press UNIT Press Press UNIT Press General Function Setting Mode ... -
Page 13: General Function Setting
EXCELL PRECISION CO., LTD 2-1 General Function Setting Press TARE/PT key in the parameter “00 ~ 12” ON/ZERO key Upward key (0~ 9 digit entry ) UNIT key Downward key (0,9~1 digit entry) TARE/PT key Move cursor rightward Key in “00”... -
Page 14: Auto Backlight Function Setting
EXCELL PRECISION CO., LTD 2-1-1 Auto Backlight Function Setting Select in the general function setting mode to change the backlight function setting. Press TARE /PT LCD displays the last status Default setting = off ON/ZERO UNIT to select function “on” or “off On ... -
Page 15: Auto Power-Off Timer Setting
EXCELL PRECISION CO., LTD 2-1-2 Auto Power-off Timer Setting Select in the general function setting mode to change the automatic power-off timer setting. Press TARE/PT LCD displays the last status Default setting = 0 (No auto power-off) key to UNIT... -
Page 16: Hi/Lo/Ok Settings
EXCELL PRECISION CO., LTD 2-1-3 HI/LO/OK Settings Select in the general function setting mode to set the HI/LO/OK function. When the high limit and low limit are both set as “0”, the Hi/Lo/OK function is disabled. Press TARE/PT LCD displays the last status HI indicator lights. -
Page 17: Restore To The Default Settings
EXCELL PRECISION CO., LTD 2-1-4 Restore to the Default Settings Select in the general function setting mode to restore to the default settings. Press TARE/PT Return (Cancel the restoration) keys to UNIT select “return” or “format” Restore the default... -
Page 18: Noise Filter Settings
EXCELL PRECISION CO., LTD 2-1-5 Noise Filter Settings Select in the general function setting mode to set the noise filter settings. Returning to zero point setting LCD displays the last status Returning to the zero point setting Press TARE/PT key to key in the... -
Page 19: Hold Function Settings
EXCELL PRECISION CO., LTD 2-1-6 Hold Function Settings This function is not available for OIML or NTEP approval models. Press TARE/PT Hold function setting LCD displays the last parameter setting Hold function setting key to UNIT keys to key in the... - Page 20 EXCELL PRECISION CO., LTD Hold Function Setting (Animal scale) Hold function setting LCD displays the last parameter setting Press TARE/PT Hold function setting key to key UNIT keys to key in 4 and UNIT in the parameters press key to enter the hold function TARE/PT setting mode.
-
Page 21: Auto Unit Weight Averaging Setting
EXCELL PRECISION CO., LTD 2-1-7 Auto Unit Weight Averaging Setting Auto unit weight averaging setting Press TARE/PT LCD displays the last parameter setting Auto unit weight averaging setting key to key UNIT keys to key in the UNIT in the parameters parameters ... -
Page 22: External Weight Calibration
EXCELL PRECISION CO., LTD 2-2 External Weight Calibration Press TARE/PT key, the display shows the calibration value. The right digit keeps flashing. Press NET/GROSS key The calibration value could to move the flashing be changed digit to the left. -
Page 23: Appendix 1 Ascii Code Table
EXCELL PRECISION CO., LTD Appendix 1 ASCII Code Table ASC II ASC II ASC II Symbol Symbol Symbol Code Code Code 02022010 ZSME300000197... -
Page 24: Appendix 2 Wiring Instructions
EXCELL PRECISION CO., LTD Appendix 2 Wiring Instructions Load cell wiring method: (1) As shown below, when a load cell is connected with a 4PIN cable, SEN+ and SEN- can be unconnected. J11 and J12 on PCB must be tin-soldered in short circuit. -
Page 25: Appendix 3 7-Segment Display Characters
EXCELL PRECISION CO., LTD Appendix 3 7-Segment Display Characters Digit 7 segment letter Alphabet 7 segment letter Alphabet 7 segment letter 02022010 ZSME300000197...
