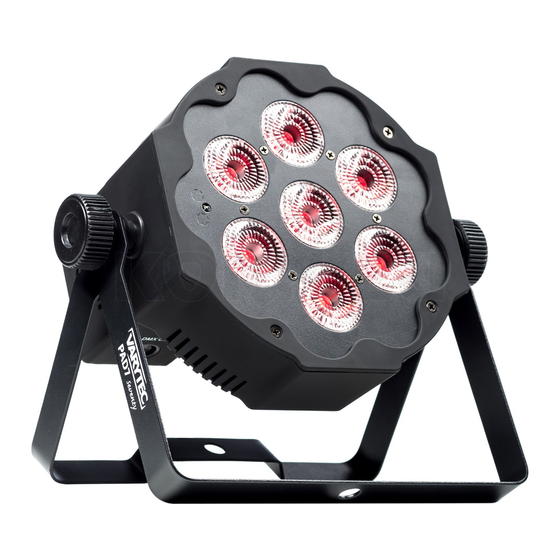

Varytec LED Pad 7 User Manual

7x10w 5in1 rgbwa led par
Hide thumbs Also See for LED Pad 7:
Table of Contents

Advertisement

Quick Links

LED Pad 7
7x10W 5in1 RGBWA
LED PAR

Advertisement

Table of Contents
loading

Related Manuals for Varytec LED Pad 7

Summary of Contents for Varytec LED Pad 7

  • Page 1 LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 17.10.2017, ID: 369851...

  • Page 3: Table Of Contents

    Connections and controls........................23 Operating..............................31 7.1 Starting the device........................... 31 7.2 Main menu............................31 7.3 Menu overview..........................37 7.4 Function in 1-channel DMX mode..................... 38 7.5 Functions in 5-channel DMX mode................... 38 LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 4 Table of contents 7.6 Functions in 6-channel DMX mode................... 39 7.7 Functions in 9-channel DMX mode................... 40 Technical specifications........................42 Plug and connection assignments....................43 Troubleshooting............................44 Cleaning............................... 46 Protecting the environment......................47 LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 5 LED Pad 7 7x10W 5in1 RGBWA LED PAR...

  • Page 6: General Notes

    If you sell the unit please make sure that the buyer also receives this manual. Our products are subject to a process of continuous development. Thus, they are subject to change. LED Pad 7 7x10W 5in1 RGBWA LED PAR...

  • Page 7: Further Information

    Our online guides provide detailed information on technical basics Online guides and terms. Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. LED Pad 7 7x10W 5in1 RGBWA LED PAR...

  • Page 8: Notational Conventions

    Examples: ‘24ch’ , ‘OFF’ . 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 9 This combination of symbol and signal word indicates a pos- sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – suspended load. LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 10 General notes Warning signs Type of danger Warning – danger zone. LED Pad 7 7x10W 5in1 RGBWA LED PAR...

  • Page 11: Safety Instructions

    This device may be used only by persons with sufficient physical, sensorial, and intellectual abilities and having corresponding knowledge and experience. Other persons may use this device only if they are supervised or instructed by a person who is responsible for their safety. LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 12 Never let children unattended use electrical devices. DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 13 Eye damage caused by high light intensity Never look directly into the light source. WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 14 NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 15 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. LED Pad 7 7x10W 5in1 RGBWA LED PAR...

  • Page 16: Features

    5 colours per lens, so that almost any colour can be mixed with double bracket for easy setup or mounting Control via DMX (four different modes) and via buttons and display on the unit Automatic mode and sound control Master / Slave operation LED Pad 7 7x10W 5in1 RGBWA LED PAR...

  • Page 17: Installation

    Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 18 When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 19 For error-free operation make use of dedicated DMX cables and do not use ordi- nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli- fiers. LED Pad 7 7x10W 5in1 RGBWA LED PAR...

  • Page 20: Starting Up

    Starting up Starting up Establish all connections as long as the unit is switched off. Use the shortest possible high- quality cables for all connections. LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 21 Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 22 Connect the DMX output of the master device to the DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. LED Pad 7 7x10W 5in1 RGBWA LED PAR...

  • Page 23: Connections And Controls

    Connections and controls Connections and controls Front panel LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 24 Connections and controls 1 Locking screws for the mounting bracket. 2 Infrared sensor for receiving signals from the remote control. 3 LEDs. 4 Bracket for floor placement or hanging. LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 25 Connections and controls Rear panel LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 26 7 DMX input. 8 Fan. 9 DMX output. 10 [ENTER] Confirms a selected value. 11 [DOWN] Button to decrease the displayed value by one. 12 [UP] Button to increase the displayed value by one. LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 27 Connections and controls 13 [MENU] Calls up the main menu or a submenu. 14 Connection for the power cable to supply additional devices. LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 28 Connections and controls Remote control LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 29 To make numeric settings. 19 [W], [A], [R], [G], [B] For direct colour selection. 20 [STROBE] Turns the strobe function on / off. 21 [SOUND 1 & 2] Activates sound-controlled mode 1 or 2 LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 30 Activates the ‘preprogrammed automatic show’ 1 or 2. 23 [POWER] Activates or deactivates the device. 24 [DMX] Press once to set the DMX address. After pressing twice, the DMX mode can be set. LED Pad 7 7x10W 5in1 RGBWA LED PAR...

  • Page 31: Operating

    Connect the device to the power supply to start operation. 7.2 Main menu Press [MENU] to activate the main menu. Use [UP] / [DOWN] to change the respectively indi- cated value. When the display shows the desired value press [ENTER]. LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 32 Make sure that this number matches the configuration of your DMX controller. The following table shows the highest possible DMX address for the various DMX modes. Mode Highest possible DMX address 1-channel 5-channel 6-channel 9-channel LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 33 This setting is only relevant when the device is controlled via DMX. When the display shows the desired value press [ENTER] to confirm the selection and then [MENU] to return to the parent menu. To return to the parent menu without making changes, press [MENU]. LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 34 00 and 99 (display shows ‘St00’ … ‘St99’ ). When the display shows the desired value press [ENTER] to confirm the selection and then [MENU] to return to the parent menu. To return to the parent menu without making changes, press [MENU]. LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 35 (display shows ‘SEn0’ … ‘SEn9’ ). When the display shows the desired value press [ENTER] to confirm the selection and then [MENU] to return to the parent menu. To return to the parent menu without making changes, press [MENU]. LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 36 Press [MENU]. Press [UP] / [DOWN] repeatedly until the display shows ‘Uer’ . Press [ENTER]. The display now shows the current software version with ‘XXX’ . To return to the parent menu, press [MENU]. LED Pad 7 7x10W 5in1 RGBWA LED PAR...

  • Page 37: Menu Overview

    Operating 7.3 Menu overview LED Pad 7 7x10W 5in1 RGBWA LED PAR...

  • Page 38: Function In 1-Channel Dmx Mode

    0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) 0…255 Intensity amber (0 % to 100 %) LED Pad 7 7x10W 5in1 RGBWA LED PAR...

  • Page 39: Functions In 6-Channel Dmx Mode

    0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) 0…255 Intensity amber (0 % to 100 %) LED Pad 7 7x10W 5in1 RGBWA LED PAR...

  • Page 40: Functions In 9-Channel Dmx Mode

    Intensity white (0 % to 100 %) 0…255 Intensity amber (0 % to 100 %) 0…50 No function 51…101 Auto mode 1 102…152 Auto mode 2 153…203 Sound mode 1 204…255 Sound mode 2 LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 41 0…255 Microphone sensitivity low to high, if channel 7 = 153…255 (0 to 29: microphone off, 30 to 255 = low to high) 0…9 No function 10…255 Strobe frequency slow to fast LED Pad 7 7x10W 5in1 RGBWA LED PAR...

  • Page 42: Technical Specifications

    50/60 Hz Fuse 5 mm × 20 mm, 1 A, 250 V, fast-acting Housing colour black Dimensions (W × H × D) 270 × 244 × 129 mm (incl. bracket) Weight 2.1 kg LED Pad 7 7x10W 5in1 RGBWA LED PAR...

  • Page 43: Plug And Connection Assignments

    The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) LED Pad 7 7x10W 5in1 RGBWA LED PAR...

  • Page 44: Troubleshooting

    Never connect the DMX input or output to audio devices such as mixers or ampli- fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 45 DMX interface circuit. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. LED Pad 7 7x10W 5in1 RGBWA LED PAR...

  • Page 46: Cleaning

    The fan grids of the device must be cleaned on a regular basis to remove dust and dirt. Before cleaning, switch off the device and disconnect AC-powered devices from the mains. Use a lint- free damp cloth for cleaning. Never use solvents or alcohol for cleaning. LED Pad 7 7x10W 5in1 RGBWA LED PAR...

  • Page 47: Protecting The Environment

    Batteries must not be disposed of as domestic waste or thrown into fire. Dispose of the bat- teries according to national or local regulations regarding hazardous waste. To protect the environment, dispose of empty batteries at your retail store or at appropriate collection sites. LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 48 Dispose this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 49 Notes LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 50 Notes LED Pad 7 7x10W 5in1 RGBWA LED PAR...
  • Page 52 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
