User's Manual
52" Dual Color TFT LCD Monitor
Model Name : FS-S5202C
Model Number : 0100400003AA
Customer Project name : Aquarius Dual
Item name :
TANDBERG Monitor Dual 52" Assembly
Sign
Changes : Rev 01
First build of the specification
Vendor/Manufacturer Part No
All contents are confidential
Do not copy
Page 1 of
Rev.:01-draft
FS-S5202C
0100400003AA
Advertisement
Table of Contents
Related Manuals for TANDBERG 0100400003AA
Summary of Contents for TANDBERG 0100400003AA

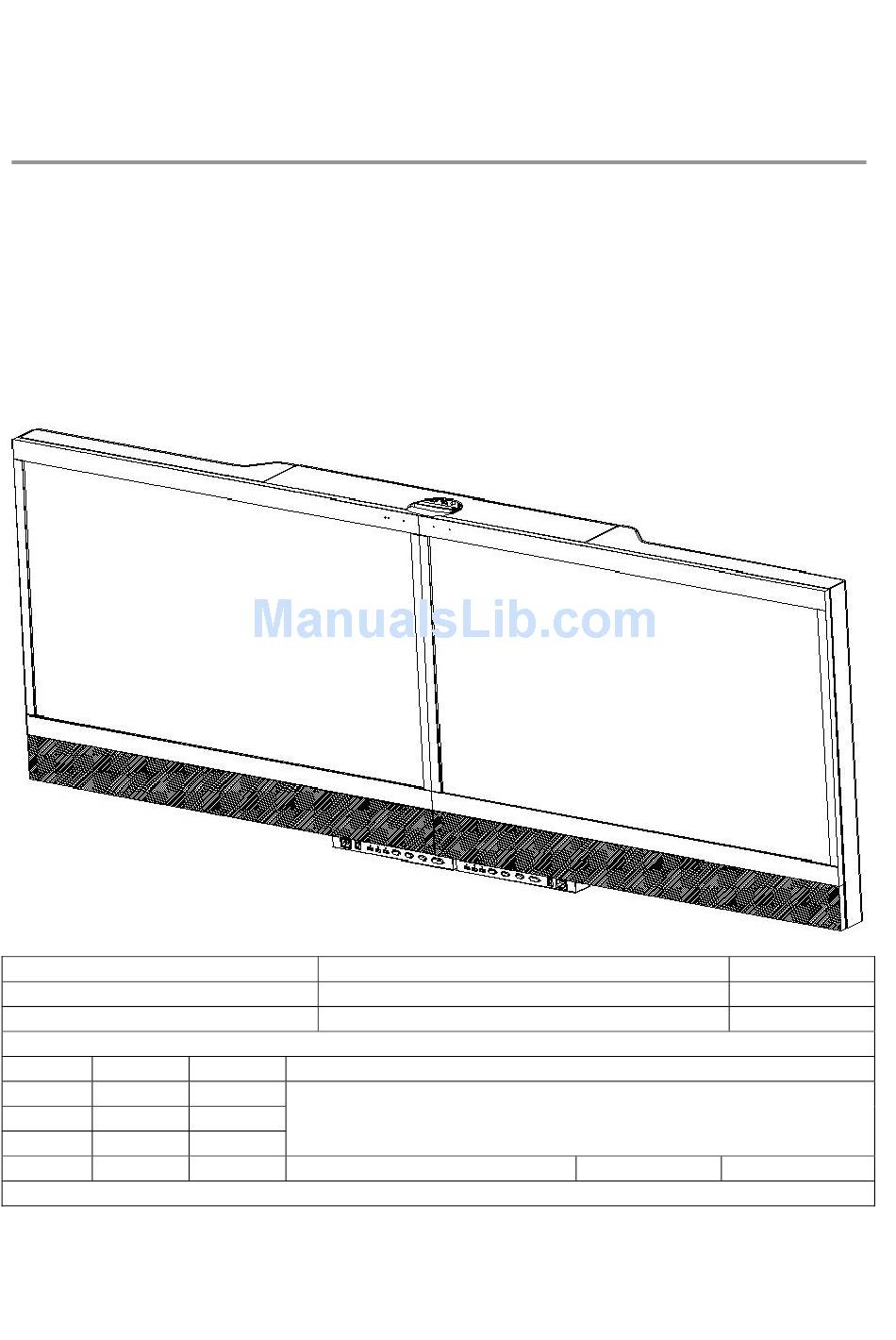

- Page 1 User’s Manual 52” Dual Color TFT LCD Monitor Model Name : FS-S5202C Model Number : 0100400003AA Customer Project name : Aquarius Dual TANDBERG Page 1 of Item number : Item name : 117336 TANDBERG Monitor Dual 52” Assembly Rev.:01-draft Date...
-
Page 2: Information To User
INFORMATION TO USER : General Specification... -
Page 3: Environmental And Reliability Specifications
1. General Description and Scope 2.1 General Description This specification applies to the Type 52” Color TFT/LCD Module “LTI520HB01”. This module is designed for a LCD TV style display unit. The screen format and electrical interface are intended to support the VESA WUXGA (1920(H) ×1080(V) at 60Hz) screen. Supported Color is native 16.7M colors (RGB-8bit data driver). - Page 4 3.2 Non-Operational Conditions 3.2.1 Temperature : -20℃~ 60℃ 3.2.2 Humidity : 10% ~ 90%, non-condensing 3.2.3 Altitude : maximum 15,000m 3.2.4 Test Type Parameters Description and comments Results T = -20°C Passed temperature Dwell time = 16h High T = +60°C Passed temperature Dwell time = 16h...
- Page 5 3.3 Packing Conditions 3.3.1 Temperature : -20℃~ 50℃ 3.3.2 Humidity : 10% ~ 90%, non-condensing 3.3.3 Altitude : maximum15,000m 3.3.4 Test Type Parameters Result Freefall Drop Drop surface Concrete or steel Passed Drop height Weight > 100kg: 0.1m Impact area 6 faces 1 selected corner 1 selected edge...
- Page 6 : This system can save energy by switching this monitor into a low-mode when the display video signal is none. But power Management system can not be corresponded with VESA DPMS, because of the TANDBERG’s operation specification. 5.2.1 Power Management Modes.
-
Page 7: Specification
5.3 LCD (Liquid Crystal Display) Panel Specifications This specification applies to the Type 52” Color TFT/LCD Module “LTI520HB01”. This module is designed for a LCD TV style display unit. The screen format and electrical interface are intended to support the WUXGA(1920(H) ×1080(V)) screen. -
Page 8: Luminance Uniformity
N o rm al L in e φ = 0 θ = 0 θ θ φ φ θ = 9 0 φ = 9 0 φ = 9 0 θ = 9 0 Definition of Response time : Display data Black(TFT OFF) Black(TFT OFF) White(TFT ON) - Page 9 5.4.3 Minimum luminance : less than 30cd/㎡ with full white pattern at the contrast default and minimum brightness and minimum back light level 5.4.4 Gray scale linearity : The 16 step gray bars shall be distinguishable at the default contrast and default brightness or 3 steps down contrast setting of the OSD menu 5.4.5 Noise : Pixel displacement, jitter, or swim shall not be visible to the eye when viewed at 50cm from the LCD panel surface.
- Page 10 5. Signal Connections and Pin Assignments 6.1 AC Inlet socket Signal Assignment Live Neutral 6.2 HDMI Connector (Type A) Signal Assignment Signal Assignment TMDS Data2 Shield TMDS Data2+ TMDS Data1+ TMDS Data2- TMDS Data1- TMDS Data1 Shield TMDS Data0 Shield TMDS Data0+ TMDS Clock+ TMDS Data0-...
- Page 11 6.3 15pin D-Sub Connector : Analog RGB signal input Signal Assignment Signal Assignment Green GND-Sync Blue DDC SDA DDC 5V Standby H Sync /Cable connection check GND-Red V Sync GND-Green DDC SCL GND-Blue 6.4 9pin D-Sub(Female) Connector : RS232C Input Signal Assignment Signal Assignment RS232 ID...
- Page 12 Speaker ID 2 Center woofer2 - This connection is optimized for TANDBERG’s DNAM AMP system, And DNAM Identify the speaker ID so that output appropriate audio signal to match this monitor’s speaker module.* On this monitor the pin1(Speaker ID 1) must be connected to ground by using internal speaker wiring.
-
Page 13: Supported Timing
6. Supported Timing 7.1 Standard Timing Chart Resolution 640x480 800x600 800x600 800x600 1024x768 1280x720 1280x720 @60Hz @50Hz @60Hz @75Hz @60Hz @50Hz @60Hz Timing Item Pixel Clock (MHz) 25.175 35.4375 40.000 49.500 65.000 74.250 74.250 Sync Polarity (H/V) Scanning Type Progressive Progressive Progressive Progressive... - Page 14 Resolution 1920x1080 1920x1200 @60Hz @60Hz Timing Item Pixel Clock (MHz) 148.500 154.000 Sync Polarity (H/V) Scanning Type Progressive Progressive -Hor Frequency (kHz) 67.500 74.038 -Period (us) 14.814 13.506 -Active time (us) 12.929 12.468 -Front porch (us) 0.592 0.312 -Sync width (us) 0.296 0.208 -Back porch (us)
- Page 15 7. User control function 8.1 User Controls We will not provide remote controller, because no need to control the OSD function normally, but will provide it for service engineer to check the RS232C function easily. Following is the description how you can adjust or change the OSD function Function name Operation RS232C command from...
-
Page 16: Special Consideration
(Refer to RS232C serial interface protocol) 9.4 RS232C chain connection with several monitor is available through RS232C IN/OUT connector. (ex, TANDBERG’s T3 system, Max 9 monitor) So you can adjust and change the several monitor individually or at the same time. - Page 17 10. Entire system block diagram Document No. D&TQP0302-11(0) Revision No. Page 16 of 22...
- Page 18 16.2 Product label 16.2.1 Brand Logo : TANDBERG 16.2.2 Model No : FS-S5202C 16.2.3 Rating Label (This may vary based on the TANDBERG's request, and the changed contents of the Rating Label shall not be specified in this specification.) Location...
- Page 19 16.2.4 Product’s barcode label and Serial number structure Location : On the product label Tilt : Shall not be tilted more than 1mm C. Size : 70 x 11mm D. Material : Art paper Base Color : White Printing Color : Black G.
- Page 20 16.3 Packing Specification (Full set 1unit) 16.3 1 Dimension Width Depth Height Carton box 1500mm 1100mm 1240mm (Outside, Full set 1 unit) 16.3.2 Packing Weight & Volume Packing Weight(Max) Volume 2.05 72.26 Document No. D&TQP0302-11(0) Revision No. Page 19 of 22...
- Page 21 16.3.3 Cushion and inside view Document No. D&TQP0302-11(0) Revision No. Page 20 of 22...
- Page 22 *The barcode is in accordance with UCC/EAN128 format* Readied digit Item Initial First reference 3~10 00000000 Supplementary 8 digits 11~16 117336 TANDBERG’s item number 17~19 Second reference Variant 21~22 Third reference This mean D&T Inc Same as product’s barcode digits...
- Page 23 16.5 Container loading 16.5.1 In case of 20ft container : 6 pallets= 18units 16.5.2 In case of 40ft container : 13 pallets= 39units Document No. D&TQP0302-11(0) Revision No. Page 22 of 22...
