Shure AD2 Manual

WARNING
• Battery packs may explode or release toxic materials. Risk of fire or
burns. Do not open, crush, modify, disassemble, heat above 140°F
(60°C), or incinerate.
• Follow instructions from manufacturer
• Only use Shure charger to recharge Shure rechargeable batteries
• WARNING: Danger of explosion if battery incorrectly replaced. Replace
only with same or equivalent type.
• Never put batteries in mouth. If swallowed, contact your physician or local
poison control center
• Do not short circuit; may cause burns or catch fire
• Do not charge or use battery packs other than Shure rechargeable bat-
teries
• Dispose of battery packs properly. Check with local vendor for proper
disposal of used battery packs.
• Batteries (battery pack or batteries installed) shall not be exposed to
excessive heat such as sunshine, fire or the like
AD2 Handheld Transmitter
AD series hand-held transmitters deliver impeccable audio quality and RF
performance with wide-tuning, High Density (HD) mode, and encryption. The
Features
Performance
• 20 Hz to 20 kHz range with flat frequency response
• Automatic input staging optimizes gain setting
• AES 256-bit encryption-enabled for secure transmission
• >120 dB dynamic range
• 100 meter (300 feet) line-of-sight operating range
• Selectable modulation modes optimize performance for spectral efficiency
or audio quality:
⁃ Standard – optimal coverage, low latency
⁃ High density – dramatic increase in max system channel count
• Switchable Power Levels = 2/10/35 mW (region dependent)
• Built-in tone generator and RF markers to facilitate range-testing
Included Components
Zipper Bag
Euro-Threaded Adapter
Swivel Adapter, black
AA Alkaline Battery (2)
©2016 Shure Incorporated
Note: Use only with the included power supply or a Shure-approved equiva-
lent.
WARNING: Danger of explosion if incorrect battery replaced. Operate only
with AA batteries.
Please follow your regional recycling scheme for batteries, packaging, and
electronic waste.
WARNING: This product contains a chemical known to the State of California
to cause cancer and birth defects or other reproductive harm.
低功率電波輻射性電機管理辦法
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得
擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現
象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依
電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科
學及醫療用電波輻射性電機設備之干擾。
transmitter features durable metal construction, AA or SB900A rechargeable
power (with dockable charging), and black or nickel finish options.
Design
• Interchangeable Shure microphone cartridges
• Backlit LCD with easy to navigate menu and controls
• Rugged metal construction
• Menu and power lockout
Power
• Up to 8 hours continuous use with 2 x AA alkaline batteries
• Shure SB900A lithium-ion rechargeable battery provides extended battery
life, precision metering, and zero memory effect
• External charging contacts for docked charging
Choice of (1) of the following Shure microphone
95B2313
cartridges:
31B1856
90F4046
80B8201
SM58 (RPW112)
BETA 87C (RPW122)
BETA 58A (RPW 118)
KSM8 Black (RPW174)
KSM9HS Black (RPW186)
AD2

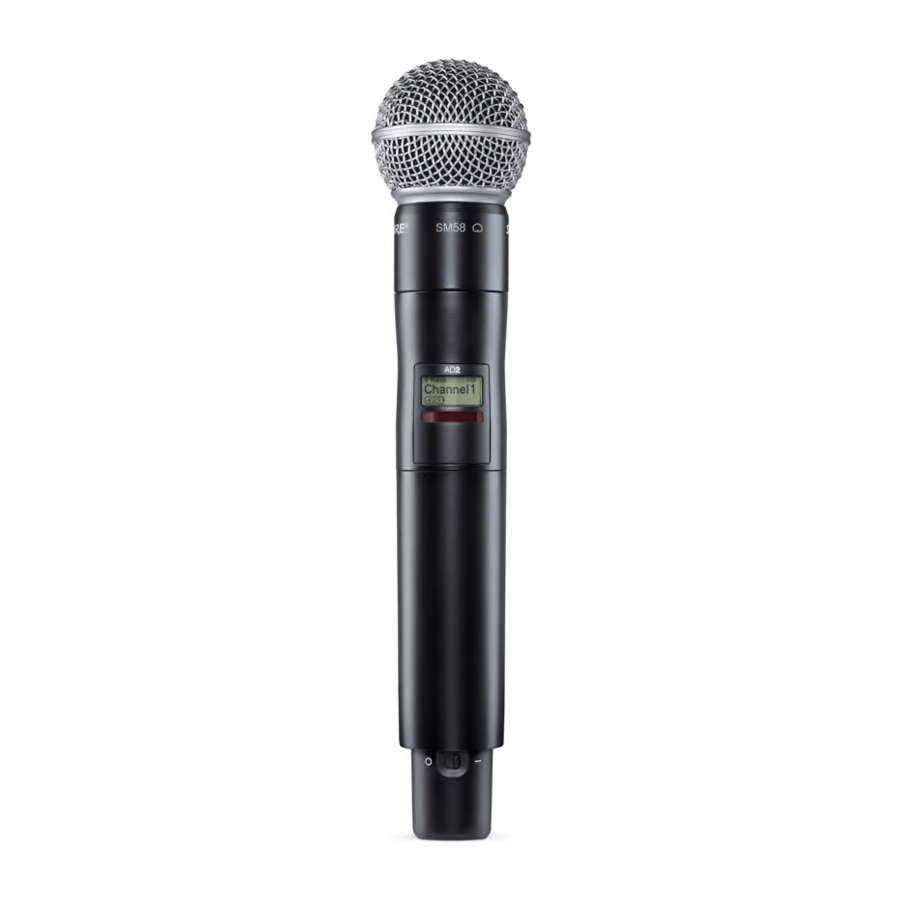

AD2 Handheld Transmitter
KSM9 Nickel (RPW188)
BETA 87A (RPW120)
KSM9 Black (RPW184)
KSM8 Nickel (RPW170)
KSM9HS Nickel (RPW190)
1/10
