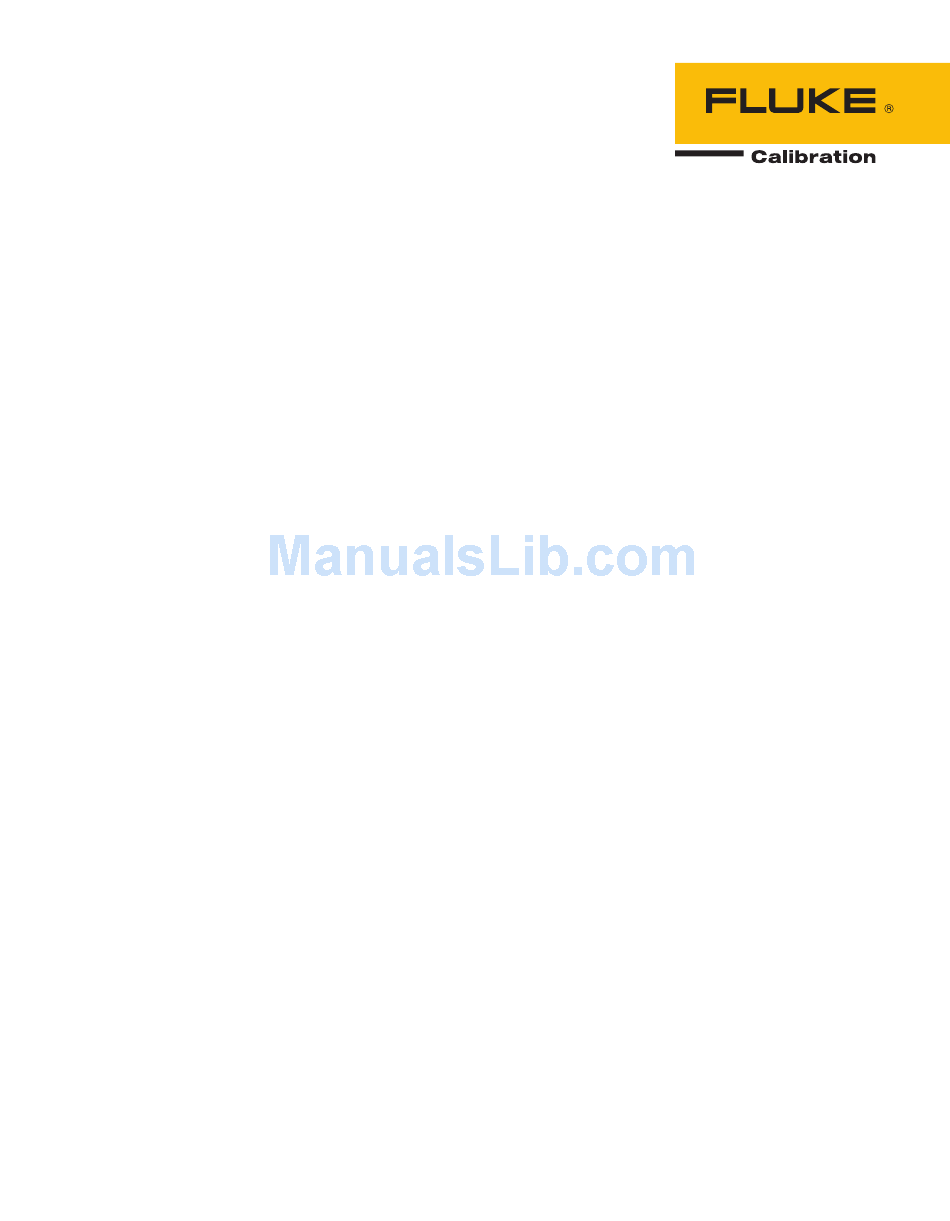

- Page 1 9100S Dry-Well Calibrator Users Guide 9100S___ugeng0000 Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235...
- Page 2 The warranty extends only to the original buyer or end-user customer of a Fluke authorized reseller, and does not apply to fuses, disposable batteries or to any other product, which in Fluke’s opinion, has been misused, altered, neglected, or damaged by accident or abnormal conditions of operation or handling. Fluke warrants that software will operate substantially in accordance with its functional specifications for 90 days and that it has been properly recorded on non-defective media.
-
Page 3: Table Of Contents
4.4 Constant Temperature Block Assembly ..........15 General Operation ..............17 5.1 Setting the Temperature ................17 5.2 Changing Display Units ................17 Controller Operation ..............19 6.1 Well Temperature ..................19 6.2 Temperature Set-point ................19 6.2.1 Programmable Set-points ................19 6.2.2 Set-point Value ....................20 6.2.3 Temperature Scale Units ................20 6.3 Scan ......................20 Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235... - Page 4 9100SDry-WellCalibrator 6.3.1 Scan Control ....................22 6.3.2 Scan Rate ......................22 6.4 Set-point Resistance ................22 6.5 Secondary Menu..................23 6.6 Heater Power ..................23 6.7 Proportional Band ................... 23 6.8 Controller Configuration ................24 6.9 Operating Parameters ................25 6.10 High Limit ....................25 6.11 Serial Interface Parameters ..............25 6.11.1 Baud Rate .....................25...
- Page 5 11 Troubleshooting ..............43 11.1 Troubleshooting Problems, Possible Causes, and Solutions ....43 11.2 CE Comments ..................44 11.2.1 EMC Directive ....................44 11.2.2 Low Voltage Directive (Safety) ..............44 Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235...
- Page 6 9100SDry-WellCalibrator Tables Table 1 International Electrical Symbols ............1 Table 2 Controller communications commands ..........32 Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235...
- Page 7 Figures Figure 1 Back Panel ..................13 Figure 2 Side view of the 9100S showing the prop stand ....... 14 Figure 3 Front panel ..................15 Figure 4 Fixed block options ................16 Figure 5 Controller operation flow chart ............21 Figure 6 Serial cable wiring ................31 Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235...
- Page 8 Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235...
-
Page 9: Before You Start
1 Before You Start 1.1 Introduction The Fluke 9100S Mid-Range Field Calibrator may be used as a portable instrument or bench top temperature calibrator for calibrating thermocouple and RTD temperature probes. This instrument is small enough to use in the field, and accurate enough to use in the lab. - Page 10 9100SDry-WellCalibrator SymbolsUsed Symbol Description AC-DC Battery Complies with European Union directives Double Insulated Electric Shock Fuse PE Ground Hot Surface (Burn Hazard) Read the User’s Guide (Important Information) Canadian Standards Association CAT II OVERVOLTAGE (Installation) CATEGORY II, Ploution Degree 2 per IEC1010-1 refers to the level of Impulsive Withstand Voltage protection provided.
-
Page 11: Safety Information
If the instrument is used in a manner not in accordance with the equipment ● ● design, the operation of the dry-well may be impaired or safety hazards may arise. This instrument is intended for indoor use only. ● ● Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235... -
Page 12: Cautions
9100SDry-WellCalibrator SafetyInformation BURN HAZARDS DO NOT turn the instrument upside down with the inserts in place; the inserts ● ● will fall out. DO NOT operate near flammable materials. ● ● Use of this instrument at HIGH TEMPERATURES for extended periods of ●... -
Page 13: Authorized Service Centers
Most probes have handle temperature limits. Be sure that the probe handle ● ● temperature limit is not exceeded in the air above the instrument. 1.4 Authorized Service Centers Please contact one of the following authorized Service Centers to coordinate service on your Fluke product: Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235... - Page 14 9100SDry-WellCalibrator AuthorizedServiceCenters Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235...
- Page 15 BeforeYouStart AuthorizedServiceCenters E-mail: antng@singa.fluke.com When contacting these Service Centers for support, please have the following information available: Model Number ● ● Serial Number ● ● Voltage ● ● Complete description of the problem ● ● Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235...
- Page 16 Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235...
-
Page 17: Specifications And Environmental Conditions
● ● pressure: 75kPa–106kPa ● ● mains voltage within ±10% of nominal ● ● vibrations in the calibration environment should be minimized ● ● altitudes less than 2000 meters ● ● indoor use only ● ● Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235... - Page 18 Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235...
-
Page 19: Quick Start
3.1 Unpacking Unpack the dry-well carefully and inspect it for any damage that may have occurred during shipment. If there is shipping damage, notify the carrier immediately. Verify that the following components are present: 9100S Dry-well ● ● Power Cord ●... - Page 20 The well may require 5 to 10 minutes to reach the set-point depending on the span. Another 5 to 10 minutes is required to stabilize within ±0.1°C of the set-point. Ultimate stability may take 15 to 20 minutes more of stabilization time. Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235...
-
Page 21: Parts And Controls
The area around the calibrator must be kept clear to allow adequate ventilation. The air is directed from the back to the front and may be hot. Allow 6 inches of open space around the calibrator to allow adequate ventilation. Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235... -
Page 22: Side View
Figure 2 Side view of the 9100S showing the prop stand CAUTION: The prop stand was not designed to be used as a handle for carrying the instrument. -

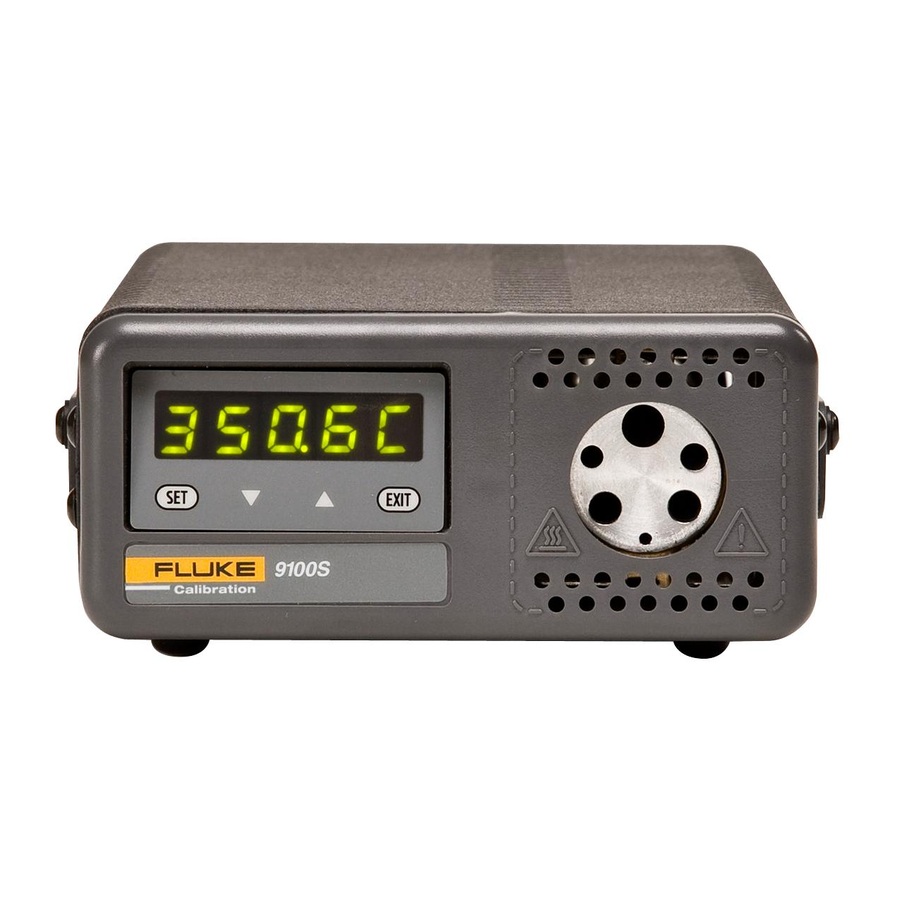

Page 23: Front Panel
The “Block” is made of aluminum and provides a relatively constant and accurate temperature environment in which the sensor that is to be calibrated is inserted. A high-temperature platinum RTD imbedded in the block assembly senses and controls Fluke-Direct .com info@Fluke-Direct.com... -
Page 24: Figure 4 Fixed Block Options
Block “D” has six holes, two that accept probe diameter of 3 mm, two that accept probes of 4 mm diameter, and two that accept probes of 6 mm diameter. Surrounding the well opening are small ventilation holes which provide cooling to the instrument. 9100S Fixed-Block Options Block “A” Block “B” Block “C”... -
Page 25: General Operation
6. Press the “SET” key three times from the temperature display to show Un= C 7. Press the u or d key to change units. 8. Press “SET” to save the setting or “EXIT” to continue without changing the setting. Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235... - Page 26 Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235...
-
Page 27: Controller Operation
“SET”. The number of the set- point memory currently being used is shown at the left on the display followed by the current set-point value. Well temperature in degrees Celsius 100.0 C Access set-point memory Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235... -
Page 28: Set-Point Value
The scan rate can be set and enabled so that when the set-point is changed the dry-well heats or cools at a specified rate (degrees per minute) until it reaches the new set-point. With the scan disabled the dry-well heats or cools at the maximum possible rate. Fluke-Direct .com info@Fluke-Direct.com... -
Page 29: Figure 5 Controller Operation Flow Chart
BAUD Rate SET/EXIT SET/EXIT SET/EXIT Sample Select ALPHA Period Adj. Sample Adjust ALPHA Period SET/EXIT SET/EXIT Duplex Select DELTA Mode Adj. Duplex Adjust DELTA Mode SET/EXIT SET/EXIT Linefeed Adjust Linefeed SET/EXIT Figure 5 Controller operation flow chart Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235... -
Page 30: Scan Control
9100SDry-WellCalibrator Set-pointResistance 6.3.1 Scan Control The scan is controlled with the scan on/off function that appears in the main menu after the temperature scale units. flashes for one second and then the current scan setting is displayed Scan function off Press the up or down arrow to toggle the scan on or off. -
Page 31: Secondary Menu
At the bottom of the proportional band, the heater output is 100%. At the top of the proportional band, the heater output is 0. Thus, as the temperature rises the heater power is reduced, which consequently tends Fluke-Direct .com info@Fluke-Direct.com... -
Page 32: Controller Configuration
9100SDry-WellCalibrator ControllerConfiguration to lower the temperature back down. In this way the temperature is maintained at a fairly constant level. The temperature stability of the well and response time depend on the width of the proportional band. If the band is too wide, the well temperature deviates excessively from the set-point due to varying external conditions. -
Page 33: Operating Parameters
— baud rate, sample period, duplex mode, and linefeed. 6.11.1 Baud Rate The baud rate is the first parameter in the menu. The baud rate setting determines the serial communications transmission rate. The baud rate parameter is indicated by, Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235... -
Page 34: Sample Period
9100SDry-WellCalibrator SerialInterfaceParameters Flashes for one second and then displays the bAUd bAUd setting Current baud rate 2400b The baud rate of the serial communications may be programmed to 300, 600, 1200, 2400 (default), 4800, or 9600 baud. Use the up or down arrows to change the baud rate value. -
Page 35: Linefeed
The calibration parameters are accessed by pressing “SET” after the name of the parameter is displayed. The value of the parameter may be changed using the up or down arrow. After the desired value is reached, press “SET” to set the parameter to the Fluke-Direct .com info@Fluke-Direct.com... -
Page 36: Hard Cutout
9100SDry-WellCalibrator CalibrationParameters new value. Pressing “EXIT” causes the parameter to be skipped ignoring any changes that may have been made. 7.12.1 6.12.1 Hard Cutout This parameter is the temperature above which the unit shuts down automatically. The value of this parameter is set at the factory to approximately 400°C and cannot be changed by the user. -
Page 37: Delta
Flashes for one second and then the DELTA setting is DeLta displayed Current DELTA setting 0.0000 To change the DELTA setting, press the up or down arrows. New DELTA setting 0.1000 To accept the new setting, press “SET”. Press “EXIT” to continue without storing the new value. Accept the new DELTA setting Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235... - Page 38 Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235...
-
Page 39: Digital Communication Interface
The protocol for serial communications is 8 data bits, 1 stop bit, and no parity. Use no flow control. Set the linefeed to ON (all carriage returns are followed by a linefeed (ASCII decimal 10)), and the duplex to HALF, disabling echo. Figure 6 Serial cable wiring Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235... -
Page 40: Interface Commands
9100SDry-WellCalibrator InterfaceCommands The serial port can be used to transmit measurements to a computer or printer or to change settings of the instrument from a computer. A full list of commands follows in Section . Commands sent to the instrument must end with an EOS character which is a carriage return (CR, ASCII 13) or linefeed character (LF, ASCII 10). - Page 41 9.99999 0–3.0 Miscellaneous Other Commands Read firmware version number *ver[sion] *ver ver.9999x,9.99 ver.9100S,1.01 Read structure of all commands h[elp] list of commands Read ALL operating parameters list of parameters Read setpoint resistance 999.999 ohms 110.023 ohms Legend: [] Optional command data...
- Page 42 Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235...
-
Page 43: Test Probe Calibration
Speeding up the calibration process can be accomplished by knowing how soon to make the measurement. It is recommended that typical measurements be made at the desired temperatures with the desired test probes to establish these times. Fluke-Direct .com info@Fluke-Direct.com... - Page 44 Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235...
-
Page 45: Calibration Procedure
3. Repeat step 2 for the other two set-points recording them as T and R and T and R respectively. 4. Using this recorded data, calculate new values for R0, ALPHA, and DELTA using the following formula: Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235... -
Page 46: Compute Delta
9100SDry-WellCalibrator CalibrationProcedure 9.2.1 Compute DELTA − − − − − ... -
Page 47: Accuracy And Repeatability
(see Section 6.12, Calibration Parameters on page 27 and Figure 5 on page 21). 9.2.3 Accuracy and Repeatability Check the accuracy of the dry-well at various points over the calibration range. If dry- well does not pass specification at all set-points, repeat the Calibration Procedure. Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235... - Page 48 Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235...
-
Page 49: Maintenance
Before using any cleaning or decontamination method except those ● ● recommended by Fluke, users should check with an Authorized Service Center (see Section 1.4, Authorized Service Centers on page 5) to be sure that the proposed method will not damage the equipment. - Page 50 Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235...
-
Page 51: Troubleshooting
Initialize the system by performing the Factory Reset Sequence describe above. Incorrect High Limit parameter. The High Limit parameter may be set below Temperature cannot be set 375°C. Check this value as described in Section 6.9, Operating Parameters on above a certain page 25. point Fluke-Direct .com info@Fluke-Direct.com 1.888.475.5235... -
Page 52: Ce Comments
11.2.2 Low Voltage Directive (Safety) In order to comply with the European Low Voltage Directive (73/23/EEC), Fluke equipment has been designed to meet the IEC 1010-1 (EN 61010-1) and the IEC 1010-2- 010 (EN 61010-2-010) standards.
