Double Insulated

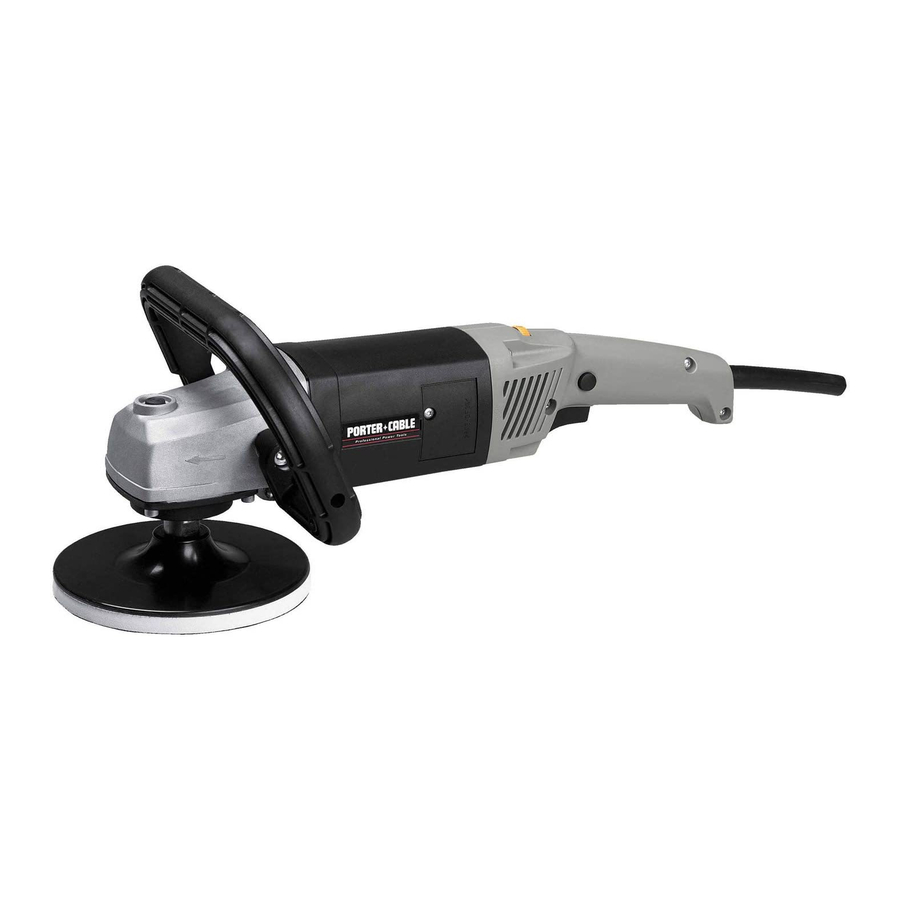

Disc Polisher
Please make certain that the person who is
to use this equipment carefully reads and
understands these instructions before
starting operations.
The Model and Serial No. plate is located on the main
housing of the tool. Record these numbers in the
spaces below and retain for future reference.
Model No. ______________________________________
Type ___________________________________________
Serial No. _______________________________________
ESPAÑOL: PÁGINA 11
FRANÇAISE : PAGE 21
MODEL
7428
IMPORTANT
Part No. 293741 - 09-30-01
Advertisement
Table of Contents
Related Manuals for Porter-Cable 7428
Summary of Contents for Porter-Cable 7428
- Page 1 293741 - 09-30-01.qxd 2/13/02 Instruction manual To learn more about Porter-Cable visit our website at: http://www.porter-cable.com Copyright © 2001 PORTER-CABLE Corporation 9:31 AM Page 1 ESPAÑOL: PÁGINA 11 FRANÇAISE : PAGE 21 Double Insulated Disc Polisher MODEL 7428 IMPORTANT Please make certain that the person who is...
-
Page 2: General Safety Rules
293741 - 09-30-01.qxd 2/13/02 WARNING: SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER CONSTRUCTION ACTIVITIES contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • lead from lead-based paints, •... - Page 3 293741 - 09-30-01.qxd 2/13/02 Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. Avoid accidental starting. Be sure switch is OFF before plugging in. Carrying tools with your finger on the switch or plugging in tools that have the switch ON invites accidents.
-
Page 4: Specific Safety Rules And Symbols
“live” and shock the operator. WARNING: There are certain applications for which this tool was designed. Porter-Cable strongly recommends that this tool NOT be modified and/or used for any application other than for which it was designed. If you have any questions relative to its application DO NOT use the tool until you have written Porter-Cable and we have advised you. -
Page 5: Functional Description
2/13/02 MOTOR Many Porter-Cable tools will operate on either D.C., or single phase 25 to 60 cycle A.C. current and voltage within plus or minus 5 percent of that shown on the specification plate on the tool. Several models, however, are designed for A.C. -
Page 6: Operation
293741 - 09-30-01.qxd 2/13/02 Fig. 1 TO INSTALL BACK-UP PAD The Porter-Cable Polisher has a “Hook & Loop” style back-up pad. No wrenches are required for installation or removal of the back-up pad or accessories. CAUTION: DISCONNECT TOOL FROM POWER SOURCE. -
Page 7: Variable Speed
293741 - 09-30-01.qxd 2/13/02 VARIABLE SPEED Speed is adjusted two ways: With switch (A) Fig. 4, in the locked ON position use thumbwheel (C) Fig. 5, to adjust the speed (approximately 1000 RPM to 3000 RPM). Switch (A) Fig. 4, can also be used to adjust the speed, 0 RPM to approximately 3000 RPM, with maximum speed depending on the position of thumbwheel (C) Fig. -
Page 8: Maintenance
CENTER. At approximately 100 hours of use, take or send your tool to your nearest Authorized Porter-Cable Service Station to be thoroughly cleaned and inspected; worn parts replaced, when necessary; relubricated with fresh lubricant, if required; reassembled with new brushes; and performance tested. -
Page 9: Service And Repairs
In any communications, please give all information shown on the nameplate of your tool (model number, type, serial number, etc.). A complete line of accessories is available from your Porter-Cable • Delta Supplier, Porter-Cable • Delta Factory Service Centers, and Porter-Cable Authorized Service Stations. - Page 10 PORTER-CABLE LIMITED ONE YEAR WARRANTY Porter-Cable warrants its Professional Power Tools for a period of one year from the date of original purchase. We will repair or replace at our option, any part or parts of the product and accessories covered under this warranty which, after examination, proves to be defective in workmanship or material during the warranty period.
- Page 11 Pour obtenir des pièces et accessoires pour les produits Porter-Cable • Delta, s’adresser à tout distributeur Porter- Cable • Delta, centre de service agréé ou centre de service d’usine Porter-Cable • Delta. Si vous n’avez accès à aucun de ces centres, appeler le 888-848-5175 et on vous dirigera vers le centre de service d’usine Porter-Cable •...
