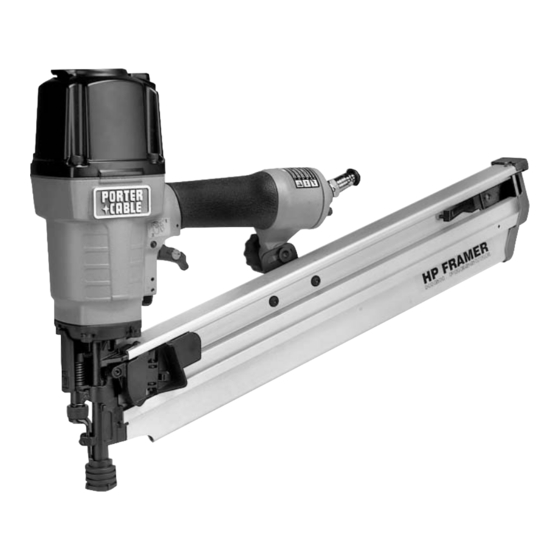

HP FRAMER
H H I I G G H H P P R R E E S S S S U U R R E E
ROUND HEAD
FRAMING NAILER
MODEL FRP350
IMPORTANT
Please make certain that the person who is
to use this equipment carefully reads and
understands these instructions before
starting operations.
The Model and Serial No. plate is located on the main
housing of the tool. Record these numbers in the
spaces below and retain for future reference.
Model No. ______________________________________
Type ___________________________________________
Serial No. _______________________________________
®
Part No. A07371 - 08-27-04
