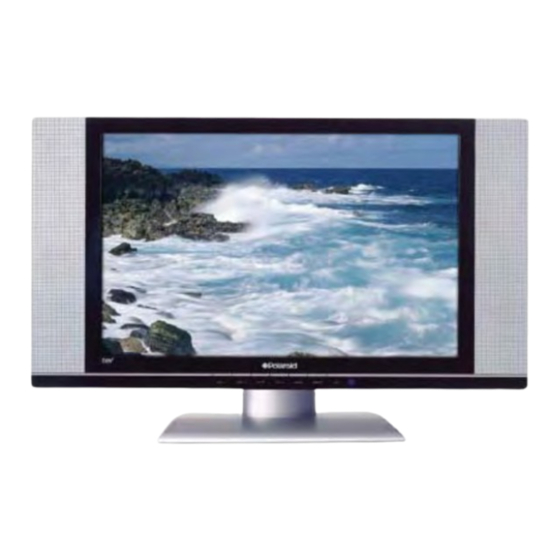

- Page 1 19” HD-Ready LCD TV with NTSC Tuner FLM-1911 20060322...
- Page 2 FEDERAL COMMUNICATIONS COMMISSION (F.C.C) STATEMENT This equipment has been tested and found to comply with the limits of a class B digital device. Pursuant to Par t 15 of the FCC Rules. These limits a re d e s i gn e d to p rov i d e re a s o n a b l e p ro te c t i o n a g a i n s t h a r m f u l inter ference in a residential installation.
- Page 3 Safety Instructions IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fi re or electric shock, do not expose this equipment to rain or moisture. CAUTION: TO AVOID THE RISK OF ELECTRIC SHOCK, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to avoid the risk of electric shock, do not disassemble this equipment by anyone except a qualifi ed service personnel.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS To prevent any injuries, the following safety precautions should be observed in the installation, use, servicing and maintenance of this equipment. Before operating this equipment, please read this manual completely, and keep it nearby for future reference. Do not place the equipment on any uneven or unstable carts, stands, tables, shelves etc..
- Page 5 Safety Instructions IMPORTANT SAFETY INSTRUCTIONS Do not attempt to service the equipment yourself. Only use attachments/accessories specifi ed by the manufacturer. Opening and removing the covers may expose you to dangerous voltage or any other hazards and may void your warranty. Refer all servicing to a qualifi ed service personnel.
- Page 6 ANTENNA CONNECTION EXAMPLE OF OUTDOOR ANTENNA GROUNDING If an outdoor antenna is connected, follow the precautions below: An outdoor antenna should not be located anywhere that can be in contact of overhead power lines, or any other electric light or power circuits.
- Page 7 ANTENNA CONN. ANTENNA CONNECTION NOTE TO CATV SYSTEM INSTALLER This reminder is provided to call the CAT V system installers atte ntion to Ar ticle 820-40 of the National Elec trical Code (NEC ) that provides guidelines for proper grounding and, in par ticular, specifies that the cable ground shall be connec ted to the grounding system of the building accurately, or as close to the point of cable entr y as possible.
- Page 8 The antenna requirements for good color TV reception are more important than those of a black & white TV reception. For this reason, a good quality outdoor antenna is strongly recommended. The following is a brief explanation of the type of connection that is provided with the various antenna systems.
-
Page 9: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS PREPARATION ... 9 Features ... 9 Package Contents ... 10 LCD TV ... 11 Front View ... 11 Rear View ... 12 Remote Control ... 13 Using your LCD TV... 15 INSTALLATION ... 16 Connecting a TV Cable or an Antenna ... -
Page 10: Preparation
Congratulations on the purchase of your new High Def inition Compatible Television. In order to maximize the potential of this television, you must use it in conjunction with a High Def inition Signal Source, utilizing a proper High Def inition receiving unit (of ten referred to as a “set-top” box). Only “true” High Def inition transmitted video will yield optimum picture qualit y. -
Page 11: Package Contents
These items are all you need to set up and operate the LCD TV in its basic confi guration. * Make sure all of the contents are included in the package. If you are missing any items, please contact the Polaroid customer service department at 1-866-289-5168. -
Page 12: Lcd Tv
LCD TV PHONES VO L. ITEM DESCRIPTION 1 IR Infrared Receiver (IR) 2 POWER Turns the LCD TV on and off . The LED light indicates when the LCD TV 3 LED is activated (green light indicates on and amber indicates off ). 4 INPUT Chooses from diff erent input signal sources. -
Page 13: Rear View
PREPARATION LCD TV ITEM DESCRIPTION 1 AC IN Connects the AC power cord. Connects to the audio or video equipment with left and 2 AUDIO IN 1 right audio output jacks of the component (Y, Pb/Cb, Pr/Cr). Connects to the component (Y, Pb/Cb, Pr/Cr) video jacks 3 COMPONENT on your DVD player, HDTV Tuner source, or video equipment. -
Page 14: Remote Control
Remote Control POWER Turns the LCD TV on and into standby mode . Press to select PC mode. Selects the Multi-channel TV Sound. Options:Stereo, MTS and Mono. CAPTION To select the C.C. Mode to be ON or OFF. MUTE Mutes and restores your LCD TV sound. SLEEP Sets the sleep timer. - Page 15 PREPARATION Remote Control Installing the batteries in your remote control Pull the tab of the back cover and pull up on the cover to open the battery compartment of the remote control. Insert two AAA size batteries. Make sure to match the (+) and (-) ends of the batteries with the (+) and (-) ends indicated in the battery compartment.
-
Page 16: Using Your Lcd Tv
Using your LCD TV You may adjust the tilt angle of the LCD TV about +15 deg. / -0 deg. Always turn the LCD TV off when the LCD TV is not in use for a long period. The Power button is only used for switching the LCD TV into standby mode, it does not disconnect the device from the main voltage. -
Page 17: Installation
INSTALLATION Refer to the owner’s manual of the external equipments to be connected.When connecting external equipment, do not connect any AC power cords to wall outlets until you have completed all the connections. Connecting a TV cable or Antenna Basic Connection: Connecting cable or an antenna . Antenna/75- oh m coaxia l inpu t A: Use a supplied antenna cable to connect the VHF/UHF to your LCD TV. -
Page 18: Connecting A Dvd Player
Connecting a DVD Player For best picture quality, if your equipment has (Y Pb/Cb Pr/Cr) video output,please use component cable instead of a standard video or S-video cable. METHOD A (AV3) (BEST) Use a Component cable to connect the Y/Pb(Cb)/Pr(Cr) jacks on the DVD player to your LCD TV. -
Page 19: Connecting A Vcr & A Video Camera
INSTALLATION Connecting a VCR & a Video Camera METHOD A (AV2) (BEST) Use an Audio cable to connect the VCR’s/ the VIDEO CAMERA’s audio output jacks to your LCD TV. Use a S-Video cable to connect your LCD TV and VCR player/ VIDEO CAMERA. METHOD B (AV1) (GOOD) Use an A/V cable to connect the VCR’s/ VIDEO CAMERA’... -
Page 20: Connecting A Tv Box And Satellite Receiver
Connecting a TV Box and Satellite Receiver METHOD A (AV4) (BEST) Use a D-SUB cable to connect the TV Cable Box D-SUB connector to your LCD TV. Use an Audio cable to connect the TV Cable Box and your LCD TV. METHOD B(AV3) (VERY GOOD) Use a component cable to connect the Y/Pb(Pb)/Pr(Cr) jacks on the satellite receiver to to your LCD TV. -
Page 21: Using The Features
USING THE FEATURES USING THE FEATURES Basic Operation Turning the TV On and Off After connecting a CATV or antenna to your LCD TV, and turn the POWER SWITCH of rear on, an amber LED light indicates when the LCD TV is activated. Press the button, the LED green light indicates on. -
Page 22: Osd Menu Operation
OSD Menu Operation Press the button on the remote control. The main menu will appear on the screen. MENU Use ▲/▼ to highlight your main menu option, then press OK to enter your selected option. Use ▲/▼ to highlight an option of the sub-menu. Use ◄/► to change the value of the item.Press the EXIT button to exit MENU. -
Page 23: Audio
USING THE FEATURES Video Audio Use this AUDIO setting menu to adjust the sound quality which best corresponds to your listening requirements. OPTION DESCRIPTION Color Temp. Standard:Select to give the white colors a neutral tint. Warm:Select to give the white colors a reddish tint. -
Page 24: Parental Control
Parental Control The Parental Control settings allows you to set up the TV to block programs according to their content and rating levels. OPTION Enter PIN You can set up the TV to block program by entering your four digit password.(The default factory password is “1111”.) After enter the correct PIN , the Parental Controls menu will display “Correct PIN”... -
Page 25: Setup
USING THE FEATURES Parental Control Setup Use this Setup setting menu to set up some features: Tuner/Channel, Language etc. OPTION Movie Rating Allows you to select the Block MPAA Unrated to be OFF or General Audiences. Movie is appropriate for all ages. Parental Guidance Suggested. - Page 26 Setup 3. to begin auto search. 4. auto search completed.All receivable stations are stored. OPTION DESCRIPTION Channel System Channel Name Fine Tune Skip Language Select to display all on-screen Settings in your language of choice: English,Spanish,French. OSD Time Allows selection of the display time of the on-screen menu:5 sec,10 sec,15 sec, 20 sec,25 sec, and 30 sec.
- Page 27 USING THE FEATURES Setup OPTION Sleep Time Sets up a certain time to shut off automatically:OFF/15/30/45/60/90/120 minutes. Allows you to restore the factory Reset settings. CC Mode Allows you to select the CC mode to be CC1,CC2,CC3,CC4,TEXT1, TEXT2, TEXT3, TEXT4. DESCRIPTION...
-
Page 28: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Before consulting service personnel, check the following chart for a possible cause of the problem you are experiencing and for a solution. PROBLEM SOLUTION... -
Page 29: Specifications
