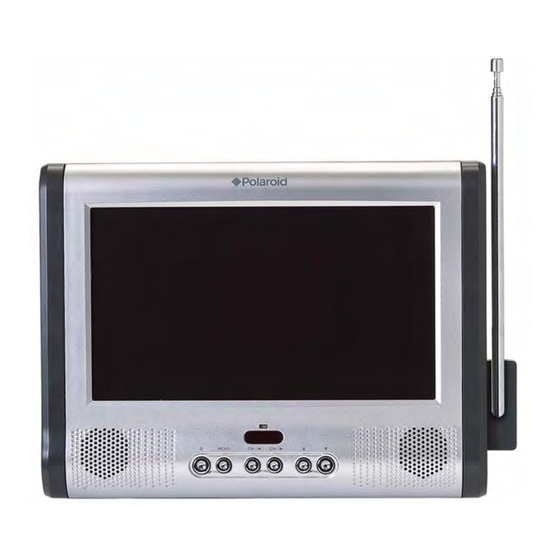

- Page 1 7” Portable LCD TV with NTSC Tuner FLM-0711LA 20060525...
-
Page 2: Introduction
Since 1937, America has turned to Polaroid for their photography needs. Today, families look to Polaroid for consumer electronics that define the digital age: plasma and LCD TVs, portable and standard DVD players, digital cameras. And while our selection has changed, you’ll still receive the same friendly, helpful service that made Polaroid an American icon. -
Page 3: Important Safety Instructions
Important Safety Instruction The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Important Safety Instruction
Important Safety Instruction NOTES Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Maintain well ventilated conditions around the product. Do not put product on bed, sofa or anything that blocks ventilation. Install according to the manufacturer’s instructions. -
Page 5: Product Features
Product Features TV Signal Can be connected to the TV antenna for receiving TV signal. Superior Sound Built-in 2x1.5w stereo amplifier realizes high quality sound effects. LCD (Liquid Crystal Display) Designed with 7" color TFT liquid crystal display clearly shows the data. Audio and Video Input and Output Audio and video output can be connected to external audio and video input device and external AV signal source. -
Page 6: Table Of Contents
Table Of Contents Introduction--------------------------------------------------------------------------------------------- Important Safety Instructions----------------------------------------------------------------------- Product Features ------------------------------------------------------------------------------------ Table of Contents-------------------------------------------------------------------------------------- Product Description---------------------------------------------------------------------------------- Main Panel ---------------------------------------------------------------------------------------------- Rear Panel----------------------------------------------------------------------------------------------- Remote Control Description----------------------------------------------------------------------- Preparation of Remote Control ------------------------------------------------------------------ Rechargeable Battery-------------------------------------------------------------------------------- System Connections--------------------------------------------------------------------------------- Power Supply Connection --------------------------------------------------------------------------- Connecting to a TV ------------------------------------------------------------------------------------- Connecting to an Amplifier---------------------------------------------------------------------------- Connecting to External AV Signal Source--------------------------------------------------------- Connecting to a DC Adapter ------------------------------------------------------------------------... -
Page 7: Product Description
Product Description Main Panel Power button Press to turn on or off the power. MENU button Press to enter or exit the setup menu. CH / button In TV mode, press to select channel. In the menu, press to adjust the value. CH +/ button In TV mode, press to select channel. -
Page 8: Rear Panel
Product Description (continued) 11. TV Antenna jack (2) Used to connect to the external antenna or the CATV connecting line. 12. TV Antenna jack (3) Used to connect to the external antenna. 13. LCD screen 7" color TFT LCD screen clearly display the data. Left Panel Headphone jack When the headphone is plugged, the internal speakers output will turn off... -
Page 9: Remote Control Description
Remote Control Description Remote Control - 8 -... -
Page 10: Remote Control Description
Remote Control Description 1. Power button Press to access or exit standby mode. 2. LCD ON/OFF button Press to turn on or off the LCD screen display. 3. 16:9 button Press to change the screen aspect ratio to 16:9. 4. 4:3 button Press to change the screen aspect ratio to 4:3. -
Page 11: Preparation Of Remote Control
Preparation of Remote Control • The battery size is CR2025 • Refer to the drawing below, to remove the battery receptacle. • Insert the battery with the correct polarity facing up according to the mark on the battery holder. • Re-insert into the remote control. -
Page 12: Rechargeable Battery
Rechargeable Battery Description About Rechargeable Battery Pack The unit can be connected with a lithium polymer rechargeable battery that attaches to the bottom of the unit. Your new battery should be fully charged before initial use. Charging time is normally about 4 hours. A fully charged battery delivers about 2.5 to 3 hours of use, but playing time varies from disc to disc. - Page 13 Rechargeable Battery Description Battery Pack Attaching and Placement The unit’s power supply is the AC power adapter or the battery pack. The battery pack can be used as a stand. Refer to the following steps for attaching the Battery Pack: Place the unit on a soft and smooth surface with its back cover facing UP (to avoid scratching the screen).
- Page 14 Rechargeable Battery Description Charging the Battery Pack The battery must be attached to the unit to charge it. Plug the Power Adapter into the unit’s DC 9.5V IN Jack, which is located on left of the unit. Plug the other end of the Power Cord into a wall Outlet.
-
Page 15: System Connections
System Connections • Before plugging the power cord into an AC outlet, make sure that all other connections have been made as described below. • Always ensure that the unit, TV and any other electrical components are switched OFF before connecting to the unit. Power Supply Connection Connect the supplied adapter to the side of the unit in the jack marked “DC 9.5V IN”. -
Page 16: Connecting To An Amplifier
System Connections Connecting to an Amplifier The unit can be connected to an amplifier. Plug the supplied A/V cable into the audio jack on the left side of the unit and plug the other end into an audio input on the amplifier. Please refer to the equipment’s manual of your amplifier before connecting. -
Page 17: Connecting To A Dc Adapter
System Connections Connecting to a DC Adapter Connect one end of the specific DC adapter to the “DC 9.5V IN” jack on the left panel of the unit, and connect the other end to the cigarette lighter socket in the car as shown below: •... -
Page 18: Connecting To Catv Antenna
System Connections Connecting to CATV antenna Connect one end of the provided connecting line to the TV signal input jack on the right panel of the unit, and the other end to the CATV signal source, as shown below: After connection, switch the TV/AV to TV. Connecting to external antenna (1) Plug the provided external antenna (1) to the TV signal input jack and two fixing jacks on the right panel of the unit, as shown below:... -
Page 19: Connecting To External Antenna(2)
System Connections Connecting to external antenna (2) Plug the provided external antenna (2) to the TV signal input jack on the right panel of the unit, as shown below: After connection, switch the TV/AV to TV. - 18 -... -
Page 20: Tv Setup
TV Setup Preparation Connect the unit to the external antenna or CATV connecting cord. Connect to power supply. Turn on the power of the unit. Switch the TV/AV to TV. Press the MENU button to enter the setup menu. Picture Setup Menu Press the MENU button once to enter the Picture setup menu, as shown on the below: PICTURE C O L O R... - Page 21 3. Fine Tuning When the picture is not very good, you can perform fine tuning. Press the button to select FINE, press the video and audio effects effect are best, stop the fine tuning and the program will be stored automatically. 4.
-
Page 22: Troubleshooting
Troubleshooting Problem • Make sure the system connection is correct. • If wired headphones are plugged in, unplug them. There is no sound. • Make sure the volume is not turned down. • Make sure your system connection is correct. •... -
Page 23: Specifications
Specifications TFT screen size TV System Audio Out Analog Audio Out Video Out Video Out Power AC100-240V 50/60Hz Power Consumption >15W Dimension 200mmX154mmX41mm Weight About 1.0 Kg DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE 7 inches NTSC Output Level: 1.5V± , Load: 10KΩ... - Page 24 - 23 -...
