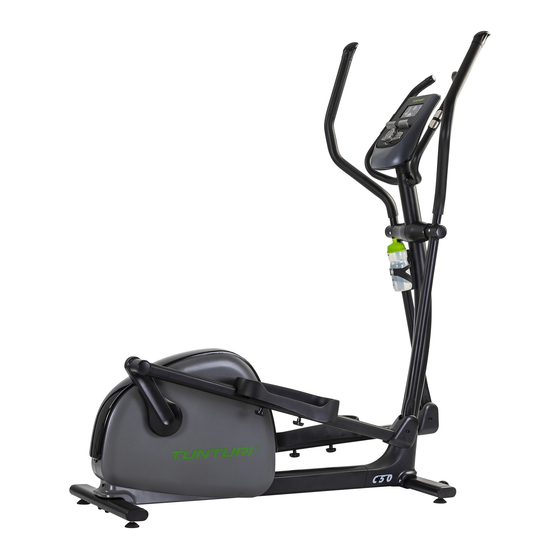

C50 Cross trainer
User manual
Benutzerhandbuch
Manuel de l'utilisateur
Gebruikershandleiding
Manual del usuario
Bruksanvisning
Kättöohje
Attention, Achtung, Attention, Attentie, Atención, Giv akt,
- Please read this Owner's manual before assembling this product.
- Bitte lesen Sie dieses Handbuch durch, bevor Sie mit er Montage dieses Produkts beginnen.
- Veuillez lire ce manuel avant de commencer le montage de ce produit.
- Leest u deze handleiding voordat u dit apparaat installeert.
- Lea este manual antes de montar este producto
- Läs bruksanvisningen innan du monterar denna produkt
- Lue tämä käsikirja ennen kokoamista tuotetta
HuomioBelangrijk: Nota:
Advertisement
Table of Contents
Related Manuals for Tunturi C50
Summary of Contents for Tunturi C50
- Page 1 C50 Cross trainer User manual Benutzerhandbuch Manuel de l’utilisateur Gebruikershandleiding Manual del usuario Bruksanvisning Kättöohje Attention, Achtung, Attention, Attentie, Atención, Giv akt, HuomioBelangrijk: Nota: - Please read this Owner’s manual before assembling this product. - Bitte lesen Sie dieses Handbuch durch, bevor Sie mit er Montage dieses Produkts beginnen.
- Page 2 C-50...
- Page 3 C-50 C50 (电动) Spring Washer Curved Washer φ8*2T Curved Washer φ8*φ19 2T Curved Washer φ17*φ25 1T φ8.5*φ25 2T Manual allen bolt Carriage Bolt Carriage Bolt Allen Key Allen Key Box Spanner...
- Page 4 C-50 111 Spring Washer 115 Curved Washer φ8*2T (2) 117 Curved Washer φ8*φ19 * 2T (4) 112 Curved Washer φ17*φ25 * 1T (2) φ8.5*φ25 * 2T (4) 113 allen bolt M5*10L(12) 116Carriage Bolt M8*60L(4) 114 Carriage Bolt M8*16L(8) Allen Key(1) Box Spanner(1) Allen Key(1) 5MM 100 cm...
- Page 5 C-50 111 Spring Washer 115 Curved Washer φ8*2T (2) 117 Curved Washer φ8*φ19 * 2T (4) 112 Curved Washer φ17*φ25 * 1T (2) φ8.5*φ25 * 2T (4) 113 allen bolt M5*10L(12) 116Carriage Bolt M8*60L(4) 114 Carriage Bolt M8*16L(8) Allen Key(1) Box Spanner(1) Allen Key(1) 5MM...
- Page 6 C-50 111 Spring Washer 115 Curved Washer φ8*2T (2) 117 Curved Washer φ8*φ19 * 2T (4) 112 Curved Washer φ17*φ25 * 1T (2) φ8.5*φ25 * 2T (4) 113 allen bolt M5*10L(12) 116Carriage Bolt M8*60L(4) 114 Carriage Bolt M8*16L(8) Allen Key(1) Box Spanner(1) Allen Key(1) 5MM...
- Page 7 C-50 111 Spring Washer φ8*2T (2) 117 Curved Washer 112 Curved Washer φ17*φ25 * 1T (2) φ8.5*φ25 * 2T (4) 113 allen bolt M5*10L(12) 114 Carriage Bolt M8*16L(8) Allen Key(1) Box Spanner(1) Allen Key(1) 5MM...
- Page 8 C-50 112 111 114 111 Spring Washer φ8*2T (2) 112 Curved Washer φ8.5*φ25 * 2T (4) 113 allen bolt M5*10L(12) 114 Carriage Bolt M8*16L(8) Allen Key(1) Box Spanner(1) Allen Key(1) 5MM...
- Page 9 C-50 113 allen bolt M5*10L(12) Box Spanner(1) Allen Key(1) 5MM...
- Page 10 C-50 Box Spanner(1) Allen Key(1) 5MM...
- Page 11 C-50...
- Page 12 C-50 F-01 F-06 F-02 F-07 F-03 F-08 F-04 F-09 F-05 F-10...
- Page 13 C-50 F-11 F-16 F-12 F-017 F-13 F-18 F-14 F-19 F-15 F-20...
- Page 14 C-50 F-21 F-25 F-22 F-23 F-24 F-25...
-
Page 15: Safety Warnings
Wear appropriate clothing and shoes. Thank you for purchasing this piece of Tunturi Keep clothing, jewelry and other objects away from equipment. Tunturi offers a wide range of home fitness the moving parts. equipment, including crosstrainers, treadmills, exercise Make sure that only one person uses the equipment bikes and rowers. -
Page 16: Electrical Safety
English Electrical safety Assembly (fig. D) (Only for equipment with electric power) WARNING Before use, always check that the mains voltage is • Assemble the equipment in the given order. the same as the voltage on the rating plate of the •... -
Page 17: Power Supply (Fig. E)
English If the skin is too dry or too moist, the pulse rate Maximum heart rate measurement will become less accurate. (during training) The maximum heart rate is the highest heart rate a NOTE person can safely achieve through exercise stress. The •... -
Page 18: Console (Fig F)
English Speed Console (fig F) Displays current training speed. Maximum speed is 99.9 KM/H or ML/H. Without any signal being transmitted into the monitor for 4 seconds during workout, SPEED will display “0.0” Displays the Rotation Per Minute. Display range 0~15~999 Without any signal being transmitted into the monitor for 4 seconds during workout, RPM will display “0”... -
Page 19: Manual Mode
English Reset Manual mode In setting mode, press RESET key once to reset the Use Dial UP/ DOWN key to select workout current function figures. program, choose MANUAL mode and press mode Press RESET key and hold for 2 seconds to reset all key to enter next setting entry for manual mode function figures program. -
Page 20: Cleaning And Maintenance
Use RESET to go back to main menu. Bluetooth or Tunelinc, the console will power off. Recovery NOTE Tunturi only provides the option to connect your fintess The RECOVERY key will only be valid if pulse is console throughout a blue tooth connection. Therefore detected. -
Page 21: Technical Data
Warranty coverage Under no circumstances shall Tunturi New Fitness BV or the Tunturi Distributor be liable by virtue of this warranty or otherwise for any special, indirect, secondary or consequential damages of any nature arising out of any use or inability to use this equipment. -
Page 22: Declaration Of The Manufacturer
Owner’s Manual and providing that Tunturi New Fitness BV’s instructions for installation, Tunturi New Fitness BV declares that the product is in maintenance and use have been complied with. Neither conformity with the following standards and directives: Tunturi New Fitness BV’s nor the Tunturi Distributors’... -
Page 23: Warnhinweise Zur Sicherheit
Umgebung, damit Sie sich nicht Laufbänder, Trainingsfahrräder und Rudergeräte an. Die erkälten. Tunturi Geräte sind für die ganze Familie geeignet - Verwenden Sie das Gerät nur in Umgebungen mit ganz egal, wie fit man ist. Weitere Informationen finden Umgebungstemperaturen zwischen 10 °C und 35... - Page 24 C-50 Description Console Bearing 6004RS Cross head screw M5*10 Driving belt Handlebar post Side cover ( L) Hand pulse sensor wire Side cover ( R) Cable wire, upper Top cover End cap Handlebar post cover Foam grip Ring for handlebar post Hand pulse sensor Cover of bottom tube Front post cover...
- Page 25 C-50 Magnetic brake set Switching power 9V,500mA Hex. screw M6xP1.0*16L Spring washer Ø8.1*Ø12.9*2.4T Flat washer Ø6xØ13x1t Flat washer Ø8.5xØ25x2t Spring washer Ø6 Screw M5xP0.8x10L Belt tightener Screw M8xP1.25x16L Wheel for belt tightener Flat washer Ø8xØ19x2t Curved washer Ø10.5xØ15x0.3t Screw M8xP1.25x60L Nylon nut M8 Flat washer Ø17.5xØ25x1t Flat washer Ø8.5xØ25x2t...
- Page 26 C-50...
- Page 27 Tunturi New Fitness BV Purmerweg 1 NL - 1311 XE Almere P.O. Box 60001 NL - 1320 AA Almere The Netherlands www.tunturi-fitness.com 20170124...
