Disassembly/Assembly > Controller System > Removing the DC Controller PCB > Procedure
■ Aftter Replacing
Aftter Replacing 1) After the parts are assembled, turn ON the power.
2) Setting of the paper size group
COPIER > OPTION > BODY > SIZE-LC
[Setting value]
1: AB configuration, 2: Inch configuration, 3: A configuration, 4: AB/inch
configuration
3) Clearing the data
COPIER > FUNCTION > CLEAR > ALL (clearing of all data)
When executing this item, the following data is cleared according to the value
set in step 2 and the serial number.
Settings/Registration data (the initial value according to the location is set.)
Service mode data (the initial value according to the location is set.)
System administrator ID and password (They are changed back to the default
values. ID: 0, PWD: 0)
Each log data
Date data
COPIER > FUNCTION > CLEAR > R-CON (clearing of the factory adjustment
values related to the Reader and ADF)
4) Migrating service mode data
Import the service mode data backed up before replacement from the USB
memory.
COPIER > FUNCTION > SYSTEM > IMPORT
If the data could not be backed up, enter the values on the service label to the
respective entry fields.
5) Turn OFF and then ON the power.
6) The initial installation mode will be activated. Operate according to the
instruction on the screen.
(Setting the date/time, executing the auto gradation adjustment)
7) Migrating user data
Import the user data backed up using the means (RUI or USB memory) you
used before replacement.
Log in as an administrator (mode).
Settings/Registration > Import/Export
8) Uninstalling the drivers
Uninstall the drivers on the user's PC.
Printer driver
Fax driver
Scanner driver
Network Scan Utility
* For the procedure, refer to the Startup Guide.
9) Reinstalling the drivers
Install the drivers which were uninstalled in step 8.
* For the procedure, refer to the Startup Guide.
** The MAC address information and the USB ID are changed after replacement
of the Main Controller Unit. As a result, the PC can no longer recognize the host
machine. It becomes therefore necessary to reinstall the drivers after replacing
the Main Controller Unit.
4 Disassembly/Assembly > Controller System > Removing the DC Controller PCB > Procedure

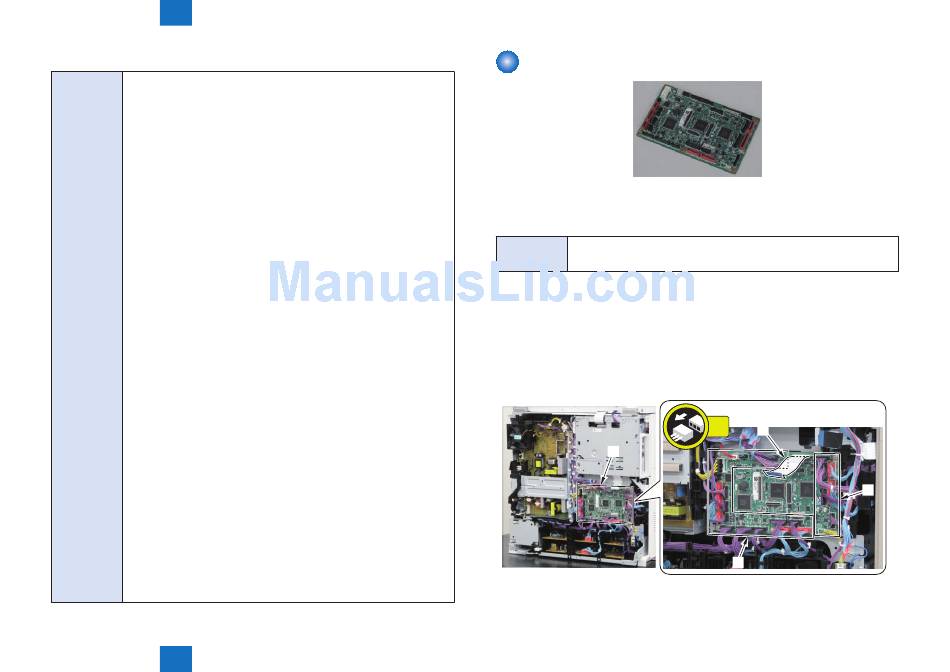

Removing the DC Controller PCB

■ Before Replacing
Before 1) Backup of DCON service mode setting values
Replacing Execute the following: COPIER > FUNCTION > VIFFNC > STOR-DCN
2) Turn OFF the main power when the above work is complete.
■ Preparation
1) Remove the Rear Cover 1(Refer to page 4-34).
■ Procedure
1) Disconnect the connector connected to the DC Controller PCB [1].
• 28 Connectors [2]
• 1 Flat Cable [3]
[1]
2) Remove the DC Controller PCB [1].
T-4-81 • 5 Screws [2]
4-84
F-4-200
T-4-82
28x
[3]
[2]
[2]
F-4-201
