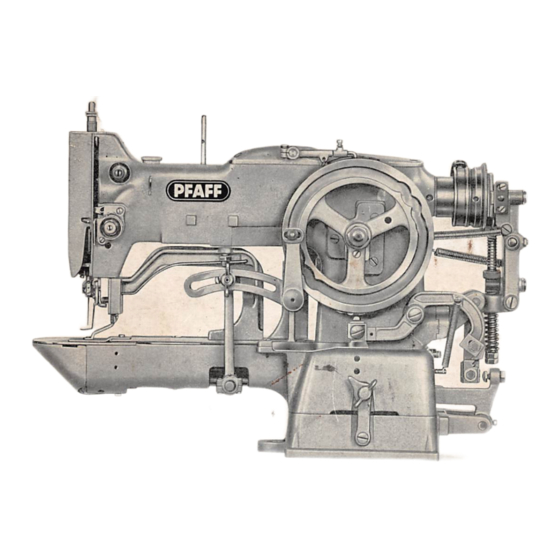

Pfaff 3334 Service Manual
Automatic lockstitch bortocker
Hide thumbs
Also See for 3334
:
Instruction book and service manual
(20 pages)
1
2
3
Table Of Contents
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
page
of
108
Go
/
108
Contents
Table of Contents
Troubleshooting
Bookmarks
Table of Contents
Table of Contents
Description and Operation
General Information
Purpose of Employment
Application Possibilities
Operation
Efficiency Rating
Mode of Operation
Sewing Cycle
Mechanical Setup
Shuttle Ond Needle Bar Drive
Feed Motion
Automatic Stop Motion
Thread Trimming Action
Instructions for Repair
Disassembly
Assembly
Adjustment and Check-Up
Timing the Shuttle and Setting the Needle Bar Ot Correct Height
Timing the Feed Motion
Timing the Thread Trimming Action
Adjusting the Work Clamp
Timing the Stop Motion
Timing the Thread Nipper and Adjusting the Thread Tension
Stitching-Off
Sewing Thread
Needle
Bobbin Winding
Needle Threading
Threading the Bobbin Case
Inserting the Bobbin Case
Setting-Up
Individual Power Drive
Bench Power Drive
Individually Powered Machine on Power Benching
Subclass Conversion
Changing the Feed Cam
Changing the Knife Cam
Changing the Work Clamp Feet
Changing the Feed Plate
Trouble Shooting
Skipped Stitches
Thread Breaking
Needle Breaking
Heavy Working
Irregular Stopping
Machine Care
Cleaning and Oiling
Dismantling the Shuttle Race
Electromagnetic Control
Brief Description
Key to Symbols Used
Operating Instructions for X35 and X45 Devices
Turning on Master Switch HS
Inserting the Work and Operating Foot Switch FS (1St Switch Position)
Starting the Machine by Operating
Foot Switch FS (2Nd Switch Position)
Sewing Cycle and Automatic Stopping of Machine
Working of Device
Master Switch HS
Foot Switch FS
Solenoid EM
Solenoid HM and Switch es
Switch SS
Mounting and Adjustment Procedures
Switch es
Lever B
Solenoid EM
Solenoid HM
Subclass Information
Subclasses Having the same Gear Ratio
Subclasses Having the same Knife Cam
Subclosses Requiring Additional Parts
Principal Parts Varying from One Subclass to Another
Special Organizational Parts
Lock Designs Arranged by Shapes
Advertisement
Quick Links
1
Table of Contents
2
Description and Operation
Download this manual
From the library of: Superior Sewing Machine & Supply LLC
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Table of Contents
Related Manuals for Pfaff 3334
Sewing Machine Pfaff 3334 Instruction Book And Service Manual
(20 pages)
Sewing Machine Pfaff 3339 Instruction Manual
(70 pages)
Sewing Machine Pfaff 333-712/02 Instruction Manual
(44 pages)
Sewing Machine Pfaff 333-712/02 Instruction Manual
(72 pages)
Sewing Machine Pfaff 333-712/02 Instruction Manual
(58 pages)
Sewing Machine Pfaff 333-712/02 Instruction Manual
(38 pages)
Sewing Machine Pfaff 335 Instruction Manual
(34 pages)
Sewing Machine Pfaff 335 Instruction Manual
(58 pages)
Sewing Machine Pfaff 335 Adjustment Manual
(36 pages)
Sewing Machine Pfaff 335 Instruction Manual
(44 pages)
Sewing Machine Pfaff Automatic 332-260 Instruction Book
(58 pages)
Sewing Machine Pfaff 3371-1 series Instruction Manual
(58 pages)
Sewing Machine Pfaff 3371-1 series Adjustment Manual
(48 pages)
Sewing Machine Pfaff 230 Automatic Service Manual
(83 pages)
Sewing Machine Pfaff 337 Instruction Manual
(44 pages)
Sewing Machine Pfaff 339 User Manual
(72 pages)
Summary of Contents for Pfaff 3334

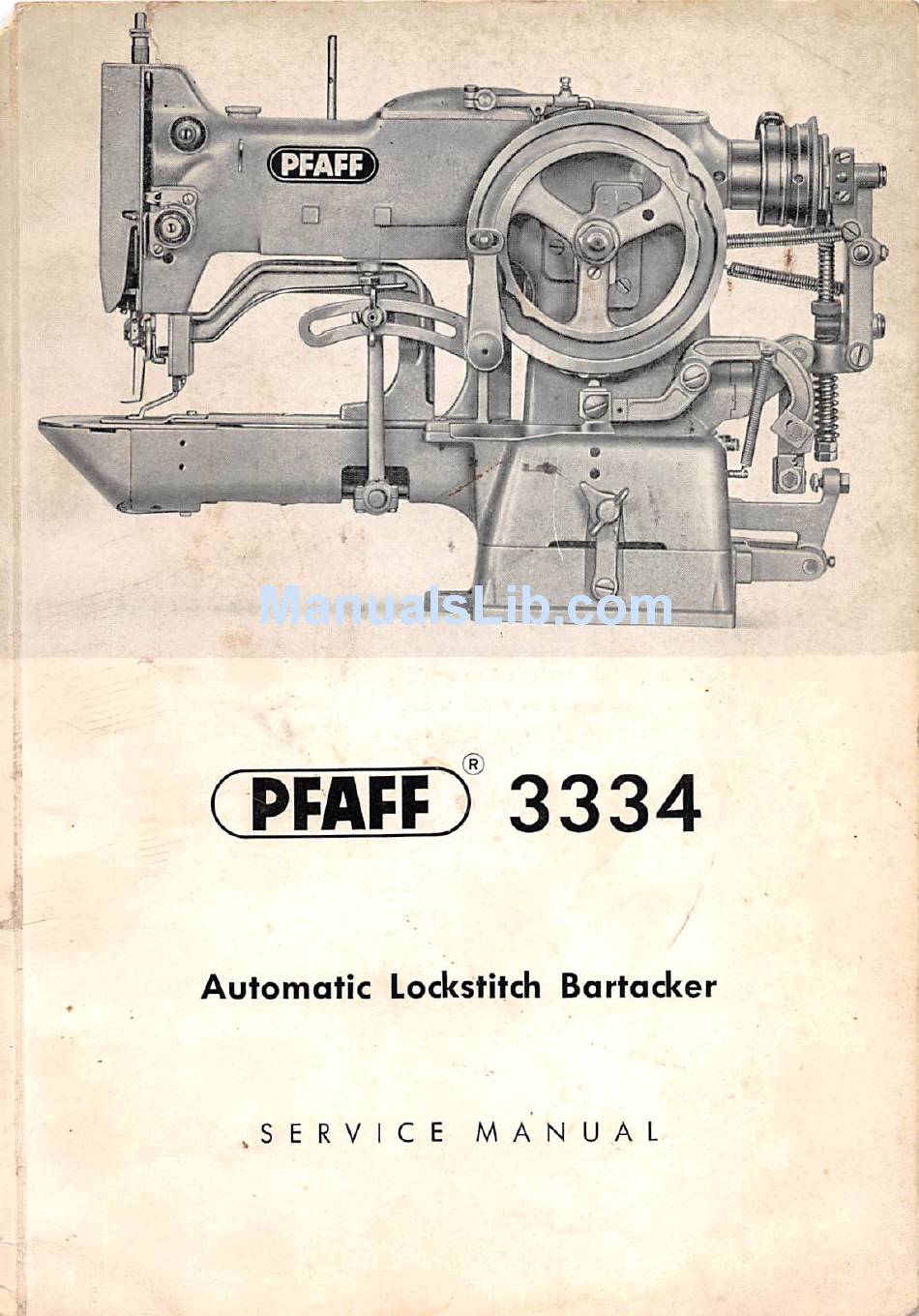

Page 1
