Page 1: Table Of Contents
AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOL TAGES. CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING. REFER TO BACK COVER FOR IMPOR T ANT SAFETY GUIDELINES Published by Philips Consumer Lifestyle Copyright reserved Subject to modification Jan. 31 2011...
Page 2: Important Safety Notice
SERVICE MANUAL. recommended by Philips must f irst sati sfy himself thoroughly that neither his safety nor the saf e operation of the equipment will be jeopardized by the service method sel ected.
Page 3: Technical Data
BDL6531E LCD Technical Data Interface Requirement LCD Panel AUO P645HW04 V0 LCD size 65” inch Display Resolution 1920(H) x 1080(V) Display Area 1428.48(H) x 803.52 (V) mm Pixel Pitch 0.744 mm Configuration 178 degree (Horizontal)/ 178 External Connector Input Output Viewing Angle degree (Vertical) with MVA technology...
Page 4: Installation
BDL6531E LCD Installation Front View Product Description 7. Smart Insert installation holes Location for the Smart Insert (for integration of a small form factor PC) and M4 screws. (Maximum load: 2kg) 8. Carrying handle Use these handles when carrying the display by hand. 9.
Page 5 4. Quick Start Guide “CUSTOM”, “DYNAMIC”, “REAL” or “21:9”. 5. Logo guider CONTRAST button 6. PHILIPS logo Press to open the CONTRAST OSD selection, and then press the PLUS 7. BNC-to-RCA adapter (x 2) or MINUS button to adjust the value.
Page 6 BDL6531E LCD Installation CONNECTING EXTERNAL EQUIPMENT (DVD/VCR/VCD) USING HDMI INPUT Connect the HDMI connector of the external device to the HDMI input of USING COMPONENT VIDEO INPUT the display. 1. Connect the green-colored (labeled as "Y") jack of the device to the green-colored "Y"...
Page 7 BDL6531E LCD Installation USING HDMI INPUT CONNECTING ANOTHER BDL6531E DISPLAY 1. Connect the DVI-D connector of the PC to the HDMI connector of the You can interconnect multiple BDL6531E displays to create a daisy-chain display using a DVI-HDMI cable. configuration for applications such as a TV wall. 2.
Page 8: Troubleshooting
BDL6531E LCD Troubleshooting Symptom Possible Cause Remedy 1. The power cord is disconnected. 2. The main power switch on the back of the monitor is 1. Plug in the power cord. No picture is displayed not switched on. 2. Make sure the power switch is switched on. 3.
Page 9: On Screen Display
What is the On-Screen Display? On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window. A user friendly on screen display...
Page 10: Screen Menu
10 BDL6531E LCD On-Screen Display CUSTOM ZOOM Screen Menu Note: this item is only available when the ZOOM MODE setting is set to CUSTOM. You can use this function to further customize the zoom settings to suit the image you want to display. Press the SET/PLUS button to open the submenu.
Page 11: Pip Menu
BDL6531E LCD On-Screen Display AUDIO MENUAU DIOVOLUMEMUTEAUDIO PIP MENU Note: for COMPONENT, VGA, DVI-D and HDMI inputs only. VOLUME Adjust to increase or decrease the audio output level. Use the PLUS/MINUS button to adjust. PIP SIZE Select the size of the sub picture in the PIP (Picture-in-Picture) mode. MUTE Use the PLUS/MINUS button to toggle between To turn the mute function on/off.
Page 12: Configuration 2 Menu
12 BDL6531E LCD On-Screen Display Reset all settings in the PICTURE, SCREEN, AUDIO, PIP, CONFIGURATION 1 MENUCONFIGURATION CONFIGURATION 1, CONFIGURATION 2, and ADVANCED OPTION menus. Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to make selection. Select YES and press the SET button to restore settings to factory preset values.
Page 13: Advanced Option
BDL6531E LCD On-Screen Display IR CONTROL ADVANCED OPTION MENUADVA NCED Select the operation mode of the remote control when multiple BDL6531E monitors are connected via the RS-232C connection. Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to toggle between •...
Page 14: On Screen Display
14 BDL6531E LCD On-Screen Display HEAT STATUS Note: This function allows you to check the thermal status of the display at any • Seven scheduling options are available so that you can choose time. The accuracy of the temperature indicated is 5 degrees. Press the between different video input modes for different schedules during the SET button to view the heat status.
Page 15: Philips Pixel Defect Policy
In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD display must have pixel or sub-pixel defects exceeding the tolerances listed in the following table.
Page 16: Mechanical Instructions
16 BDL6531E LCD Mechanical Instruction Preparation before disassemble 1. Clean the room for disassemble 2. Identify the area for monitor 3. Check the position that the monitors be placed and the quantity of the monitor ;prepare the area for material flow; according to the actual condition plan the disassemble layout 4.
Page 17: Mechanical Instruction
BDL6531E LCD Mechanical Instruction Disassemble the front bezel 24-M4 screws Electric screw drive #2 Disassemble Handle from back cover(x4) 8-M8 screws Electric screw drive #2 Disassemble L/R cover from display back 16-M4 screws Electric screw drive #2 1.Tear off five acetic tapes. 2.
Page 18 18 BDL6531E LCD Mechanical Instruction 1. Tear off an acetic tape. 2. Disassemble the IR-Trans BD Electric screw & Keypad BD drive #2 5-M3 screws 1.Tear off AC socket & AC wires from chassis 1-M4 screws Electric screw drive #2 1.Take off speaker module from PCBA module.
Page 19: Mechanical Instructions
BDL6531E LCD Mechanical Instruction 1. Disassemble Audio BD. 4-M3 screws 5-T3 screws Electric screw drive #2 2. Disassemble Main BD. 6-M3 screws 1-T3 screws Electric screw 10-Hex screws drive #2 Hex screw drive 2. Disassemble Power BD. 12-M3 screws Electric screw drive #2...
Page 20: Color Adjustment
20 BDL6531E LCD Color Adjustment WHITE(9P)=Maximum(Lon1, Lon2,…,Lon9)/Minimum(Lon1, Color adjustment (1) Input source set the YPbPr (VGA / DVI / HDMI) input Lon2,…Lon9) (2) After ADC Calibration Spec and Table list (3) Set the picture mode to standard mode at user OSD (4) Set input timing to SDTV480P with“80% white”...
Page 21 BDL6531E LCD Color Adjustment (3) Table 2 : default value of internal gain RGB drive & offset: Red offset Color temp item CVBS1 / CVBS2 / VGA / YPbPr / 110~140 110~140 Green offset @factory OSD S-VIDEO DVI / HDMI Blue offset Color temperature 10000qK...
Page 22: Electrical Instruction
22 BDL6531E LCD consumer; and: Electrical characteristics ¾ HDMI HD capable inputs accept the following HD 1. PC input signal requirements video formats: z Pixel rate capability - 86 MHz. ‹ 1280x720 @ 50 and 60Hz progressive scan (“720p”) z VGA sync input -TTL level, separate H/V sync only, “+” ‹...
Page 23 BDL6531E LCD 3. Timing requirement Req. ID Resolution according to VESA DMT standard Specification Resolution Refresh Horizontal Pixel Clock Standard Type Rate Frequency PCRES4 640 x 480 60 Hz 31.5 kHz 25.175 MHz Industry Standard n/a PCRES5 640 x 480 72 Hz 37.9 kHz 31.500 MHz...
Page 24 24 BDL6531E LCD White color adjustment The picture color temperature shall be able to be chosen out of 5 modes 10000K,9300K, 6500K, 5800K, and USER. 10000K, 9300K, 6500K, 5800K are factory setting (fixed color) and “USER” is adjustable mode. (The default color of “USER”...
Page 25: Service Tool
BDL6531E LCD Service tool-Hardware F/W Writing Tool: RS232 Cable: Description 5K.0R505.501 CABLE D-SUB 9/9P UL20276 11M EDID Writing Tool: USB Cable and Jig BD Description 5K.L1E03.501 Service Tool-Cable-VOARD (CABLE USB 2.0A/B B-PVC 1.8M) 5E.0RC38.001 Service Tool-Board-VOARD (PCBA JIG BD MI WP42SF0)
Page 26: Service Tool
26 BDL6531E LCD Service tool-Software FW writing tool: Pixelworks ImageProcessor SDK FlashUpgrader EDID writing tool : RTD_CustomerTool_V1.
Page 27: Ddc Instructions & Serial Number
BDL6531E LCD DDC Instructions DDC Data Re-programming In case the DDC data memory IC or main EEPROM which storage all factory settings were replaced due to a defect, the serial numbers have to be re-programmed "Analog DDC IC, Digital DDC IC & EEPROM". It is advised to re-soldered DDC IC and main EEPROM from the old board onto the new board if circuit board have been replaced, in this case the DDC data does not need to be re-programmed.
Page 28 28 BDL6531E LCD DDC Instructions 3. Follow the installed steps and press ＂NEXT＂ to Install Driver 4. When setup has finished, restart computer...
Page 29 BDL6531E LCD DDC Instructions 5. Prepare the download equipment. - Use USB cable connect to PC and Tool Board - Use VGA cable connect to Tool Board and Display PC or NB VGA cable for EDID writing need to be removed pin5 to disable EDID write protect Display 6.
Page 30 30 BDL6531E LCD DDC Instructions 7. Update EDID – select “EDID Update” Communication – select “USB”, ISP Type – select “Serial Flash” For EDID Updated...
Page 31 BDL6531E LCD DDC Instructions 8. EDID upload(VGA) – EDID length select and then press to select EDID file and then press to write EDID into display 128B for VGA Open EDID file To write EDID...
Page 32 32 BDL6531E LCD DDC Instructions (Power off status and LED: Red) 9. EDID upload(DVI)-EDID length select and then press to select EDID file and then press to write EDID into display 128B for DVI Open EDID file To write EDID...
Page 33 BDL6531E LCD DDC Instructions (Power off status and LED: Red) 10. EDID upload(HDMI) – EDID length select and then press to select EDID file and then press to write EDID into display 256B for VGA Open EDID file To write EDID 11.
Page 34: Ddc Instructions & Serial Number
34 BDL6531E LCD DDC Instructions Serial Number Definition...
Page 35: Ddc Data
BDL6531E LCD DDC DATA Analog DDC HDMI DDC 0 0 F F F F F F F F F F F F 0 0 0 0 F F F F F F F F F F F F 0 0 4 1 0 C 0 9 D 2 0 0 0 0 0 0 0 0 4 1 0 C 0 9 D 2 0 0 0 0 0 0 0 0 0 1 1 4 0 1 0 3 0 8 8 E 5 0 7 8...
Page 36: Firmware Upgrade For Cpu
36 BDL6531E LCD Firmware Upgrade for CPU 1. Preparation: 1.1 Tool: Download cable( RS232 cable connect between PC/Notebook with tool board ) #RS232 is RXD and TXD interlaced line Personal computer or Notebook Download tool program “Pixelworks ImageProcessor SDK FlashUpgrader”. 1.2 Firmware files 2.
Page 37 BDL6531E LCD Firmware Upgrade for CPU 3. Show the Pixelworks ImageProcess K FlashUpgrader picture. #The Connection, COM Port in accordance with user by oneself PC/NB choose. #The Notify On Completion in accordance with user by oneself PC/NB choose. 4. The RS232 Download cable insert RS232 INPUT pin. 5.
Page 38 38 BDL6531E LCD Firmware Upgrade for CPU 6. The key change to cancel after Press Flash key, 7. The Power code cable insert. 8. The pixelworks ImageProcess or SDK FlashUpgrader program download start.
Page 39: Firmware Upgrade For Cpu
BDL6531E LCD Firmware Upgrade for CPU 9. The firmware download will finish after about 5 minutes. 10. Please press “確定”. Download program finish. 11. Please pull out Power code, RS232 Download cable.
Page 40: Failure Mode Of Panel
40 BDL6531E LCD Failure Mode Of Panel Quick reference for failure mode of LCD panel this page presents problems that could be made by LCD panel. It is not necessary to repair circuit board. Simply follow the mechanical Polarizer has bubbles instruction on this manual to eliminate failure by replace LCD panel.
Page 41: Wiring Diagram
BDL6531E LCD Wiring Diagram Power wire system Main AC 100~220V...
Page 42 42 BDL6531E LCD Wiring Diagram Signal wire system J13,J17 For Fan Module Keypad BD Main BD Audio BD IR BD IR-Trans...
Page 43: Block Diagram
BDL6531E LCD Block Diagram...
Page 44 44 BDL6531E LCD Block Diagram...
Page 45: Scaler Diagram & C.b
Scalar Diagram & C.B .A BDL6531E LCD 45 R 470 3. 3K D 1 V 8 R 472 I 2 C Pul l hi g h D 3 V 3 R 415 22 J L S C L R 416 22 J L S D A HDMI...
Page 46 46 BDL6531E LCD Scalar Diagram & C.B .A T P 225 9125_INT HD MI_ S C DT R 419 100 D3V 3 D3V 3 HD MI_ S C DT HD MI_R S T 6,11 HD MI_R S T T P 42 HD MI2 _ D S DA PORT 2 _ CL K Re s i s t e r mus t c l os e wi t h...
Page 47 BDL6531E LCD 47 Scalar Diagram & C.B .A P 3V3 ANAL OG I N DI GI TAL I N R 572 R 573 4.7K 4.7K C 176 0. 047U K R MI0 R MUXIN0 SDA_CCM C VB S 2 G MI0 C 177 0.
Page 48 Scalar Diagram & C.B .A 48 BDL6531E LCD V DC _R S Tn D3V 3 R E S E Tn AC 15 AE 16 Cha nge c om ponent AF 16 R 242 R 243 R 244 R 245 R 246 R 247 AF 9 AC 16...
Page 49 BDL6531E LCD 49 Scalar Diagram & C.B .A D2V5 R 309 MVR E F 1K F R 310 C 212 C 213 C 214 1K F 0. 1U K 0. 1U K 0. 1U K D2V5 D2V5 R N7 MR E F IN0 MVR E F MC K R MC K 1...
Page 50 Scalar Diagram & C.B .A 50 BDL6531E LCD...
Page 51 BDL6531E LCD 51 Scalar Diagram & C.B .A R 347 100K R 348 R 349 *N C _ 14.318MHZ T P 196 P O R T 2_VS P O R T 2_VS C 330 C 331 T P 197 P O R T 2_HS P O R T 2_HS 27P J 22P J...
Page 52 52 BDL6531E LCD Scalar Diagram & C.B .A...
Page 53 Scalar Diagram & C.B .A BDL6531E LCD 53...
Page 54: Power Diagram & C.b
54 BDL6531E LCD Power Diagram & C.B.A...
Page 55 BDL6531E LCD Power Diagram & C.B.A...
Page 56: Power Diagram & C.b.a
56 BDL6531E LCD Power Diagram & C.B.A...
Page 57: Control Diagram & C.b
Control Diagram & C.B .A. BDL6531E LCD 57 SW 1 SW 2 S K R P A B E 010 LED1 68 F S K R P A B E 010 R E D / G R N 2KD1005112 68 F SW 3 SW 4 SW 5...
Page 58: Control Diagram & C.b.a
Control Diagram & C.B .A. 58 BDL6531E LCD...
Page 59: General Product Specification
BDL6531E LCD General Product Specification Product Identification 65” BDL LCD DISPLAY BDL6531E/00 Issued by: Technical Marketing Manager Larry Yang...
Page 60 60 BDL6531E LCD General Product Specification Table of Contents SCOPE ..............................5 1.1 G ........................5 ENERAL RODUCT EATURES 1.2 P ............................6 RODUCT ANGE ELECTRICAL REQUIREMENTS......................6 2.1 S ........................ 6 TANDARD ESTING ONDITIONS 2.2 V ........................6 IDEO UDIO NPUT IGNALS...
Page 61 BDL6531E LCD General Product Specification MECHANICAL ............................39 7.1 C ..............................39 OSMETIC 7.2 M .......................... 39 ECHANICAL ILES 7.3 L ........................40 OCATION OF HILIPS 7.4 L ..........................41 OCATION OF CONS 7.5 C .......................... 41 OLOR FOR ESIN AINT 7.6 R ..............................
Page 62 62 BDL6531E LCD General Product Specification DOCUMENT REVISION HISTORY Revision no. Date Description V1.0 2010/12/07 Release for MP V1.1 2011/01/31 Spec. modification...
Page 63: Scope
Windows registration model name Create date Remark D209 BDL6531E PHILIPS BDL6531E Dec. 07, 2010 Data for EDID & .inf file 1 User visible strings on .inf file Philips BDL6531E 2 Manufacturer ID ( EDID data) 3 Product ID, "xxxx" 4 codes...
Page 64: Product Range
64 BDL6531E LCD General Product Specification 1.2 Product Range Display Destination Mains Cord Cabinet Color BDL6531E/00 EU, UK Generic Black BDL6531E/00 AUS, CN CN, UK Generic Black BDL6531E/00 Generic Black 2. ELECTRICAL REQUIREMENTS All performance specifications are defined under “STANDARD TESTING CONDITIONS”, unless otherwise specified.
Page 65 BDL6531E LCD General Product Specification Preset mode definition: Need to support those timing: Req. ID Resolution according to VESA DMT standard Specification Resolution Refresh Horizontal Pixel Clock Standard Type Original Rate Frequency Document Date PCRES4 640 x 480 60 Hz 31.5 kHz 25.175 MHz Industry Standard n/a PCRES5 640 x 480...
Page 66: Av Input Signal Requirements
66 BDL6531E LCD General Product Specification Audio input - Sensitivity 500mVrms, the amplifier outputs full power when the input level reaches 500mVrms, terminated with impedance >10kΩ. Lineout output - Stereo, 2Vrms output. Speaker output - 2 x 12 Wrms back firing speakers, with T.H.D. < 10%. 2.2.2 AV input signal requirements CVBS input -...
Page 67: Ddc Channel
BDL6531E LCD General Product Specification Video pixel rate: 25 MHz to 165 MHz (Type A) Pixel encodings: RGB 4:4:4, YCbCr 4:2:2, YCbCr 4:4:4. Audio sample rates: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96kHz, 176.4 kHz, 192 kHz. Audio channels: up to 8. DDC channel: Allows source to interrogate capabilities of sink.
Page 68 68 BDL6531E LCD General Product Specification EDID content for DVI EDID content for HDMI 00 FF FF FF FF FF FF 00 00 FF FF FF FF FF FF 00 41 0C 03 D2 00 00 00 00 41 0C 03 D2 00 00 00 00 01 14 01 03 80 8E 50 78 01 14 01 03 80 8E 50 78 EA D2 58 A3 54 4A 99 26...
Page 69: Service Mode
BDL6531E LCD General Product Specification 2.3.3 DDC/CI DDC/CI (Command Interface) specifies a means for a computer to send commands to the monitor, as well as receive sensor data from the monitor, over the bidirectional link such as DDC2Ab/Bi/B+. Specific commands to control monitors are defined in a separate Monitor Control Command Set (MCCS) standard.
Page 70: Power Consumption
70 BDL6531E LCD General Product Specification 2.5.2 Power consumption • Normal on - 500 w (typical), 550 w(max.) • Standby - < 1w, RC standby mode • Switch off (DC or TACT) - < 1w, RC in-active • Switch off (AC mains) - <...
Page 71: Front Controls
BDL6531E LCD General Product Specification • Power On/Off DC switch. • Access main menu by pressing “MENU” key • Select function via “ ” keys, increase/decrease via “ ” keys. ▲ ▼ • “ ” are also for Volume Hot Key. 2.6.2 Front controls •...
Page 72 72 BDL6531E LCD General Product Specification • Remote Control – Philips protocol. Philips protocol is used for remote control communication.
Page 73 BDL6531E LCD General Product Specification...
Page 74 74 BDL6531E LCD General Product Specification...
Page 75 BDL6531E LCD General Product Specification RC key definition: Remote Key Key Name Data Code POWER 0x03 VIDEO SOURCE 0x01 AUDIO SOURCE 0x1E SMART 0x1D SIZE 0x29 PIP ON/OFF 0x24 PIP INPUT 0x25 PIP CHANGE 0x26 CONTRAST 0x27 BRIGHTNESS 0x28 MENU 0x20 0x15 DOWN...
Page 76 76 BDL6531E LCD General Product Specification 2.6.3 OSD MENU • 9 languages -English/ German / Spanish / French / Italian / Spanish / Russian / Polish / Turkish /Simplified Chinese • PICTURE MENU OVERVIEW...
Page 77 BDL6531E LCD General Product Specification SCREEN MENU...
Page 78 78 BDL6531E LCD General Product Specification...
Page 79 BDL6531E LCD General Product Specification AUDIO MENU...
Page 80 80 BDL6531E LCD General Product Specification PIP (PICTURE IN PICTURE) MENU...
Page 81 BDL6531E LCD General Product Specification CONFIGURATION 1 MENU...
Page 82 82 BDL6531E LCD General Product Specification...
Page 83 BDL6531E LCD General Product Specification CONFIGURATION 2 MENU...
Page 84 84 BDL6531E LCD General Product Specification ADVANCED OPTION MENU...
Page 85 BDL6531E LCD General Product Specification...
Page 86 86 BDL6531E LCD General Product Specification...
Page 87 BDL6531E LCD General Product Specification...
Page 88 88 BDL6531E LCD General Product Specification...
Page 89: I /O Connectors
BDL6531E LCD General Product Specification 2.7.1 I /O Connectors Connectivity overview: Rear connectors: • Power input: 3-pin IEC-320-C13 socket mains AC in. • AC switch: Mains switch at line. • PC input: 15 pins VGA D-Sub Female connector with lime green 3.5mm Mini-jack audio stereo connector.
Page 90: Visual Performance
90 BDL6531E LCD General Product Specification HDMI input: Type A includes digital video and audio, HDCP supported. HDMI type A connector pin assignment: Pin Signal Assignment Signal Assignment TMDS Data2+ TMDS Data2 Shield TMDS Data2– TMDS Data1+ TMDS Data1 Shield TMDS Data1–...
Page 91: Front Of Screen Performance
BDL6531E LCD General Product Specification 3.2 Front of Screen Performance • Peak brightness - 500 nits (typ.), brightness & contrast controls are at 100% • Luminance uniformity - • Chromatic uniformity - Deviation ∆x, ∆y < 0.015 (5 points measured) •...
Page 92: Functional Requirements
92 BDL6531E LCD General Product Specification View angle (CR>10) -H & V > 178º. Residual image - Recover < 2 min. after burn in the checkerboard image for 2 hours. Contouring - Minimum contouring visible. Blue stretch - Green enhance - Black stretch - De-interlace - 3D MA (motion adaptive)
Page 93: Audio
BDL6531E LCD General Product Specification Audio Audio control handles the initialization of the audio parameters and the recall of the audio last status. 4.3.1 Sound related requirements • Volume control - Should be gradual change of sound level from zero to maximum output.
Page 94: Smart Power
94 BDL6531E LCD General Product Specification Light sensor detects the change of illumination outside, and then it sends the signal to MCU via Iˆ2C interface. MCU will ask inverter to switch the brightness if the outside illumination was change over the default.MCU will transmit PWM signal to the inverter, and the inverter will change the brightness of panel.
Page 95: Non Functional Requirements
BDL6531E LCD General Product Specification NON FUNCTIONAL REQUIREMENTS 5.1 Start up behavior LED indication should respond in 1 seconds and picture shows up within 5 seconds (for VIDEO, S-VIDEO, VGA and COMPONENT input), 10 seconds (for DVI input), 15 seconds (for HDMI input) when the Display wakes from standby, or power on with DC switch or cold start.
Page 96: Accessories
96 BDL6531E LCD General Product Specification 6. ACCESSORIES 6.1 Cables Power cord - EU, UK, NA, China, Length: 1.8 M +/- 50 mm By region VGA Interface Cable Length: 1.8 M +/- 50 mm (option) - 6.2 Remote Control Remote Control: Type number: EURT57B093 Batteries included.
Page 97: Mechanical
BDL6531E LCD General Product Specification 7. MECHANICAL Cosmetic Qisda ID - Mechanical Data Files Provide mechanical drawings with key dimensions.
Page 98: Location Of Philips Logo
98 BDL6531E LCD General Product Specification Location of Philips Logo...
Page 99: Location Of Icons
BDL6531E LCD General Product Specification Location of Icons 7.5 Color for Resin / Paint Black 30% gloss front/Silver brush gloss decoration part/Stealth Black in mould back-cover. Resins • RoHS requirements. • WEEE requirements. • PC+ABS • China Rohs required. ( sales in China only) 7.7 Paint Used •...
Page 100: Plastic Mold Tooling
All major plastic parts (bezel, back cover, base) need to be molded from same resin. Base / Pedestal otherwise specified. No plastic parts 7.10 Texture/Glossing of Housing • The texture area and texture no should follow Philips make-up sheet. • The exterior surfaces shall have a uniform texture. • Philips must approve the mold texturing.
Page 101: Wall Mount Method
7.13 Wall Mount Method • VESA in back-cover. 7.14 Label • Regulatory label / Carton label should follow Philips requirement. • Detail document refer to Philips Engineering Reference Book. 7.15 Product Dimension / Weight • Unit dimension (without stand) - 1523.6 x 891.6 x 124.8 mm...
Page 102: Pallet / Container Loading
102 BDL6531E LCD General Product Specification 7.16.2 Transportation test procedures Transportation test specification refers to XTN-0009.pdf, for all regions. Packaging test • Vibration and drop or cant-drop test (UAN-D 1534/01) • Vibration and cold/drop test (UAN-D 1534/01, UAN-D 1534/02 and UAN-D 636) •...
Page 103: Reliability / Environment
BDL6531E LCD General Product Specification 8. RELIABILITY / ENVIRONMENT 8.1 MTBF prediction >60k hours (excluding Panel) 8.2 Demonstration MTBF > 60k hours with 90% confidence level at CR (excluding Panel) 8.3 Temperature • Operating (guaranteed performance according to spec requirements): 0 to 40 degree •...
Page 104: Regulatory Compliance
104 BDL6531E LCD General Product Specification 9. REGULATORY COMPLIANCE Worldwide Regulatory SAFETY / EMC / REGION COUNTRY DOMAI REFERENCE ERGONOMICS / DOCUMENTS APPLICANT (RSO) (NSO) LOGO STANDARDS IEC60950-1:2001 (EN60950- 1:2001+A11:2004). Group and national differences of all countries listed in CB Bulletin World CB Report, World wide...
Page 105 BDL6531E LCD General Product Specification GB4943-2001 (IEC60950-1) CCC certificate Supplier GB9254-2008 (CISPR22) CCC certificate Supplier GB17625.1-2003 (IEC61000-3-2) CHINA GB21520-2008 CECP certificate Supplier CEL certificate AUSTRALIA AS/NZS3548:1995 / NEW- CB, EMC report AS/NZS CISPR22: 2002 Class B ZEALAND N23037 UL 60950-1: 2003 UL certificate, cUL Supplier NAFTA...
Page 106: Emc Requirements
Restriction on the use of certain hazardous substances. Lead, Cadmium, Mercury, Hexavalent Chromium, Polybrominated Bipheny1 (PBB) and Polybrominated Bipheny1 Ether (PBDE)(flame retardant). WEEE Producer (Philips) responsible for retailer take back schemes and recycling. -- System implemented. -- Collection and recycle targets. Ongoing Regulatory There's a possibility that other regulatory certificates will be required during the life of the product.
Page 107: System Flow Chart
BDL6531E LCD General Product Specification 10.1 System flow chart 10.2 Specification input and update The product specification shall be initiated by MMD and supported by concerned engineering department such as E/M/S, Safety/Approbation Group and DQE before RFQ. It must be updated in each product creation milestone.
Page 108: Quality And Reliability Deliverables List
108 BDL6531E LCD General Product Specification 10.4 Quality and reliability deliverables list During product creation RFQ milestone the DQE has to provide deliverables list to supplier and discuss with them to perform quality and reliability evaluation and testing report per request in list to DQE for design quality and reliability review and validation.
Page 109 BDL6531E LCD General Product Specification 1.3.5 Convergence No need 1.3.6 Jitter/Flicker/Flag waving 1.3.7 Cross talk 1.3.8 Residual image 1.3.9 Image sticking 1.3.10 Brush effect (PDP) 1.3.11 Halation 1.3.12 Luminance loading 1.3.13 Pixel defects 1.3.14 Noise and self pollution 1.3.15 Microphony 1.3.16 High voltage regulation No need...
Page 110 110 BDL6531E LCD General Product Specification 2.12 Crosstalk attenuation 2.13 Mute and Plop 2.14 Supresssion 2.15 Available surrond mode performance 2.16 Dolby 2.17 Virtual dolby 2.18 Unweighted and filter 2.19 Headphone performance 2.20 Auxiliary In/out Level 2.21 Thermal click noise TV Front end and Remote control Tuner sensitivity Tuning range...
Page 111 BBDL6531E LCD 111 General Product Specification 3.30 Disturbance immunity of Remote receiver Mains power and Inverter tests Under voltage Over voltage operation (290Vac) Over voltage protection Operational variation (+/- 20%) Brown in voltage Brown out voltage Mains frequency Start up and off behavious Power dissipation 4.10 Current consumption...
Page 112 112 BDL6531E LCD General Product Specification 5.21 Light Frame Function 5.22 DVI/HDCP Mode 5.23 HDMI/HDCP Mode 5.24 AV Mode 5.25 TV Mode 5.26 Input Selection Function 5.27 PIP Function 5.28 Audio Test 5.29 Check Smart Control Function 5.30 EEPROM mapping after power on-off cycle 5.31 I2C Function Test 5.32...
Page 113 BDL6531E LCD General Product Specification Altitude (Low air pressure) (PDP and CRT) Mechanical ( Transportation ) Tests Non operational and packed random vibration test Operational vibration test Drop test Boundary drop test Cold drop test Half-sine shock test Bump panel data Compression test vendor's report 8.10...
Page 114 114 BDL6531E LCD General Product Specification Except the above tests, Vendor and MMD will do more verify and acceptance based on CRS in development stage: Functionality and Performance Test VGA/HDMI EDID Test VGA: Req. ID Resolution according to VESA DMT standard Specification Resolution Refresh Horizontal...
Page 115 BDL6531E LCD General Product Specification HDMI: Req. ID Resolution according to VESA DMT standard Specification Resolution Refresh Horizontal Pixel Clock Standard Type Original Rate Frequency Document Date PCRES4 640 x 480 60 Hz 31.5 kHz 25.175 MHz Industry Standard n/a PCRES5 640 x 480 72 Hz 37.9 kHz...
Page 116 116 BDL6531E LCD General Product Specification Test Input VGA PC Input +Audio L/R VGA D-sub Component video 1 (HD/SD) + Audio L/R YPbPr(480i/p, 720p, 1080i, 1080p) VIDEO + Audio L/R x 1 S-VIDEO x 1 HDMI input with HDCP (version 1.3) x 2 HDMI with HDCP (480i/p, 576 i/p, 720p, 1080i, 1080p) EDID tables filled in for all supported PC and Video...
Page 117: Design Quality And Reliability Review And Validation Procedure
BDL6531E LCD General Product Specification PIP source 0x84 Audio parameters get 0x43 Audio parameters set 0x42 Volume get 0x45 Volume set 0x44 Miscellaneous info 0x0F Smart power 0xDD Video alignment 0x70 Auto Adjust 0x70 Image Flip Get 0x2B Image Flip Set 0x2A Temperature Get 0x2F...
Page 118: Design Quality Review And Validation Evaluation Process
118 BDL6531E LCD General Product Specification 10.5.4 Design quality and reliability review validation items (Supported by test data or report from supplier) Electrical items Electrical functions /performances Software for user interface Thermal behavior Design critical parameter Design quality and reliability Mechanical items Mechanical functions /performance Design for assembly/disassembly...
Page 119: Exploded V Iew
BDL6531E LCD 119...
Page 120: Spare/Recommended P Arts List
6K.0QC01.011 new : 6K.0QC01.012 Panel+PCBA Styling Panel+PCBA Styling Model Model Remark Remark location Description PCM code Philips 12NC MAIN (I/F) BOARD ASS'Y CS.5J0WF.001 5E.0WF08.011+Packing+FW POWER BOARD ASS'Y 5D.0RC07.011 ASSY Key BD WITH CABLE 9B.0VE02.QBU 5E.0VE10.001+Packing PCBA Audio BD 9B.0WF05.012 5E.0WF05.012+Packing PCBA IR BD 9B.0WF03.011...
Page 121: Pcba Photos
BDL6531E LCD 121 Panel & PCBA photos ITEM PCM Philips 12NC Description Photo 5F.MUWVV.021 LCDM65W P645HW04 V0 AUO 5D.0RC07.011 PCBA PWR BD 300W UP3003-01AG CS.5J0WF.001 PACK SKD MAIN BD EP65SF0 9B.0VE02.QBU SKD ASSY KEY BD WP08SF0 9B.0WF05.012 SKD PCBA AUDIO BD EP65SF0 9B.0WF03.011...
Page 122: Repair Tips
122 BDL6531E LCD 0. Warning 1.4 Attachment of SMDs All ICs and many other semi -conductors are susceptible to - Locate the SMD on the solder lands by means of tweezers and solder electrostatic discharges (ESD). Careless handling during repair can the component on one side.
Page 123 IC data sheet. So as not to damage neighbouring components, it may be necessary to reduce some temperatures and times. More Information For more information on how to handle BGA devices, visit this URL: http://www.atyourservice.ce.philips.com (needs subscription). After login, select Magazine, then go to Workshop Information. Here you will find Information on how to deal with BGA-ICs.
Page 124: Repair Flow Chart
124 BDL6531E LCD Repair Flow Chart 1. Check wire cable connection between main System power ON? board and keypad 2. Check VCC Power 5V in Back light on Check wire cable connection between back light and power board Check U38 U39 U43 output Check which one is fail? voltage (1.8V,3.3V,2.5V) is correct Keypad LED ON ?
Page 125 BDL6531E LCD Repair Flow Chart LCD Panel is no picture Keypad LED is ON? Check power is correctly? Power button operation is normal Check GPIO status Check GPIO status Check POWER ON control pin is High? Check input source and path is ready Check LCD12V and LVDS power sequence...
Page 126 126 BDL6531E LCD Repair Flow Chart RS232 link fail 1. Check control pin RS232_TXEN status Check U28 pin20 is high? (default high) 2. Check R213 or R214 is mouted? Check U28 pin19 is high? Check control pin RS232_SHDN status (default high) Check J22 pin RX and TX 1.
Page 127 BDL6531E LCD Repair Flow Chart Audio output is no sound Check Audio board power 12V is correctly? Check control pin Check GPIO control pin (R277, R278) status AUDIO_SW_SE1’ 2 operation is normal Check mute pin Check GPIO control pin(R492) status AUDIO_VOL_ON is high or low To measure audio board U1 Check audio board U1 soldering or change...
Page 128 128 BDL6531E LCD Repair Flow Chart 1. Check Q9 Q10 R162 R163 R164 Keypad LED fail 2. Check P3V3 3. Check J11 soldering 1. Check P5V, P2V5, P3V3, P1V8 No OSD image 2. Check J25 PWRBD_ON and LCD_BRT_CTRL Signal 1. Check L55, L56, L57, R22, R3, R38 No PC input 2.
Page 129 BDL6531E LCD Repair Flow Chart Check U1 or U2 operation normal? CVBS or S-video repeat output no signal Check U5 operation normal? VGA repeat output no signal Check C96 is mounted? (N.C. is normal) DVI or HDMI picture display abnormal Check U21 operation normal? DVI repeat output no signal Check cable or change another IR board...
Page 130: Safety Test Requirements
130 BDL6531E LCD Safety Test Requirements 3. Equipments and Connection All units that are returned for service or repair must 3.1. Equipments pass the original manufactures safety tests. Safety For example : testing requires both Hipot and Ground Continuity - Zentech 9032 PROGRAMMABLE AUT O SAFETY testing.

This manual is also suitable for:

Bdl6531e/93

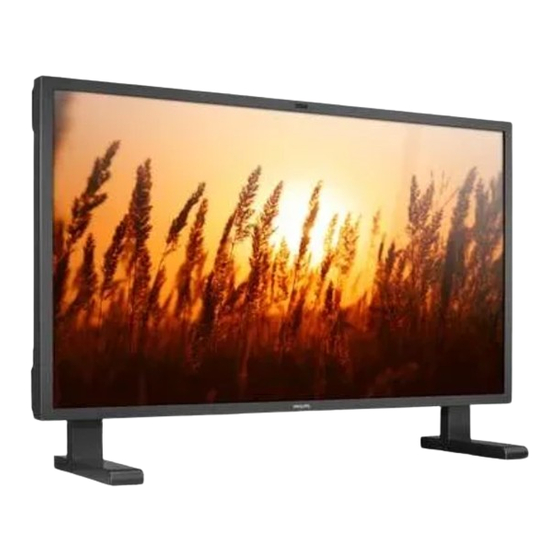

Philips BDL6531E/00 Service Manual

65 Inch Fhd LCD Public Display Bdl6531E/00 Bdl6531E/93

General Product Specification

1 Scope

2 Electrical Requirements

3 Visual Performance

4 Functional Requirements

5 Non Functional Requirements

6 Accessories

7 Mechanical

8 Reliability / Environment

9 Regulatory Compliance

10 Dqe Test Items Template

Quick Links

TABLE OF CONTENTS

Chapters

Related Manuals for Philips BDL6531E/00

Summary of Contents for Philips BDL6531E/00

This manual is also suitable for:

Table of Contents
