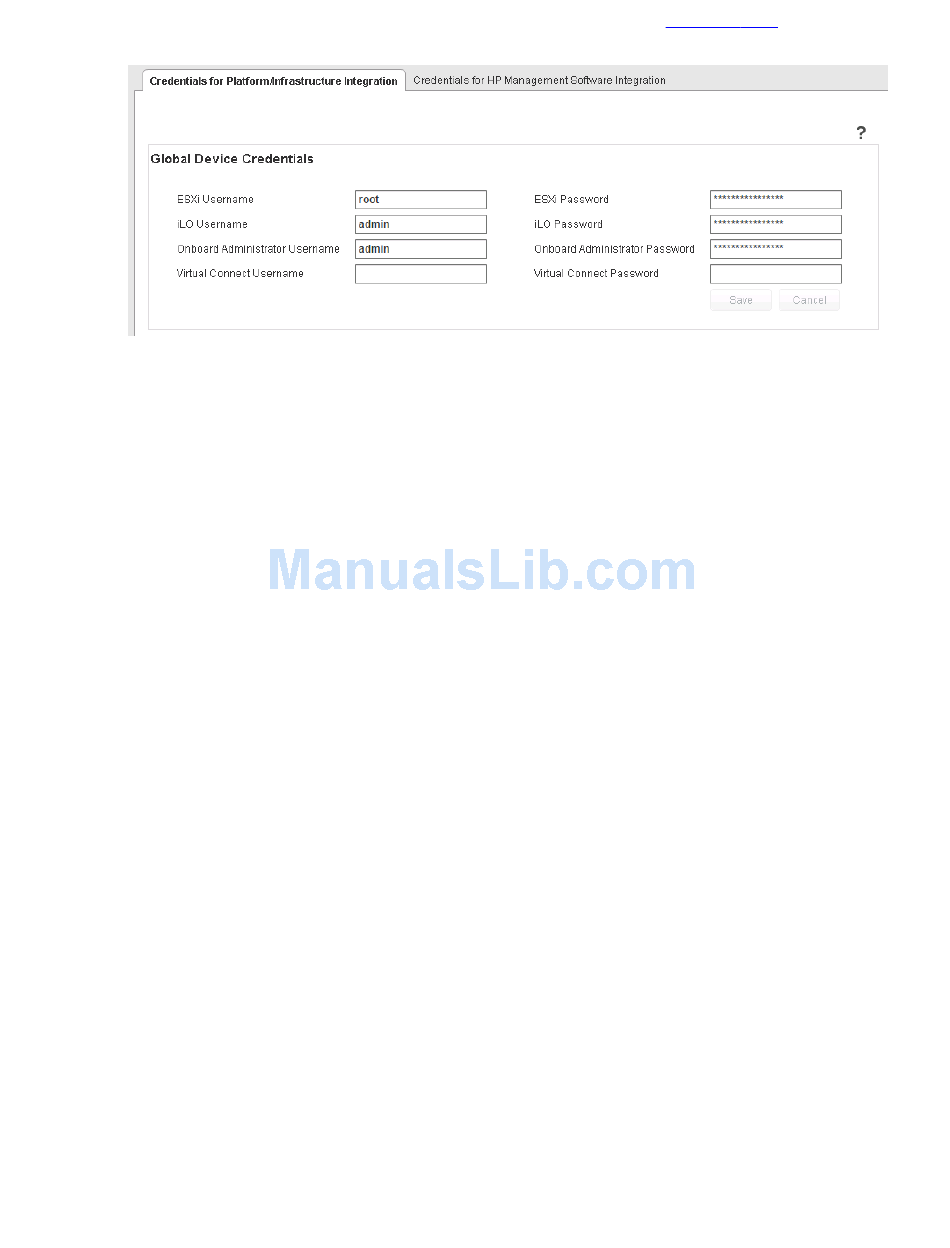

Configure Server Module Credentials
4 Click Save and then click OK after the credentials are successfully saved.
5 Optional: If the root password (<<mgmt_server_root_password>>) or the iLO password
(<<mgmt_server_ilo_password>>) for the management servers is different from the password for the
compute servers, click the green plus icon under Device Credentials to add these credentials:
a Add the credentials for the iLO:
•
Type: iLO.
•
Hostname/IP Address: <<mgmt_server_1_ilo_ip>>.
•
Username: admin.
•
Password: <<mgmt_server_ilo_password>>.
b Click Save and then click OK after the credentials are successfully saved.
c Add the credentials for the ESXi host:
•
Type: VMware Host.
•
Hostname/IP Address: <<mgmt_server_1_ip>>.
•
Username: root.
•
Password: <<mgmt_server_root_password>>.
d Click Save and then click OK after the credentials are successfully saved.
e Repeat these steps for each management server.
6 Click the Credentials for HPE Management Software Integration tab.
7 In the HPE Insight Control Server Provisioning Credential pane, add the credentials for HPE ICsp:
•
Hostname: <<icsp_fqdn>>.
•
Username: Administrator.
•
Password: <<icsp_administrator_password>>.
8 Click Save and then click OK after the credentials are successfully saved.
9 Click the green plus icon to add the HPE OneView controllers:
•
Hostname: <<oneview_fqdn>>.
•
Username: Administrator.
•
Password: <<oneview_administrator_password>>.
©
Copyright
2017 by Nimble Storage, Inc. All rights reserved.
Documentation Feedback
88
