Summary of Contents for Honeywell SLATE R8001S9001

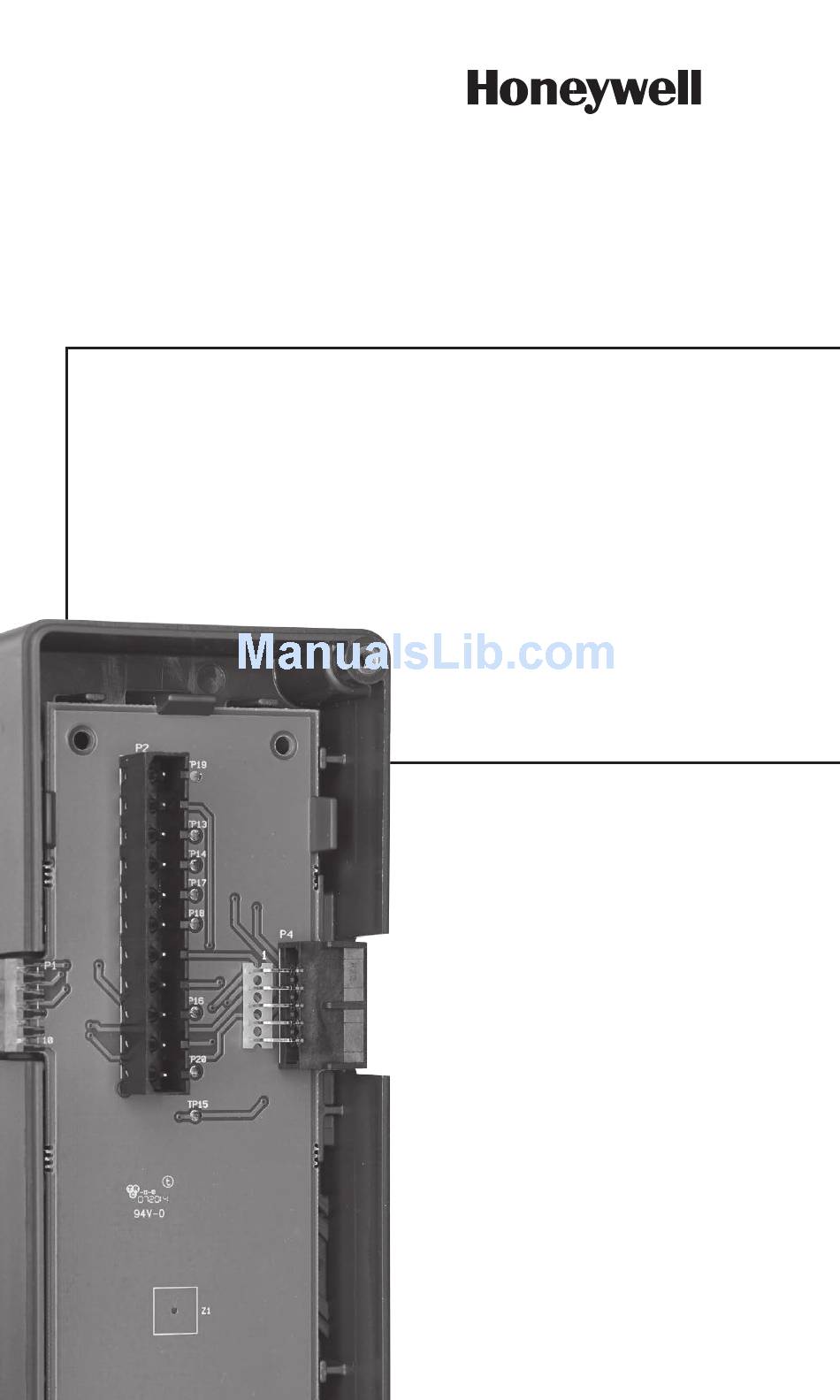

  • Page 1 SLATE ™ Sub-Base Module R8001S9001 INSTALLATION INSTRUCTIONS...
  • Page 2 Scan for more information...
  • Page 3: Specifications

    Application SLATE™ brings configurable safety and programmable logic together into one single platform. The platform can easily be customized for almost any requirement or application–offering virtually limitless development opportunities with far less complexity. The R8001S9001 SLATE Sub-Base Module provides the ability for the SLATE system to be mounted via DIN Rail in a panel.
  • Page 4 Terminal Description Rating B (Remote Bus Used for Remote mount- RS485) ed flame amplifiers A (Remote Bus Used for Remote mount- RS485) ed flame amplifiers Table 1. Terminal Ratings. Environmental Ratings Ambient Temperature: Operating: -20°F to +150°F (-29°C to +66°C). Shipping: -40°F to +150°F (-40°C to +66°C) Humidity: 95% continuous, noncondensing.
  • Page 5 7-3/32 (180) 1-5/32 (29) 2-21/32 (67) 3-13/32 (86) M35384 Fig. 1. Dimensions in in. (mm). SLATE Sub-Base Module ™ R8001S9001...
  • Page 6 1 2 3 4 5 TERMINAL DESCRIPTION 18V POWER 18V GROUND REMOTE RESET (BURNER CONTROL AND LIMIT MODULES ONLY) B (REMOTE BUS RS485) A (REMOTE BUS RS485) M35430 Fig. 2. Sub-base module wiring terminals. 32-00025—01...
  • Page 7: Installation

    Installation WARNING Fire or Explosion Hazard Can cause severe injury, death, or property damage. Verification of safety requirements must be performed each time a control is installed on a burner to prevent possible hazardous burner operation. When Installing This Product 1.
  • Page 8 UNLOCKED FROM DIN RAIL LOCKED ONTO DIN RAIL M35378 Fig. 3. Sub-base locking mechanisms. 3. Slide sub-base on the DIN rail and lock into place. 4. When securing subsequent sub-base modules make sure communication ports are aligned and locked into place. See Fig.
  • Page 9 5. After securing the sub-base module, snap the SLATE module into place and secure the module to the sub-base using screws (included with SLATE module). Wiring WARNING Electrical Shock Hazard. Can cause severe injury, death or equipment damage. 1. Disconnect the power supply before beginning installation to prevent electrical shock and equipment damage.
  • Page 10 when operated in a commercial environment. Operation of this equipment in a residential area may cause interference; in which case, the user, at their own expense, may be required to take whatever measures are required to correct this interference. 1. This digital apparatus does not exceed the Class A limits for radio noise, set out in the Radio Interfeence Regulations of the Canadian Department of Communications.
  • Page 11 • Enclose flame detector leadwires without armor cable in metal cable or conduit. • Follow directions in flame detector instructions. Be sure loads do not exceed the terminal ratings. Refer to the labels or terminal ratings in Table 1. The SLATE system must be mounted in an electrical enclosure. When mounting in an electrical enclosure, provide adequate clearance for servicing, installation, and removal of SLATE modules.
  • Page 12 SLATE User Guide document located on our website at http://combustion.honeywell.com/SLATE Automation and Control Solutions Honeywell International Inc. ® U.S. Registered Trademark. 1985 Douglas Drive North © 2014 Honeywell International Inc. Golden Valley, MN 55422 32-00025—01 M.S. 11-14 customer.honeywell.com Printed in U.S.A.
