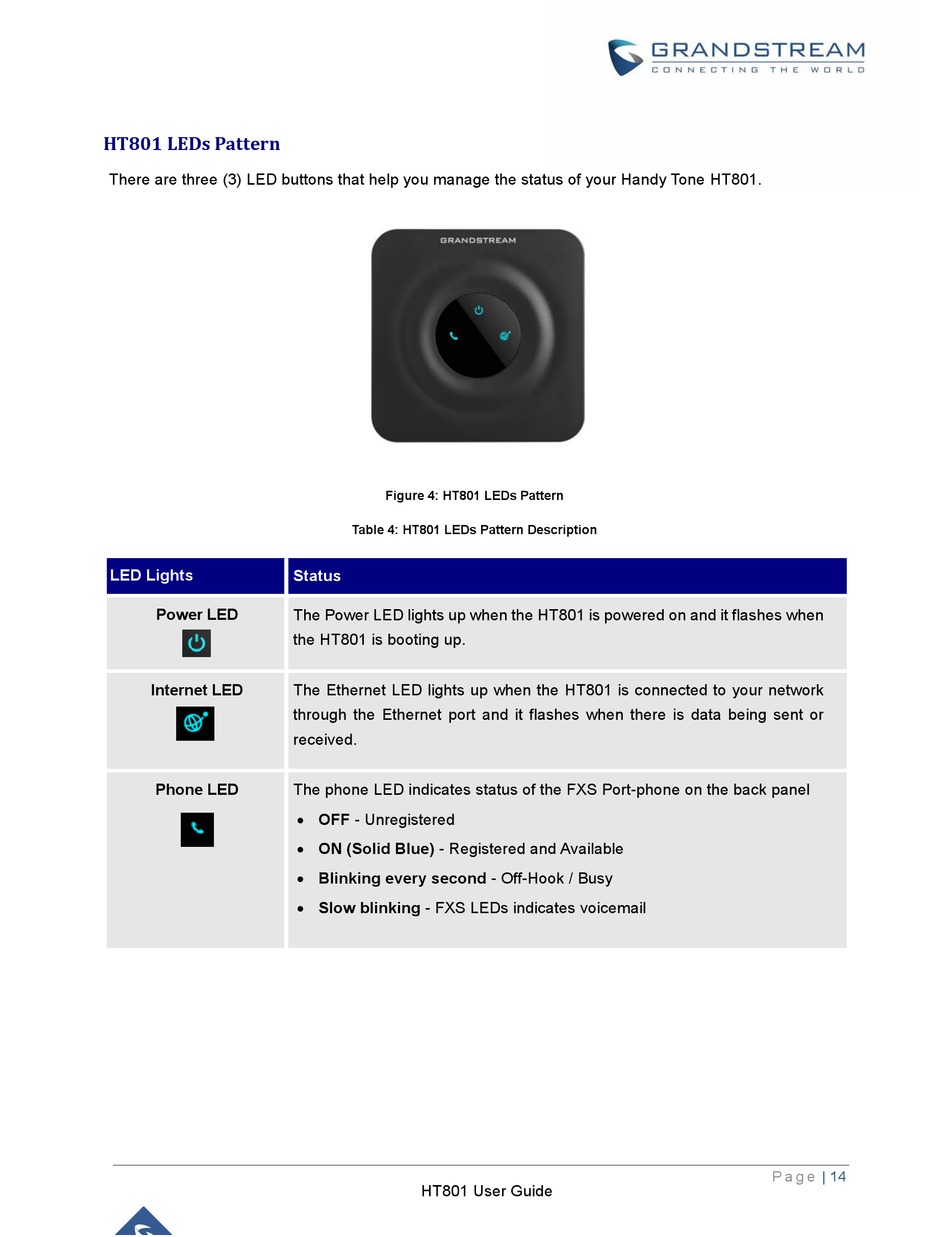

HT801 LEDs Pattern

There are three (3) LED buttons that help you manage the status of your Handy Tone HT801.
LED Lights
Power LED
Internet LED
Phone LED

Figure 4: HT801 LEDs Pattern

Table 4: HT801 LEDs Pattern Description

Status
The Power LED lights up when the HT801 is powered on and it flashes when
the HT801 is booting up.
The Ethernet LED lights up when the HT801 is connected to your network
through the Ethernet port and it flashes when there is data being sent or
received.
The phone LED indicates status of the FXS Port-phone on the back panel
 OFF - Unregistered
 ON (Solid Blue) - Registered and Available
 Blinking every second - Off-Hook / Busy
 Slow blinking - FXS LEDs indicates voicemail
