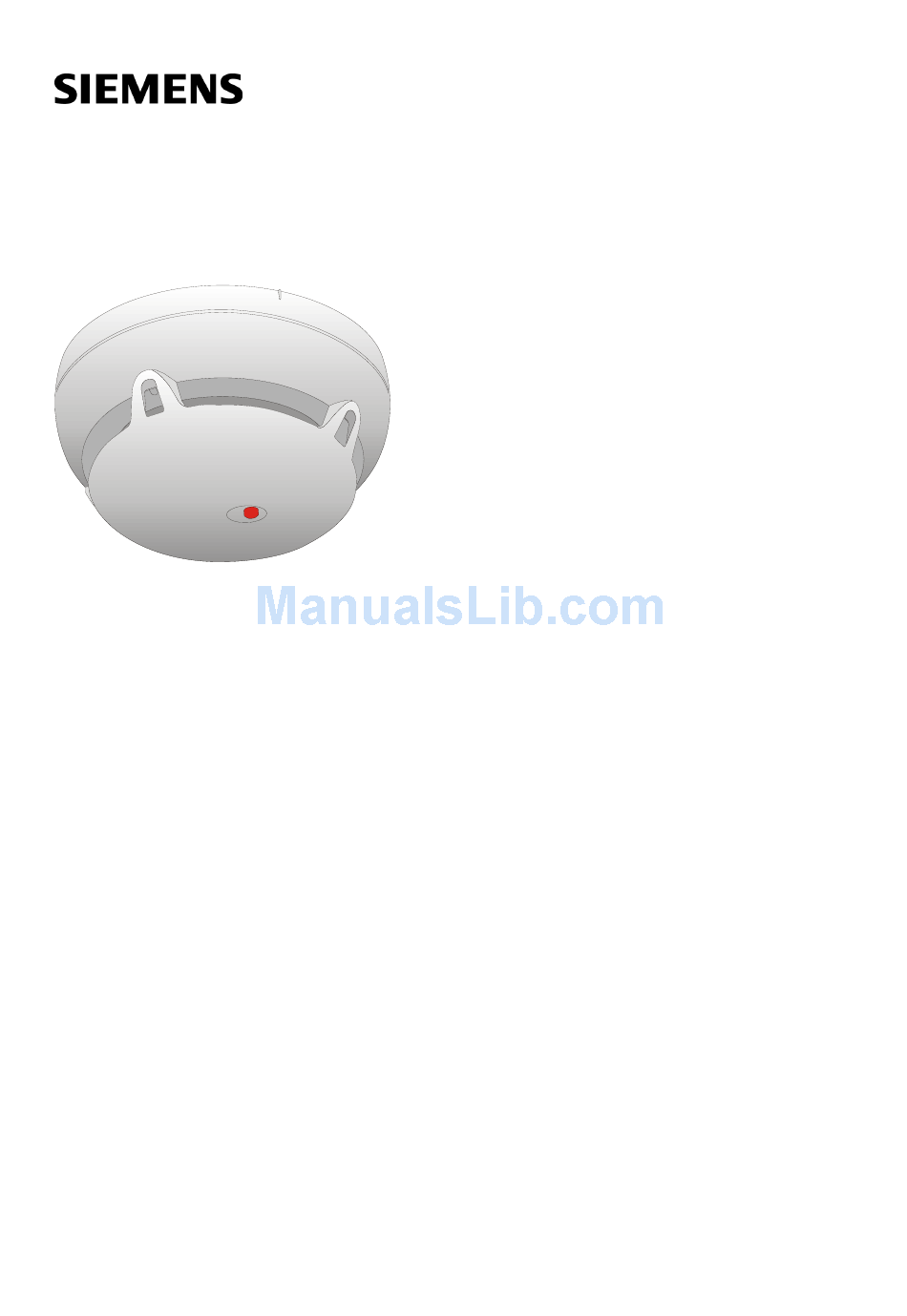

  • Page 1 FDOOTC241 Neural fire detector Technical manual Building Technologies Fire Safety & Security Products...
  • Page 2 Technical specifications and availability subject to change without notice. © 2008-2010 Copyright Siemens Industry, Inc. We reserve all rights in this document and in the subject thereof. By acceptance of the document the recipient acknowledges these rights and undertakes not to publish the document nor the subject thereof in full or in part, nor to make them available to any third party without our...

  • Page 3: Table Of Contents

    Table of contents About this document ..................7 Safety......................11 Safety notices....................11 Safety regulations for the method of operation ..........13 Standards and directives complied with............15 Release Notes....................15 Structure and function................16 Overview .......................16 3.1.1 Features of fire detection functionality...........18 3.1.2 Features of the Technical CO Alarm ..........20 3.1.3 Features of the Technical Ambient Supervision Alarm....22 3.1.4...
  • Page 4 Planning .......................40 Fire detection....................40 4.1.1 Ambient features................40 4.1.2 Parameter sets: Sensor mode 0 'neural fire detector'....41 4.1.2.1 Description..............41 4.1.2.2 Application ..............43 4.1.2.3 Specification ..............44 4.1.3 Parameter sets: Sensor mode 1 'heat detector'......45 4.1.4 Parameter sets: Sensor mode 2 'smoke detector' ......45 4.1.4.1 Application ..............46 4.1.5...
  • Page 5 Commissioning ...................73 'Technical Ambient Supervision Alarm' performance check ......73 Maintenance / Repair ..................74 Status polling with the detector exchanger and tester ........74 Performance check ..................74 Testing detectors...................75 7.3.1 Testing the fire detection functionality ...........75 7.3.2 Testing the functionality of the 'Technical CO Alarm' ....76 7.3.3 Testing the functionality of the 'Technical Ambient Supervision Alarm' .....................76...
  • Page 6 Building Technologies A6V10209291_f_en_-- Fire Safety & Security Products 05.02.2010...

  • Page 7: About This Document

    About this document About this document Goal and purpose This document contains information on the neural fire detector FDOOTC241. Consistent compliance with the instructions guarantees correct and safe use. Target groups The information in this document is intended for the following target groups:...
  • Page 8 About this document Document identification Position Information Title page Product type  Product designation  Document type  Footers Document ID  ID_ModificationIndex_Language_COUNTRY – Edition date  Last page Document ID  Edition date  Manual (product line)  Register (table of contents for whole documentation, folder register) ...
  • Page 9 Detection algorithms Product version FDnet Addressed detector line (field device net) FDOOT Fire detectors like FDOOTC241, but without a CO sensor and its special CO functionality Light-emitting diode MAK value Maximum concentration at the workplace, i.e. maximum permissible concentration of a toxic substance in the air at...
  • Page 10 About this document History of changes The reference document's modification index applies to all languages into which the reference document is translated. The first edition of a language version or a country variant may for example have the modification index "d" instead of "a" if the reference document already has this modification index.

  • Page 11: Safety

    Safety Safety Safety notices The safety notices must be observed in order to protect people and property. The safety notices in this document contain the following elements: Symbol for danger  Signal word  Nature and origin of the danger ...
  • Page 12 Safety Signal word The signal word classifies the danger as defined in the following table: Signal word Danger level DANGER DANGER identifies a dangerous situation, which will result directly in death or serious injury if you do not avoid this situation.

  • Page 13: Safety Regulations For The Method Of Operation

    Safety regulations for the method of operation National standards, regulations and legislation Siemens products are developed and produced in compliance with the relevant European and international safety standards. Should additional national or local safety standards or legislation concerning the planning, assembly, installation,...
  • Page 14 Disregard of the safety regulations Before they are delivered, Siemens products are tested to ensure they function correctly when used properly. Siemens disclaims all liability for damage or injuries caused by the incorrect application of the instructions or the disregard of danger warnings contained in the documentation.

  • Page 15: Standards And Directives Complied With

    We are grateful for any suggestions for improvement. Standards and directives complied with A list of the standards and directives complied with is available from your Siemens contact. Release Notes Limitations to the configuration or use of devices in a fire detection installation with a particular firmware version are possible.

  • Page 16: Structure And Function

    Structure and function Structure and function Overview Neural fire detector FDOOTC241 Depending on the type of document, neural fire detector FDOOTC241 is known as the following: Designation 1 (e.g. in technical Designation 2 (e.g. in data sheets) documentation) Neural fire detector...
  • Page 17 Structure and function Software can be used to set the detection behavior of the Technical CO Alarm  regardless of the ASA parameter sets for fire. Software can be used to set temperature or CO ambient supervision with  hysteresis. Detection of carbon monoxide (CO) at concentrations of 5 ppm CO or more ...

  • Page 18: Features Of Fire Detection Functionality

    Structure and function 3.1.1 Features of fire detection functionality As an S-LINE detector, the FDOOTC241 has the following features with regard to its fire detection functionality: Dynamic influence on the parameter sets  Pattern recognition  Real time interpretation of the situation ...
  • Page 19 Structure and function Algorithms In comparison to the detection algorithms (DA), the individual parameters of the selected parameter set can be adapted with ASAtechnology. A real time interpretation of the situation leads to a dynamic influence on the algorithm. The real time interpretation results in a broadening of the application range of the parameter set and thus of the detector.

  • Page 20: Features Of The Technical Co Alarm

    Structure and function 3.1.2 Features of the Technical CO Alarm Alongside its fire detection functionality, the FDOOTC241 also has a CO detection functionality with the following features: Static or dynamic alarm profiles  Real time interpretation of the situation ...
  • Page 21 Switching over of parameter set for the 'Technical CO Alarm' The FDOOTC241 allows for the time-or process-controlled independent changing over of the parameter set for CO (Manned / Unmanned changeover). This function allows the detector to be used in places where the situation changes significantly on a regular basis.

  • Page 22: Features Of The Technical Ambient Supervision Alarm

    Features of the Technical Ambient Supervision Alarm In 'Technical Ambient Supervision Alarm' mode, the neural fire detector FDOOTC241 can detect an increase in temperature or CO concentration caused by hysteresis above a specified threshold value. The control panel is used to configure the parameters.

  • Page 23: Setup

    Structure and function Setup The FDOOTC241 neural fire detector is a multiple criteria fire detector and is equipped with two optical sensors, two thermal sensors and one CO sensor. Structure and function Sensors of the FDOOTC241 1 Heat sensors 4 Labyrinth...
  • Page 24 0. The parameter sets of the heat detector or optical detector can be selected in sensor mode 1 or 2. The neural fire detector FDOOTC241 then acts in a similar way to heat detector FDT241 or smoke detector FDO241.

  • Page 25: Function

    CO monitoring compares the current measured CO concentration with a preset threshold value. You can set the following parameters on the neural fire detector FDOOTC241: CO concentration or temperature threshold value  Alarming when the temperature threshold value is exceeded or undershot ...

  • Page 26: Danger Levels For Fire

    Provided that a control panel allows the parameter set for CO to be configured, we would recommend configuring it. The neural fire detector FDOOTC241 cannot be operated as a pure CO detector. You must always select a parameter set for fire as well as the parameter set for...

  • Page 27: Warning Levels For Co

    CO are not the only basis for reaching a warning level for CO. The CO progression is also observed over a longer period of time and evaluated using algorithms. Neural fire detector FDOOTC241 can convey the following warning levels to the control panel in the form of a technical message:...
  • Page 28 Structure and function For details, see table below. The CO sensor can only be monitored for failure. For a functional test, the CO sensor must be tested with test gas. When a fatal error (one which impairs the detector's function) occurs, a fault message is signaled.

  • Page 29: Line Separator

    Structure and function 3.3.6 Line separator All FDnet devices are equipped with a line separator. The FDnet device is equipped with electronic switches which isolate the defective part in case of a short-circuit on the detector line. The rest of the detector line remains serviceable.

  • Page 30: Test Mode

    Structure and function 3.3.10 Test mode For testing purposes the detector can be set to test mode. In test mode the detector reacts faster and with a higher sensitivity level. The detector can be tested with the detector exchanger and tester FDUD292 or the intelligent detector tester FDUD293.

  • Page 31: Behavior In Degraded Mode

    (e.g. hold-open system), the output assumes the configured fail-safe position; configuration for a specific control panel is possible. In degraded mode operation, the FDOOTC241 only supports the 'Fire' alarm class. If the 'CO' alarm class is also to be supported in degraded mode operation, technical customer support should be informed.

  • Page 32: Interface To Service Devices

    Structure and function 3.3.12 Interface to service devices A proximity interface (MC link) is available for commissioning and maintenance in order to communicate with the detector exchanger and tester FDUD292 and the intelligent detector tester FDUD293. For details, see Documents 007227 and 009718. See also ...

  • Page 33: Mechanical Setup

     Accessories [ 34]  Mounting / Installation [ 57] Compatibility The neural fire detector FDOOTC241 is compatible with FS20 control panels. For details see 'List of compatibility'. Limitations to compatibility The 'Technical Ambient Supervision Alarm' is available from an ES ≥ 43.

  • Page 34: Accessories

    Structure and function Accessories 3.6.1 Addressable detector base FDB221/FDB221-AA For the installation of point detectors and alarm  sounders For the recess-mounted cable entry  For the surface-mounted cable entry, up to 6 mm  cable diameter Orange terminal block ...

  • Page 35: Addressed Sounder Base Fdsb291

    Structure and function 3.6.3 Addressed sounder base FDSB291 For acoustic alarming in the case of an event  For the FDnet detector line  Orange terminal block  With two micro terminals  For the recess-mounted cable entry  For the surface-mounted cable entry, up to 6 mm ...

  • Page 36: Detector Heating Unit Fdbh291

    Structure and function 3.6.6 Detector heating unit FDBH291 For operating point detectors in critical ambient  conditions during icy conditions or when there is a danger of moisture condensation Compatible with:  Addressable detector base FDB2x1/FDB2x1-AA – Flat detector base FDB2x2 –...

  • Page 37: Detector Locking Device Fdbz293

    Structure and function 3.6.9 Detector locking device FDBZ293 For protection against theft  Compatible with:  Point detectors from the 'Sinteso' product line – Alarm sounder FDS221 – Alarm sounder beacon FDS229 – Order no.: A5Q00005035  See also  Detector locking device FDBZ293 [ 62] 3.6.10 Dummy detector FDX291 To protect the detector base from dirt...

  • Page 38: Protective Cage Dbz1194

    Structure and function 3.6.12 Protective cage DBZ1194 To protect the devices against mechanical damage  Can only be used in conjunction with the base  attachment humid FDB293 Order no.: BPZ:4677110001  See also  Protective cages [ 65] 3.6.13 EMC-protective cage FDBZ294 To protect the devices against mechanical damage ...

  • Page 39: Micro Terminal Dbz1190-Aa

    Structure and function 3.6.14 Micro terminal DBZ1190-AA Auxiliary terminal for connecting cables  For T-branches of additional cabling for detector  heating units, sounder base, external alarm indicators, etc. For wire diameters of 0.28 … 0.5 mm  4-pin  Order no.: BPZ:4677080001 ...

  • Page 40: Planning

    Planning Planning Fire detection 4.1.1 Ambient features In selecting the optimum fire alarm parameter set, the following factors must be taken into account: Risk of injury to persons  Concentration of valuable items  Room geometry  Deceptive phenomena  Risk of fire ...

  • Page 41: Parameter Sets: Sensor Mode 0 'Neural Fire Detector

    Planning Risk of fire In production facilities where highly combustible materials such as flammable liquids, cotton, paper etc. are processed and where electrical machines are operated, the fire risk is very high. Minor overheating or sparks may cause a fire. In a storehouse where steel is stored and where no electrical installation is provided with the exception of lighting, the fire risk is very low.
  • Page 42 Planning High Compensation (7): This parameter set reacts in the same way as the 'Robust (2)' parameter set, however, the compensation range is twice as large. This parameter set is thus especially suited for rooms in which a lot of dust and other deposits can be expected during longer periods.

  • Page 43: Application

    Planning 4.1.2.2 Application Name Risk of injury to Concentration Room Deceptive Risk of fire Critical fire size persons of valuable geometry phenomena items small … low … simple … few … small … small … large high complex many large medium High Suppression Suppression...

  • Page 44: Specification

    Planning 4.1.2.3 Specification The following table shows the characteristics and fields of application of the parameter sets of neural fire detector FDOOTC241. Name Optical Thermal Typ. response Sensitivity, Sensitivity, Static Differential activation Differential time open fire smoldering fire activation temperature activation from - typ.

  • Page 45: Parameter Sets: Sensor Mode 1 'Heat Detector

    Robust (2): This parameter set reacts to aerosols in a similar way as the neural fire detector FDOOTC241 in sensor mode 0 with the 'Robust' parameter set, without taking into account the temperature. Universal (1): With 'Universal' the sensitivity and response time to aerosols are between 'Robust' and 'Sensitive'.

  • Page 46: Application

    When delivered, the default parameter set (parameter set 0) is set in fire detector FDOOTC241. The following table shows the default parameter set in the various sensor modes. Fire detector FDOOTC241 Default parameter set Sensor mode 0 (neural fire detector)

  • Page 47: Application Examples

    Application recommendations such as the selection of the detector settings for the various applications are described in document 010030. The following table includes examples regarding the selection of the parameter set for the FDOOTC241. The examples cannot be used universally, but illustrate typical applications. Environment...

  • Page 48: Ambient Features

    However if CO is produced in a fire, it is warmer than the surrounding air and rises towards the ceiling with the smoke. If the FDOOTC241 is used as a fire detector for this scenario, the positioning rules which apply to fire detectors also apply to the FDOOTC241.

  • Page 49: Parameter Sets: Sensor Mode 0 'Technical Co Alarm

    Planning 4.2.2 Parameter sets: Sensor mode 0 'Technical CO alarm' 4.2.2.1 Description (Parameter set numbers in brackets) Robust EU1 (0): Default parameter set with a static alarm threshold of 60 ppm CO. This parameter set has a large compensation range and rapid compensation. Balanced EU2 (1): This parameter set corresponds to the dynamic CO alarm thresholds according to EN 50291:2001.

  • Page 50: Application

    Planning 4.2.2.2 Application Name Risk of increased CO concentration Room geometry Deceptive Compensation concentration of CO phenomena range (risk of damage to persons) small … low … simple … few … small … large high complex many large Robust EU1 Balanced EU2 Static 40 Static 50...

  • Page 51: Specification

    At 50 ppm CO, alarming must take place after between 60 and 90 minutes. At an ambient temperature of ≥ 80 °C, the CO sensor may not function reliably. Irreversible signaling of a critical fault therefore follows. The FDOOTC241 may only be used in continuous operation within the specified temperatures! See also ...

  • Page 52: Default Settings

    Planning 4.2.3 Default settings When the neural fire detector FDOOTC241 is supplied, the default parameter set for CO (parameter set 0, 'Robust EU1') is set. The optimum parameter set for CO must be selected when commissioning the fire detection system. The selection criteria are the existing risk and ambient conditions.

  • Page 53: Technical Ambient Supervision Alarm

    Ambient features In markets where the use of the 'Technical Ambient Supervision Alarm' is permitted, the neural fire detector FDOOTC241 can be positioned above or near objects which require the ambient temperature or CO concentration to be monitored to prevent damage.

  • Page 54: Temperature Monitoring

    2 Output signal When an ambient temperature of 35 °C is reached, the neural fire detector FDOOTC241 sends an output signal to the control panel. As long as the hysteresis range is not undershot, the output signal is sent. In the example shown, the output signal is no longer sent once the ambient temperature of 30 °C (threshold value minus hysteresis range) is undershot.

  • Page 55: Co Monitoring

    Planning 4.3.1.2 CO monitoring CO monitoring compares the current measured CO concentration with a preset threshold value. Alarming takes place when the current measured CO concentration temperature exceeds the set threshold value. You can set the CO concentration threshold value in stages of 5 ppm between 20 and 600 ppm.

  • Page 56: Default Settings

    Planning 4.3.3 Default settings When the neural fire detector FDOOTC241 is delivered, the 'Technical Ambient Supervision Alarm' mode is switched off. You can switch on and configure the 'Technical Ambient Supervision Alarm' using the control panel. For more detailed information, please refer to the control panel documentation.

  • Page 57: Mounting / Installation

    Mounting / Installation Mounting / Installation Required space Upon insertion of the detector, the detector base is stressed by compression,  tension and torsion. The fixing must thus be designed accordingly. Detector bases must be placed flat on the ceiling. ...

  • Page 58: Addressable Detector Base Fdb221

    Mounting / Installation Addressable detector base FDB221 The cables are routed surface-mounted (up to cable diameter 6 mm) or recess-  mounted through detector base FDB221 or FDB221-AA. The cables must be placed flat on the bottom of the detector base so that they ...

  • Page 59: Flat Detector Base Fdb222

    Mounting / Installation Flat detector base FDB222 The cables are routed recess-mounted through detector base FDB222.  The cables must be placed flat on the bottom of the detector base so that they  do not hamper detector insertion. FDB222 min.

  • Page 60: Base Attachment Fdb291

    Mounting / Installation Base attachment FDB291 When the cable diameter is more than 6 mm, the base attachment FDB291  must be used. The required cable entries must be broken out on the base attachment.  max. Ø 21mm max. 90 min.

  • Page 61: Base Attachment Humid Fdb293

    Mounting / Installation Base attachment humid FDB293 For the installation of detectors in wet rooms, the base attachment humid  FDB293 is used. To seal the cables, especially tight cable glands are used.  FDB293 max. Ø FDB221 FDB221-AA FDB222 max.

  • Page 62: Detector Locking Device Fdbz293

    Mounting / Installation Detector locking device FDBZ293 The detector can be protected against theft with the detector locking device FDBZ293. Installation of detector locking device FDBZ293 A Detector base C Detector locking device B Detector 1. Place the grub screw with a hexagon socket screw in the detector. 2.

  • Page 63: Designation Plate Fdbz291

    Mounting / Installation Designation plate FDBZ291 To provide the detector with a location address, the address is inscribed on the designation plate FDBZ291 and placed on the detector base or base attachment. FDBZ291 FDB291 FDBZ291 FDB221 FDB221-AA FDB222 Installation of designation plate FDBZ291 1 Designation plate 3 Identification 2 Base attachment...

  • Page 64: Detector Heating Unit Fdbh291

    Mounting / Installation Detector heating unit FDBH291 5.9.1 Installation of the detector heating unit When the detector is exposed to icing or moisture condensation (e.g. in cooling rooms, attics, loading ramps) the detector heating unit FDBH291 is installed in the base.

  • Page 65: Connection Of The Detector Heating Unit

    Mounting / Installation 5.9.2 Connection of the detector heating unit Connect the cables for the monitored supply from the control panel and the  detector heating unit to the supplied micro terminals DBZ1190-AA. The cables can be placed in the same cable harness as the detector line or ...

  • Page 66: Installation Of The Protective Cages

    Mounting / Installation 5.10.1 Installation of the protective cages The protective cages can only be installed on the base attachment humid FDB293. Installation of the protective cages 1 Base attachment humid 4 Flat plug 6.3 x 0.8 mm 2 Break out and screw protective cage 5 EMC-protective cage on firmly 3 Protective cage...

  • Page 67: Cable Entry

    Mounting / Installation 5.11 Cable entry The detector bases include a spring clip (admissible wire/strand cross-section 0.28... 1.5 mm ). Only one wire is allowed to be connected per terminal. This is the only way in which a faultless connection can be guaranteed. 30°...

  • Page 68: Auxiliary Terminals Dbz1190-Aa/-Ab

    Mounting / Installation 5.11.1 Auxiliary terminals DBZ1190-AA/-AB Corresponding auxiliary terminals are available for multiple connections: DBZ1190-AB connection terminal 1 … 2.5 mm  DBZ1190-AA micro terminal 0.28 … 0.5 mm  DBZ1190-AB FDB221 FDB221-AA FDB222 DBZ1190-AA Installation of auxiliary terminals in detector base 1 Connection terminals DBZ1190-AB 3 Micro terminals DBZ1190-AA 2 Detector base...

  • Page 69: Detector Lines

    Mounting / Installation 5.12 Detector lines 5.12.1 Connection diagram 5.12.1.1 Use of unshielded cables Guideline The connection is established from base to base using twisted or non-twisted  wire pairs. Preferably, twisted and non-shielded cables should be used.  Loop lines and stub lines as well as T-branches are possible. ...

  • Page 70: Use Of Shielded Cables

    Mounting / Installation 5.12.1.2 Use of shielded cables The shielding of the FDnet line must be connected in the detector base with auxiliary terminals DBZ1190-xx. Unshielded cables are recommended in principle for the connection of external alarm indicators. Two connection variants A or B are possible if a shielded cable is used: LINE 1 Control panel 3 Auxiliary terminals...
  • Page 71 Mounting / Installation Variant A: 1. Connect the positive pole of the alarm indicator to the positive pole for the alarm indicator on the detector. 2. Connect the negative pole of the alarm indicator to the negative pole for the alarm indicator on the detector.

  • Page 72: Detector Dust Cap Fdz291

    Mounting / Installation 5.13 Detector dust cap FDZ291 During the construction phase the detector may be covered with a detector dust cap FDZ291 to protect it from dust and dirt. FDZ291 Installation / removal of detector dust cap FDZ291 1 Detector 3 Remove the detector dust cap either manually by turning it to the right, or by using a detector exchanger and...

  • Page 73: Commissioning

    Commissioning Commissioning The device is commissioned via the control panel. The exact procedure is described in the control panel documentation. Conduct a performance check once commissioning is complete. See also  Performance check [ 74]  Testing the fire detection functionality [ 75] ...

  • Page 74: Maintenance / Repair

    Subject all detectors to an annual visual check. Detectors that are heavily  soiled or mechanically damaged must be replaced. The CO sensor used in the FDOOTC241 has a maximum service life of 5  years. When CO-supported parameter sets are activated, a critical warning is triggered once this period has lapsed.

  • Page 75: Testing Detectors

    ‒ REF 8-C (for CO sensor) Hot air fan  7.3.1 Testing the fire detection functionality The following table shows the accessories with which the FDOOTC241 can be tested in the various sensor modes. Fire detector FDOOTC241 Detector Test gas...

  • Page 76: Testing The Functionality Of The 'Technical Co Alarm

    Maintenance / Repair 7.3.2 Testing the functionality of the 'Technical CO Alarm' The following table shows the accessories with which the FDOOTC241 can be tested in sensor mode 0. Fire detector FDOOTC241 Detector Test gas Hot air exchanger Optical and tester Sensor mode 0 (Technical CO Alarm) –...

  • Page 77: Testing Detectors With Detector Exchanger And Tester

    Maintenance / Repair 7.3.4 Testing detectors with detector exchanger and tester The easiest way to test the detectors is using detector exchanger and tester FDUD292 and intelligent detector tester FDUD293. With these devices, the detectors can also be tested in operating mode without any problems. A detector can be put into test mode with the detector exchanger and tester FDUD292 or the intelligent detector tester FDUD293.

  • Page 78: Specifications

    Specifications Specifications Unless otherwise mentioned, the following data applies: Temperature = 25°C Air pressure = 1000 hPa (750 Torr) Technical data Detector line Operating voltage (modulated) 12 … 33 V DC Operating current (quiescent) Typ. 320 … 400 µA Maximum current connection factor Quiescent current connection factor Address connection factor Separator connector factor...
  • Page 79 IP43  Base attachment FDB291 with base IP43  FDB221/FDB222 Base attachment humid FDB293 with IP44  base FDB221/FDB222 and FDOOTC241 Sounder base FDSB29x IP43  Electromagnetic compatibility: 1 MHz … 2 GHz 30 V/m  Mechanical data Dimensions (Ø x H):...

  • Page 80: Dimensions

    Specifications Dimensions FDB221/FDB221-AA FDB222 Dimensions of FDOOTC241 with detector bases FDB221/FDB221-AA and FDB222 1 Suitable for surface-mounted cables 3 Detector base directly attached to the up to Ø 6 mm. mounting surface 2 Detector base at a distance Environmental compatibility Environmentally friendly detector-testing without gas ...

  • Page 81: Index

    Index Index Parameter set, 25, 26 Detection of carbon monoxide Alarm indicator CO sensor, 23 Indication of operating condition, 29 Detector base FDB221 Ambient supervision, 17 Surface-mounted or recess-mounted feed line, Application as heat detector Sensor mode 1, 25 Detector base FDB222 Application as neural fire detector Recess-mounted feed line, 59 Sensor mode 0, 25...
  • Page 82 Index Line separator, 29 Temperature exceeded, 54 List of compatibility, 9, 31, 33, 78 Temperature increase, 22, 25 Temperature undershot, 54 Test device Major renovation work Detector exchanger and tester, 30 Renovation mode, 29 Hot air fan, 30 MC link, 74 Test gases REF 8, REF 8-S and REF 8-C, 30 Detector exchanger and tester FDUD292, 32, 74 Test gases REF 8, REF 8-S and REF 8-C...
  • Page 83 Index Building Technologies A6V10209291_f_en_-- Fire Safety & Security Products 05.02.2010...
  • Page 84 Issued by © 2008-2010 Copyright Siemens Industry, Inc. Siemens Switzerland Ltd Technical specifications and availability subject to change without notice. Industry Sector Building Technologies Division International Headquarters Gubelstrasse 22 CH-6301 Zug Tel. +41 41-724 24 24 www.siemens.com/buildingtechnologies Document ID A6V10209291_f_en_--...
