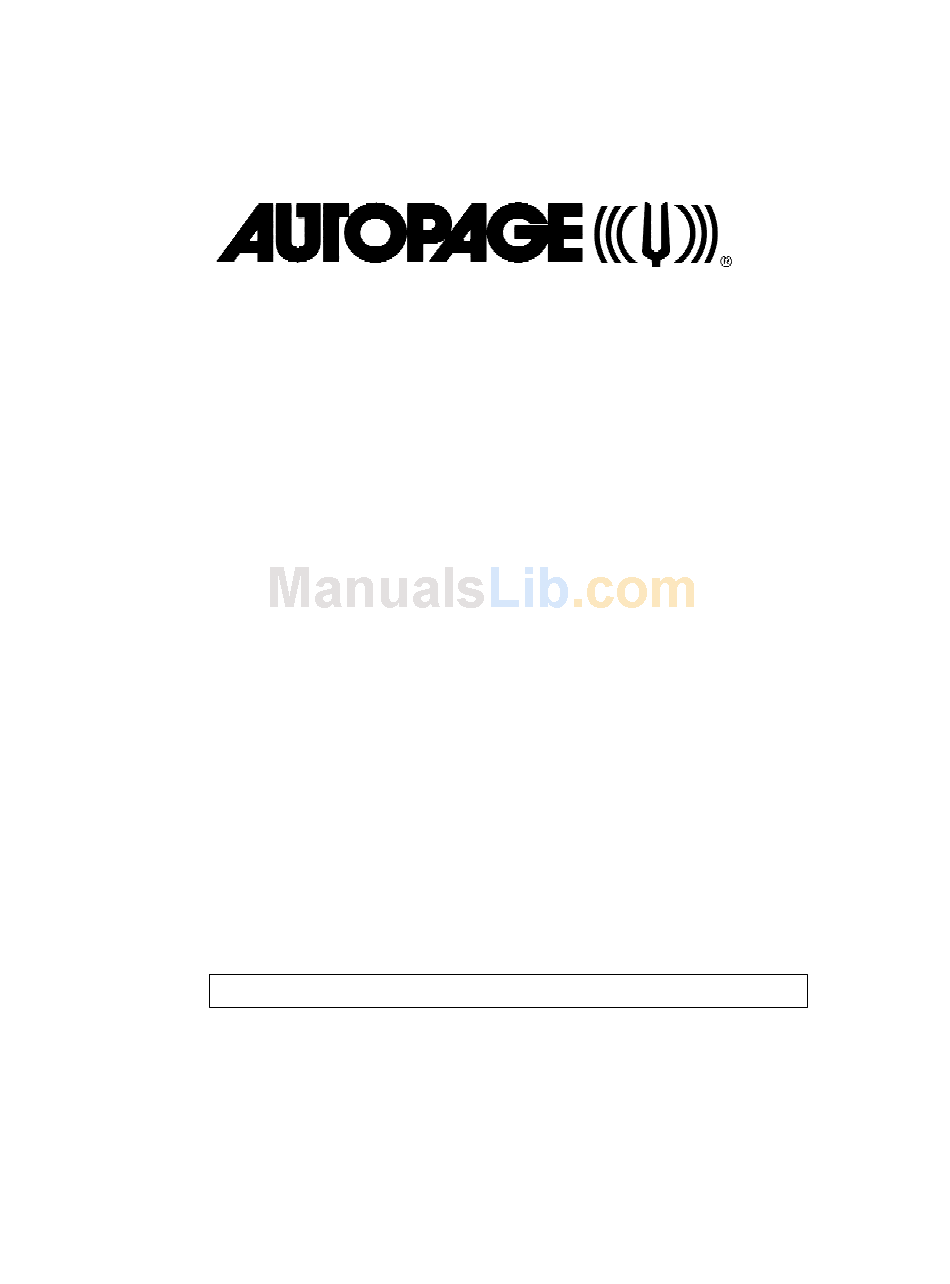

- Page 1 RS-750lcd PROFESSIONAL REMOTE CAR STARTER WITH ALARM SYSTEM & 2-WAY LCD COMMUNICATION OPERATION MANUAL THIS PRODUCT IS DESIGNED FOR PROFESIONAL INSTALLATION ONLY...
- Page 2 XT-75S STANDARD TRANSMITTER OPERATION: (Note: For 2-Way LCD Transmitter operation, see XT75LCD User Manual Transmitter Button System Function Lock Doors & Arm System Arm and Noiseless mode Arm and Delete The Zone 1 / SIS-11 Shock Sensor Arm and Delete The Zone 4 / PIR Optional Sensor Arm and Delete The Zone 1 / Shock Sensor Delete The Zone 4 /...
- Page 3 ACTIVE ARMING – LOCK & ARM 1. Press button on the transmitter. 2. The siren will chirp once and parking light will flash once indicating that the system is now armed. The vehicle doors will lock upon arming when interfaced with the security system. Note: The (optional) wireless PIR sensor will take 30 seconds to set up.
-
Page 4: Passive Arming With Passive Door Locking
ARMING WHILE DRIVING: (see Alarm Feature I - 6 Programming) Your system can be armed while driving the vehicle! Simply press the while the vehicle is running, or the ignition is on. The system will chirp once and then once more to indicate the ignition is on. - Page 5 Shock Sensor Trigger Ignition Trigger TAMPER DISARMING: If the alarm was triggered in your absence, when disarming the system, the siren will chirp 4 times and the parking lights will flash 3 times, indicating an intrusion to the security system while you were away from the vehicle. PATHWAY ILLUMINATION (See Alarm Feature “II - 4”...
-
Page 6: Car Locator
EXAMPLE: To Override The System With The Password Code 51, you would; Enter the vehicle and turn the ignition switch to 'ON’ position. (Alarm will sound.) Within 5 seconds, Press and Release the Valet Switch 5 times (When finished above procedures, the system's siren will stop; parking light will stop flashing and all sensors will stop triggering but the vehicle cannot be started.) Within 15 seconds of the first digit entered, turn the Ignition Switch “OFF”... -
Page 7: Trigger The System
TRIGGER THE SYSTEM When armed, your vehicle is protected as follows: 1. Light impacts will trigger the warn-away signal. A [3] long chirp from siren/horn. 2. Heavy impacts / Doors open / Hood open / Trunk open / Turn on the ignition key/ Activate PIR sensor / Activate door/window sensor will trigger the programmed sequence. - Page 8 PASSIVE CAR JACK: Operates as below: 1. Turn the ignition switch “ON”, Car-Jacking will arm. 2. Once the system is armed, if you are forced from the vehicle, the system will trigger when the door is opened and closed while the ignition is “ON”. TRIGGER THE CAR JACK MODE: 3-timer circuits will function as follows: First timer:...
-
Page 9: Driver Paging
DRIVER PAGING 1:This function works only in armed status. Press and hold the for 2 seconds when arming the alarm. The system will chirp and a melody sound and "call" indication flashes on the LCD screen to confirm the function is on. 2:Tapping the window near the paging (knock) sensor will chirp the siren/horn 1 time and page the carrier of the LCD transmitter. -
Page 10: Remote Start Operation
REMOTE START OPERATION WARNINGS: As with any product that performs automatic functions, there are certain safety precautions that you must practice and be aware of. 1. Keep the transmitter out of children’s reach. 2. Do not leave anyone in the vehicle while running on remote control. 3. -
Page 11: To Operate The Vehicle While Running On The Remote Start
TO OPERATE THE VEHICLE WHILE RUNNING ON THE REMOTE START: 1. Insert the ignition key and turn it to “ON” (not the start) position. 2. Press the brake pedal. Note: If the brake pedal is pressed before the key is in the ON position, the engine will shut down. -
Page 12: Temperature Check
TEMPERATURE CHECK If you installed the optional temperature sensor, you can monitor, thru the LCD screen, the present indoor temperature of the passenger compartment before cooling or heating your vehicle. PrPress the button at the same time on the “Two Way LCD Screen Transmitter”, the in-door temperature and system’s status will be shown on the LCD screen. - Page 13 IMPORTANT NOTE: Any damages to the alarm system resulting from an installation performed by anyone other than a professional installation technician authorized by a dealer of Auto Page will void the product’s warranty.
- Page 14 This WARRANTY CARD is for your record. However, AutoPage reserves the right to request you to submit this WARRANTY CARD, which must have complete information to receive warranty service. Please keep this card in a secured place . AUTOPAGE WARRANTY SERVICE CARD _______________ Model: Serial # _______________...
- Page 15 1815 West 205 Street Suite 101 Torrance, California 90501-1525 Main Office: 310-618-2002 Customer Service: 800-262-2527 Ext. 462 www.autopageusa.com...
