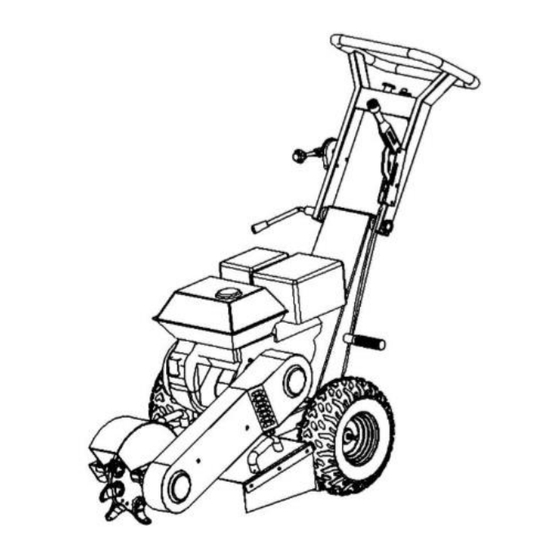

Hyundai HYSG150-2 User Manual

Petrol stump grinder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Licenced by Hyundai Corporation, Korea

Advertisement

Table of Contents
loading

Related Manuals for Hyundai HYSG150-2

Summary of Contents for Hyundai HYSG150-2

  • Page 1 Licenced by Hyundai Corporation, Korea...
  • Page 2 ACKNOWLEDGEMENT THANK YOU for purchasing this Hyundai Stump Grinder. To get the most out of your purchase, please read the manual before using the Stump Grinder. We ask you to please read this manual carefully before use, in order to familiarize yourself with this product and after reading, please keep this manual for future reference.

  • Page 3: Table Of Contents

    CONTENTS SAFETY ASSEMBLY OPERATION STARTING PROCEDURE REMOVING STUMPS STUTDOWN PROCEDURE MAINTENANCE STORAGE TRANSPORTATION TROUBLESHOOTING SPECIFICATION DECLARATIONS OF COMFORMITY RECYCLING & PRODUCT DISPOSAL CONTACT WARRANTY...

  • Page 4: Safety

    SAFETY GENERAL SAFETY NOTES The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user. Please note the following safety points.
  • Page 5 CARBON MONOXIDE (where applicable). Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. The symptoms of carbon monoxide poisoning can include but are not limited to the following;...
  • Page 6 3.16 GENERAL FUEL SAFETY (where applicable). CAUTION 3.17 • ALL FUELS ARE FLAMMABLE 3.18 Fire hazard - keep fuel away from all sources of ignition for example heaters, lamps, sparks from grinding or welding. 3.19 Pay attention when handling fuel. Petrol is flammable and the vapors are highly explosive. 3.20 Never remove the fuel cap or add fuel with the engine running.
  • Page 7 3.31 FUELING/DE-FUELING (where applicable). CAUTION 3.32 • ALL FUELS ARE FLAMMABLE 3.33 ALWAYS fuel and defuel in a well-ventilated area outside of buildings. 3.34 ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are but not limited to safety gloves and overalls. 3.35 When fueling/de-fueling ALWAYS avoid inhaling fumes.
  • Page 8 3.46 BATTERIES (where present). 3.47 Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE the electrolyte may be in liquid or gel form.
  • Page 9 3.63 NOISE (where applicable). 3.64 The operating noise of the machine can damage your hearing. Wear hearing protection such as earplugs or ear defenders to protect your hearing. Long- term and regular users are advised to have hearing checked regularly. Be especially vigilant and cautious when wearing hearing protection because your ability to hear alarm warnings will be reduced.
  • Page 10 3.80 You MUST learn how to use the machine and its controls safely and learn to recognize the safely labels. 3.81 Only use the machine for removing tree stumps it is not intended for any other use. 3.82 Check that the machine is in a serviceable condition prior to use. 3.83 Only use the machine in daylight or in other well-lit conditions.
  • Page 11 machine to reduce the risk of injury and there is good ventilation from exhaust fumes. 3.100 Only one person at a time should operate the machine. 3.101 Pieces jamming the feed hopper can only be removed safely when the engine has been stopped and the spark plug HT lead disconnected.
  • Page 12 3.120 Make sure that all shields and guards are in place and are in good condition prior to operating the machine. Check cutting wheel for damage or missing teeth and replace as necessary. 3.121 Ensure that everyone in the vicinity is aware of the danger zone associated with this machine (within 6m / 20’).

  • Page 13: Assembly

    ASSEMBLY...

  • Page 15: Operation

    OPERATION ADDING OIL & PETROL TO THE ENGINE Only fill the fuel to a level 15mm lower than the top of the fuel tank. DO NOT OVERFILL. Use the dipstick to check the oil level. Use SAE10w30 or 15w40 engine oil. Fill to the correct level before use.

  • Page 16: Starting Procedure

    5.15 Always use approved protective clothing and approved protective equipment when using the machine. Protective clothing and protective equipment cannot eliminate the risk of accident, but wearing proper clothing and the correct equipment will reduce the degree of injury should an accident occur.

  • Page 17: Removing Stumps

    REMOVING STUMPS Remove all loose pieces of wood, stones, wire and other debris from the area before beginning stump removal. Wind direction should be considered, as it influences the direction in which dust and wood chips are directed. Dig away the earth and remove any stones near the tree stump that may interfere with your work.
  • Page 18 REMOVING STUMPS – OPERATION TIPS Use smooth, comfortable side to side movements while operating, pivoting the arc on the locked left hand wheel. When it is desired to cut smaller roots, it may be more effective to do so before rather than after cutting the main stump.

  • Page 19: Stutdown Procedure

    8.15 Roll the machine forward and back, by pushing and pulling on the control handle. To do this, release the park brake. Relock it when the machine has been repositioned and continue cutting. CONTINUE WITH FINAL ROOT REMOVAL 8.16 Cut the remaining roots as described 1.166 until satisfactorily removed SHUTTING OFF THE GRINDER 8.17 When stopping the machine after normal operation.

  • Page 20: Maintenance

    10. MAINTENANCE WARNING Always stop the engine and unplug the spark plug before doing any repairs or maintenance. Never touch the rotating blade. Check and maintain fuel level regularly, and check engine oil daily. At regular intervals, check the tightness of all nuts, bolts and screws. If the blade hits an obstacle check for damage and if the machine vibrates badly stop the machine and take it to a service dealer.
  • Page 21 Every 6 Every 1st Month or Every 50 months or year or Each use 20 hours hours 100 hours 300 hours Oil Check Engine oil Replace Check Air Filter Clean Air filter Replace Carburetor Clean Float bowl Spark plug Clean / Adjust Carburettor Replace Float bowl...
  • Page 22 10.8 Check the tightening of all bolts and screws at regularly intervals. 10.9 If the grinder hits an obstacle violently, stop the grinder and take it to a specialist for inspection. 11. AIR FILTER 11.1 Never let the engine run without the air filter being fitted. A dirty air filter element affects the engine performance, increase fuel consumption and makes it difficult to start.
  • Page 23 12. SPARK PLUG 12.1 The spark plug MUST be fully tightened otherwise the engine will overheat causing damage. Always complete the following steps after the engine has been turned off and allowed to cool down 12.2 To make sure the engine runs correctly a spark plug gap of 0.6 - 0.7 mm must be maintained and the spark plug must be free of carbon deposits.
  • Page 24 13. ENGINE OIL Risk of burn from HOT engine and HOT oil – allow engine and engine oil to cool down before 13.1 topping up or replacing oil. 13.2 Drain the used oil while the engine is warm. Warm oil drains quickly. 13.3 Remove the filler cap/dipstick and the drain plug, then place a suitable container under the oil drain plug and tilt the machine to catch the used oil.

  • Page 25: Storage

    14. STORAGE 14.1 If you do not follow these steps, deposits may arise in the carburetor. This will cause starting difficulties and may cause permanent damage. Perform all the general maintenance that the maintenance section of your ‘User 14.2 Manual’ is recommended. 14.3 Clean the outside of the machine.

  • Page 26: Troubleshooting

    16. TROUBLESHOOTING 16.1 If troubleshooting does not solve the problem, contact your dealer or the manufacturer directly. Use only original parts approved by the manufacturer, otherwise a hazard risk arises. ENGINE WILL NOT START FUEL SYSTEM 16.2 POSSIBE CAUSES 1) Fuel valve is in CLOSED position. 2) Choke OPEN.
  • Page 27 LOW COMPRESSION 16.5 POSSIBE CAUSE 1) Serious internal engine damage or faulty valves. POSSIBLE CORRECTIVE ACTION 1) Contact your dealer. ENGINE LACKS POWER OR RUNS UNEVENLY AIR FILTER 16.6 POSSIBE CAUSE 1) Clogged Air Filter. POSSIBLE CORRECTIVE ACTION 1) Clean and or replace as required. FUEL SYSTEM 16.7 POSSIBE CAUSE...
  • Page 28 BELT COMING OFF 16.10 POSSIBE CAUSES 1) Pulleys not aligned. 2) Incorrect belt tension. POSSIBLE CORRECTIVE ACTIONS 1) Align the pulleys. 2) Re-tension the belt. ENGAGES LATE 16.11 POSSIBE CAUSES 1) Loose belt. 2) Incorrect cutting depth. POSSIBLE CORRECTIVE ACTIONS 1) Tighten the belt 2) Reduce cutting depth DOES NOT STAY TIGHT...
  • Page 29 PARKING BRAKE SLIPPING 16.15 POSSIBE CAUSES 1) Incorrect brake lever tension. 2) Brake plunger loose. POSSIBLE CORRECTIVE ACTIONS 1) Re-tension brake lever. 2) Re-fix brake plunge.

  • Page 30: Specification

    17. SPECIFICATION HYSG150-2 Engine type 4-stroke OHV Maximum output – hp Displacement - cc Ignition system Start method Recoil / Electric Unleaded Petrol / 6 Litres Fuel type/tank capacity - L Engine oil capacity - ml 1200 Engine oil SAE10W30 or 15W40...

  • Page 31: Declarations Of Comformity

    18. DECLARATIONS OF CONFORMITY 18.1 Genpower Ltd confirms that these Hyundai products conform to the following CE Directives; 2006/42/EC Machinery Directive 2004/108/EC EMC Directive 97/68/EC_2010/26/EC NRMM Emissions Directive 19. RECYCLING & PRODUCT DISPOSAL 19.1 We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) &...

  • Page 32: Contact

    20. CONTACT DETAILS 20.1 POST Genpower Ltd, Isaac Way, London Road, Pembroke Dock, Pembrokshire, SA72 4RW. UK TELEPHONE +44 (0) 1646 687 880 +44 (0) 1646 686 198 TECHNICAL EMAIL aftersales@genpower.co.uk WEBSITE www.hyundaipowerproducts.co.uk 21. MANUAL UPDATES 21.1 Our manuals are constantly being reviewed and updated. Should you find an error, omission or something you find unclear please contact your dealer for assistance.
  • Page 33 NOTES...
  • Page 34 NOTES...
  • Page 35 NOTES...
