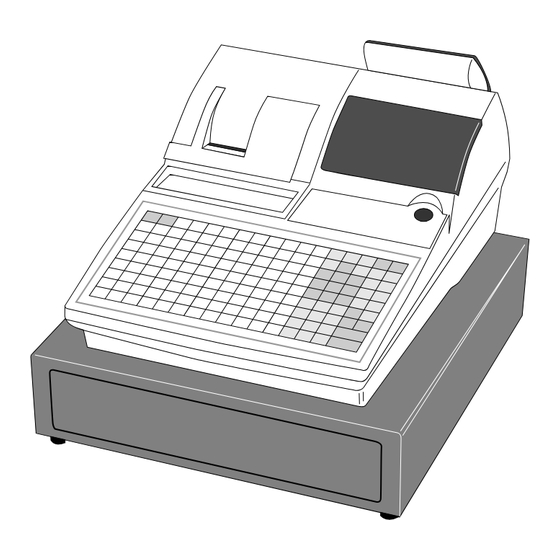

Electronic cash register
Hide thumbs Also See for TK-6500:
Table of Contents

Advertisement

Quick Links

See also: Dealer's Manual , User Manual
SERVICE MANUAL
(without price)
ELECTRONIC CASH REGISTER
TK-6500
(EX-577A*)
FEB. 2000
Printer Model : M-U420-061
INDEX

Advertisement

Table of Contents
loading

Related Manuals for Casio TK-6500

Summary of Contents for Casio TK-6500

  • Page 1 SERVICE MANUAL (without price) ELECTRONIC CASH REGISTER TK-6500 (EX-577A*) FEB. 2000 Printer Model : M-U420-061 INDEX...

  • Page 2: Table Of Contents

    CONTENTS TK-6500 Page 1. SPECIFICATIONS ..................1 2. INITIALIZE (MAC) OPERATION..............4 3. F-INIT (FMAC) OPERATION ............... 4 4. BLOCK DIAGRAM ..................5 5. TO OPEN THE UPPER CASE ..............7 6. CIRCUIT EXPLANATION ................9 6-1. Power supply circuit ....................9 6-2.

  • Page 3: Specifications

    1. SPECIFICATIONS 1-1. Electrical specifications 120V 220V 230V 240V • Power consumption In operation Max. 0.7 A 0.4A 0.4A 0.4A Min. 0.3 A 0.2A 0.2A 0.2A Power OFF 0.3 A 0.2A 0.2A 0.2A • Memory protection Back-up battery VL3032/1F2 90 days (25 °C) Back-up period Battery life Replace the battery every 5 years.
  • Page 4 1-4. Drawer List DRAWER NAME Specification NOTE • DL-2766 (M type) D-9BC-B84M-9* EUROPE, Saudi-Arabia, Other countries • DL-2767 (M type) D-9BC-B84SM-9* UK, Germany • DL-2417 (M type) D-9BC-B55S-9* • DL-2517 (M type) D-9BC-B64S-9* Canada • DL-3616 (L type) D-11BH-B65SS-9* USA, Canada •...
  • Page 5 DEVICE NAME MODEL NOTE • Slip printer cable PRT-CB-8C Connect Com 2. (Cable lngth 1.5m) • External printer cable PRT-CB-8A Connect to Com 1 or 2. (Cable length 3 m) • External printer cable PRT-CB-8B Connect to Com 1 or 2. (Cable length 5 m) •...

  • Page 6: Initialize (Mac) Operation

    2. INITIALIZE (MAC) OPERATION (TK-6500) 1. Plug the power cord into an AC outlet. 2. Set the mode switch to "OFF" position. 3. While pressing the Journal feed Button, turn the mode switch to "PGM" position. 4. Release the Journal feed button.

  • Page 7: Block Diagram

    4. BLOCK DIAGRAM 4-1. PCB CONNECTION — 5 —...
  • Page 8 4-2. BLOCK DIAGRAM (TK-6500) Printer COM2 Main display Keyboard Customer Driver M-U420-061 (Dot & segment) display Driver COM1 ARCNET Printer driver IN-Line driver Option I/O PB14 Display driver and Key control circuit Address bus A8 - A19 uPD784215GC-084-8EU Address I/O selector...

  • Page 9: To Open The Upper Case

    5. TO OPEN THE UPPER CASE 1. Open the printer cover. Then, remove the ribbon cover from the machine. Open the printer cover. Remove the ribbon cover. 2. Remove the 2 screws of the upper case. Remove the 2 screws. 3.
  • Page 10 Main PCB Flash pack connector Keyboard select switch for Memory cassette (Set to "F" for TK-6500.) NOTE: RAM2 (128 K bytes) is located on RAC-9 the back side of Main PCB. 6. To remove the Main PCB, release the 2 screws of point A and 2 locking supporters of point B and the COM1 port outside screws.

  • Page 11: Circuit Explanation

    The power supply circuit provides the following voltage for the main circuit. Output Pin No1----- VC1 (DC32.3V): To the VC line for the Display power. (Not used for TK-6500) Output Pin No.2---- VC2 (DC24V): To the Vp line for the printer power.

  • Page 12: Reset And Power Down Circuit

    6-2. Reset and power down circuit The rest and power down circuit are as following circuit. The reset switch is provided for the hard reset to cleare the system error. Use this switch only when the FMAC or MAC are not possible to perform.

  • Page 13: Cpu Description

    CPU pin description(uPD784215GC-084-8EU) Pin No. Signal Name Description In/Out 1 P120 HEAD PIN DRIVE HD1 2 P121 HEAD PIN DRIVE HD2 3 P122 HEAD PIN DRIVE HD3 4 P123 HEAD PIN DRIVE HD4 5 P124 HEAD PIN DRIVE HD5 6 P125 HEAD PIN DRIVE HD6 7 P126 HEAD PIN DRIVE HD7...
  • Page 14 Pin No. Signal Name Description In/Out 51 P83 Bank selection RB3 52 P84 RB4/CB1 Bank selection RB4/CB1 53 P85 FB0/CB2 Bank selection FB0/CB2 54 P86 Bank selection FB1 55 P87 Connected to GND 56 P40 Data/address bus D0/A0 In/Out 57 P41 Data/address bus D1/A1 In/Out 58 P42...

  • Page 15: Momory Chip Selection Circuit

    6-4. Memory chip selection circuit The RAM chip select signals made by the following circuit. There are 4 chip enable signal lines for RAM selection and 3 chip enable signal lines for Flash ROM selection (including Memory cassette). RAM1 CE RAM2 CE RAM3 CE RAM4 CE...

  • Page 16: Flash Rom1 Address Circuit

    6-5. Flash ROM1 address circuit The Flash ROM1 address signals FA17 to FA20 are made by the following circuit. The Flash ROM1 (LH28F016SCT-L95, 16M bits) is used for the application program. Flash ROM1 (16M bits) CPU address BANK port Flash memory address NOTE A19 A18 A17 FC2 BANK...

  • Page 17: Memory Map

    A18 CS A18 A19 A20 COM X COM X 10 L 11 H 12 L 13 H 14 L 15 H 16 L 17 H A18 H A18 H NOTE: Flash2 and RAM4 are not used for TK-6500. - 15 -...

  • Page 18: Printer Drive Circuit

    The printer drive circuit is as follows: IC5 (MTA001M-F4101) is the head pin driver IC. And, the Transistors Q6,Q7 and Q8 are the motor drive circuit. The IC1 (TA8429H) is the auto paper cut driver circuit. For TK-6500, the auto-paper cut drive circuit is not used.

  • Page 19: Rs232C Port Com1 Circuit

    The COM1 port pin location is as shown below: Signal 6-10. RS232C port COM2 circuit TP48 The circuits of COM2 is as follows: NOTE: TK-6500 has no COM3 port. NOTE: COM3 is not used for TK-6500. COM2 - 17 -...

  • Page 20: Keyboard Selection Switch

    6-11. Keyboard selection switch The main PCB has the keyboard selection switch to detect the keyboard type. For the model TK-6500, set the switch to " F" position for the stroke key type. Keyboard selection switch Set to " F" position.

  • Page 21: To Mount Optional Circuit

    6-12. To mount optional circuit The following optional circuits are provided for this model. 1. Clerk key circuit 2. Multi-drawer circuit 3. Paper near end sensor circuit 1) Clerk key circuit NOTE1 : This circuit is mounted from factory for the destination Germany. NOTE2 : It is not option item for USA and Canada.
  • Page 22 1-5. Cut off the masking plate of clerk key unit of lower case. Then, set the clerk key case and unit to the lower case. Connect the connector cable to the Main PCB. Lower case Fix the FG wire from cleark key unit this position.

  • Page 23: Multi-Drawer Circuit

    2) Multi-drawer kit (TK-6500 only Drawer 2) 2-1. Prepare the following parts kit for multi-drawer circuit. The parts kits are supplied from sales division. MDL-10 Multi-drawer kit 2-2. Check whether the parts of multi-drawer kit are as follows: Code No. Parts Name...

  • Page 24: Paper Near End Sensor Circuit

    3) Paper near end sensor curcuit 3-1. Prepare the following parts for paper near end sensor circuit. The individual parts are supplied from spare parts sales department same as an other spare parts. Code No. Parts Name Specification Q'ty 19076948 Paper end sensor C33-651000 19030101 Adjustment screw C109302051...

  • Page 25: Arcnet Circuit (Option Io-Pb14)

    6-13. ARCNET circuit (OPTION I/O PB14) The ARCNET board I/O PB14 is option item for TK-6500. It is possible to connect up to 32 units without scanning system through the ARCNET In-line connection. TK-6500 has no scanning system. 1. ARCNET CHIP COM20019ILJP Pin No.
  • Page 26 Pin No. Pin Name Name In/Out Status of OFF Status of ON Status of ON Description No Token Token 26 nWR/DIR nWrite/ Pulse Pulse Input. On a 68xx-like bus, Direction this signal is issued by the microcontroller as the Read/Write signal to determine the direction of the transfre.
  • Page 27 2. ARCNET In-line circuit The In-line circuit is as follows: Mount the I/O PB14 option board to the TK-6500 as shown below. Then, fix the In-line cable connector between the connector plate and I/O PB14. Connect the cable between Main PCB and I/O PB14.
  • Page 28 20 units 430 m 156.25 K bps 32 units 890 m 2) In-line cable and connector CASIO TECHNO will supply the In-line cable, connector and terminater parts by the following parts code. In line cable Code No. Parts name Specification...
  • Page 29 4) To connect the In-line cable Connect the In-line cable and connector as shown below: Connector at the enc of In-line cable Terminal cap In-line connector In-line cable Wrap bent shield wire Black with Copper tape. Shield wire Terminater (100 ohms) Notes: 1.
  • Page 30 Connect the In-line In-line port Release the 2 screws to remove cable shield wire to (ARCNET) the bachk cover. FG plate. To connect the In-line cable, release the 2 screws from the back cover. Then, remove the Back cover. And, put the In-line connector to the ARCNET In-line port. Do not foget to connect the shield wire (copper tape part) to the FG plate by the cable supporter with screw.

  • Page 31: Diagnostic Operation

    7. DIAGNOSTIC OPERATION 7-1. To start the diagnostic program 1. Plug the power cord into an AC outlet. 2. Set the mode switch to "OFF" position. 3. While pressing the "Jounal feed " button, turn the mode switch to "PRG" position. 4.

  • Page 32: Switch Status Test

    7-4. Switch status test Press "C" button or changing the switch condition,the switch status is appeared on the transaction place of the display. The clerk key switch condition is shown at the 6 and 7 digit number's place of display. For the clerk button model, the pressed LED will light on. [DISPLAY] Allways off Allways off...

  • Page 33: Individual Function Test

    7-5. Individual function test 1) Series test This test will perform the following tests in series. 1. Display test (All dot and segment trun on.) 2. RAM read after write test (one time) 3. Print test (one time) 4. Time display test 5.
  • Page 34 2) Print aging test (R/J printer) This test will check the R/J printer continuously until pressing some key button or turn off the mode switch. Operation : n1 #2 Key X: 0= Print 45 times test pattern without paper cut in a minute. 1= Print 15 times test pattern with paper cut in a minute.
  • Page 35 5) Print test (R/J printer) This test will check the R/J printer. To stop the continuous printing, press some key button or turn off the mode switch. Operation : n1 #2 Key X: 0= One time print 1= Continuous print n: 0= Display test pattern 1= All segment will light on.
  • Page 36 8) Flash1 ROM check This test will check the Flash 1 ROM. This test will print the version name and check sum on the receipt as shown in sample print. When using several bank, the each version name and check sum will be printed after this sample data. Operation : #2 Key [PRINT]...
  • Page 37 10) Flash2 ROM and Flash pack check (TK-6000 has no Flash2 ROM.) This test will check the Flash 2 ROM and Flash pack. This test will perform the erase, write, and verify check. Operation : n1 n2 #2 Key s: 0= Select Flash2 (Do not select for TK-6000.) 1= Select Flash pack X: 5= Test by one block (64 bytes) Select the block by the Number n (from 0 to 9).
  • Page 38 11) Flash ROM and Flash pack device information check This test will check the Flash ROM and Flash pack device infromation . Thie device signature code (Maker code, device code) and write protect information will be printed on the receipt. Operation : #2 Key s: 0= Select Flash2 (Do not select for TK-6000.)
  • Page 39 13) RAM read only check This test will check the read only check for RAM. Perform the RAM check (EX: command "1 and #2 " ), before start of this operation. Operation : #2 Key X: 0= One time check. 1= Continuous check.
  • Page 40 15) RS232 port check This test will check the RS232 port. Connect the loop back connector before operate this check. Operation : #2 Key m: 0= One time loop check 1= Loop check continuously 2= One time loop check (Ignore the CD,CI signals. Only COM1 port) 3= Loop check continuously (Ignore the CD,CI signals.
  • Page 41 16) Print check This test will check the print test. Operation : #2 Key r: 0= One time check 1= Continuous check (NOTE1) s: 0= Receipt/Journal print mutually 1= Receipt print only 2= Journal print only NOTE1: To stop this test, press any key or set the mode switch to OFF position. [PRINT] [DISPLAY] Segment display...
  • Page 42 NOTE: When use the command print and display, press #1 key (Cash AMT tender key) to display and print the next line. To stop this test, press any key or set the mode switch to OFF position. [PRINT] [DISPLAY] Segment display 18) Time and date display test The machine will display the time .
  • Page 43 19) Date time set test The machine will set the time or the date. Opeartion : n1 n2 n3 n4 n5 n6 X: 0= Time set (n1 n2: Time, n3 n4: Minute, n5 n6: Second) 1= Date set (n1 n2: Year, N3 n4: Month, n5 n6: Day) [PRINT] [DISPLAY] Segment display...
  • Page 44 21) COM1 online test This operation will test the COM1 online function. This test need the reception machine as shown below; Cable length = Max. 15m Send Receive COM1 COM1 Cross cable Wiring diagram for the connection cable Loop back connector Signal Pin Signal Pin 3pin...
  • Page 45 [PRINT] [DISPLAY] Normal End Segment display Count data block Error End (Time out error) E : Error status (01 : Framing error) (02 : Over run error) (04 : Parity error) (40: Transmit/ Receive data error/ Data is not 55.) (80 : Time out error) 22) In-line (ARCNET) test (OPTION I/O-PB14) This operation will test the In-line (ARCNET) function.
  • Page 46 Opeartion : b: Baud rate selection 0= 156 K bps 1= 312 K bps m: Test Mode selection 1= Reception mode 1 2= Send mode 1 3= Reception mode 2 4= Send mode 2 dd: The other machine ID number ss: The machine ID number X: 0= Normally select 0.
  • Page 47 [PRINT] [DISPLAY] Normal End Segment display Count data block Error End (Time out error) Error List ARCNET BLK ERR 10 0001 ------ Block No. is not same No. between send and reception. ARCNET DATA ERR 20 0001 ------ Data is not same between send and reception. ARCNET LENG ERR 40 0001 ------ Data Length is not same between sand and reception.

  • Page 48: To Exit The Diagnostic Mode

    23) In-line (ARCNET) initial test (OPTION I/O-PB14) This operation will initialize the In-line (ARCNET) function. And , when the machine is connected to the other machine, the token signal is sent to the other machine. Send Receive In-line In-line In-line cable Wiring diagram for the connection cable Signal Pin Signal Pin...

  • Page 49: Error Code List

    8. ERROR CODE LIST 8-1.Operation error code When an error condition is generated, one of the following error codes (E001 – E205) is displayed to indicate the cause of the error and the corrective action. s t i i t t i t i z i l z i l...
  • Page 50 . l l i l a l i a . l l i l a e t t < > i l a i t s f f i . r e e t t < > f i ( i t s <...
  • Page 51 8-2. System error code e l i e l i e l i e l i i t a . s t i l l e t i e t t r r I e l i e l i i t a i t r e t t...

  • Page 52: Ic Data

    9. IC DATA 1. BA10393F-E2 2. BA12003BF-E2 3. HA17431PA 4. HD74LVC244ATELL Don't care High impedance - 50 -...
  • Page 53 5. HD74LVC245ATELL Don't care High impedance 6. HD74LVC374ATELL 7. HIN211CA-T - 51 -...
  • Page 54 8. HY628100ALLG-70 9. LC7932M-TE-R - 52 -...
  • Page 55 10. LH28F016SCT-L95A - 53 -...
  • Page 56 11. LM2576HVT-5.0LB03 12. MTA001M-F4101 - 54 -...
  • Page 57 13. S-80823ANNP-EDL/S-80835ALNP-EAZ (2) CMOS active low output (1) Nch open drain active low output S-808XX AX XX - - T2 Tape spec. IC direction Production short No. Package No. NP: SC-82AB MP: SOT-23-5 UP: SOT-89-3 Y: TO-92 Output N: Nch open drain (Active "L") L: CMOS (Active "L") Detection Voltage X 10 times 14.
  • Page 58 16. SN74HC27PWR 17. SN74LV00APWR 18. SN74LV02APWR 19. SN74LV08APWR - 56 -...
  • Page 59 20. SN74LV138APWR 21. SN74LV139APWR - 57 -...
  • Page 60 22. SN74LV165APWR 23. SN74LV174PWR - 58 -...
  • Page 61 24. SN74LV244APWR 25. SN74LV245APWR 26. SN74LV32APWR 27. SN74LV373APWT-EL - 59 -...
  • Page 62 28. SN74LV74APWR 29. SN751178NS-EL Input Enable Output - 60 -...

  • Page 63: Pcb Layout

    10. PCB LAYOUT MAIN PCB (Front side) - 61 -...
  • Page 64 MAIN PCB (Back side) - 62 -...

  • Page 65: Circuit Diagram

    11. CIRCUIT DIAGRAM MODEL : TK-6500 (EX-577A*) CONTENTS 1. LOCATION OF PRINTED CIRCUIT BOARD..............64 2. MAIN PCB CIRCUIT ......................66 2-1. MAIN PCB CIRCUIT (1/6) ..................66 2-2. MAIN PCB CIRCUIT (2/6) ..................67 2-3. MAIN PCB CIRCUIT (3/6) ..................68 2-4.
  • Page 66 - 64 -...
  • Page 67 - 65 -...
  • Page 68 - 66 -...
  • Page 69 - 67 -...
  • Page 70 - 68 -...
  • Page 71 - 69 -...
  • Page 72 - 70 -...
  • Page 73 - 71 -...
  • Page 74 - 72 -...
  • Page 75 - 73 -...
  • Page 76 - 74 -...
  • Page 77 - 75 -...
  • Page 78 - 76 -...
  • Page 79 - 77 -...
  • Page 80 - 78 -...
  • Page 81 - 79 -...
  • Page 82 - 80 -...
  • Page 83 NOTE: COM3 is not used for TK-6500. - 81 -...
  • Page 84 - 82 -...
  • Page 85 - 83 -...

  • Page 86: Parts List

    2. As for spare parts order and supply, refer to the “GUIDEBOOK for Spare Parts Supply”, published separately. 3. The numbers in item column corespond to the same numbers in drawing. 4. CASIO does not supply the spare parts without parts code. 5. Remarks Q'ty :...

  • Page 87: Explode View

    WT-62 Sales Item - 85 -...
  • Page 88 OPTION I/O PB14 Battery only RAC-9 - 86 -...

  • Page 89: Main Pcb Block

    Item Code No. Parts Name Specification Q'ty Price code USA, Canada 1. Main PCB block 1 61935078 PCB ASSY/E475-1 E240580*3 30007777 FUSE 230.6 IC10 10005687 LSI UPD784215GC084-8EU IC12 10004414 IC/MOS SN74LV74APWR IC14, 36, 37 10005721 IC/MOS SN74LV244APWR IC16, 43 10005691 IC/MOS SN74HC157APWR IC18, 39 21120820 IC...

  • Page 90: Main Display Block

    Item Code No. Parts Name Specification Q'ty Price code USA, Canada R13, 15, 18-21, 25, 61 RESISTOR/CHIP RC1608-102-J-T RESISTOR/CHIP RC1608-222-J-T RESISTOR/CHIP RC1608-154-F-T RESISTOR/CHIP RC1608-563-F-T R24, 44 RESISTOR/CHIP RC1608-472-F-T RESISTOR/CHIP RC1608-104-J-T RESISTOR/CHIP MCR03EZHF3600 RESISTOR/CHIP MCR03EZHF1540 RESISTOR/CHIP MCR50JZH-J-202 RESISTOR/CHIP RC1608-334-J-T RESISTOR/CHIP RC1608-105-J-T RESISTOR/CHIP RC1608-432-F-T RESISTOR/CHIP...

  • Page 91: Power Supply Block

    Item Code No. Parts Name Specification Q'ty Price code USA, Canada SCREW 3X8PAI 8 ZMC-3 5. Power supply block 19 10013899 PCB/E445-S1 E340808A-1 10017330 FUSE 2371.25 10017328 FUSE 213002 21120829 IC LM2576HVT-5.0LB03 21120809 IC HA17431PA 23153116 BRIDGE/DIODE D3SBA20 23153117 DIODE D3S6M 23153128 DIODE 1SR35-400AT-82...

  • Page 92: Printer Block

    Item Code No. Parts Name Specification Q'ty Price code USA, Canada CLIP CS-4U CONTACT 1561T CONTACT SPH-002T-P0.5S HOUSING PHR-3 HOUSING 1625-03R1 HOUSING 51065-0200 INSERT/BIT SB-3001 LABEL/CONNECTOR E475 E440764-2 SCREW 3X5 ZMC SCREW 3X8 ZMC-3 SCREW 3X12 ZMC-3. TAPE 140MMX15MM TERMINAL 50212-8000 TUBE/UL NO.22...

  • Page 93: Printer (M-U420-061)

    12. PRINTER (M-U420-061) - 91 -...
  • Page 94 PARTS PRICE LIST M-U420(061) Item Code No. Parts Name Specification Q Price Code R 1. DRIVING MECHANISM COMPONENTS 19092776 LEVER/FIXING J 1004032 19092777 SPRING/FIXING LEVER 1004033 19092775 LEVER/FIXING R 1004031 94870506 MAIN MOTOR ASSY 1049277 94870505 GEAR/MAIN MOTOR 1049273 19060719 WIRE/LEAD A 2021071 19060720 WIRE/LEAD B 2021072...
  • Page 95 PARTS PRICE LIST M-U420(061) Item Code No. Parts Name Specification Q Price Code R 19060754 FLANGE/PULLEY 1028027 19092805 RING/RETAINING TYPE-E(2.5) 1004399 19064056 SCREW M3X3 B040350511 19060755 BELT ASSY/TIMING CARRIAGE DRIVE 1028540 19060756 PULLEY/CARRIAGE DRIVEN 1028030 19060754 FLANGE/PULLEY 1028027 19092805 RING/RETAINING TYPE-E(2.5) 1004399 94870284 YOKE/PAPER FEED TRIGGER...

  • Page 96: Drawer

    13. DRAWER DL-2766 (M type) Europe,Saudi-Arabia, Other countries - 94 -...
  • Page 97 DL-2766 (M type) Europe, Saudi-Arabia, Other countries Item Code No. Parts name Specification Q'ty Price Code RANK 19061309 CHASSIS/BOTTOM 264D-1101 55000619 ROLLER/DERLIN DR-19-B1 55000878 ROLLER/DERLIN DR-19-B2 19079682 WASHER SW-M6 19077150 NUT HN-M6 19081339 BRACKET/LOCK 37A-B150 19061304 SOLENOID 262A-S153 94870398 SCREW CPS-M3X5 19064012 BRACKET/SHAFT GUIDE 37A-1503...

  • Page 98: Dl-2767 (M Type) Uk, Germany

    DL-2767 (M type) UK, Germany - 96 -...
  • Page 99 DL-2767 (M type) UK, Germany Item Code No. Parts name Specification Q'ty Price Code RANK 19061309 CHASSIS/BOTTOM 264D-1101 55000619 ROLLER/DERLIN DR-19-B1 55000878 ROLLER/DERLIN DR-19-B2 19079682 WASHER SW-M6 19077150 NUT HN-M6 19081339 BRACKET/LOCK 37A-B150 94870387 SOLENOID 262A-S154C 94870400 TIE/INSULOCK P12-1555 94870395 BRACKET/SHAFT GUIDE 808R-1910 94870397 SCREW CP-M2.3X10...

  • Page 100: Dl-2417 (M Type) Usa

    DL-2417 (M type) USA - 98 -...
  • Page 101 DL-2417 (M type) USA Item Code No. Parts name Specification Q'ty Price Code RANK 19061309 CHASSIS/BOTTOM 264D-1101 55000619 ROLLER/DERLIN DR-19-B1 55000878 ROLLER/DERLIN DR-19-B2 19079682 WASHER SW-M6 19077150 NUT HN-M6 19081339 BRACKET/LOCK 37A-B150 94870387 SOLENOID 262A-S154C 94870400 TIE/INSULOCK P12-1555 94870395 BRACKET/SHAFT GUIDE 808R-1910 94870397 SCREW CP-M2.3X10...

  • Page 102: Dl-2517 (M Type) Canada

    DL-2517 (M type) Canada - 100 -...
  • Page 103 DL-2517 (M type) Canada Item Code No. Parts name Specification Q'ty Price Code RANK 19061309 CHASSIS/BOTTOM 264D-1101 55000619 ROLLER/DERLIN DR-19-B1 55000878 ROLLER/DERLIN DR-19-B2 19079682 WASHER SW-M6 19077150 NUT HN-M6 19081339 BRACKET/LOCK 37A-B150 94870387 SOLENOID 262A-S154C 94870400 TIE/INSULOCK P12-1555 94870395 BRACKET/SHAFT GUIDE 808R-1910 94870397 SCREW CP-M2.3X10...

  • Page 104: Dl-3616 (L Type) Usa,Canada

    DL-3616 (L type) USA, Canada - 102 -...
  • Page 105 DL-3616 (L type) USA, Canada Item Code No. Parts name Specification Q'ty Price Code RANK 19077272 LOCK ASSY ZD00290-0 19060672 NUT M4XP0.7 94870383 LABEL DL-3616 19079613 WIRE/FG ZD31670 19070223 CONNECTOR 1625-03PI 19027112 GROMET 19027076 SPRING ZD01370B 19026829 RUBBER/DAMPER K2320 19070234 SCREW/TAPPING M4X16 19026842 ROLLER/DERLIN DR-19B...

  • Page 106: Dl-3617 (L Type) Saudi-Arabia

    DL-3617 (L type) Saudi-Arabia - 104 -...
  • Page 107 DL-3617 (L type) Saudi-Arabia Item Code No. Parts name Specification Q'ty Price Code RANK 19077935 LOCK ASSY ZD00280-0 19060672 NUT M4XP0.7 94870384 LABEL DL-3617 19079613 WIRE/FG ZD31670 19070223 CONNECTOR 1625-03PI 19027112 GROMET 19027076 SPRING ZD01370B 19026829 RUBBER/DAMPER K2320 19070234 SCREW/TAPPING M4X16 19026842 ROLLER/DERLIN DR-19B...
  • Page 108 CASIO TECHNO CO.,LTD. Overseas Service Division Nishi-Shinjuku Kimuraya Bldg. 1F 5-25, Nishi-Shinjuku 7-Chome Shinjuku-ku, Tokyo 160-0023, Japan...
