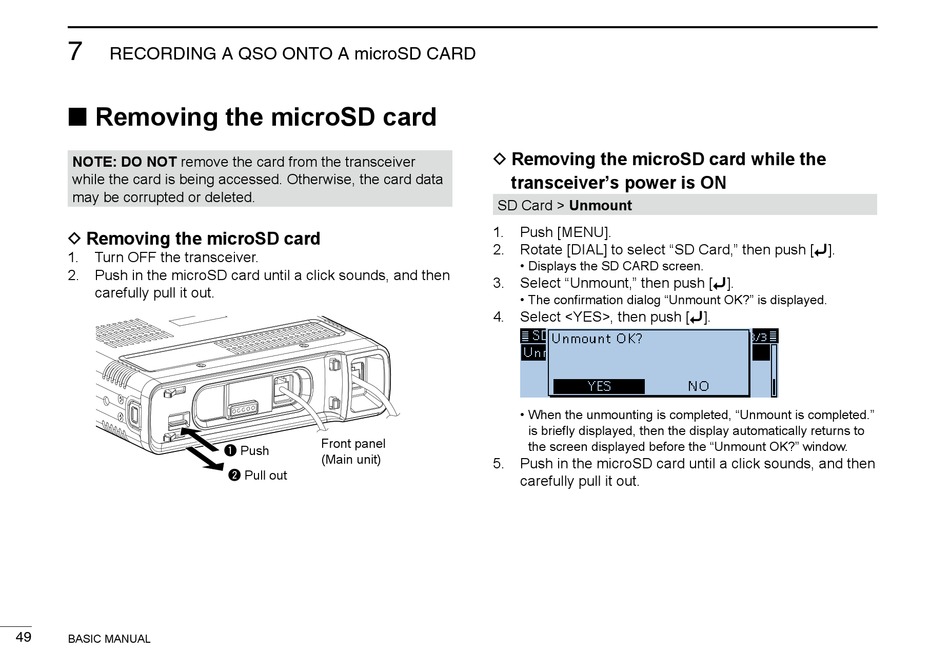

Removing The Microsd Card - Icom ID-4100A Basic Manual

7
RECORDING A QSO ONTO A microSD CARD

■ Removing the microSD card

NOTE: DO NOT remove the card from the transceiver
while the card is being accessed. Otherwise, the card data
may be corrupted or deleted.
D Removing the microSD card
1. Turn OFF the transceiver.
2. Push in the microSD card until a click sounds, and then
carefully pull it out.
49
BASIC MANUAL
Front panel
q Push
(Main unit)
w Pull out
D Removing the microSD card while the
transceiver's power is ON
SD Card > Unmount
1. Push [MENU].
2. Rotate [DIAL] to select "SD Card," then push [ï].
• Displays the SD CARD screen.
3. Select "Unmount," then push [ï].
• The confirmation dialog "Unmount OK?" is displayed.
4. Select <YES>, then push [ï].
• When the unmounting is completed, "Unmount is completed."
is briefly displayed, then the display automatically returns to
the screen displayed before the "Unmount OK?" window.
5. Push in the microSD card until a click sounds, and then
carefully pull it out.
