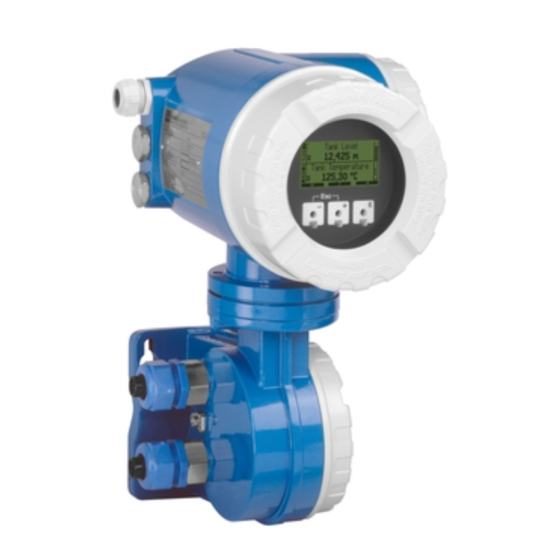

- Page 1 Products Solutions Services BA00256F/00/EN/15.15 71307017 Valid as of software version: V02.04.zz Operating Instructions Tank Side Monitor NRF590 Inventory Control Software Version 02.04.zz...
- Page 2 From Software Version SW 02.01 onwards, the operation of the optical keys of the Tank Side Monitor NRF590 is based on the distinction between "pressing" and "holding" of the keys. Pressing a key means to touch the optical key and to release it after a short time (< 2 seconds).
-
Page 3: Table Of Contents
Disposal ....... . . 57 Software history ......58 Endress+Hauser... -
Page 4: Safety Instructions
Safety instructions Designated use The Tank Side Monitor is a monitoring unit for use with the Endress+Hauser Micropilot M and Micropilot S-series radars and other HART compatible devices. Mounted at the tank side, the NRF590 provides indication of measured data, allows configuration and supplies intrinsically safe (i.s.) power to the connected sensors on the tank. -
Page 5: Return
Safety instructions Return The following procedures must be carried out before a transmitter is sent to Endress+Hauser for repair: • Always enclose a duly completed "Declaration of Contamination" form. Only then can Endress +Hauser transport, examine and repair a returned device. -
Page 6: Notes On Safety Conventions And Symbols
A connection made to the plant grounding system which may be of type e.g. neutral star or equipotential line according to national or company practice. Temperature resistance of the connection cables t >85°C States, that the connection cables must be resistant to a temperature of at least +85 °C (+185 °°F). Endress+Hauser... -
Page 7: Identification
Identification Identification Parts of the Tank Side Monitor L00-NRF590-03-00-06-yy-001 A: Non-i.s. terminal compartment; B: i.s. terminal compartment; C: graphical display; D: optical keys; E: cable entries for non-i.s. connection (with glands according to product structure); F: cable entries for i.s. connection (with glands according to product structure); G: nameplate; H: grounding terminals;... -
Page 8: Nameplate
Identification Nameplate Made in Germany, D-79689 Maulburg Tank Side Monitor Order Code: NRF590 IP 65 Ser.No.: Zertifikat-Nr. Baujahr Certification no. Year of constr. Tank-Nr. Tank-no. XA 160 F - if modification see sep. label Dat./Insp.: L00-NRF590xx-18-00-00-yy-001 1: complete product designation; 2/3: power supply specifications; 4: year of construction; 5: NMi certification number; 6/7: PTB certification number;... -
Page 9: Product Structure
Input 35-60V AC/DC Output 24-250V AC Output 3-60V DC Output 24-140V AC Output 4-200V DC Relay 0-100 VDC, 0-120VAC Special version, TSP-No. to be spec. Additional intrinsically safe module Input 4-20mA + 2x input digital Special version, TSP-No. to be spec. Endress+Hauser... -
Page 10: Scope Of Delivery
Special version, TSP-No. to be spec. Additional Option Basic version Special version, TSP-No. to be spec. Marking Tagging (TAG), see additional spec. NRF590 - Complete product designation Scope of delivery • Device according to the version ordered • FieldCare (CD-ROM) • Accessories (as ordered) -
Page 11: Ce Mark, Declaration Of Conformity
Electrical Equipment for Measurement, Control, Regulation and Laboratory Procedures". The device described in this manual thus complies with the statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the device by affixing to it the CE mark. -
Page 12: Installation
Design, dimensions 242 (9.53) 150 (6.0) 114 (4.5) EEx d Electronic compartment with LCD Non-i.s. terminal compartment (EEx d) Terminal compartment for all i.s. wiring (3.94) mm (inch) L00-NRF590-06-00-06-yy-001 Installation variants 3.2.1 Wall mounting 100 (3.94) mm (inch) L00-NRF590-17-00-06-xx-001 Endress+Hauser... - Page 13 3.2.2 Mounting on vertical rail ø90 (ø3.5) maximum Rail mounting kit (Order No.: 52013134) Grounding connections mm (inch) L00-NRF590-17-00-06-en-002 3.2.3 Mounting on horizontal rail Rail mounting kit (Oder No.: 52013134) ø90 (ø3.5) maximum mm (inch) L00-NRF590-17-00-06-en-003 Note! The rail mounting kit is available as an accessory("Accessories", ä 59).
-
Page 14: Rotating The Housing
➊ Loosen the alignment pin using a 4 mm Allen key (approx. 5 turns). Rotate the upper part of the housing to the desired position. ➋ Tighten the pin securely. ➌ L00-NRF590-17-00-06-yy-005 Endress+Hauser... -
Page 15: Rotating The Display Module
Make sure to clean the threads of the lid to remove any dust or paritcles. Check that O-ring is in place and reapply anti-seize grease. Adjust the safety pin so it is set over the ➄ display lid and tighten. L00-NRF590-17-00-06-yy-006 Endress+Hauser... -
Page 16: Grounding
The connections (A 4mm ) from each outer ground plug of the NRF590 to the tank ground must be made before any other wiring connections are made. All grounding must be compliant with local and company regulations and checked before the equipment is commissioned. -
Page 17: Wiring
Make sure to clean the threads of the lid to remove any dust or particles. Check that O-ring is in place and reapply anti-seize grease. Adjust the safety pin so it is set over the ➃ display lid and tighten. ➄ ➅ L00-NRF590-04-08-08-yy-005 Endress+Hauser... - Page 18 For the 15 C8 certificate versions For the certificate versions - TIIS - Standard (not certified) - ATEX - FM - CSA L00-NRF590-04-08-08-en-002 Terminal A1/+ A2/- B1/+ B2/- Discrete I/O A Discrete I/O A Discrete I/O B Discrete I/O B...
- Page 19 • Using one shielded twisted pair of 18 AWG wire, connect the EIA-485 at terminal 9 and • Termination of the EIA-485 bus at the NRF590 can be set in the operating menu (only enable on end device in a loop) •...
- Page 20 "00 S" at the NRF590 and to ground at the other end. The "00S" terminal provides a 500 V capacitor between the cable screen and tank ground potential.
- Page 21 ENRAF L&J FMR540 FMR540 L00-NRF590-04-00-08-en-020 4.1.9 Connection of the discrete in and output The Tank Side Monitor can be equipped with up to 2 discrete I/O modules. These modules can be used for interfacing to non-i.s. discrete in- or outputs. Input and output voltage and current ranges depend on the type of selected module installed in the relevant I/O slot.
- Page 22 L&J FMR540 FMR540 L00-NRF590-04-00-08-en-020 Depending on the selected field communication board, a 4-wire non i.s. Radar can be connected to the HART input and power supply as follows: • For all versions, use clamps l3 (+) and 12 (0V) to connect the HART communication line to the Tank Side Monitor.
- Page 23 Wiring 4.1.11 Connection of a Proservo NMS5 to the non-i.s. HART input It is possible to connect Proservo NMS5 to the Tank Side Monitor NRF590 using the non-i.s. HART input available in the Exd terminal compartment. Note! • This is only possible if the NMS5 is equipped with a HART digital output (passive).
- Page 24 BottomLevel Bottom Level 8n25 Tank Side Monitor NRF590 settings NRF590 settings to start communication with NMS5 Go to the "Analog I/O" (7xxx) menu. Go to "Analog Out" (73xx). Go to the "HART Master" (735x) submenu. Go to "Fixed current" (7351).
-
Page 25: Wiring The Is (Ex Ia) Connection
Screw the lid of the terminal compartment securely back onto the transmitter housing. Note! Make sure to clean the threads of the lid to remove any dust or particles. Check that O-ring is in place and reapply anti-seize grease. ➂ ➃ L00-NRF590-04-08-08-yy-006 Endress+Hauser... - Page 26 Wiring 4.2.2 Terminal assignment NRF590 - i.s. terminal board Internally HART interconnected sensor as one HART fieldbus loop For Micropilot S-series only! L00-NRF590-04-00-08-en-018 Terminal Designation Meaning + RTD drive ) + RTD sense ) - RTD sense ) ) - RTD drive...
- Page 27 "P+" and "P-". Although it is possible to use only 3 wires between the S- series radar and the NRF590, by combining the "P-" and "H-" wires, it is recommended to use a double pair of screened and twisted cable.
- Page 28 Wiring If there is no way to set a ground cable between NRF590 and Micropilot S it is possible to ground single side (grounding on side NRF590). In this case it’s imperative to ground the shield (on Micropilot S side) via a ceramic capacitor with a maximum capacitance of 10 nF and a minimum insulating voltage of 1500 V.
-
Page 29: Operation
The keys can be operated through the cover glass. Therefore, the Tank Side Monitor needs not to be opened for operation. The backlight of the display is activated during operation for user defined time (always off, 10 sec, 30 sec, 1 min, always on). L00-NRF590-07-00-00-en-001 Endress+Hauser... - Page 30 °API xxx.xx xxx.xx xxx.xxx current units xx.xxx xx.xxx xx.xxxx Endress+Hauser...
-
Page 31: Key Assignment
Opens the menu for the setting of the display contrast. In the operating menu: Quick Exit Return to the measured value display In the measured value display: Software-locking Sets "Access Code" = 0 (device locked) Sets "Service English" = off (display language as selected by the user) Endress+Hauser... - Page 32 Meaning parameter parameter downwards upwards selection parameter L00-NRF590-07-00-00-en-003 List of the softkey symbols Softkey symbol Meaning Move to the previous parameter in the list. Move to the next parameter in the list. Return to the group selection. Enter the current parameter for editing.
-
Page 33: Measured Value Display
DI#B/DO#B and the alarm state) DO #C L00-NRF590-07-00-00-en-023 The primary measurement value is constantly displayed in user configured units an format; the secondary value can display up to four alternately measurement values, in a scroll rate choosen by the user. - Page 34 – B: measured value is between the LL and L limits – C: measured value is between the H and HH limits – D: measured value is above the HH limit If no alarm has been defined for the measured value, these symbols are not displayed. Endress+Hauser...
-
Page 35: Operating Menu
“ “ is shown Current Status Status history L00-NRF590-19-00-00-en-031 • Shortcut menu The shortcut menu allows to change the display language to "English", if any other language has been choosen by the customer. By activating the option "Service English", all parameters are displayed in english language. - Page 36 Operation 5.4.2 Navigation within the menu Selecting a submenu L00-NRF590-07-00-00-en-050 • Select the submenu by • Go to the first function of the submenu by Selecting a parameter within the submenu L00-NRF590-07-00-00-en-051 • Go to the previous parameter by • Go to the next parameter by •...
- Page 37 Operation 5.4.3 Editing parameters Parameters with selection list L00-NRF590-07-00-00-en-052 • Select the parameter value by • Mark the selected value by • Confirm the marked value by Reference parameters L00-NRF590-07-00-00-en-040 Reference parameters describe where a numerical or logical value (here: Primary Value) is obtained from.
- Page 38 Operation Alphanumeric parameters L00-NRF590-07-00-00-en-041 • Set the activated digit by • Go to the next digit by • If appears at the active digit, the currently displayed value can be accepted by • If appears at the active digit, return to the previous digit by 5.4.4...
-
Page 39: Locking/Unlocking Parameters
All W&M parameters can be set to definite values and locked by this switch. In this state, the Tank Side Monitor can be used for W&M applications. In order to operate the hardware locking switch, procede as follows: À Á Â Ã Å Ä Ä L00-NRF590-19-00-00-yy-032 Endress+Hauser... - Page 40 5.5.4 Sealing of the Tank Side Monitor When the tests according to the applicable regulatory standards have been completed, it is required to secure the housing cover with a sealing wire and a sealing ring. L00-NRF590xx-19-00-00-xx-050 Endress+Hauser...
-
Page 41: Commissioning
6.1.2 Linking sensors to function blocks To commission the NRF590, it is necessary to connect all Tank HART sensor blocks to one of the internal function blocks, either the "tank functions" block or the "alarm function" block. The outputs of these function blocks can then be mapped to the display, the fieldbus function block and the AO or DO blocks. - Page 42 Additionally, a digital input value is directly transferred from the Digital Input block (IS DI#1) to a Digital Output block (DO#B) as well as an analog value from the Analog Input Block (IS AI) to the MODBUS Block. Endress+Hauser...
- Page 43 If any of these conditions are not met, then the "#" symbol is displayed along with the displayed tank function group value in the display. The tank values are transmitted via the field protocol to the control room along with the current weight & measure status. Endress+Hauser...
-
Page 44: Configuration Of The Hart Interface
On the Ex d side, no HART signal is available. Only the 4-20mA current signal can be used. The Ex d HART bus is not available on a Modbus NRF590 with order code *4********* (without 4..20mA Input or Output). Endress+Hauser... - Page 45 Commissioning 6.2.2 Ex i Interface with Ex d Slave Interface This mode becomes effective if the Analog Output is set to "HART Slave". NRF590 Ex i Ex d Ex i bus HART + 4..20 mA AO=HART Slave NRF590 #1..15 Ex i bus...
- Page 46 If addresses from "1" to "15" are selected on the Ex d bus, the HART signal is superimposed over a fixed current and the devices can be used in multidrop mode: Ex i Ex d bus NRF590 Ex i bus AO=HART Slave NRF590...
- Page 47 Commissioning 6.2.4 Ex i Interface with Ex d Master Interface This mode becomes effective if the Analog Output is set to "HART Master". NRF590 Ex i Ex d Ex i bus Ex d bus AO=HART Master = HART Master = HART Slave L00-NRF590-04-00-08-yy-023 In this mode the HART Master scans the measuring devices on both the Ex I &...
-
Page 48: Addressing Of The Hart Devices
Therefore, it would be possible to use devices with the same HART address on the IS and on the non-IS loop. In order to prevent confusion, we strongly recommend to avoid this kind of double usage of addresses. Endress+Hauser... -
Page 49: Steps Of The Commissioning Procedure
Note! Only Tank values will be diesplayed in NRF590 units, values directly form HART devices will be displayed in the HART devices units. In the Software Version SW 02.01, the HART buses on the IS and on the non-IS side are continuously monitored by the Tank Side Monitor. This means, that in contrast to SW 01.xx, an initial HART scanning of the bus has not to be performed. - Page 50 Commissioning Configure the connected HART devices After connecting all HART devices to the HART multidrop line of the NRF590, these gauges can be configured via the NRF590 Tank Side Monitor display. In the "HART devices"(8---) function group, all connected devices are displayed with their respective [01] HART address in brackets (e.g.
- Page 51 "Integer Vals." if access to software V01 compatible register map is required. – "0% Value" and "100% Value" (in the "Integer Scaling" menu) must be configured to obtain correct integer values ("Configuring the Modbus Integer Scaling", ä 53) Endress+Hauser...
- Page 52 GPE (KA00251F/00/EN) (9211) –"Id" must be set to a unique number on both of the Mark/Space loops. (9212) (9213) (9214) –"Bad Rate" , "Type" and "Loop Mode" must match the control room equipment settings. Endress+Hauser...
-
Page 53: Configuring The Modbus Integer Scaling
This chapter applies only to the Modbus version of the Tank Side Monitor. In order for the NRF590 to send correct integer values to the control room, the scaling factors must be configured; these are used to convert the floating-point measured/ calculated values into suitable integer values. - Page 54 32’ 9’’ 3 (23.870 ft) (65.535 ft) (32.767 ft) The 0% and 100% values are always specified in the current NRF590 units. This value is a result of rounding of fractional values. Example 1 • Level = 23655 mm • 0% value = 0 mm •...
-
Page 55: Maintenance And Repairs
• Carry out repairs according to the instructions. On completion of repairs, carry our the specified routine test on the device. • Only Endress+Hauser Service may convert a certified device into a different certified variant. • Document all repair work and conversions. -
Page 56: Spare Parts
Select the required spare parts (You may also use the overview drawing on the right side of the screen.) When ordering spare parts, always quote the serial number indicated on the nameplate. As far as necessary, the spare parts also include replacement instructions. Endress+Hauser... -
Page 57: Return
Maintenance and repairs Return The following procedures must be carried out before a transmitter is sent to Endress+Hauser e.g. for repair or calibration: • Remove all residue which may be present. Pay special attention to the gasket grooves and crevices where fluid may be present. This is especially important if the fluid is dangerous to health, e.g. -
Page 58: Software History
MODBUS and V1 – BA257F/00/en/10.08 • Enhancement of functionality of the (Decription of Instrument Functions) optical keys – BA00256F/00/EN/13.10 (Operating Instructions) – BA00256F/00/EN/15.15 (Operating Instructions) The software version of the device is displayed immediately after switch-on of the supply voltage. Endress+Hauser... -
Page 59: Accessories
Accessories Accessories Discrete I/O modules 8.1.1 Standard mechanical diagram for all I/O modules 1.70 (43.1) 1.00 (25.4) .30 (7.6) .200 (5.1) .700 (17.8) 1.10 (27.9) .040 (1.0) DIA. (5 PLACES) 1.30 (43.1) 1.70 (43.1) BOTTOM VI EW L00-NRF590-00-00-08-en-001 Endress+Hauser... - Page 60 Accessories 8.1.2 Output modules AC voltage DC voltage AC/DC Zero Voltage Circuit Amplifier Logic Logic NRF590 order code NRF590 - NRF590 - NRF590 - NRF590 - module A ****J****** ****G****** ****H****** ****K****** NRF590 order code NRF590 - NRF590 -...
- Page 61 Input modules AC voltage DC voltage AC/DC – Logic Logic Schmitt Schmitt Trigger Trigger Ground Ground NRF590 order code NRF590 - NRF590 - NRF590 - NRF590 - module A ****B****** ****D****** ****C****** ****E****** NRF590 order code NRF590 - NRF590 -...
- Page 62 Accessories 8.1.4 Relay output module +VCC INPUT GROUND NRF590 order code NRF590 - ****R****** module A NRF590 order code NRF590 - *****R***** module B Order code 52026945 Colour of housing Load voltage 0 to 100 VDC / 0 to 120 VAC...
-
Page 63: Rail Mounting Kit
Accessories Rail mounting kit For rail mounting the Tank Side Monitor to vertical or horizontal pipe. Order-Number: 52013134 L00-NRF590-00-00-06-en-001 Endress+Hauser... -
Page 64: Trouble Shooting
Otherwiese the system must be returned to the supplier. F304 Com Failure System initialisation error indica- If device has been re-flashed, try ting the Communication Micro- again. controller is indicating a failure Otherwiese the system must be during initialsation. returned to the supplier. Endress+Hauser... - Page 65 4...20 mA output signal, as this load can vary such a device can overload the HART bus and is therefore not allowed by the NRF590 system. F503 Level Ref The level Reference value is no Check configuration.
- Page 66 Service Access The service engineer access code None, for historical information was entered. only. C517 Diag. Access The Endress+Hauser diagnostic None, for historical information code was entered. only. C518 Unknown Access An invalid access code was ente- None, for historical information red.
- Page 67 The tank P3 (top) pressure value Check configuration, manual has failed. values, reference. F919 Obs. Density Fault The tank observed density value Check configuration, manual has failed. values, reference. F920 Flow Fault The tank flow rate value has Check configuration, manual failed. values, reference. Endress+Hauser...
-
Page 68: Technical Data
Discrete In/Out B Power AC/DC Fieldbus (option) with HART (option) (option) (option) (option) (option) HART (up to 24 mA) Pressure Spot RTD transmitter (option) Analogue In Discrete In 1 Discrete In 2 i.s. terminals Ex ia 4...20 mA L00-NRF590-04-08-08-en-003 Endress+Hauser... - Page 69 One additional value "4-20mA" which can be connected to any value, however range of value sent is limited (see KA00246F/00/EN). One additional value "Temp2" which can be connected to any value, however the range of value sent is limited (see KA00250F/00/EN). Endress+Hauser...
- Page 70 Available types: see position 50 and 60 of Product Structure or chapter "Accessories". Discrete output C (for V1 protocol) Load voltage 3 to 100 V Load current max. 500 mA Type of contact mechanical latching relay Isolation voltage 1500 V Approvals UL, CSA Endress+Hauser...
- Page 71 333 (typically) Load Internal load (to ground) 100 Measuring range 0 to 26 mA ±15 A (after linearisation and calibration) Accuracy Usage • Source for Discrete Inputs • Source for 4 to 20 mA loop device Endress+Hauser...
- Page 72 The use of the digital HART protocol prevents accuracy data degradation, as would be the case with analogue (4 to 20 mA) sensors. Spot RTD input, analogue inputs, analogue outputs See "Technical data of the IS inputs and outputs". Endress+Hauser...
-
Page 73: Ambient Conditions
Use shielded signal lines for installation. Overvoltage protection Both interfaces of the NRF590 - the Ex ia and the Ex d side - are protected by internal 600 Vrms surge arresters which have been tested against 10 kA transient discharges. - Page 74 • Window material: glass Construction The NRF590 housing has three separate compartments, one containing all electronics and two for electrical connections. The enclosure is die-cast aluminum with an polyester coating and IP65 (NEMA 4) rating. The upper terminal compartment and electronics compartment are designated for non-i.s.
-
Page 75: Operating Menu
20 *75-- IS RTD see order code 40 *8n-- HART Generic 8--- HART devices *8n-- FMR23x/53x *8n-- 1646/NMT53x *8n-- NMT539(+WB) *8n-- NMT539 WB *8n-- PMC *8n-- NMS5/7 9--- NRF Output *91-- HART Output see order code 20 L00-NRF590-19-00-00-en-039 Endress+Hauser... -
Page 76: Appendix
12.1.1 Application The Tank Side Monitor NRF590 is a field device for the integration of tank sensors into tank inventory systems. It is used in tank farms, terminals and refineries. Especially, it can be used in connection with Micropilot M level radars (for inventory control) and Micropilot S high accuracy level radars (for custody transfer applications). -
Page 77: Tank Calculations
Direct level measurement Level only • Level sensor • level • Tank Ref Height Micropilot Tank Side Monitor L00-NRF590-14-00-08-yy-002 Level + Temperature • Level sensor • level • Temperature • temperature sensor (RTD or Micropilot Prothermo HART device;... - Page 78 P1 sensor) • P1 Position P1 Position • P3 Position (only for the "HTG L00-NRF590-14-00-08-yy-006 P1,3" mode) HTG P1,3 • Pressure sensor (P1, bottom) Note! This mode • Pressure sensor...
-
Page 79: The Block Model Of The Tank Side Monitor
Moreover, there are some fixed links between function blocks, these links haven’t got a reference parameter and can not be changed. In a block diagram, the links between blocks are depicted in the following way: ...REF Linked Ports Unbreakable Link L00-NRF590-19-00-00-en-009 Endress+Hauser... - Page 80 Each analogue input of the Tank Side Monitor Analog Input has got its own AI block. Value Input Value Input Value % L00-NRF590-19-00-00-yy-010 IS DI #1 Input Value IS DI #2 receives a switching signal, from which it DI #A calculates a binary signal;...
- Page 81 Input Value Note! Temperature this block is only present in the following L00-NRF590-19-00-00-yy-014 device version: NRF590 - ***1******* DISPLAY Primary Value receives one primary value and up to four Display Sec. Value 1 secondary values and transfers them to the display module Sec.
- Page 82 – (corrected) level Micropilot PV Value – measured level Meas. Level – measured distance Meas. Distance L00-NRF590-19-00-00-yy-015 HART receives the HART signal of the Proservo; NMS 5/7 outputs the following values: Displacer Pos – Displacer Position Liquid Level NMS5/7 –...
- Page 83 – the percentage of the primary value PV Value (%) L00-NRF590-19-00-00-yy-016 HART SLAVE Ex ia PV Value is active if the NRF590 is operating as a HART SV Value Ex d slave; HART Slave TV Value receives up to four analogue signals and outputs...
- Page 84 AL #1/AL #2 – Alarm 1 Alarm HH Alarm – Alarm 2 H Alarm Value Any Alarm L Alarm LL Alarm L+LL Alarm AL-#2 HH+H Alarm HH Alarm H Alarm Value Any Alarm L Alarm LL Alarm L+LL Alarm L00-NRF590-19-00-00-yy-021 Endress+Hauser...
- Page 85 Obs. Density GP 1 Ref GP 1 Value GP 2 Ref GP 2 Value GP 3 Ref GP 3 Value GP 4 Ref GP 4 Value Element 1..16 Ref Element 1..16 Tank Ref. Height L00-NRF590-19-00-00-yy-022 Endress+Hauser...
- Page 86 Alarm Ref 2 DI Ref 2 Contact Ref L00-NRF590-19-00-00-yy-023 Every Tank Side Monitor contains one of these block - corresponding to its field protocol. The field protocol block receives values from other blocks and outputs them to the fieldbus. Endress+Hauser...
- Page 87 Appendix 12.3.3 Default Block-Configuration Default Configuration for Sakura V1 (NRF590 - *8*********) DISPLAY Primary Value AO #2 Sec. Value 1 Value Ref Sec. Value 2 Sec. Value 3 Output Value Sec. Value 4 Output Value % TANK Level Ref Level...
- Page 88 Appendix Default Configuration for EIA-485 Modbus (NRF590 - *4/5*********) DISPLAY Primary Value Sec. Value 1 Sec. Value 2 Sec. Value 3 Sec. Value 4 TANK MODBUS Level Ref Level Level Level % Level % Meas. Level Meas. Level Temp Ref...
- Page 89 Appendix Default Configuration for Whessoematic WM550 (NRF590 - *1*********) DISPLAY Primary Value AO #2 Sec. Value 1 Sec. Value 2 Value Ref Output Value Sec. Value 3 Output Value % Sec. Value 4 TANK WM550 Level Ref Level Level Loop 1...
- Page 90 Appendix Default Configuration for BPM (NRF590 - *E*********) NRF590-****X****** DISPLAY DO #A Primary Value Value Sec. Value 1 NRF590-*****X***** Sec. Value 2 DO #B Sec. Value 3 Sec. Value 4 Value TANK Level Ref Level Level Level % Meas. Level...
- Page 91 Appendix Default Configuration for Mark/Space (NRF590 - *2/3*********) DISPLAY Primary Value Sec. Value 1 Sec. Value 2 Sec. Value 3 Sec. Value 4 TANK MARK SPACE Level Ref Level Level Level % Meas. Level Temp Ref Temperature Temperature Vapour Ref...
- Page 92 Appendix Default Configuration for L&J Tankway (NRF590 - *7*********) DISPLAY Primary Value Sec. Value 1 Sec. Value 2 Sec. Value 3 Sec. Value 4 TANK L&J Level Ref Level Level Level % Meas. Level Temp Ref Temperature Temperature Vapour Ref...
- Page 93 Appendix Default Configuration for GPE (NRF590 - *G*********) DISPLAY Primary Value Sec. Value 1 Sec. Value 2 Sec. Value 3 Sec. Value 4 TANK L&J Level Ref Level Level Level % Meas. Level Temp Ref Temperature Temperature Vapour Ref Vapour Temp...
-
