Q U I C K G U I D E

Advertisement

Table of Contents
loading

Related Manuals for Volvo S90

Summary of Contents for Volvo S90

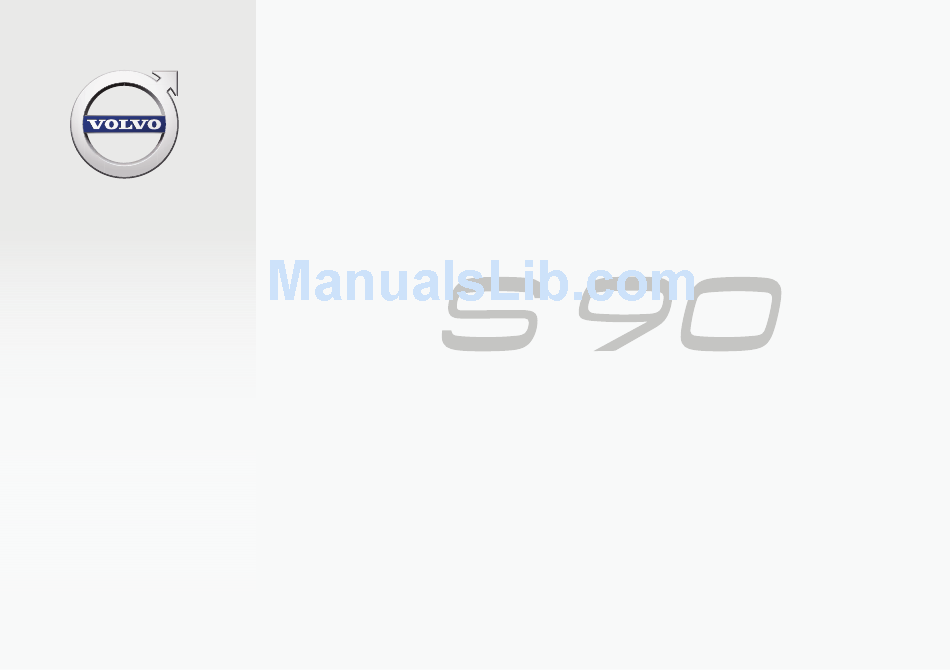

  • Page 1 Q U I C K G U I D E...
  • Page 2 VÄLKOMMEN! This Quick Guide describes a range of the functions in your Volvo. More detailed owner's information is available in the car, in the app and on the web. THE CAR'S CENTRE DISPLAY The owner's manual is available in the car's centre display, where it can be accessed via the top view.
  • Page 3 01. GETTING STARTED Here you will find information that will help you learn about some of the basic functions in your Volvo. Amongst other things, you can read about the remote control key, the car's three displays as well as how to start the engine on and switch it off.

  • Page 4: Remote Control Key Buttons

    REMOTE CONTROL KEY BUTTONS One short press locks doors and boot lid and arms the The panic function is used in an emergency to attract alarm . A long press closes the sunroof* and all side windows attention. One long press of at least 3 seconds or double simultaneously.

  • Page 5: Keyless Locking/Unlocking

    KEYLESS LOCKING/UNLOCKING* You simply need to have the remote control key with you in a pocket, for example, in order to lock or unlock the car. The remote control key must be within a semicircular area of radius approx. 1.5 metres from both long sides or approx.

  • Page 6: Power* Front Seat

    POWER* FRONT SEAT Adjust the backrest rake by pressing the control forward/backward. Raise/lower the seat by means of pressing the rear section of the control up/down. Move the seat forward/backward by pressing the control forward/backward. Raise/lower the front edge of the seat cushion by means of pressing the front section of the control up/down.

  • Page 7: Store Setting

    MEMORY FUNCTION* IN THE FRONT SEAT The memory function's keypad is either on one or both front doors. With door closed: Hold one of the memory buttons depressed until the stored position is reached. Store setting 1. Set the seat, door mirrors and head-up display* to the desired position.
  • Page 8 FOLD THE BACKRESTS DOWN IN THE REAR SEAT* Ensure that backrests with head restraints do not come into contact with the rear of the seat in front when lowering. The front seats may need adjusting in order for the backrests to be lowered. Folding the backrests 1.

  • Page 9: Steering Wheel Adjustment

    STEERING WHEEL ADJUSTMENT The steering wheel can be adjusted for both height and depth. 1. Push the lever under the steering wheel downwards or pull the lever upwards in order to release the steering wheel. 2. Adjust the steering wheel to the desired position. 3.

  • Page 10: Switching Off

    STARTING AND SWITCHING OFF THE CAR Start the car with the start knob that is located behind the gear lever. In order to start, the remote control key must be in the front section of the passenger compartment. With the keyless locking/unlocking option (Passive Entry*) the key can be located anywhere in the car.

  • Page 11: Parking Brake

    PARKING BRAKE Activate the parking brake – Pull the parking brake control in the tunnel console upward. A symbol in the driver display illuminates when the parking brake is activated. Check that the car is stationary. Releasing manually 1. Depress the brake pedal. 2.

  • Page 12: Centre Display

    THE CAR'S THREE DISPLAYS Centre display Head-Up Display* Driver display The driver display shows information about the Many of the car's main functions are control- The head-up display is a complement to the car and driving. It contains gauges, indicators led from the centre display.
  • Page 13 NAVIGATING IN THE CENTRE DISPLAY Function view Home view Application view Swipe from left to right across the screen in The home view is shown when the screen is Swipe from right to left across the screen to started, from which the subviews Navigation, order to access the view.

  • Page 14: Status Bar

    Status bar The activities in the car are shown in the status bar, at the top of the screen. Shown on the left is network/connection information; and media-related information, the time and background activity indicator are shown on the right. Top view There is a tab located in the centre of the status bar, at the top of the screen, to access the top view.

  • Page 15: Climate Settings

    CLIMATE SETTINGS The climate control functions for the front and rear areas of the passenger compartment are controlled from the centre display, by physical buttons in the centre console and climate controls* at the rear of the tunnel console. Some climate functions can also be controlled with voice control.

  • Page 16: Power Operated* Boot Lid

    POWER OPERATED* BOOT LID Options for opening • Press and gently pull the boot lid handle upwards. • Give a long press on the remote control key's button until the tailgate starts to open. • Give a long press on the instrument panel's button (next to the steering wheel) until the tailgate starts to open.

  • Page 17: Drive Modes

    DRIVE MODES* Select the drive mode most suitable for the current driving conditions. Not all drive modes can be selected in all situations. 1. Press the drive mode control* DRIVE MODE in the tunnel console – a pop-up menu opens in the centre display. 2.

  • Page 18: Start/Stop Function

    START/STOP FUNCTION This function stops the engine temporarily when the car is stationary and then starts it again automatically when the journey is resumed. Start/Stop is available when the engine is started and can be acti- vated if certain conditions have been met. Auto-stopping the engine –...
  • Page 19 OPERATING DRIVER SUPPORT WITH THE STEERING WHEEL KEYPAD The functions Speed limiter*, Cruise control, Adaptive cruise control* and Pilot Assist* are selected in the driver display with the left-hand keypad arrows . When the symbol is white, the function is active.

  • Page 20: Driver Support Functions

    DRIVER SUPPORT FUNCTIONS City Safety City Safety warns the driver of obstacles, by means of visual and acoustic signals. The car is braked automatically if the driver does not act within a reasonable time. Amongst other things, City Safety can prevent a collision and assist a driver at risk of colliding with a vehicle, large animal, pede- strian or cyclist, for example.
  • Page 21 Leaving a parking space with PAP If the car is equipped with Run-off Mitigation*, additional support can be given in the event of a risk of running off The function can only be used for a parallel-parked car. the road. The car then steers and brakes automatically. Park out 1.
  • Page 22 WINDSCREEN WIPERS AND RAIN SENSOR Windscreen wipers and rain sensor are controlled with right-hand stalk switch. Move the stalk switch downward to make one single sweep. Move the stalk switch to 0 to switch off the windscreen wipers. Move the lever to INT (interval) in order to set the speed. Adjust the speed using the thumbwheel on the lever.

  • Page 23: Activating/Deactivating The Passenger Airbag

    LIGHT SWITCH'S AUTO MODE Left-hand stalk switch AUTO mode provides, amongst other things, the following: • Daytime running lights and position lamps in daylight . Dipped beam and position lamps in weak daylight or darkness. • Activated tunnel detection. • Option to use main beam flash and activate main beam when dipped beam is switched on.

  • Page 24: Trip Computer

    TRIP COMPUTER The trip computer records and calculates e.g. mileage, fuel consump- tion and average speed. It is possible to select which information from the trip computer should be shown in the driver display. Distance to empty fuel tank The trip computer calculates the remaining distance with the fuel that Distance to empty fuel tank is in the tank.

  • Page 25: Driver Profiles

    DRIVER PROFILES Many of the settings made in the car can be adapted according to the driver's personal preferences and can be saved in one or more driver profiles. The personal preferences are automatically saved in the active driver profile. Each key can be linked to a driver profile. When the linked key is used, the car is adapted to the settings of that specific driver profile.

  • Page 26: Voice Recognition

    It is possible to use voice control with certain functions in the media player, Volvo's navigation system*, the climate control system and a Bluetooth-connected phone. Voice control takes place in dialogue form with spoken commands from the user and verbal responses from the system.

  • Page 27: Private Locking

    PRIVATE LOCKING Private locking locks the boot lid and the rear seats, e.g. when the car is taken in for service. The function locks the rear seat in upright position and prevents lowering of the rear seat. Locking the glovebox is done manually with the enclosed key.

  • Page 28: Sun Blind

    SUN BLIND Sun blinds* are built into each rear door. There is also an electrically operated sun blind* built onto the rear window shelf. Operating the rear window's sun blind: 1. Make sure that the car is in ignition position II. Rear Sun Curtain 2.
  • Page 29 CONNECTING A PHONE TO THE CAR Connect a Bluetooth activated telephone to the car to be able to make calls from the car, send/receive messages, stream media and connect the car to the Internet. It is possible to have two Bluetooth devices connected at once, in which case one of them can only be streaming media.

  • Page 30: Managing Phone Calls

    MANAGING PHONE CALLS Receiving/declining a call It is possible to make and receive calls via the car from a Bluetooth connected phone. Receive: Press on the right-hand steering wheel keypad or tap Answer in the centre display. Calling via the centre display Reject: Select Reject by pressing...

  • Page 31: Connecting To The Internet

    Communication > Car modem Internet. 3. Tap on 4. Activate by ticking the box for Car modem Internet. Only cars with Volvo On Call*. When connecting to the Internet using the car modem, the Volvo On Call services will use the connection.

  • Page 32: Frequency Band

    5. If another connection source has been used in the past - confirm the option to change connection. 6. Enter the SIM card's PIN code. Share internet via Wi-Fi hotspot When the car is connected to the Internet, it is possible to share the Internet connection (Wi-Fi hotspot) so that other devices can use the Internet connection Settings...

  • Page 33: Apple Carplay

    It is possible to upgrade the car with Apple CarPlay if the car is not equipped with the function from the start, contact a Volvo dealer. For information about supported apps and compatible phones, see www.apple.com/ios/carplay.
  • Page 34 PLAYING BACK MEDIA FROM AN EXTERNAL AUDIO DEVICE The media player can play audio from externally connected devices via AUX/USB inputs or stream audio wirelessly via Bluetooth. Play media from Bluetooth connected device 1. Connect the unit to the car in the same way as connec- ting a phone to the car.

  • Page 35: Delete A Destination

    GUIDANCE WITH SENSUS NAVIGATION* Navigation Press the subview in the centre display's home view. Entering destination with address: 1. Press – dest.. The map image changes to search via address with its search field. 2. Tap on the fields and fill in Country/State/Province/Address, etc. with the centre display's keyboard.
  • Page 36 MANAGING AND UPDATING APPS AND SYSTEMS Download Centre – Tap on in the app view to update several of the car's systems. For this to be possible the car must be connected to the Internet. One tap on Download Centre opens a download application.
  • Page 37 1. Download the Volvo ID app from in the centre display's app view. 2. Start the app and fill in your e-mail address (or your Volvo ID if one has already been created). 3. Follow the instructions that are automatically sent to the specified email address.

  • Page 38: Volvo On Call

    App Store, Windows Phone Store or Google Play, for example. The Volvo On Call services also include access to till roadside assis- tance and emergency assistance: – Press the ON CALL or SOS button on the car's roof console.

  • Page 39: Adjusting Audio Volume

    ADJUSTING AUDIO VOLUME Adjust the audio volume in the car by turning the volume control under the centre display or by tapping on on the steering wheel's right-hand keypad. Adjusting audio volume for the car's different systems 1. Tap on Settings >...
  • Page 40 A suggested appointment is sent via e-mail within a couple of days. For certain markets, the proposal is also sent to the car. A Volvo ID must first be created. Request appointment is possible in certain markets. Applies to certain markets.

  • Page 41: Electrical Sockets

    LOCATED HERE ARE AUX AND USB INPUTS AND ELECTRICAL SOCKETS AUX and USB socket AUX and USB inputs are located under the armrest in the tunnel console. Electrical sockets The car is equipped with a number of electrical sockets: • There is a 12 V socket in the tunnel console's storage compartment.

  • Page 42: Special Texts

    Volvo On Call* activated. This is to avoid scraping the paint on the operating the control for the heated seat. Otherwise, For cars with Volvo On Call the system only works bonnet. Lane assistance and Run-off Mitigation are only they may suffer a burn injury.
  • Page 43 In which case, delete the After a cold start the idling speed is high irrespec- phone from the car and then pair again. tive of outside temperature. It is part of Volvo's Connecting to the Internet efficient emissions system. During cold starting,...
  • Page 44 TP 21427 (English) AT 1617, MY17. Printed in Sweden, Göteborg 2016, Copyright © 2000-2016 Volvo Car Corporation...
