Note
•
You must connect this Home Theater System
directly to a TV.

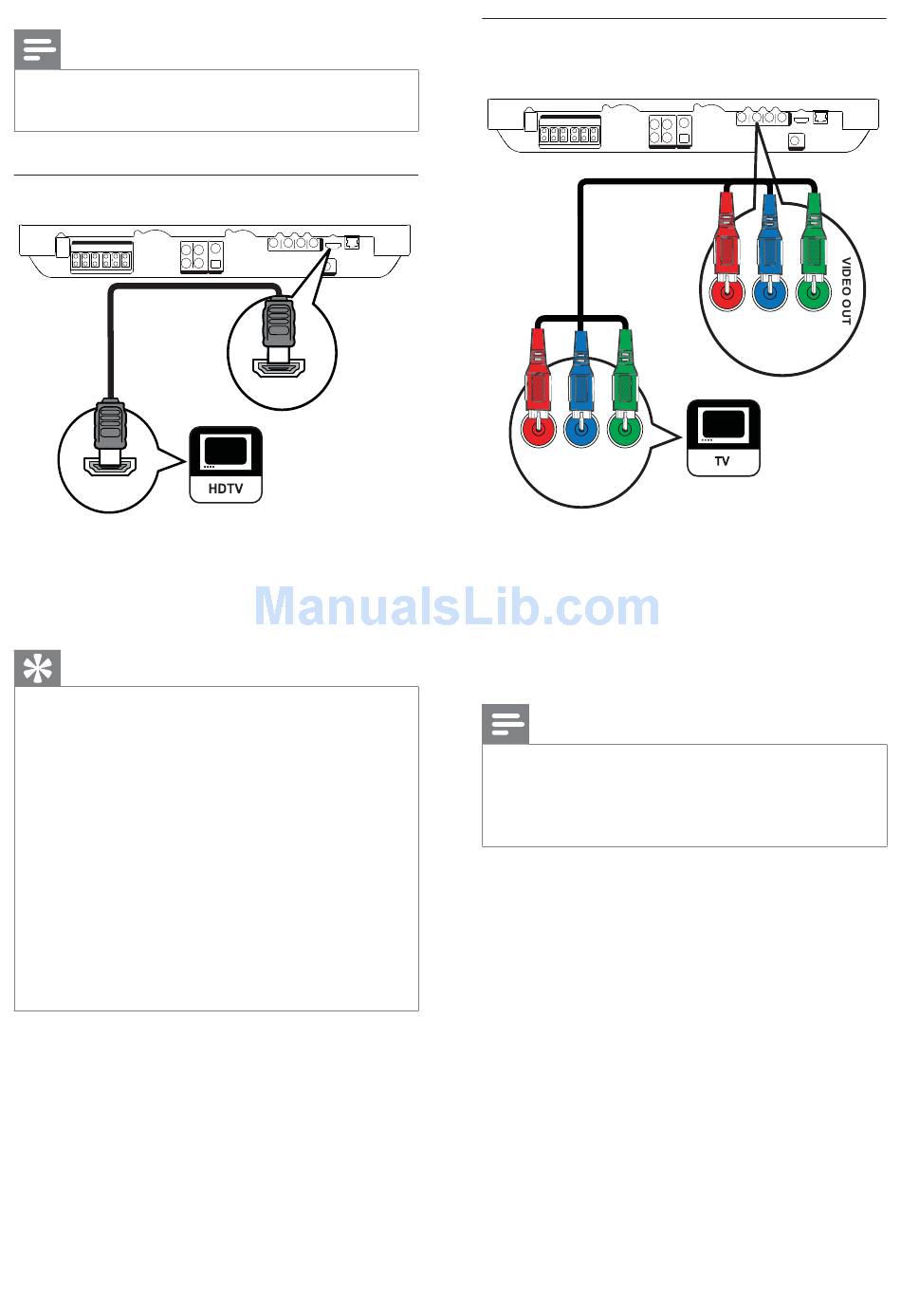

Option 1: Connect to the HDMI jack
HDMI IN
1
Connect the HDMI cable to the HDMI
OUT jack on this Home Theater System
and the HDMI input jack on the TV.
Tip
•
If the TV has a DVI connector only, connect via
an HDMI/DVI adaptor. Connect an audio cable
for sound output.
•
You can optimize the video output. Press
HDMI repeatedly to select the best resolution
the TV can support.
• To play back the digital video images of a BD-
video or DVD-video via an HDMI connection,
it is necessary that both the Home Theater
System and the display device support a
copyright protection system called HDCP
(high-bandwidth digital content protection
system).
•
This type of connection provides best picture
quality.
12 EN
HDMI OUT
Option 2: Connect to the component
video jack
Pr Pb Y
1
Connect the component video cable
(not supplied) to the Y Pb Pr jacks on
this Home Theater System and the
COMPONENT VIDEO input jacks on the
TV.
Note
•
The component video input jack on the TV
might be labeled as Y Pb Pr , Y Cb Cr or YUV .
•
This type of connection provides good picture
quality.
Pr Pb Y
