York HVHC 07-12DS Installation & Owner's Manual

Minisplit high wall air conditioner

Advertisement

Quick Links

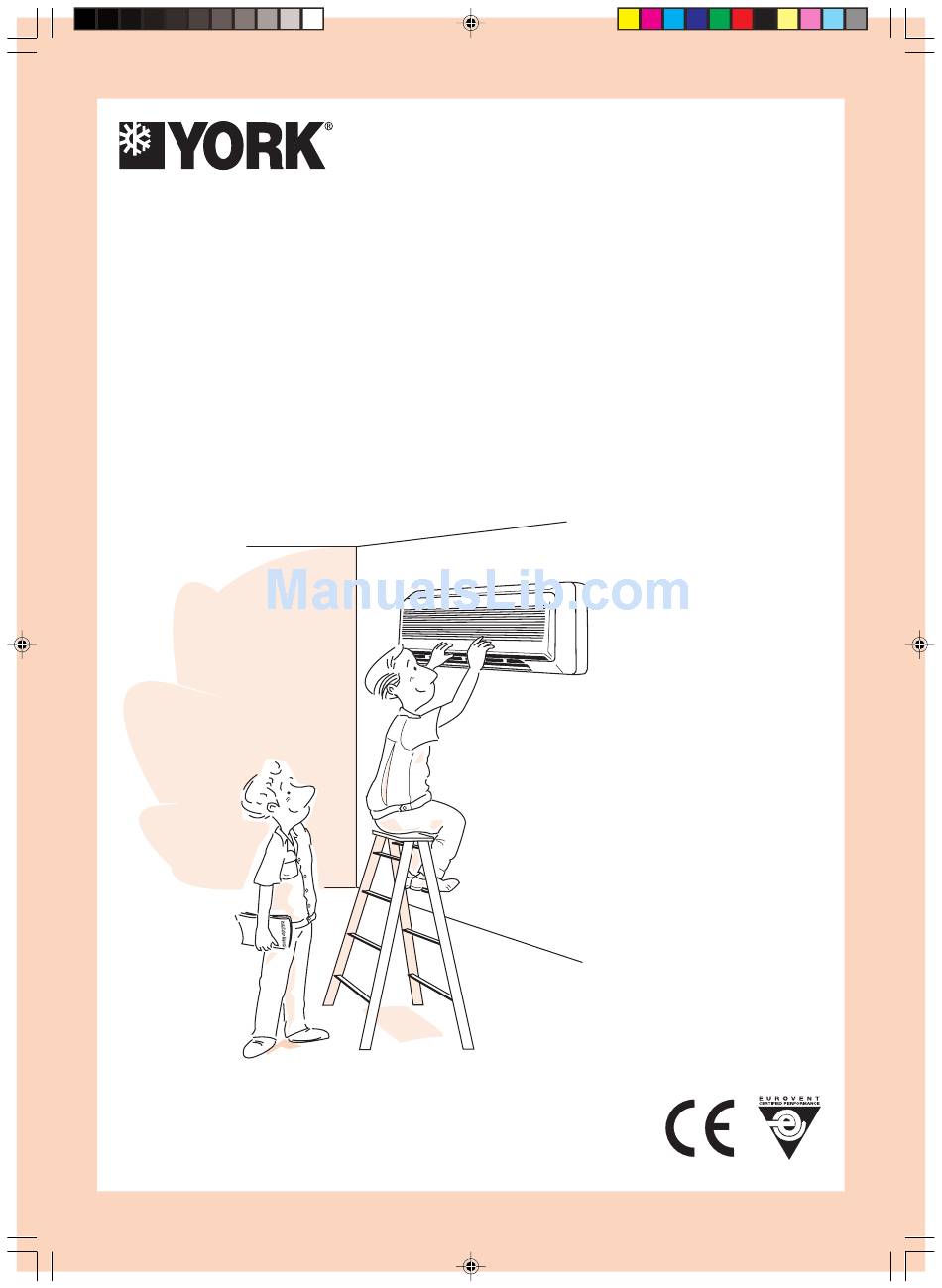

MINISPLIT
HIGH WALL

AIR CONDITIONER

The units comply with one or more of the following marks - see unit for details.
J190
Installation & Owner's Manual
1
MODELS
HVHC 07-12DS
HVHC 18AS
EN035M80011-000
2/03/2005, 4:54 AM

Advertisement

Table of Contents
loading

Summary of Contents for York HVHC 07-12DS

  • Page 1: Air Conditioner

    Installation & Owner’s Manual MODELS MINISPLIT HVHC 07-12DS HVHC 18AS HIGH WALL AIR CONDITIONER The units comply with one or more of the following marks - see unit for details. EN035M80011-000 J190 2/03/2005, 4:54 AM...
  • Page 2: Table Of Contents

    CONTENTS Safety precautions ............. 3 Part names ..............4 Manual operation ............5 How the air conditioner works ........6 Optimal operation ............6 Adjusting air flow direction ........7 Preparation before installation ......... 8 Installation procedure ..........9 Maintenance ............. 16 Please read this installation Operation tips ............
  • Page 3: Safety Precautions

    REQUIRED TOOLS EXTENDED PARTS 1. Screw driver 9. Manifold gauge 1. Refrigerant Pipe 2. Hexagonal wrench 10. Gas leak detector Models 07-09 12-18 3. Torque wrench 11. Vaccum pump Liquid size 1/4 inch 1/4 inch 4. Spanner 12. Pipe clamp 5.
  • Page 4: Part Names

    PART NAMES I INDOOR UNIT INDOOR UNIT 1. Front panel 2. Air inlet 3. Air filter 4. Air outlet 5. Horizontal air flow grille 6. Vertical air flow louver 7. Display panel 8. Remote controller signal receiver 9. Remote controller 10.
  • Page 5: Manual Operation

    OPERATING TEMPERATURE Mode Cooling operation Heating operation Drying operation Temperature Room temperature 17°C ~ 32°C 17°C ~ 27°C 10°C ~ 32°C Outdoor temperature 0°C ~ 45°C -15°C ~ 34°C 0°C ~ 45°C CAUTION 1. If air conditioner is used outside of the above conditions, certain safety protection features may come into operation and cause the unit to function abnormally.
  • Page 6: How The Air Conditioner Works

    HOW THE AIR CONDITIONER WORKS I AUTOMATIC OPERATION Press Sleep button • When you set the air conditioner in AUTO mode, it will auto matically select cooling, heating (cooling/heating models only), or fan only operation depending on what temperature you have selected and the room temperature.
  • Page 7: Adjusting Air Flow Direction

    ADJUSTING AIR FLOW DIRECTION • Adjust the air flow direction properly otherwise, it might cause discomfort or cause uneven room temperatures. • Adjust the horizontal louver using the remote controller. • Adjust the vertical louver manually. Adjusting the Vertical Air Flow Direction (up - down) The air conditioner automatically adjusts the vertical air flow direction in accordance with the operating mode.
  • Page 8: Preparation Before Installation

    PREPARATION BEFORE INSTALLATION • Before doing any work, check the interior power supply cord and the main breaker capacity are sufficient and the installation area is sufficient and complies with the requirements. • Check that the power supply available agrees with name plate voltage. •...
  • Page 9: Installation Procedure

    PARTS INSTALLATION Number Name of Accessories Q’ty Installation plate Clip anchor Self-tapping screw A ST3.9X25 Seal Drain joint Liquid side ø6.35 Parts you Connecting ø 9.53 (9000Btu/h model) must pipe Gas side purchase Assembly ø12.7(12000Btu/h model) Remote controller Self-tapping screw B ST3.9X10 Remote controller holder NOTES Except the above parts provided, the other parts needed...
  • Page 10: Drain Hose

    MODEL 18 15cm or more to ceiling Installation Plate Indoor unit outline Right 12cm or more 12cm or more to wall to wall Right Left refrigerant Right refrigerant pipe hole 65 pipe hole 65 Right Left Right CAUTION Rear Bottom I Piping •...
  • Page 11: Indoor Unit Fixing

    I Indoor Unit Fixing • Thread the indoor unit piping and cable through the hole. • Hang the top of the unit onto the upper ridge of them in mounting plate. • Make sure that the unit is correctly hung in place by sliding it to the left, then to the right. •...
  • Page 12 To this effect, when the piping has been evacuated, close the pressure gauge tap, note the value on the gauge, then wait for 15 minutes. If the needle moves, there is a leak in the system. Make the necessary adjustments or repairs and repeat this procedure until the needle no longer moves.
  • Page 13 I Wiring Prepare the power source for exclusive with the air conditioner. The supply voltage must comply with the rated voltage of the air conditioner: The plug socket shall be accessible after installation. Remark: All the wiring must be based on the wiring nameplate which is shown on the model. CAUTIONS •...
  • Page 14 Wiring Connection Model : 07-18 Indoor Outdoor Terminal block of outdoor unit Terminal block of indoor unit Cord clamp To indoor unit To outdoor unit To outdoor unit 7000/9000/18000Btu/h model 12000Btu/h model CAUTIONS After the confirmation of the above conditions, prepare the wiring as follows: 1) Never fail to have an individual power circuit specifically for the air conditioner.
  • Page 15: Air Purging

    AIR PURGING Air and moisture in the refrigerant system have undesirable effects as indicated below: • Pressure in the system rises. • Operating current rises. • Cooling or heating efficiency drops. • Moisture in the refrigerant circuit may freeze and block capillary tubing. •...
  • Page 16: Maintenance

    MAINTENANCE WARNING It is necessary to stop the air conditioner and disconnect the power Household supply before cleaning. Drain Cleaner I Cleaning the indoor unit and remote controller CAUTIONS Thinner • Use a dry cloth to wipe the indoor unit and remote controller. •...
  • Page 17: Operation Tips

    OPERATION TIPS The following events may occur during normal operation. 1. Protection of the air conditioner. Compressor protection • The compressor can’t restart for 3 minutes after it stops. Anti-cold air (Cooling and heating models only) • The unit is designed not to blow cold air on HEAT mode, when the indoor heat exchanger is in one of the following three situations and the set temperature has not been reached.
  • Page 18: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE Problem Probable cause Remedy A. The air conditioner does not run. 1. Power failure. 1. Wait for power resume. 2. Fuse blown or circuit breaker 2. Replace the fuse or reset the open. breaker. 3. Voltage is too low. 3.
  • Page 19: Technical Specification

    TECHNICAL SPECIFICATION Technical Specifications : Inverter Ultra “R410A” - 50 Hz HVKC Indoor HVKC07DS HVKC09DS HVKC12DS HVKC18AS Unit Models HVJC Outdoor HVJC07DS HVJC09DS HVJC12DS HVJC18AS Unit V/Ph/Hz 220-240/1/50 Power Supply Power Consumption 615 (200-1150) 760 (250-1350) 1070 (270-1750) 1670 2.67(1.3-6.5) 3.3 (1.5-7.0) 4.8 (1.5-8.5) Running Current...
  • Page 20: Declaration Of Conformity

    Authorized Representative: CM Choi Shipping Manager YORK International (Northern Asia) Ltd. 15/F., Tower II, World Trade Square, 123 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong Telephone: (852) 2331 9286 Fax: (852) 2331 9840 Technical Service Division: Telephone: (852) 2331 9286 Fax: (852) 2304 0068...
