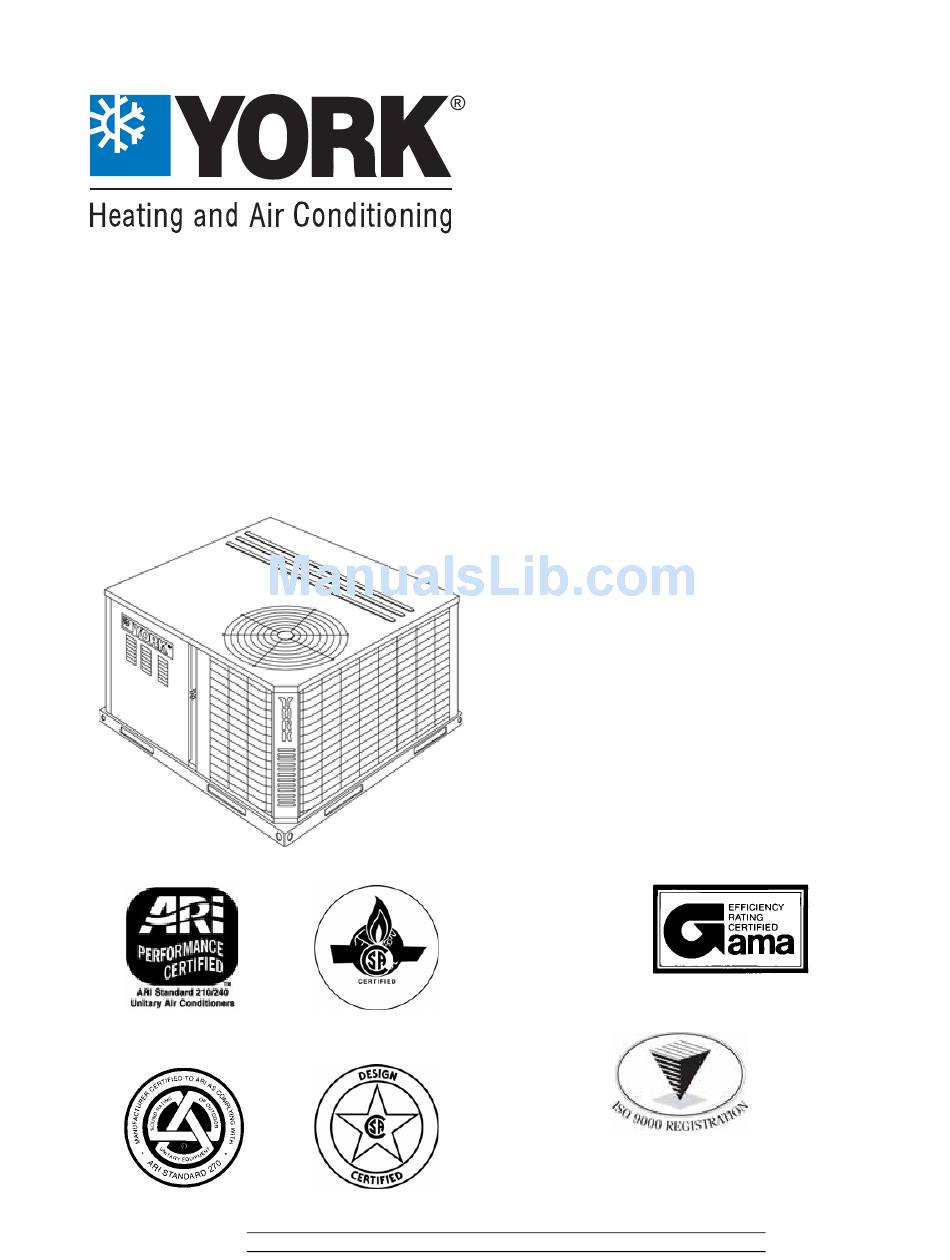

TECHNICAL GUIDE
AFFINITY™ SERIES
SINGLE PACKAGE GAS/ELECTRIC
AIR COOLED AIR CONDITIONERS
2-1/2 THROUGH 5 NOMINAL TON
DNH030 THROUGH 060
UP TO 12.4 SEER
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
FLEXIBLE LIGHT COMMERCIAL UNIT
GENERAL
®
York
Affinity™ Series packaged units are designed to han-
dle applications ranging from residential to light commercial
and any in between. The Affinity™ is a unit that gives you the
flexibility and choices you need in today's market.
FEATURING
COOLING/GAS HEATING UNITS (NATURAL GAS OR
PROPANE)
LOW PROFILE
QUIET OPERATION
COMMON FOOTPRINT
OPTIONAL SLIDE IN MOTORIZED DAMPERS
OPTIONAL SLIDE IN ECONOMIZERS
OPTIONAL PROPANE CONVERSION KIT
OPTIONAL HIGH ALTITUDE CONVERSION KIT
(NATURAL GAS/PROPANE)
FULL PERIMETER BASE RAILS
BOTTOM AND SIDE UTILITY CONNECTIONS
1" OR 2" CLEANABLE FILTERS STANDARD ON ALL
MODELS
WARRANTY - 3 PHASE
5 year compressor
10 year heat exchanger
1 year other parts
291627-YTG-B-0807
