Operator Quick Guide
ORBISPHERE 410
Revision E - 24/04/2008

Advertisement

Table of Contents
loading

Related Manuals for Hach ORBISPHERE 410

Summary of Contents for Hach ORBISPHERE 410

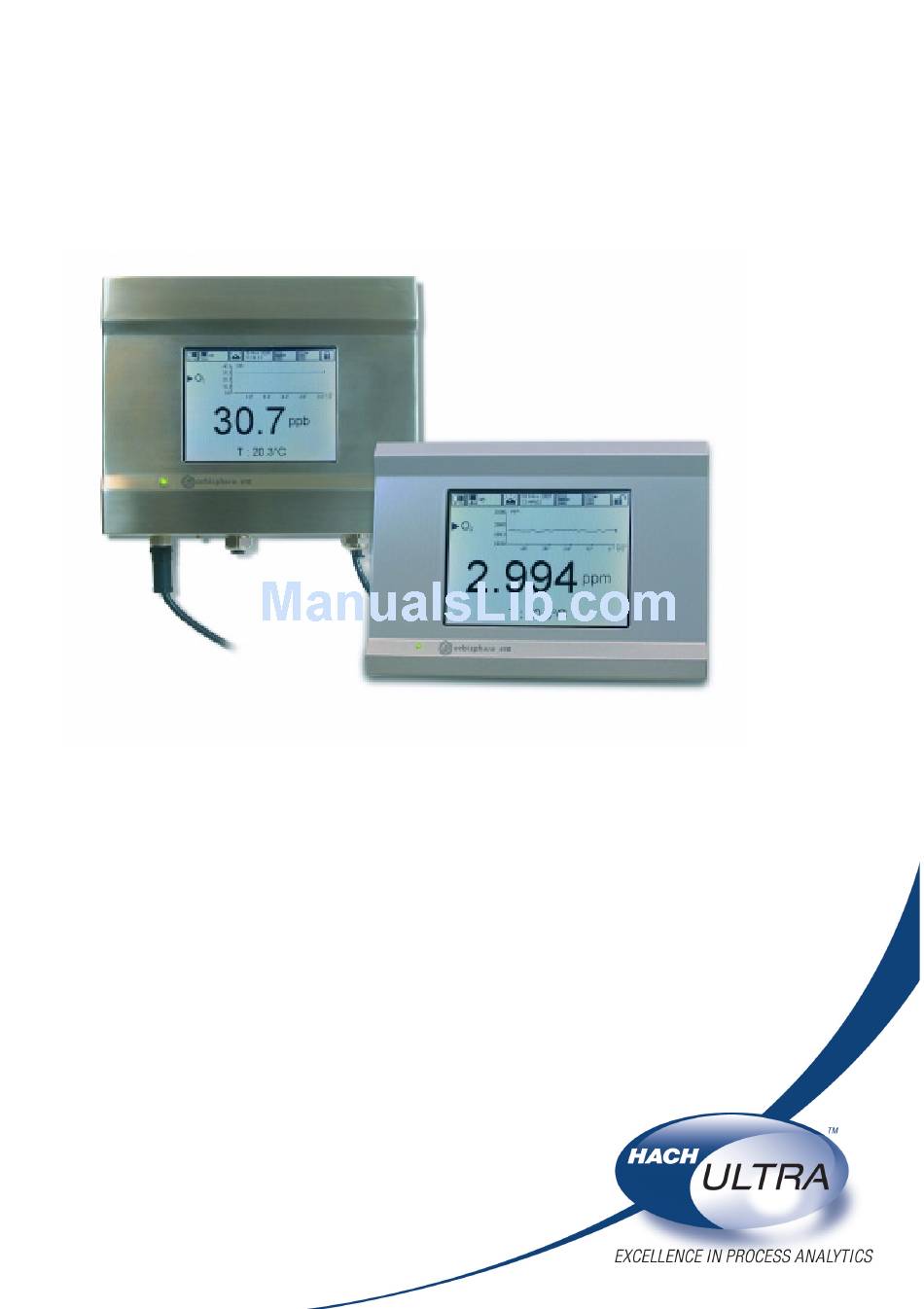

  • Page 1 Operator Quick Guide ORBISPHERE 410 Revision E - 24/04/2008...

  • Page 2: Operating Information

    However, Hach Ultra assumes no responsibility for any inaccuracies that may be contained in this guide. In no event will Hach Ultra be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this guide, even if advised of the possibility of such damages.

  • Page 3: Operating Information (Cont)

    Operating Information (cont) Identification and Authorization Level The statistical view offers statistical data that matches with Total Quality management tools. Statistics is a tool to better analyze how a process behaves. Press the closed padlock icon (top right of the screen) to open the identification window.

  • Page 4: Instrument Configuration

    Measurement Instrument Configuration Measurement Configuration Continuous Mode Description The continuous mode is typically used for process measurement. Continuous mode cycle: • Measurements are taken every 2 seconds. • Relays and analog outputs are regularly updated. • Measurements are stored continuously in volatile and non-volatile memory.
  • Page 5 Measurement (cont) Measurement Alarms Configuration Measurement Filter Configuration Set the thresholds for the low/high concentration T h e f i l t e r s a r e a i m e d a t “ f l a t t e n i n g ” t h e levels, according to the application.
  • Page 6 Measurement (cont) Oxygen Interference Configuration Adjust the parameters for recording and storing measured data. Storage mode selection: • No storage • Store once: When volatile memory is full (1,000 positions), measurement recording stops • Rolling buffer: When volatile memory is full, the latest measurement set replaces the oldest (first-in, first-out basis) •...
  • Page 7 Calibration General Modify Calibration Parameter To calibrate the gas to measure (main gas), the user usually puts the sensor in the main gas without interfering gas. Calibrations can only be performed once the instrument has been installed, configured and the channel has been set up.

  • Page 8: Calibration (Cont)

    Calibration (cont) Sensor Calibration Calibration Results The sensor is either in contact with: • Air at atmospheric pressure (In Air) • at known concentration (Direct value). The gas can be dissolved or not. In Air Calibration This calibration procedure places the O sensor in water-saturated air, to provide a known oxygen reference against which to calibrate.

  • Page 9: Calibration Reports

    Calibration (cont) Calibration Reports Barometric Pressure Calibration Upper box shows the barometric pressure Once a measured gas calibration is completed, a measured by the instrument. report is issued showing the log file of the last actions. The calibration report will contain the Using a precision certified barometer, measure records for the last 10 calibrations.

  • Page 10: Maintenance And Troubleshooting

    Instrument Maintenance Any instrument maintenance should be carried out by a qualified Hach Ultra Service Technician. Please contact your local representative should y o u f e e l a n y m a i n t e n a n c e o r i n s t r u m e n t adjustments are required.

  • Page 11: Maintenance And Troubleshooting (Cont)

    Maintenance and Troubleshooting (cont) The following events are defined: Type Name Description Measure Normal measurement mode. Filter enabled The gas measurements are filtered. Sample measurement The sample measurement is started. Information Meas. not ready The measurement is not ready (e.g. at startup) Autotest in progress The autotest is running.
