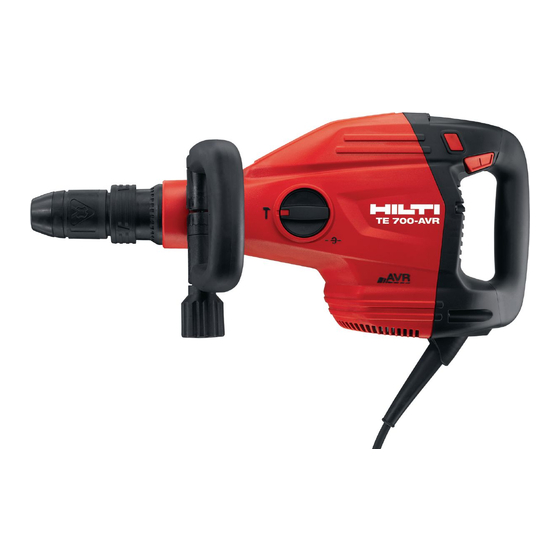

Hilti TE 700-AVR Operating Instructions Manual
Hide thumbs
Also See for TE 700-AVR:
- Operating instructions manual (249 pages) ,
- User manual (184 pages) ,
- Manual (156 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Hilti TE 700-AVR
Summary of Contents for Hilti TE 700-AVR
- Page 1 TE 700-AVR English Printed: 02.02.2017 | Doc-Nr: PUB / 5270002 / 000 / 01...
- Page 2 Printed: 02.02.2017 | Doc-Nr: PUB / 5270002 / 000 / 01...
- Page 3 1 Information about the documentation 1.1 About this documentation • Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free handling and use of the product. • Observe the safety instructions and warnings in this documentation and on the product.
- Page 4 Wear protective gloves 1.4 Product information Hilti products are designed for professional use and may be operated, ser- viced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.
- Page 5 Work area safety ▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents. ▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
- Page 6 ▶ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. ▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
- Page 7 ▶ Use auxiliary handles, if supplied with the tool. Loss of control can cause personal injury. ▶ Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live"...
- Page 8 ▶ Take breaks between working and do physical exercises to improve the blood circulation in your fingers. Exposure to vibration during long periods of work can lead to disorders of the blood vessels and nervous system in the fingers, hands and wrists. Electrical safety ▶...
- Page 9 English Printed: 02.02.2017 | Doc-Nr: PUB / 5270002 / 000 / 01...
- Page 10 English Printed: 02.02.2017 | Doc-Nr: PUB / 5270002 / 000 / 01...
- Page 11 3 Description 3.1 Overview of the product English Printed: 02.02.2017 | Doc-Nr: PUB / 5270002 / 000 / 01...
- Page 12 • The voltage provided by the electric supply is too high. Note Bring the product to Hilti Service in good time. This will help to ensure that it’s always ready for use. 3.5 Power level indicator The breaker is equipped with a power level indicator LED.
- Page 13 3.7 Items supplied Breaker, side handle, operating instructions. Note You can find other system products approved for your product at your local Hilti Center or online at: www.hilti.com 4 Technical data 4.1 Breaker Note For details of the rated voltage, frequency, current and input power, please refer to the power tool’s country-specific type identification plate.
- Page 14 Noise emission values Sound (power) level (L 97 dB(A) Uncertainty for the sound power level 3 dB(A) Emission sound pressure level (L 86 dB(A) Uncertainty for the sound pressure level 3 dB(A) Total vibration Chiseling (a 6.5 m/s² h, Cheq Uncertainty (K) 1.5 m/s²...
- Page 15 Check the accessory tool for damage or uneven wear each time before use and replace it if necessary. Note Use only the recommended grease supplied by Hilti. Use of unsuitable grease may cause damage to the product. 1. Apply a little grease to the connection end of the accessory tool.
- Page 16 ▶ Wear protective gloves when changing the tool. 1. Pull the chuck back. 2. Remove the accessory tool. Note Use only the recommended grease supplied by Hilti. Use of unsuit- able grease may cause damage to the product. 5.5 Positioning the chisel Note The chisel can be adjusted to 24 different positions (in 15°...
- Page 17 ▶ Set the function selector switch to and position the chisel as desired. 5.6 Locking the chisel ▶ Set the function selector switch to and rotate the chisel until it engages. 5.7 Setting the chiseling power Note Chiseling power can be reduced to approx. 70% by pressing the power level selector switch.
- Page 18 • Do not operate the power tool if signs of damage are found or if parts malfunction. Have damage repaired immediately by Hilti Service. • After cleaning and maintenance, refit all guards or protective devices and check that they function correctly.
- Page 19 To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Center or online at: www.hilti.com 7.1 Cleaning the dust shield...
- Page 20 Switch the tool off and then on again. The tool is faulty or ser- ▶ Have the product vicing is due. repaired only by Hilti Service. No hammering ac- The power tool is too ▶ Bring the tip of the tion.
- Page 21 The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appli- ances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
- Page 22 English Printed: 02.02.2017 | Doc-Nr: PUB / 5270002 / 000 / 01...
- Page 23 Printed: 02.02.2017 | Doc-Nr: PUB / 5270002 / 000 / 01...
- Page 24 Hilti = registered trademark of Hilti Corp., Schaan 20161128 Printed: 02.02.2017 | Doc-Nr: PUB / 5270002 / 000 / 01...
