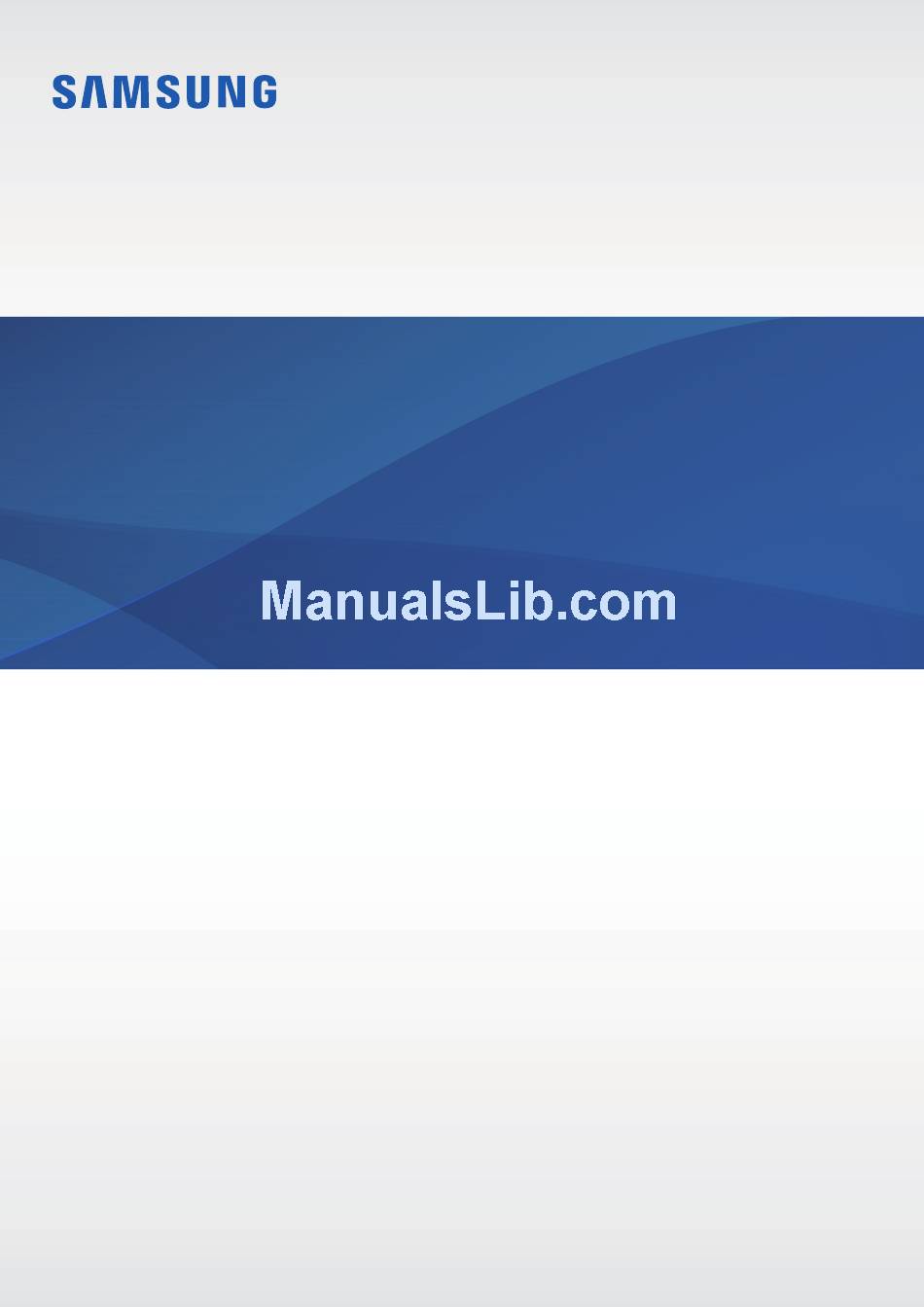

  • Page 1 SM-W620 SM-W627 User Manual English (EU). 03/2017. Rev.1.0 www.samsung.com...

  • Page 2: Table Of Contents

    Table of Contents Basics Applications Read me first Installing or uninstalling apps Device overheating situations and Air Command solutions Samsung Notes Package contents Samsung Flow Device layout Show Window Battery Camera SIM or USIM card (mobile network- Book Settings enabled models)

  • Page 3: Basics

    • D efault apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers.

  • Page 4: Device Overheating Situations And Solutions

    • I f the lower part of the device overheats, it could be because the connected USB cable is damaged. Replace the damaged USB cable with a new Samsung-approved one.
  • Page 5 Basics When the device heats up during use When you use features or apps that require more power or use them for extended periods, your device may temporarily heat up due to increased battery consumption. Close any running apps and do not use the device for a while. The following are examples of situations in which the device may overheat.
  • Page 6 • D ecrease the screen brightness. • I f the device overheats or feels hot for a prolonged period, do not use it for a while. If the device continues to overheat, contact a Samsung Service Centre. Device limitations when the device overheats When the device heats up, the features and performance may be limited or the device may turn off to cool down.

  • Page 7: Package Contents

    • A ppearances and specifications are subject to change without prior notice. • Y ou can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase. • U se only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.

  • Page 8: Device Layout

    Basics Device layout Device Volume key Microphone Power key Front camera Speaker Light sensor SIM card (mobile Touchscreen network-enabled models) / Memory card tray Keyboard dock port Multipurpose jack (USB Type-C) Headset jack Main antenna (mobile network-enabled models) Speaker...
  • Page 9 – If you cover the device’s antenna area with your hands or other objects while using certain features, such as calls or the mobile data connection • U sing a Samsung-approved screen protector is recommended. Unapproved screen protectors may cause the sensors to malfunction.
  • Page 10 Basics S Pen S Pen clip S Pen button S Pen nib Tweezers Name Functions • U se the S Pen to write, draw, or perform touch actions on the screen. S Pen nib • H over the S Pen over items on the screen to access additional S Pen features.

  • Page 11: Replacing The S Pen Nib

    Basics Replacing the S Pen nib If the nib is dull, replace it with a new one. Firmly hold the nib with the tweezers and remove it. Insert a new nib into the S Pen.

  • Page 12: Battery

    • I f the S Pen is not working properly, take it to a Samsung Service Centre. • I f you use the S Pen at sharp angles on the screen, the device may not recognise the S Pen actions.
  • Page 13 Basics Connect the USB cable to the USB power adaptor, and plug the USB cable into the device’s multipurpose jack. Plug the USB power adaptor into an electric socket. After fully charging, disconnect the device from the charger. First unplug the charger from the device, and then unplug it from the electric socket.
  • Page 14 • I f you charge the device while the multipurpose jack is wet, the device may be damaged. Thoroughly dry the multipurpose jack before charging the device. • I f the device is not charging properly, take the device and the charger to a Samsung Service Centre.

  • Page 15: Sim Or Usim Card (Mobile Network-Enabled Models)

    • U se only a nano-SIM card. • U se caution not to lose or let others use the SIM or USIM card. Samsung is not responsible for any damages or inconveniences caused by lost or stolen cards.
  • Page 16 Basics Place the device with the bottom facing upwards. Insert the ejection pin into the hole on the tray to loosen the tray. Ensure that the ejection pin is perpendicular to the hole. Otherwise, the device may be damaged. Pull out the tray gently from the tray slot. Place the SIM or USIM card on the tray with the gold-coloured contacts facing upwards.

  • Page 17: Memory Card (Microsd Card)

    To view your device’s maximum memory card capacity, refer to the Samsung website. • S ome memory cards may not be fully compatible with the device. Using an incompatible card may damage the device or the memory card, or corrupt the data stored in it.
  • Page 18 Basics Insert the ejection pin into the hole on the tray to loosen the tray. Ensure that the ejection pin is perpendicular to the hole. Otherwise, the device may be damaged. Pull out the tray gently from the tray slot. When you remove the tray from the device, the mobile data connection will be disabled.

  • Page 19: Removing The Memory Card

    Do not remove the memory card while the device is transferring or accessing information. Doing so can cause data to be lost or corrupted or damage to the memory card or device. Samsung is not responsible for losses that result from the misuse of damaged memory cards, including the loss of data.

  • Page 20: Turning The Device On And Off

    Basics Turning the device on and off Press and hold the Power key for a few seconds to turn on the device. Before turning on your device for the first time, you must connect the device to a power supply. When you turn on your device for the first time or after performing a data reset, follow the on- screen instructions to set up your device.

  • Page 21: Keyboard Cover

    Basics Keyboard Cover Introduction Connecting the device to the Keyboard Cover allows you to use a traditional keyboard and touchpad. The bottom of the touchpad has two parts that act as the left and right buttons of a mouse. You can also stand your device upright using the stand on the Keyboard Cover. When you close the Keyboard Cover, your device will enter sleep mode.
  • Page 22 Basics Connecting the Keyboard Cover Connect the keyboard dock port at the bottom of the device to the connector on the keyboard, and then set the device in position. Make sure that the Keyboard Cover is securely attached to your device. If not, check the location of the keyboard dock port and reconnect the Keyboard Cover to your device.

  • Page 23: Hot Keys

    Basics Attaching the S Pen holder Attach the S Pen holder to the S Pen holder slot. You can insert the S Pen into the S Pen holder. • M ake sure that the S Pen holder is securely attached after 1 hour. •...

  • Page 24: Hot Key Functions

    Basics Hot key functions Key/Icon Function • L aunch Settings. • A djust the brightness of the display. • C hange the display mode when an external display is connected to the device. • L ock or unlock the touchpad. •...
  • Page 25 Basics Touchpad Use the touchpad to move the cursor or select items. The left and right buttons of the touchpad function the same as the left and right buttons of a mouse. Use only your fingers on the touchpad. Basic touchpad functions Moving To move the cursor, move your finger on the touchpad.
  • Page 26 Basics Double-clicking Double-tap the touchpad or press the left-click button twice. Right-clicking Press the right-click button to perform the right-click function. Alternatively, tap the touchpad with two fingers. Dragging To move an item, select and drag it to the target position while pressing and holding the left-click button.

  • Page 27: Additional Functions

    Basics Additional functions Swiping To scroll up, down, left, or right to a desired location, swipe with two fingers on the touchpad. Spreading and pinching Spread two fingers apart on a webpage, map, or image to zoom in a part. Pinch to zoom out. Configuring touchpad settings Configure touchpad settings to use the touchpad more efficiently.

  • Page 28: Controlling The Touchscreen

    Basics Controlling the touchscreen • D o not allow the touchscreen to come into contact with other electrical devices. Electrostatic discharges can cause the touchscreen to malfunction. • T o avoid damaging the touchscreen, do not tap it with anything sharp or apply excessive pressure to it with your fingertips.
  • Page 29 Basics Tapping and holding Tap and hold an item or the screen for more than 2 seconds to access available options. Dragging To move an item, tap and hold it and drag it to the target position. Double-tapping Double-tap on a webpage or image to zoom in. Double-tap again to return.
  • Page 30 Basics Swiping Swipe to the left or right on the screen to scroll left or right. Swipe upwards or downwards to scroll through a webpage or a list of items. Spreading and pinching Spread two fingers apart on a webpage, map, or image to zoom in a part. Pinch to zoom out.

  • Page 31: Windows

    Basics Windows Microsoft Windows is an operating system that is used to control a computer. • I mages and available features may differ depending on the model and operating system. • T his manual is designed for Windows 10 and content may differ depending on the OS version.
  • Page 32 Basics Managing shortcuts , tap and hold an item, tap More → Pin to taskbar. To add a shortcut, on the taskbar, tap To delete a shortcut, tap and hold a shortcut, and then tap Unpin from taskbar. To move a shortcut to another location, drag it to a new location. Managing notification icons →...

  • Page 33: Start Menu

    Basics Start menu On the taskbar, tap to open the Start menu. From the Start menu, you can access your frequently used apps, shortcuts to other locations on your device, and more. Frequently used apps App tiles Apps list Your account Settings Power Managing app tiles...

  • Page 34: Lock Screen

    On the taskbar, tap lock method. The device requires an unlock code whenever unlocking it. • I f the unlock code is forgotten, take the device to a Samsung Service Centre to reset it. • Y ou must sign in to your Microsoft account or add a password before you can use...
  • Page 35 Basics Password A password consists of characters or numbers. Enter a password, enter the password again to verify it, and then enter a password hint. If you have signed in to your Microsoft account, your account password will be set as the password automatically.
  • Page 36 Basics You can use the following functions on the action centre panel. Clear all notifications. Tap a notification and perform various actions. Quick action buttons Using quick action buttons Tap quick action buttons to activate certain features. To view more detailed settings, tap and hold a button, and then tap Go to settings.
  • Page 37 Basics Currently open windows Multi desktop list Deleting desktops On the taskbar, tap On the multi desktop list, tap on the desktop to delete. Moving windows to another desktop On the taskbar, tap to view the current desktop’s open windows. Tap and hold a window to move, and then tap Move to.
  • Page 38 Basics Tap and hold a window and select Snap left or Snap right. Adjusting the window size Drag the handle between the windows left or right to adjust the size of the windows. Help → Tips. To access help information, tap You can check the help information after connecting to the Internet.

  • Page 39: Entering Text

    Basics Using the control panel You can adjust basic system settings, such as hardware, software, or user account settings. → Windows System → Control Panel. Alternatively, press the right-click button on and tap Control Panel. Then, select options you want to change. Entering text Using the on-screen keyboard In Tablet mode, the on-screen keyboard appears automatically when you enter text to send...
  • Page 40 Basics Additional keyboard functions to use various functions. • : Switch to the default keyboard. • : Switch to the floating split keyboard. You can move the keyboard to another location by dragging the keyboard. • : Switch to handwriting mode. This feature may not be available depending on the region or service provider.

  • Page 41: Screen Capture

    Basics Copying and pasting Drag your finger across text to select it. Tap and hold the text to display the options. Tap Copy or Cut. The selected text is copied to the clipboard. Tap and hold where the text is to be inserted and tap Paste. Using the Keyboard Cover When your device is connected to the Keyboard Cover, you can enter text using the traditional keyboard.

  • Page 42: Device And Data Management

    Basics Device and data management Updating the device Keep the device up to date by downloading and installing updates, such as service packs and patches, for the operating system and other Microsoft apps. The device is set to download and install updates automatically. To check for available →...

  • Page 43: Connecting To External Display

    Basics Connecting to External display Connecting the tablet to an external display device can be useful for presentations or when watching a movie. The cables and adapters required to connect an external display are sold ™ separately. The tablet supports HDMI cables and USB-C display adapters.
  • Page 44 Basics Select a device to connect to. Your device’s screen appears on the TV screen. Open or play a file, and then control the display with the keys on your device. • T his feature may not be available depending on the region or service provider. •...

  • Page 45: Applications

    . Alternatively, on the taskbar, tap For service requests for apps provided by third-party providers, contact the provider. If you contact a Samsung Service Centre, troubleshooting actions in response to service requests may have limitations depending on the app. Installing apps Browse apps by category or tap the search field to search for a keyword.

  • Page 46: Air Command

    Create note Smart select Show Window Screen write • C reate note: Launch Samsung Notes and create a new note. Refer to Samsung Notes more information. • V iew all notes: Launch Samsung Notes and view all notes.
  • Page 47 Applications Smart select Use the S Pen to select an area and perform actions, such as sharing or saving. When there is content you want to capture, such as a part of an image, open the Air command panel and tap Smart select. Select a desired shape icon on the toolbar and drag the S Pen across the content you want to select.
  • Page 48 Applications Screen write Capture screenshots to write or draw on them. When there is content you want to capture, open the Air command panel and tap Screen write. The current screen is automatically captured and the editing toolbar appears on the screen.

  • Page 49: Samsung Notes

    Create notes by writing or drawing on the screen with the S Pen. You can also insert images into your notes. Creating notes → Samsung Notes → All notes → On the taskbar, tap You can also open the Air command panel and tap the Create note shortcut.

  • Page 50: Changing The Pen Settings

    Applications Composing notes in handwriting mode On the note composer screen, tap Pen to write or draw with the S Pen. Eraser mode Redo Undo Selection mode Changing the pen settings When writing or drawing on the screen, you can change the pen type, line thickness, or pen colour.
  • Page 51 Applications • Y ou can also erase an area in pen mode by tapping it while pressing and holding the S Pen button. • E ven with a smaller eraser, you may still not be able to precisely erase the intended part.
  • Page 52 On the note composer screen, tap Image to select an image. The image will be inserted into your note. Deleting notes → Samsung Notes → All notes. On the taskbar, tap Tap Select and tick a note to delete. To delete multiple notes, tick more notes to delete.

  • Page 53: Samsung Flow

    Samsung Flow allows you to easily connect your tablet to your smartphone. You can share contents between the connected devices. Samsung Flow must be installed on both devices that you want to connect. If Samsung Flow is not installed, download it from app stores.
  • Page 54 Applications Unlocking your tablet screen with fingerprints You can unlock your tablet by using the registered fingerprints on your smartphone. Touch the NFC antenna area on the back of your smartphone to the nfc tag of your keyboard cover. On the locked screen of your smartphone, place your finger on the Home key and scan your fingerprint.

  • Page 55: Show Window

    • Y ou can also wirelessly connect the devices. Refer to Connecting to External display for more information. → Samsung → Show Window. On the taskbar, tap Tap Start. A white frame for selecting an area will appear.

  • Page 56: Camera

    Applications Using tools While showing the screen on the connected display, you can use the following tools. Cursor Undo/Redo Highlighter Eraser While using the pen or highlighter, tap the desired icon again to change the colour or line thickness. Setting the connection notification You can set the device to display a notification which prompts you to use Show Window when an external device is connected.

  • Page 57: Book Settings

    • P attern Log-in: Set a pattern to use it as your screen lock method. • A PN: Set up access point names (APNs). • L egal information: View the Samsung legal information, the open source licence announcement, and the safety information.

  • Page 58: Settings

    Settings Windows Settings Customise settings for functions and apps. You can make your device more personalised by configuring various setting options. → Settings. On the taskbar, tap To search for settings by entering keywords, tap the search field at the top of the screen. The available options may vary depending on the region or service provider.
  • Page 59 Settings Network & Internet Change the network and Internet settings. • Y our device uses a non-harmonised frequency and is intended for use in all European countries. The WLAN can be operated in the EU without restriction indoors, but cannot be operated outdoors. •...

  • Page 60: Bios (Setup Utility)

    • T o enter the BIOS screen, the device must be connected to the Keyboard. Entering the BIOS screen Press the F2 key several times immediately after you turn on your device, before the Samsung logo appears. If the locked screen or the Start screen appears, restart the device and try again.

  • Page 61: Setting A Boot Password

    Do not forget your password or expose it to others. • I f you forget your supervisor password, contact a Samsung Service Centre. • I f you forget your user password, you can remove it by removing the supervisor password.
  • Page 62 Settings Removing a password Tap Set Supervisor Password or Set User Password. Enter the password and tap Ok. Without entering any characters, tap Ok → Ok. The password will be removed. Boot priority Change the boot priority from the BIOS setup. On the BIOS screen, tap Boot.

  • Page 63: Appendix

    Appendix Troubleshooting Before contacting a Samsung Service Centre, please attempt the following solutions. Some situations may not apply to your device. When you turn on your device or while you are using the device, it prompts you to enter one of the following codes: •...

  • Page 64: Resetting The Device

    • R estart your device to clear any temporary software bugs. • E nsure that your device software is updated to the latest version. • I f the touchscreen is scratched or damaged, visit a Samsung Service Centre. The device responds slowly If you use the device without connecting the Keyboard Cover, the device’s speed and...
  • Page 65 • E nsure that the charger is connected properly. • V isit a Samsung Service Centre and have the battery replaced. The battery depletes faster than when first purchased • W hen you expose the device or the battery to very cold or very hot temperatures, the useful charge may be reduced.
  • Page 66 • F ree some memory by transferring files to a computer or deleting files from your device. • R estart the device. If you are still having trouble with the camera app after trying these tips, contact a Samsung Service Centre. Photo quality is poorer than the preview •...
  • Page 67 Data stored in the device has been lost Always make backup copies of all important data stored in the device. Otherwise, you cannot restore data if it is corrupted or lost. Samsung is not responsible for the loss of data stored in the device.

  • Page 68: Windows Recovery Function

    Reinstalling Windows will erase all apps and data on the device. Back up important apps and data to an external storage device before reinstalling Windows. After Windows is reinstalled, you can install the required Samsung apps. → Settings → Update & security → Recovery.
  • Page 69 Samsung Electronics. Trademarks • S AMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics. • M icrosoft, MS-DOS, and Windows are trademarks or registered trademarks of the Microsoft Corporation.
