Summary of Contents for Health O Meter 349KLX
-

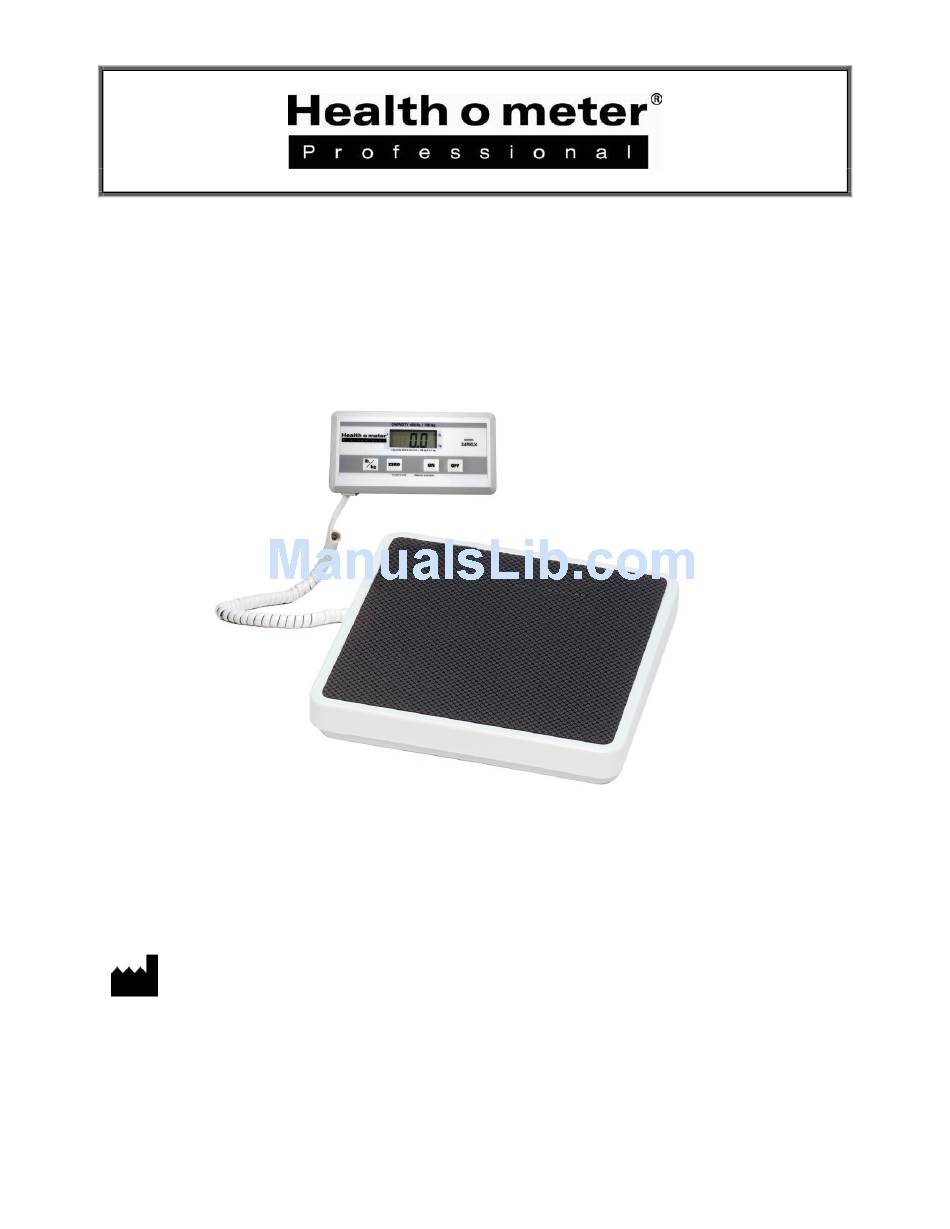

Page 1: User Instructions
Visit www.balances.com for your next Health o meter Medical Scale Model 349KLX Remote Display Digital Scale User Instructions PELSTAR, LLC 9500 West 55 St. McCook, IL 60525-7110 USA © Pelstar, LLC 2016 P/N UM349KLX Rev 20161010 Purchase at Visit www.scaleman.com your next Healthometer Scale... -
Page 2: Table Of Contents
Visit www.balances.com for your next Health o meter Medical Scale Model 349KLX ® Thank you for your purchase of this Health o meter Professional product. Please read this manual carefully, and keep it for easy reference or training. TABLE OF CONTENTS Caution and Warning.................... -
Page 3: Caution And Warning
Visit www.balances.com for your next Health o meter Medical Scale CAUTION AND WARNING To prevent injury and damage to your scale, please follow these instructions very carefully. Assemble and operate the scale per the enclosed user instructions. ... -
Page 4: Specifications For This Scale
SPECIFICATIONS FOR THIS SCALE General The Model 349KLX remote display digital scale uses highly sophisticated microprocessor technology. Each scale is designed to provide accurate, reliable and repeatable weight measurements. In addition, each scale is designed to provide the user with features that make the weighing process simple, fast, and convenient. -
Page 5: Certifications / Disposal
Visit www.balances.com for your next Health o meter Medical Scale CERTIFICATIONS / DISPOSAL Certification Descriptions Pelstar, LLC has been officially certified as the manufacturer ® of Health o meter Professional medical devices. The Pelstar, LLC quality assurance system covers the development, production, sales and service of medical scales and measuring systems. -
Page 6: Assembly Instructions
Visit www.balances.com for your next Health o meter Medical Scale ASSEMBLY INSTRUCTIONS Before Assembly Each 349KLX remote display digital scale is shipped disassembled in one carton. Carefully inspect the carton for shipping damage before unpacking. If damage is found, contact your ®... -
Page 7: Display Assembly Table Top Use Instructions
Visit www.balances.com for your next Health o meter Medical Scale DISPLAY ASSEMBLY TABLE TOP USE INSTRUCTIONS Assembling the 349KLX Scale 1. Carefully remove the scale platform and display assembly from the carton, and place on a flat, level, and dry surface. -
Page 8: Display Assembly Wall Mount Instructions
Visit www.balances.com for your next Health o meter Medical Scale DISPLAY ASSEMBLY WALL MOUNT INSTRUCTIONS Required Parts (1) Display assembly (2) #8 Anchoring screws (4.2 mm nominal OD) (2) Mounting anchors, compatible with wall construction Caution: When wall mounting the display assembly, ensure that the mounting location is free of electrical lines, gas pipes, and other safety hazards. - Page 9 Visit www.balances.com for your next Health o meter Medical Scale DISPLAY ASSEMBLY WALL MOUNT INSTRUCTIONS (CONT) 5. Once the holes are marked, use a hammer or Phillips head screwdriver to set the 2 drywall anchors into the holes. Use a screwdriver to insert the drywall anchors completely into the wall.
-
Page 10: Powering The Scale
Visit www.balances.com for your next Health o meter Medical Scale POWERING THE SCALE Powering the Scale 1. If powering the scale via the optional AC adapter, plug the adapter into the display assembly and into a power source. Power Adapter Port 2. -
Page 11: Transporting The Scale With Optional Carrying Case
Visit www.balances.com for your next Health o meter Medical Scale TRANSPORTING THE SCALE WITH OPTIONAL CARRYING CASE Preparing a 349KL Scale for Transport This scale can be easily placed into a carrying case (item # 64771) for storage, or transport from one room to another. -
Page 12: Operating Instructions
Visit www.balances.com for your next Health o meter Medical Scale OPERATING INSTRUCTIONS Keypad Function Description Powers scale on. Powers scale off. ZERO Zeroes out or tares the scale prior to a weighing. lb. / kg Toggles between pounds (lb) and kilograms (kg). - Page 13 Visit www.balances.com for your next Health o meter Medical Scale OPERATING INSTRUCTIONS (CONT) Auto-Off Function As an energy saving feature, the scale automatically powers off after 2 minutes of inactivity. This function is enabled by default. Disable Auto-Off 1. While the scale is powered off, press and hold the lb./kg button.
- Page 14 7. Press TARE after weighing process is complete to return to normal weighing mode. Child/Parent Function The Parent/Child function on Health o meter® Professional scales provides the convenience of weighing a small child or infant while being held by a parent. Follow these simple steps to subtract the parent’s weight from the total so only the child’s weight is displayed.
-
Page 15: Maintenance
Maintenance The following pages provide instructions for maintenance, cleaning, calibration, and troubleshooting for the 349KLX scale. Maintenance operations other than those described in this manual should be performed by qualified service personnel. Caution: Before first use, or after long periods of non-use, check the scale for proper operation and function. -
Page 16: Calibration
This scale has been factory calibrated and does not require calibration prior to use. If required, the scale can be calibrated. Calibration of the 349KLX scale is performed using certified weights. 50 / 100 / 200 / 400 lbs are employed as the calibration standards. The scale can only be calibrated in pounds (lb). -
Page 17: Troubleshooting
Visit www.balances.com for your next Health o meter Medical Scale TROUBLESHOOTING Troubleshooting Before contacting service personnel, refer to the following instructions to check and correct any failures. Symptom Possible Cause Corrective Action Scale does not power on 1. Dead batteries 1. -
Page 18: Warranty
® Health o meter Professional products are manufactured, designed, and owned by Pelstar, LLC. ® We reserve the right to improve, enhance, or modify Health o meter Professional product features or specifications without notice. © Pelstar, LLC 2016 P/N UM349KLX Rev20161010...
