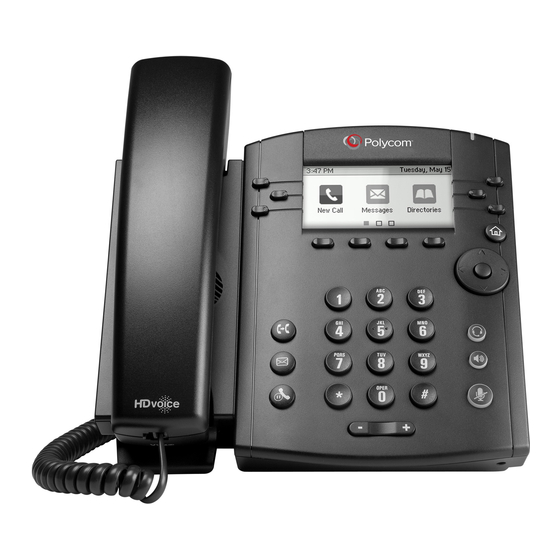

This guide is for a Polycom IP phone VVX 310, UC Software Version4.1.6.4835 only.

Different models and/or software versions may require different settings.

IP address detection and web management

Assuming a DHCP server is active on your network,

– connect a network cable to your phone LAN port

– power up the phone by plugging the power cable (no need to, if you are using a

PoE switch

– wait for your phone to finish the booting process. It should show a date and time on

the upper row (fig.1)

– press "Home" button, then right key on navigator 5 times. Press the select key to

choose "Settings" option, then "4", "2", "1". You should see the assigned IP address,

as in Fig.2 , showing the usage of IP address 192.168.0.107. Let's call it

"ip_address"

Polycom VVX310 Configuration guide

Cluana

(fig. 1)

(fig. 2)

Page 1 Cluana Polycom VVX310 Configuration guide This guide is for a Polycom IP phone VVX 310, UC Software Version4.1.6.4835 only. Different models and/or software versions may require different settings. IP address detection and web management Assuming a DHCP server is active on your network, –...
Page 2 – open a web browser to the URL: http://ip_address – insert the default “456” password and press “Submit” button IP phone configuration Let's assume the followings: Your PBX company domain is mycompany.cluana:5058 (chosen when you created your PBX account) Your PBX hostname is betelgeuse.cluana.com:5058 (provided by Cluana) Your IP Phone User ID / Auth ID is...
Page 3 (fig. 3) Settings Audio codec Priority In use Remove all gray codecs from the “In use:” section, and add the G.722 codec from the “Unused:” section. Reorder the “In use:” codecs so that G.722 is first, G.711A is second (G.711Mu for USA and Japan), G.729AB is third.
Page 4 (fig. 4) Settings Local Settings Local SIP port: 5058 Digitmap: empty field Digitmap Impossible Match: 2 (fig 5) Press “Save” button (fig. 5)
Page 5 Preferences Date & Time Set your preferred display format, time zone, time server, resync period and daylight savings parameters. A couple of examples are provided for Italy (Fig 6) and UK (Fig 7) (fig. 6)
Page 6 (fig. 7)
