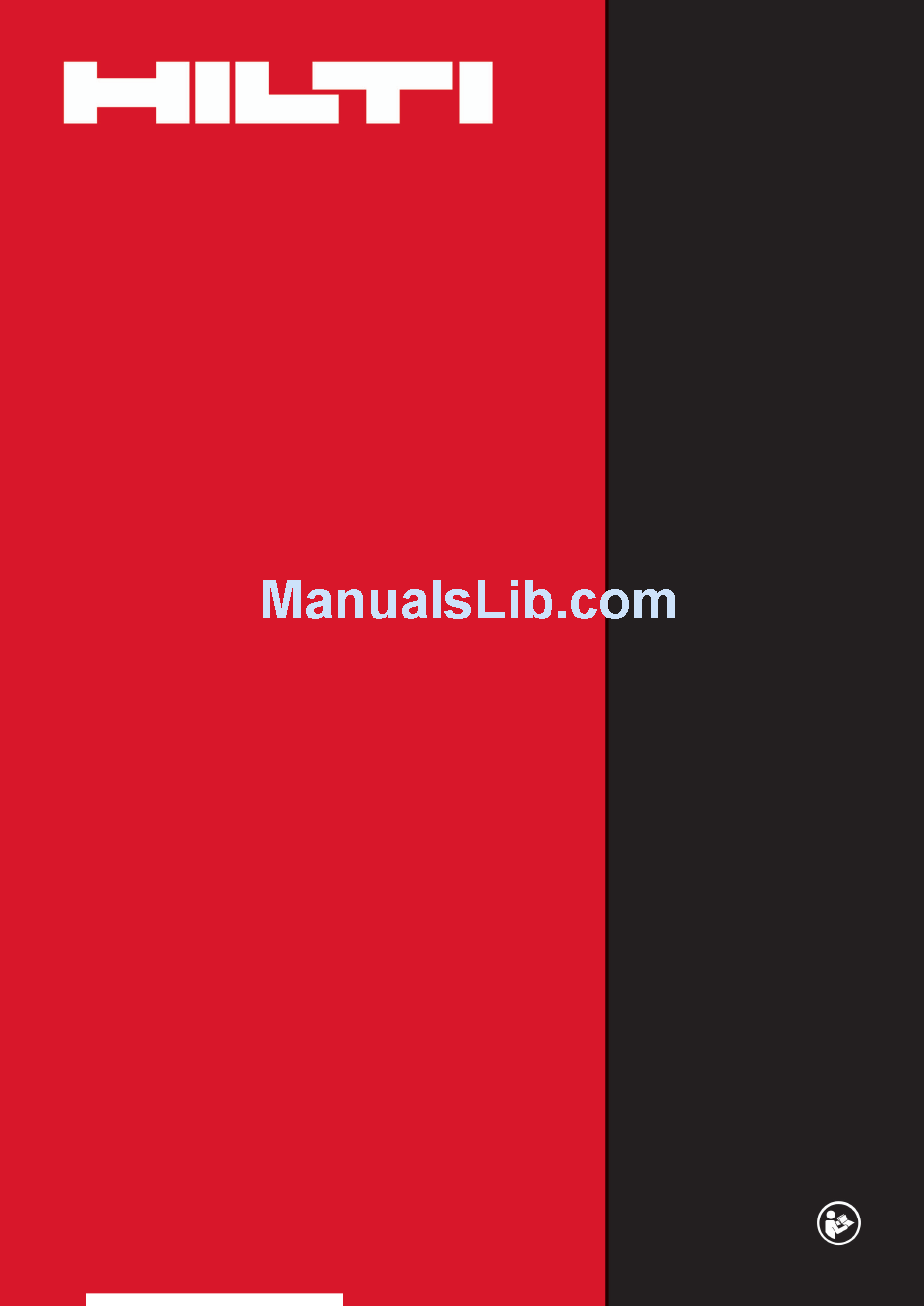

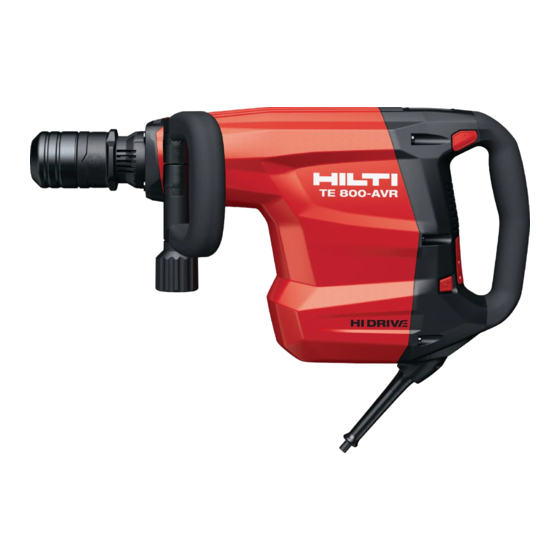

- Page 1 TE 800 TE 800-AVR English Printed: 01.08.2016 | Doc-Nr: PUB / 5210096 / 000 / 02...
- Page 2 Printed: 01.08.2016 | Doc-Nr: PUB / 5210096 / 000 / 02...
- Page 3 Power selector 1.4 Product information Hilti products are designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered. The product and its ancillary equipment may present hazards when used incorrectly by untrained personnel or when used not as directed.
- Page 4 Product information Breaker TE 800AVR Generation Serial no. 2 Safety 2.1 General power tool safety warnings WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
- Page 5 ▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. ▶ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
- Page 6 Careful handling and use of electric tools ▶ Wait until the power tool stops completely before you lay it down. Printed: 01.08.2016 | Doc-Nr: PUB / 5210096 / 000 / 02...
- Page 7 Printed: 01.08.2016 | Doc-Nr: PUB / 5210096 / 000 / 02...
- Page 8 Printed: 01.08.2016 | Doc-Nr: PUB / 5210096 / 000 / 02...
- Page 9 3 Description 3.1 Parts, operating controls and indicators Printed: 01.08.2016 | Doc-Nr: PUB / 5210096 / 000 / 02...
- Page 10 3.6 Items supplied Breaker, side handle, operating instructions. Note You can find other system products approved for your product at your local Hilti Center or online at: www.hilti.com. 4 Technical data 4.1 Noise emission values determined in accordance with EN 60745 The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another.
-
Page 11: Operation
98 dB(A) Emission sound pressure level (L 87 dB(A) Uncertainty for the sound pressure level (K 3 dB(A) 4.2 Vibration values determined in accordance with EN 60745 TE 800 TE 800AVR Chiseling (a 16 m/s² 8 m/s² h, Cheq Uncertainty (K) 1.5 m/s²... - Page 12 3. Pull the chuck back as far as it will go and remove the accessory tool. Note Use only the recommended grease supplied by Hilti. Use of unsuitable grease may cause damage to the product. 5.3 Removing the accessory tool DANGER Risk of fire! Risk of contact between the hot accessory tool and highly inflammable materials.
- Page 13 5.4 Positioning the chisel CAUTION Risk of injury! Loss of control over the chisel direction. ▶ Do not operate the tool when the selector switch is set to “Chisel positioning”. Turn the function selector switch until it engages in the “Chiseling” position. Note The chisel can be adjusted to 6 different positions (in 60°...
-
Page 14: Troubleshooting
▶ Have the parts checked by a and the service indicator trained electrical specialist and lights red. replaced if necessary. ▶ Have the tool repaired by Hilti A fault has occurred in the tool. Service. No hammering action. The power tool is too cold. - Page 15 Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
- Page 16 Printed: 01.08.2016 | Doc-Nr: PUB / 5210096 / 000 / 02...
- Page 17 Printed: 01.08.2016 | Doc-Nr: PUB / 5210096 / 000 / 02...
- Page 18 Hilti = registered trademark of Hilti Corp., Schaan 20160718 Printed: 01.08.2016 | Doc-Nr: PUB / 5210096 / 000 / 02...
