Summary of Contents for Dynaudio S4-C65

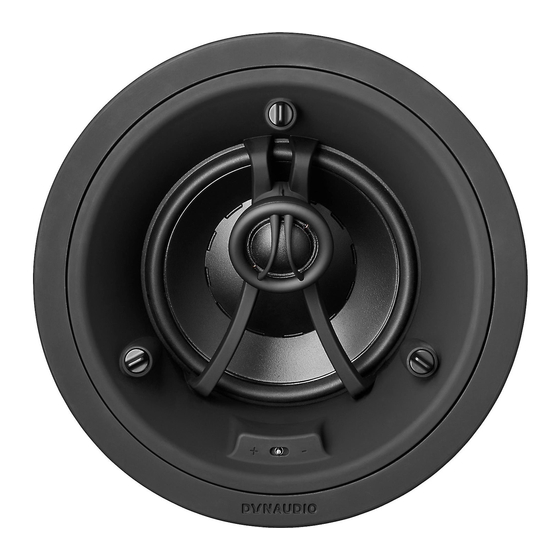

- Page 1 Studio Series Installation Manual S4-C65 S4-C80 S4-W65 S4-W80...
- Page 2 Dynaudio shall not be liable for damages to any other equipment or other items at the site of use, or any other damages whether incidental, consequential or otherwise. Dynaudio shall not be liable for any anticipated profits, any incidental or consequential damages, loss of time or other losses incurred by the purchaser in connection with the purchase, operation or use of the product.
- Page 3 Note: Square grilles are optionally available for Studio Series in-ceiling for the recycling of electrical and electronic equipment. By speakers. Contact Dynaudio directly or your local retailer/distributor for ensuring this product is disposed of correctly, you will help more information.
- Page 4 (plasterboard) thickness constraints. These dimensions are tabulated and illustrated in Diagram 2. Model Cut-out size Minimum Clear Depth Drywall (Plasterboard) thickness S4-C65 210 mm 152 mm X = 38 mm max / 7.8 mm min (8.25 in) (6.00 in) 1.50 in max / 0.31 in min S4-C80 260 mm...
- Page 5 Further information on Dynaudio back boxes can be found at dynaudio.com. Generic back boxes from alternative manufacturers can be used, or back boxes may be constructed on site. In either case, Studio Series speakers require a 22 Litre (0.8 ft3) minimum back box...
-
Page 6: Speaker Positions
3. Speaker Positions In-wall Speakers: If a pair of Studio Series in-wall speakers are required for stereo The appropriate positions for Studio Series speakers within audio reproduction, they should ideally be located between 3 m the installation space will depend on their application. Position (10 ft) and 5 m (16.5 ft) apart and a similar distance from the guidelines and diagrams for Studio Series in-ceiling and in-wall listening area. - Page 7 In-ceiling Speakers: one to nearby walls should ideally be similar. Aim to avoid corner positions if possible for any speaker installation. If Studio Series in-ceiling speakers are utilised in multi-channel installations, the front (left and right) and centre speakers should Note: The directional characteristics of Studio Series in-ceiling speakers be located approximately 0.5 m (20 in) in front of the plane of can be optimised by rotating the Speaker Unit within its Installation Frame...
-
Page 8: In-Ceiling Speaker Installation
5 m. Your local • In-ceiling speaker installation is completed by fitting the Dynaudio retailer or distributor will be able to offer advice on speaker grille. The grille is secured magnetically and requires no cable selection if required. - Page 9 Diagram 5 – Rotate speaker to adjust bass/mid driver directivity Tilt to adjust tweeter directivity Switch to adjust tweeter level Push to click. Three locations. Rotate clockwise to lock. Rotate counter-clockwise to release.
-
Page 10: In-Wall Speaker Installation
5 m. Frame, in-wall speaker installation is completed by fitting Your local Dynaudio retailer or distributor will be able to offer advice on the grille. The grille is secured magnetically and requires no speaker cable selection if required. - Page 11 Diagram 6 – Switch to adjust tweeter level Push to click. Four locations. Rotate clockwise to lock. Rotate counter-clockwise to release.
-
Page 12: Specifications
Rectangular Rectangular Grille attachment Magnetic Magnetic Magnetic Magnetic Grille finish Paintable Paintable Paintable Paintable Certifications CCC, CE CCC, CE CCC, CE CCC, CE Environmental RoHS RoHS RoHS RoHS Dynaudio A/S, 8660 Skanderborg, Denmark www.dynaudio.com Document Part No. 307001016932 Rev F...
