Package Contents

The following items should be included:
• The ADSL2/2+ Wireless VPN Firewall Router Unit
• 1 Cat-5 Ethernet (LAN) cable
• 1 RJ-11 (ADSL) cable
• Power Adapter
• Quick Installation Guide
• CD-ROM containing the on-line manual.
If any of the above items are damaged or missing, please contact your dealer
immediately.

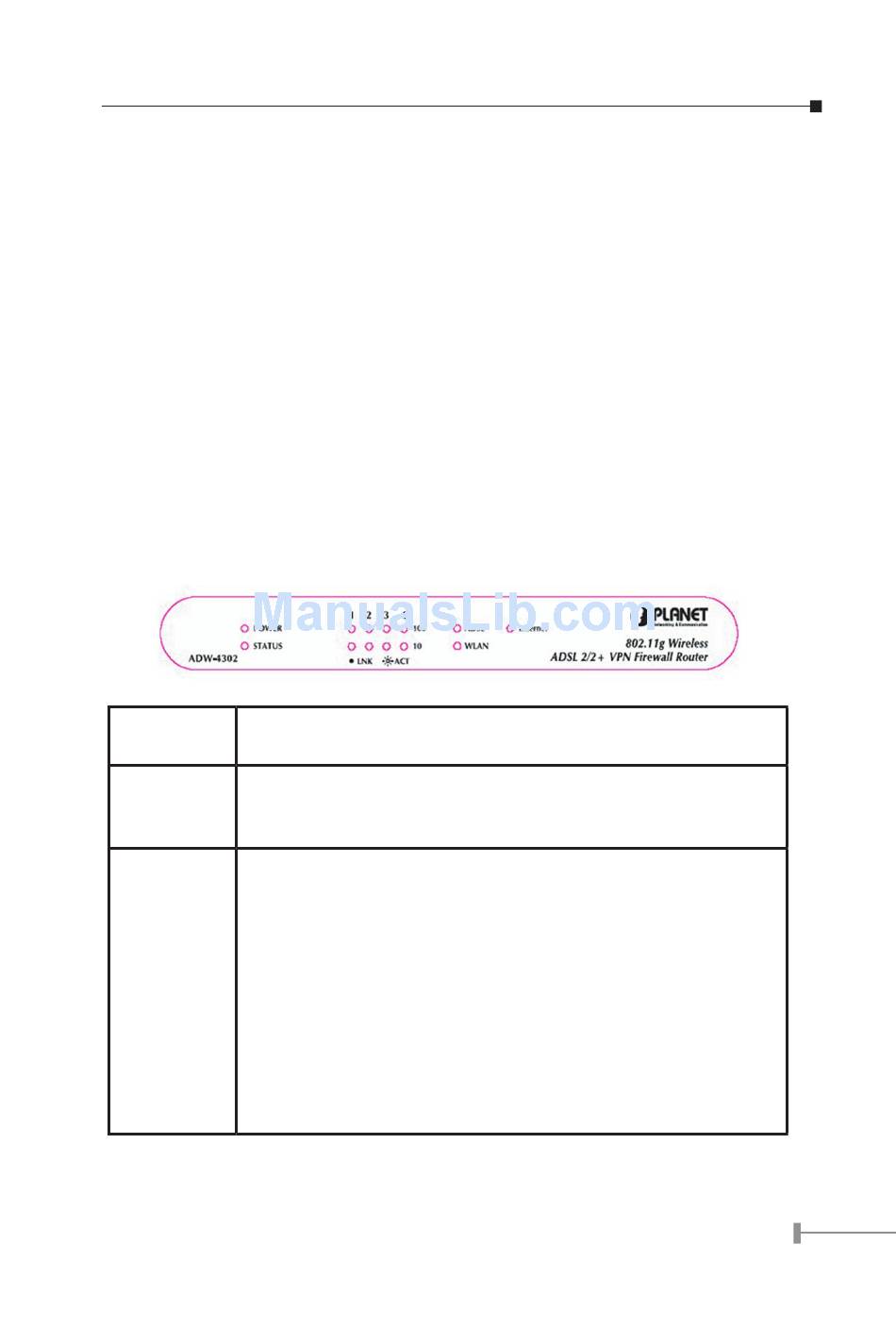

Physical Details

Front-mounted LEDs
PWR LED
On - Power on.
Off - No power.
STATUS
Off - Normal operation.
LED
Blinking - This LED blinks during start up, and during a Firm-
ware Upgrade.
LAN
For each port, there are 2 LEDs, to indicate the connection speed
(10Base-T or 100Base-T) of each port.
• 100 LNK/ACT - This will be ON if the LAN connection is us-
• 10 LNK/ACT - This will be ON if the LAN connection is using
• If neither LED is on, there is no active connection on the
ing 100Base-T, and Blinking if data is being transferred via
the corresponding LAN port.
10Base-T, and Blinking if data is being transferred via the
corresponding LAN port.
corresponding LAN port.
1

Advertisement

Table of Contents
loading

Related Manuals for Planet ADW-4302

Summary of Contents for Planet ADW-4302

  • Page 1: Package Contents

    Package Contents The following items should be included: • The ADSL2/2+ Wireless VPN Firewall Router Unit • 1 Cat-5 Ethernet (LAN) cable • 1 RJ-11 (ADSL) cable • Power Adapter • Quick Installation Guide • CD-ROM containing the on-line manual. If any of the above items are damaged or missing, please contact your dealer immediately.

  • Page 2: Installation Procedure

    WLAN LED On – Wireless enabled. Off - No Wireless connections currently exist. Flashing - Data is being transmitted or received via the Wire- less access point. This includes “network traffic” as well as user data. ADSL On - ADSL connection is available. Off - No ADSL connection.
  • Page 3 1. Choose an Installation Site Select a suitable place on the network to install the ADW-4302v2. For best Wireless reception and performance, the ADW- 4302v2 should be positioned in a central location with mini-  mum obstructions between the ADW-4302v2 and the PCs. NOTE: Also, if using multiple Access Points, adjacent Access Points should use different Channels.
  • Page 4 • Internet Explorer V5.01 or later Preparation Before attempting to configure the ADW-4302v2, please ensure that: • Your PC can establish a physical connection to the ADW-4302v2. The PC and the ADW-4302v2 must be directly connected (using the Hub ports on the ADW- 4302v2) or on the same LAN segment.
  • Page 5 Common Connection Types Type Details ISP Data required Dynamic Your IP Address a) ADSL parameters (VPI and VCI) IP Address is allocated may be required, if they cannot be automatically, detected automatically. when you con- b) Some ISP’s may require you to use nect to you ISP.

  • Page 6: Home Screen

    If you still have problem on connecting to your ISP, please check the user’s manual on the bundled CD for detail configuration. If you have any other questions, please contact the Dealer where you purchased this product or you can contact PLANET directly at the following email address: support@planet. com.tw...
  • Page 7 This page is intentionally left blank...
  • Page 8 This page is intentionally left blank...
