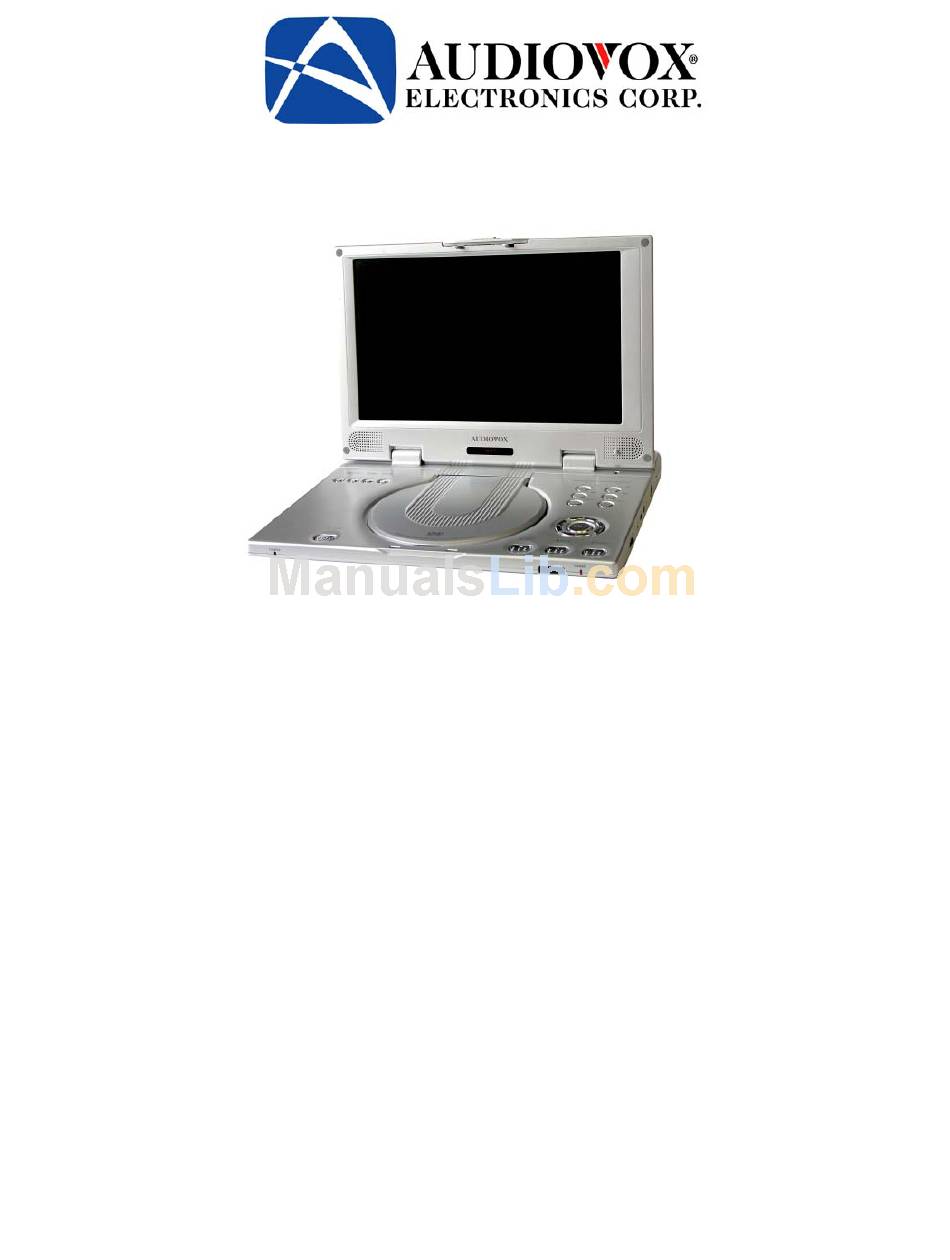

- Page 1 Model D2010 PORTABLE DVD PLAYER WITH 10.2" LCD MONITOR Owner’s Manual...
- Page 2 Introduction Thank you for choosing the D2010 portable DVD Player. The unit applies the latest state of the art electronics and is designed for use in hotels, offices, vehicles or your home. The D2010 Player is constructed to provide years of reliable, trouble-free service, and is compact so that you can take it with you anywhere and is designed for quick and easy setup.
-
Page 3: Introduction
- 2 -... -
Page 4: Cautions And Warnings
To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions. Service should only be performed by qualified service personnel. Before Using the D2010: 1. Heed All Warnings. 2. Please Read And Follow All Instructions As Written In This Manual 3. - Page 5 Cautions and Warnings When you move it from a cold location to a warm location, wait for about one hour before operating the DVD Player, or remove the disc and leave the DVD Player turned ON until the moisture evaporates. 5.
-
Page 6: Table Of Contents
Table Of Contents Introduction---------------------------------------------------------------------------------------------- Cautions and Warnings------------------------------------------------------------------------------ Table of Contents--------------------------------------------------------------------------------------- Main Features-------------------------------------------------------------------------------------------- Screen and System Panel Controls-------------------------------------------------------------- Front Panel Controls------------------------------------------------------------------------------------ System Side Panel Controls------------------------------------------------------------------------ Right Side Panel Controls------------------------------------------------------------------------------ Left Side Panel Controls-------------------------------------------------------------------------------- Remote Control----------------------------------------------------------------------------------------- System Connections---------------------------------------------------------------------------------- Power Supply Connection----------------------------------------------------------------------------- Connecting to a TV-------------------------------------------------------------------------------------- Connecting to an Amplifier---------------------------------------------------------------------------- Connecting to a Digital Ready Amplifier------------------------------------------------------------ System Preparations----------------------------------------------------------------------------------... -
Page 7: Main Features
Main Features High Quality Audio and Video LCD (Liquid Crystal Display) Screen 10.2” Color LCD screen. Special Functions Supports Multi-angle, Multi-language and Parental-lock features. AV Input An external Audio/Video signal input can be connected to the AV input jacks Audio Output Audio output jack for connection to an external amp or powered speakers. -
Page 8: Screen And System Panel Controls
Screen and System Panel Controls Front Panel Controls OPEN button Press to open the disc tray cover. Disc Tray Cover When the disc is loaded gently press the cover to close it. PLAY button Press to begin playback. Remote Sensor IR receiver for remote control operation. -
Page 9: System Side Panel Controls
System Side Panel Controls 21. PICTURE button Press to enter the brightness, color contrast adjustment mode. Infrared headphone emitter power ON or OFF, and selecting the LCD display ON or OFF. Right Side Panel Controls 1. Volume Control Used to adjust the headphone and speaker volume. -
Page 10: Remote Control
Remote Control Remote Control 1. PWR button Press to turn the unit ON or OFF. 2. INFO button Press to display detailed playback information. Keep pressing the button to display additional information or to turn the information display OFF. 3. TITLE button Press to display titles if present on the disc. - Page 11 Remote Control NEXT button Press to go to next Track or Chapter. 10. SUBT button When a DVD with subtitles is playing, press to select a subtitle language or to turn subtitles OFF. 11. Angle button Press to access various camera angles, if the DVD disc contains multiple camera angles.
-
Page 12: System Connections
System Connections Note: Before plugging the power cord into an AC outlet, make sure that all other connections have been made as described below. Power Supply Connection Connect the supplied adapter to the side of the DVD player in the jack marked “DC 12V IN”. -
Page 13: Connecting To An Amplifier
System Connections Connecting to an Amplifier The DVD player can be connected to an amplifier. Plug the supplied A/V cable into the audio jack on the right side of the unit and plug the other end into an audio input on the amplifier (White= left, Red=Right). -
Page 14: System Preparations
System Preparations Using of Remote Control 1. Remove the battery holder. Refer to the figure above. 2. Insert the battery into the battery holder (observe correct polarity) and insert the battery holder into the remote. For best results, aim the remote directly at the player’s IR receiver window, within 15 feet, and angles not exceeding 60 degrees. -
Page 15: Disc Formats Supported By This Player
System Preparations Disc Formats Supported By This Player DISC LOGO DVD-R CD-R CD-RW The disc maker specifies the operation of some DVD discs. Please refer to the instruction manual with the disc. Care of Discs Do not touch the playing surface of the disc. -
Page 16: Power Supply
Power Supply Rechargeable Battery Pack Your portable DVD player comes with a lithium ion rechargeable battery that attaches to the rear of the DVD player. Charge the battery fully before initial use. Charging time is normally about 5 hours. A fully charged battery delivers about 2-1/2 to 3 hours of use, but playing time varies from disc to disc. -
Page 17: Attaching The Battery Pack
Power Supply Attaching the Battery Pack Refer to the following steps for attaching the Battery Pack: 1. Place the DVD Player on a soft and smooth surface with the bottom of the unit facing UP (chassis up see the Fig.1). 2. -
Page 18: Detaching The Battery Pack
Power Supply Detaching the Battery Pack If the DVD Player is not going to be used for long periods of time, the battery pack should first be fully charged and the Battery Pack should be detached. When the DVD Player is turned OFF, the DVD Player is still consuming some power in STANDBY mode. -
Page 19: Using The Dc Adapter
Power Supply Using the DC Adapter To use the supplied Vehicle DC Adapter, disconnect the Battery pack and connect the Vehicle Power Plug Adapter into the DVD Player’s Power Jack and the other end into the Vehicle DC outlet (Cigarette Lighter Socket) as shown below. Quick Tips: •... -
Page 20: Installing The System Onto Vehicle Seat Back
Installing The System Onto Vehicle Seat Back Take one of the supplied straps from the carrier bag. Connect the latch to one of the upper metal rings on the mounting bag. Connect the “S” hook to the other upper metal ring and place the loop over the headrest. Adjust the strap until the bag is firmly secured. -
Page 21: Installing The System Between Vehicle Seats
Installing The System Between Vehicle Seats Take one strap and connect the latch to the upper metal ring on the left side of the bag. Attach the “S” hook to the same ring after looping the strap around the headrest of the driver’s seat. (Passenger Seat). -
Page 22: Using Headphones
Using Headphones Using Wired Headphone Connect headphones into the headphone Jack on the left or right side of the unit. Quick Tips: Excessively loud volume could damage your hearing. Turn down the volume before you connect the headphones, and then raise the volume to a comfortable level. -
Page 23: Dvd Player Operation
DVD Player Operation Preparation Turn on the player’s power by switching the POWER switch on the side of the player to “ON”. Unlatch the LCD panel and lift it up. Press the OPEN button on front panel to open the disc cover. Load disc with the label facing up. -
Page 24: System Setup
System Setup You can customize the set up menu to your own preference. Press the “SETUP” button on the remote control to display the setup menu. The menu will include “General Setup”, “Speaker Setup”, “Dolby Digital Setup”, “Video Setup”, and “Preference Setup”. Press the direction button ( ) on the remote control to select a category. - Page 25 System Setup Captions You can choose captions ON or OFF during playback. Screen Saver When activated, the unit will go into screensaver mode if the same image remains on the screen for 3 minutes. Last Memory Select on, and the unit will resume playback from the point where playback was stopped.
- Page 26 System Setup Preference Page Audio, Subtitle, Disc Menu This setting allows you to hear or read the subtitles of a DVD in your choice of English, Spanish and French etc. if the disc contains multiple languages. Parental DVD discs equipped with the child lock function are rated according to their contents and settings vary from disc to disc.
-
Page 27: Playback Functions
Playback Functions Forward and Reverse Scan Press the buttons to Forward or Reverse scan a disc during playback (x2, x4, x8, x16 x32). Slow Forward Press the SLOW button to Slow Scan a track on a disc during playback (1/2, 1/4,1/8, 1/16). - Page 28 Playback Functions Search by time During DVD disc playback, press the GOTO button on the remote control once, there will be a menu displayed on the screen. Use the direction buttons to select the desired item and press the Enter button. Select Title or Chapter and use the number buttons to input the desired title or chapter number.
- Page 29 Playback Functions Playing a JPEG JPEG is a common picture format. Hundreds of pictures can be stored in a disc in this format and viewed on the LCD screen. Normal Playback Load a JPEG disc into the DVD Player. After reading the disc, the DVD Player will display the JPEG file on the left side of the screen and the preview picture on the right side of the screen.
-
Page 30: Troubleshooting
Troubleshooting Symptom • Make sure the AV IN/OUT switch on the right side of the player unit is in the OUT position for standard play. • Make sure the disc door is completely closed. • Make sure a disc is loaded. •... -
Page 31: Specifications
Specifications Screen resolution TFT screen size Laser Wavelength Video System Frequency Response Audio Signal-to-Noise Audio distortion + noise Channel Separation Dynamic Range Audio Out Analog Audio Out Video Out Video Out Power AC100-240V 50/60Hz Power Consumption 10.51in (267mm)×8.38in (213mm) 7.16in (182 mm)×1.22in (31mm) Dimension w (o) battery About 3.30/2.71lbs (1.5/1.23 kgs) Weight w/o battery... -
Page 32: Day Limited Warranty
