RT510 THERMOSTAT - FULL USER MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Salus RT510

Summary of Contents for Salus RT510

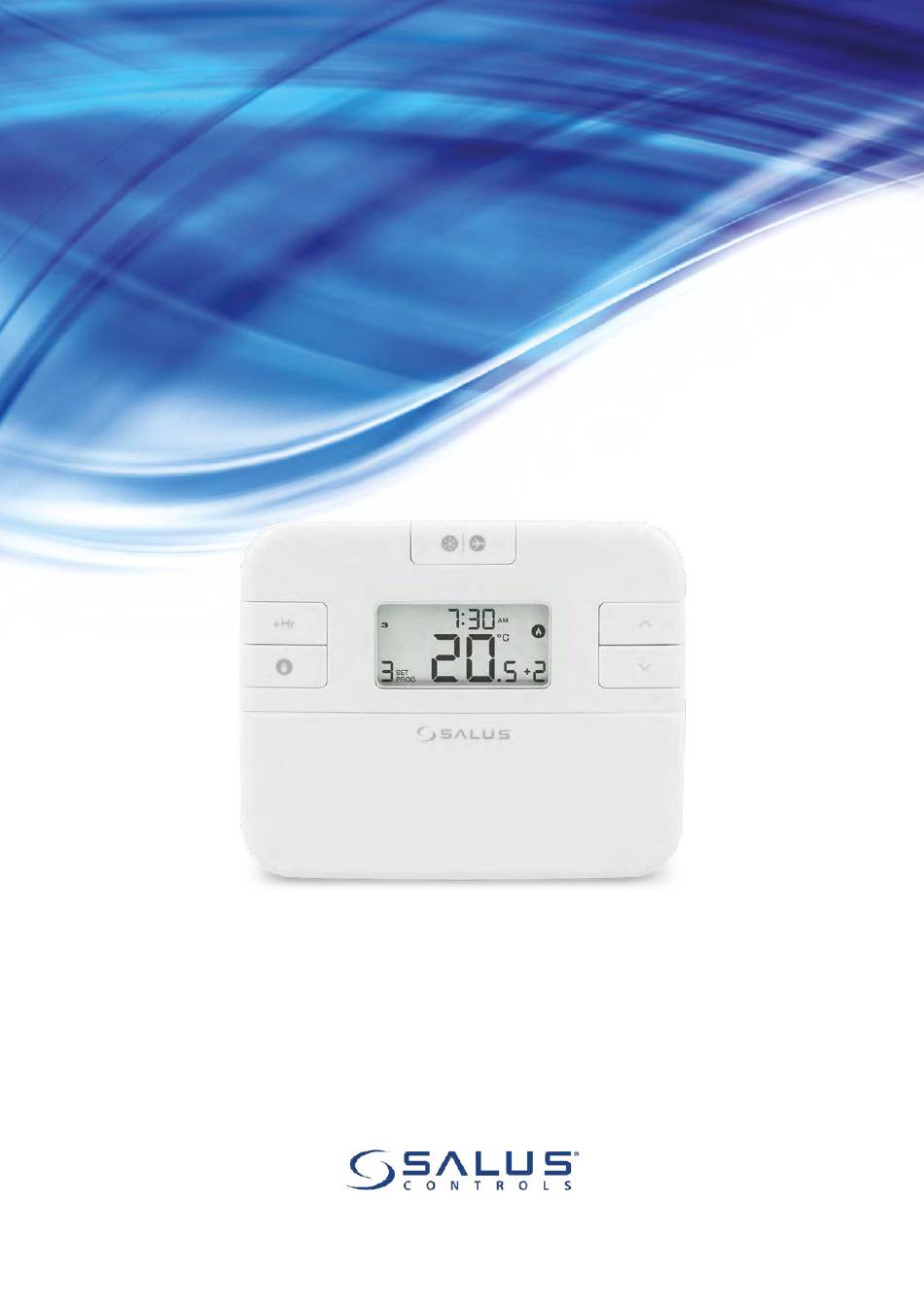

  • Page 1 RT510 THERMOSTAT - FULL USER MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ................................4 1.1 Product Compliance ..................................4 1.2 Safety Informations ..................................4 2. Product Overview ...............................5 2.1 Package content ....................................6 2.2 Proper thermostat location ................................6 2.3 Wall mounting ....................................7 3. Connection description ...............................8 4. Before you start (first power up) ..........................9 4.1 LCD icon description ..................................9 4.2 Button description ..................................9 4.3 First power up sequence and configuration ..........................10...

  • Page 4: Introduction

    1. Introduction 1.1 Product Compliance This product complies with the essential requirements and other relevant provisions of Directives 2014/53/EU and 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.saluslegal.com. 1.2 Safety Informations •...

  • Page 5: Product Overview

    2. Product Overview The RT510 room thermostat simply switches the heating system on and off as necessary. It works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting, and switching it off once this set temperature has been reached.

  • Page 6: Package Content

    2.1 Package content 1) RT510 thermostat 2) 2x AA batteries 3) Short instruction 4) Mounting screws 2.2 Proper thermostat location Please note: The ideal position to thermostat mounting is about 1,5m under floor level far from heating or cooling sources. Thermostat can’t be exposed to sunlight or any extreme conditions like for example draft.

  • Page 7: Wall Mounting

    2.3 Wall mounting Content used for thermostat mounting: RT510 front Backplate Wiring configuration (two screws at the bottom) How to mount the thermostat to the wall: Fix the backplate Align the front housing Fit the front housing. to the wall.

  • Page 8: Connection Description

    3. Connection description AC 230V AC 230V RT510 RT510 2 x AA 2 x AA AC 230V RT510 2 x AA 3 (1) A Legend: Symbols explanation: Boiler - Boiler connection* L, N - power supply 230V - Boiler’s contacts for ON/OFF...

  • Page 9: Before You Start (First Power Up)

    4. Before you start (first power up) 4.1 LCD icon description 1. Day of the week 9. Heating Mode On 2. Program number 10. Manual Mode On 3. Program indicator 11. Holiday Mode On 4. Settings 12. Frost Protection Mode On 5.

  • Page 10: First Power Up Sequence And Configuration

    4.3 First power up sequence and configuration To power up the thermostat you have to put the batteries inside. Then thermostat will display following sequence: TEST / PAIRING TEST / PAIRING SELECT SELECT Remove the protection foil and insert After that, thermostat will 2xAA batteries by removing front automatically power up and it will cover.

  • Page 11: User Settings

    5. User settings 5.1 Time settings In this chapter you can set time and day of the week. RT510 thermostat has no date settings. You can choose the day of the week (from monday to sunday). Please follow the steps below:...

  • Page 12: Operating Modes

    6. Operating modes RT510 thermostat offers few operating modes: - Manual mode - temperature setpoint is set by user manually and it’s maintained until user change the setpoint again or switch to another mode. - Schedule mode - thermostat works according to set schedule by user. It can be programmed in 5+2 (MON to FRI and weekend separately) mode or daily (every day of the week separately) mode.

  • Page 13: Schedule Mode

    6.2 Schedule mode In this mode, user can set the schedules for thermostat (temperature setpoints for specific periods of time). There are two types of schedules: 5/2 (working days+weekends) and 7d (7 idividual schedules for each day separately). Schedule type can be choosen by parameter d04 (please refer to Installer mode section).

  • Page 14: Temporary Override Mode

    6.3 Temporary override mode This function is available only in schedule mode (AUTO). If a new setpoint temperature will be set during the schedule - it will be maintained until next time interval starts according to programmed schedule. TEST / PAIRING TEST / PAIRING SELECT SELECT...

  • Page 15: Frost Protection Mode

    6.5 Frost protection mode In this mode the setpoint temperature is automatically set to frost setpoint to prevent pipes from frosting. If the room temperature is lower than the frost setpoint, frost protection will be enabled. To set frost protection mode follow steps below: TEST / PAIRING TEST / PAIRING SELECT...

  • Page 16: Holiday Mode

    6.6 Holiday mode In this mode the “frost protection” temperature is maintained for a specific number of days. To set the holiday mode please follow steps below: 3 sec TEST / PAIRING TEST / PAIRING SELECT SELECT button to set the Hold down button for 3 number of days for holiday mode.

  • Page 17: Temperatures Outside Operating Range

    6.8 Temperatures outside operating range Temperatures below 10 °C are displayed without the leading ‘0’ . Temperatures exceeding the measurable range will be indicated by ‘HI’ for temperatures above the upper limit, and ‘LO’ for temperatures below the lower limit, as shown in the images. 6.9 Low battery detection Battery voltage is checked every minute.

  • Page 18: Installer Mode

    7. Installer mode To enter installer parameters please follow steps below. Please refer to parameters table description before any changes. Use buttons to move up or down between all parameters. Every change/selection confirm by button. 3 sec TEST / PAIRING TEST / PAIRING SELECT SELECT...

  • Page 19: Factory Reset

    8. Factory Reset To RESET RT510 thermostat to it’s factory default settings please follow steps below: Press the RESET button once. You can use a paper clip. Your thermostat will be reset and will start up automatically. RESET SELECT...

  • Page 20: Cleaning And Maintenance

    9. Cleaning and Maintenance The RT510 thermostat requires no special maintenance. Periodically, the outer casing can be wiped clean using a dry cloth (please DO NOT use solvents, polishes, detergents or abrasive cleaners, as these can damage the thermostat). There are no user serviceable parts within the unit; any servicing or repairs could only be carried out by Salus Controls or their appointed agents.

  • Page 21: Warranty

    11. Warranty SALUS CONTROLS warrants this product to be free from any defects in material or workmanship and to perform as specified for a period of five years from the date of installation. SALUS CONTROLS reserves the sole responsibility for breach of this warranty by repairing or replacing the defective product. This product includes software that matches the distributor’s identification at the time of sale.
  • Page 22 SALUS Controls is a member of the Computime Group. Maintaining a policy of continuous product development SALUS Controls plc reserve the right to change specification, design and materials of products listed in this brochure without prior notice. Ver. 2 Issued: 10 II 2021 Soft version: 1.7...
