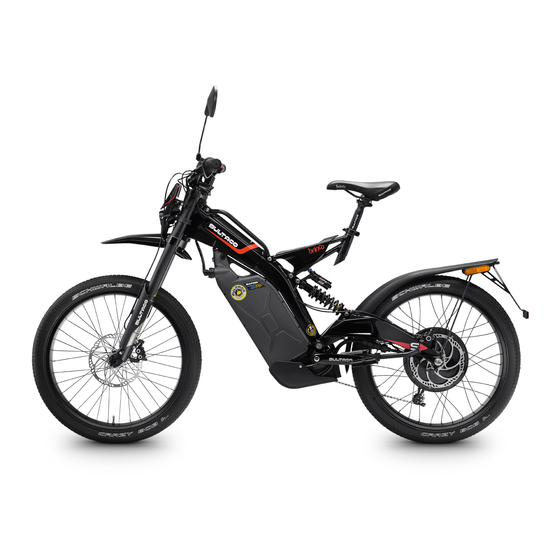

Electric moto-bike
Hide thumbs Also See for brinco:
Table of Contents

Advertisement

Quick Links

See also: User Manual
USER MANUAL
THE
ELECTRIC
MOTO-BIKE

Advertisement

Table of Contents
loading

Related Manuals for Bultaco brinco

Summary of Contents for Bultaco brinco

  • Page 1 USER MANUAL ELECTRIC MOTO-BIKE...
  • Page 2 Welcome bultaquista First of all, thank you for buying a Bultaco. We are proud to have With Brinco, Bultaco proposes a whole new way to understand your confidence. The new Brinco is a new and groundbreaking and live the two wheels. A striking combination between the...

  • Page 3: User Manual

    - Introduce, without notice and without disclosing the reasons, changes in For your information, the applicable laws may include some of full advantage of your Brinco as keep it as good as new. That is why we the technical data, maintenance services, colors, design, equipment the following items: recommend using original parts /accessories and getting them fitted at...

  • Page 4: Table Of Contents

    INDEX 1. GENERAL SAFETY 3.5. Gear shift / Transmission 3.6. Stopping your Brinco 1.1. General warnings 3.7. Instructions for Use 1.2. Operational Safety 3.8. Directions for Parking 1.3. Locating Power Components 4. MAINTENANCE 2. VEHICLE DESCRIPTION 4.1. Adjusting the Rear Suspension: Shock Absorber 2.1.
  • Page 5 GENERAL SAFETY...

  • Page 6: General Warnings

    OR OTHER PARTIES. Your Brinco is not a competition vehicle and it is not designed for such use. Thus, its use in competition will mean the loss of the warranty provided by Bultaco Motors S. A.
  • Page 7 VEHICLE HAS BEEN SWITCHED OFF. Their handling (except for assembly / disassembly and charging the battery and engine disconnection to handle the rear wheel) must only be carried out by a Bultaco Motors S.A. Dealer. Any damage to any of the power components must be repaired immediately by a Bultaco...
  • Page 8 VEHICLE DESCRIPTION...

  • Page 9: Presentation

    Thanks to its impressive torque of 60Nm, weighing just 39 kg. and with a range of up to 100 km, the Brinco o ers pure fun. Brinco is 100% Bultaco enthusiasm for all ages. Brinco is...

  • Page 10: Location Of Components

    2.2. Location of Components Three-phase Permanent Magnet Motor Battery safety lock [See section 2.9.] [See section 3.2.1.] The battery has a single key safety lock for each vehicle. Mudguard The battery will be attached to the chassis and the key is required to remove it.

  • Page 11: Handlebar Controls

    Check the brake position properly. The rear brake lever is on the left handlebar grip. Throttle control Always make sure that the accelerator returns correctly to its initial position when you release it after accelerating before switching ON your Brinco. Specific element for homologated version.

  • Page 12: Dashboard

    Speedometer (km/h - mph) Warning Indicator [See section 2.5] [See section 2.5] This light flashes when you turn on your Brinco and testing Driving mode. ECO - SPORT - TOUR is being performed. Once testing has finished, the light will [See section 2.5]...

  • Page 13: Dashboard Configuration

    2.5. Dashboard Configuration COMMUTATION KM/H - MPH CHANGING DRIVING MODE ODOMETER - TRIP 1- TRIP 2 SUMMARY OF FEATURES This option can be changed by pressing the “MODE” button Press the “MODE” ECO MODE TOUR MODE SPORT MODE DASHBOARD BUTTONS with a long press for more than 4 seconds until the display and “SET”...

  • Page 14: Power Control Button

    Once the cruise power is selected it will be set and displayed on the dashboard display - PRESSING ANY OF THE DO NOT CHANGE ANY OF THE IDENTIFICATION NUMBERS OF until Power Control is turned o . YOUR BRINCO NOR BREAK THEIR SAFETY SEALS, OTHERWISE YOU BRAKE LEVERS WILL LOSE YOUR WARRANTY.

  • Page 15: Technical Specifications

    2.8. Technical Specifications BRINCO R BRINCO R-E BRINCO C BRINCO S BRINCO R BRINCO R-E BRINCO C BRINCO S Brushless / Permanent magnets / AC / On rear wheel Handlebars Sport – 760 mm Touring – 730 mm Motor Built-in self-protection and diagnostic system Front brakes Hydraulic - Disk Ø...

  • Page 16: Dimensions

    2.9. Dimensions BRINCO R BRINCO R-E BRINCO C BRINCO S Release angle Width 770 mm 735 mm Distance between 1.200 mm 1.185 mm wheel centers Length 1.900 mm 1.885 mm 1.830 mm SUBCHASSIS STANDARD: Max 1.164,2 - Min 1.061 mm SUBCHASSIS STANDARD: Max 1.114,2 - Min 1.011 mm...
  • Page 17 GENERAL OPERATION...

  • Page 18: Prior Checks

    Check the battery charge level on the dashboard. [See section 2.4] To make sure your Brinco is ready for use, you must perform the following checks: If after reading these instructions you still have questions, contact your Bultaco Motors S.A.

  • Page 19: Battery Charge

    3.2. Battery Charge Connect the Bultaco original charger to the battery and the power outlet (240 V AC 50Hz / 110 V AC 60Hz). Remember ALWAYS CHARGE THE BATTERY BEFORE REMOVING THE BATTERY TO REASSEMBLE THE BATTERY, IF YOU WANT TO CHARGE YOUR BATTERY WITHOUT REMOVING IT FROM...
  • Page 20 To optimise the battery life its recommended to maintain full charge when not in use. seconds. Do not forget to turn o or unplug the charger after use. To do this you have to We recommend that the Brinco battery is left connected to the charger if is not going to press the button for 2-3 seconds and disconnect it from the network.
  • Page 21 Time failure Regulating failure 10-14 Final charge / charge conservation Temperature failure TROUBLESHOOTING Error number Procedure 1, 2, 3, 4 Check battery and battery wiring 6, 11-13 Ask for the charger to be checked at your Bultaco Motors S.A. Dealer...

  • Page 22: Starting Your Brinco

    [See section 2.4] , you can speed up and enjoy the Brinco ride. 2. When you turn the system on your Brinco will perform a test and an intermittent warning light will flash on the dashboard. Clarification: If the power button is ON, the warning light will be illuminated permanently and you must...

  • Page 23: Starting Card / Wristband Copy

    THE PHYSICAL LIMITS OF THE BRINCO, assistance from the engine incorporated into the rear wheel. THE POWER WILL BE TEMPORARILY We will provide you with a Brinco Master card. This card allows you to make up to 10 card/ DISCONNECTED UNTIL THE SYSTEM wristband copies.

  • Page 24: Gear Shift / Transmission

    3.5. Gear shift / Transmission 3.6. Stop your Brinco To get the most out of pedalling, your Bultaco Brinco has a transmission comprised of a planetary low range gearbox and a 1. Release the accelerator and brake the vehicle until it stops.

  • Page 25: Riding Instructions

    If the warning light flashes, remember to reduce the level of performance demand and assist the Brinco by pedalling before the When riding, the electrical components are subjected to maximum demand that will light becomes a continuous one, which is when the self-protection system disconnects the power.
  • Page 26 MAINTENANCE...

  • Page 27: Adjusting The Rear Suspension: Shock Absorber

    Towards + Increases compression (hard) Towards - Decreases compression (soft) Do not try to remove the shock absorber. Visit a Bultaco Motors S.A. Dealer if it does not operate normally.. Damage caused by misuse or removal will void the warranty.

  • Page 28: Adjusting The Front Suspension: Fork

    4.2. Adjusting the front suspension: Fork Rebound adjustment valve Preload adjustment nut The front fork compresses under load and rebounds to recover its entire length. The RUNNING-IN PERIOD: 20 HOURS OF RUNNING-IN ARE REQUIRED FOR A NEW rebound dampening (or bounce) is the setting that determines how quickly or slowly the FORK, IT WILL RUN MORE SMOOTHLY fork rebounds.

  • Page 29: Brakes

    4.3. Brakes Before the first use of your Brinco you should check the condition of both brakes. First, carefully do some brake tests away from normal tra c, on a flat and non-slippery surface. Increase the brake power, little by little.

  • Page 30: Wheels And Tyres

    SUGGESTED PRESSURE: Make sure that the spoke tension is correct since that can cause unstable behavior. BRINCO R / R-E / C: 1,8 BAR front – 2,2 BAR rear FOR YOUR OWN SAFETY GO TO A BRINCO S: 2,2 BAR front – 2,5 BAR rear...
  • Page 31 Remove the rear side mirror assembly from the handlebar. BE CAREFUL BECAUSE AS YOU REMOVE Turn your Brinco upside down and place the seat and handlebars on a flat surface. THE AXLE, THE WHEEL WILL START TO Place a wooden block or similar under the handlebar grips to prevent the display COME LOOSE.
  • Page 32 - DO NOT REMOVE THE WHEEL IMMEDIATELY AFTER A JOURNEY: THE ENGINE GETS HOT AND YOU COULD GET BURNT. YOUR BRINCO IS TURNED OFF. DISCONNECTED. - THE HEX WRENCH SUPPLIED BY BULTACO IS FOR EMERGENCY USE IN CASE OF A PUNCTURE DURING A JOURNEY. REAR WHEEL DISASSEMBLING REAR WHEEL DISASSEMBLING...

  • Page 33: Transmission: Chain And Bottom Bracket

    Before cleaning, check that all electrical components are properly connected and BE CAREFUL WITH THE ELECTRICAL COMPONENTS WHEN WASHING YOUR the vehicle is turned o . NEVER wash your Brinco with the battery removed VEHICLE. from the vehicle. DO NOT use pressure washer or steam appliances that may cause the water to penetrate the seals, bearings and power components.

  • Page 34: Maintenance Table

    Mirror bracket with handlebar TORX M5x0.8 8.8 4.5-5.5 Nuts and bolts Check all the recommended tightening torques. Mirror with bracket NUT M8x1.25 15-18 Hardware * Need to use a grease recomended by Bultaco. For more information, contact with your Dealer.

  • Page 35: Troubleshooting

    TROUBLESHOOTING...
  • Page 36 5.1. Troubleshooting In spite of the fact that each Brinco has been carefully inspected prior to leaving the factory, there may be circumstances beyond our control that may cause some kind of failure. In the event that your Brinco su ers a problem, we have provided the following indications that may help you though it.
  • Page 37 5.2. The Ultimate Brinco 5.3. Tips from our riders Power Control: Overdrive: Dual traction: On this sample route, on Power Control lets you maintain Use the Overdrive when riding at Although the pedalling and motor which you cover a variety...

  • Page 38: 6. Warranty

    WARRANTY...

  • Page 39: Warranty Exclusions

    The guarantor is the company Bultaco Motors S. A., with registered o ces at Calle Gobelas, 13, 28028 Madrid, Spain. The guarantee applies only to Moto-Bikes have been initially placed on the market through Bultaco Motors S.A. Dealers of each country, meeting There are operations that cannot be covered by the maintenance plan because its frequency will vary depending on the conditions the regulatory requirements of each country.
  • Page 40 - If the Moto-Bike is altered with or overloaded. - If repairs are not made in time or if not performed according to the specifications of Bultaco Motors S.A. and the damage was caused by a delay to repair.

  • Page 41: Warranty Rights Of The Owner

    Bultaco Motors S.A. by this document ensures the end-user that the motorcycle manufactured by Bultaco Motors S.A. is free Bultaco Motors S.A. responds to the faults that are found during a term of two years from the delivery date, but if the lack of of defects and manufactured following the highest quality standards.
  • Page 42 bultaco.com...
